Popis produktu:
Product Highlights
? Tri-mode interface at each drive ports-12Gb/s SAS/SATA/ Gen 4.0 PCIe (NVMe)
? x8 PCIe Gen 4.0 host interface
? Hardware secure boot ready
? Universal Bay Management (UBM) management
? SFF-9402 compliant connector pin-out
? SED support for hardware encryption capable drives
? Redundant flash image for adapter availability
? Support for SAS tape devices and transport layer retries (TLR) for error handling
? RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD
? Broad operating support including Windows, Linux (open source), FreeBSD (open source), Mac and VMware
Ultrafast Transfer Speed
Unprecedented Performance
ARC-1686-8I/8X PCIe Gen 4.0 Cost-Effective RAID Adapters is built to deliver unprecedented performance, using only carefully, best-in-class components. These include the dual core Broadcom SAS3908, PCIe Gen 4.0 and tri-mode ROC.
Powerful Broadcom Tri-mode ROC Engine
At the heart of ARC-1686-8I/8X is the incredibly powerful Broadcom SAS3908 dual-core ARM A15 tri-mode ROC, giving effortless performance as desirable. It delivers storage interface PCIe Gen 4 NVMe, 12Gb/s SAS, 6Gb/s SATA, and the security of data protection. Damage in a software RAID is considered as the consumption of massive computation and memory bandwidth on the host. The ARC-1686-8I/8X hardware RAID relieves the parity generation burden from the host and maximizes application processing performance.
High Bandwidth PCI-E 4.0 Support
To run the PCIe Gen 4.0 slots in Gen 4 speed, please must install the ROC which supports PCI Express 4.0. If you install the PCIe3.0 ROC, the PCI Express 4.0 slots will run only at Gen3 speed.
Higher bit rate - 16.0GT/s
Higher bandwidth per lane - 2GB/s
Higher efficiency - 98.5% encoding efficiency
8 Ports PCIe Gen 4.0 Cost-Effective RAID Adapters
The new generation ARC-1686-8I/8X family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.6 GHz dual core ROC processor and PCIe 4.0 interface for the most performance-hungry database and IT applications. Based on the ARM A15 PCIe 4.0 x8 to SAS/SATA/PCIe RAID on Chip (ROC) controller, the ARC-1686-8I/8X cost-effective tri-mode RAID adapters can offer both PCIe Gen 4.0 host and 12Gb/s SAS/SATA/PCIe (NVMe) tri-mode storage interfaces.
8 Ports PCIe Gen 4.0 Cost-Effective RAID Adapters

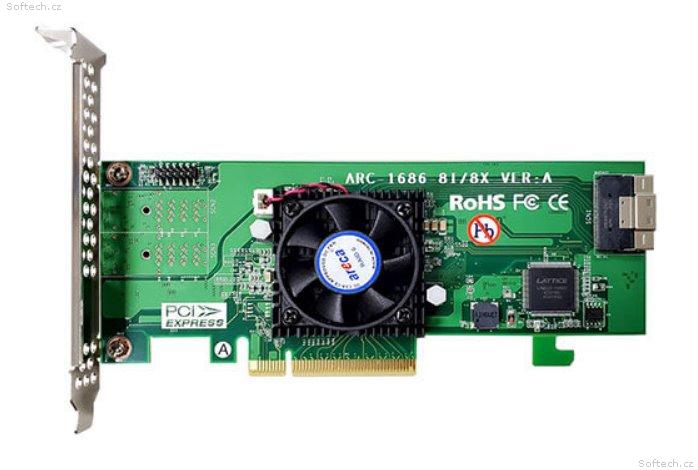

ARC-1686-8I
ARC-1686-8X
Form Factor
LP-MD2 : 64.41(H) x 167.65(L) mm
I/O Processor
Tri-Mode Dual Core ARM A15 1.6GHz ROC
Drive Connector
1 x SFF-8654 [x8]
2 x SFF-8644 [x4]
Drive Support
12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe)
Max Devices Support
32
Management Port
In-Band: PCIe
Enclosure Ready
SGPIO, SES2 and UBM
Operating Voltage
12V
Power Consumption
Approximately 10.2 Watts
RAID Levels
0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Tri ple) or JBOD
Software Package
Same as ARC-1886 Tri-Mode RAID Adapter
RAID Features
RAID level 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD
Multiple RAID selection
Configurable stripe size up to 1MB
Support HDD firmware update
Online array roaming
Online RAID level/stripe size migration
Online capacity expansion and RAID level migration simultane ously
Online volume set growth
Instant availability and background initialization
Support global and dedicated hot spare
Automatic drive insertion/removal detection and rebuilding
Support for native 4K and 512 byte sector SAS and SATA devices
Support UNMAP command
S.M.A.R.T. support
Multiple pairs SSD/HDD disk clone function
SSD automatic monitor clone (AMC)
SED support for hardware encryption capable drives
Operating Systems
Microsoft Windows
Red Hat Linux, Centos Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux
FreeBSD
XenServer
unRAID
macOS
VMware ESXi
Management Monitor
McRAID Storage Manager
Web-based GUI management utility
Graphical-based management utility
McRAID Utility
Command-line interface
API code support
CIM provider for VMware
McBIOS Configuration Utility
Legacy configuration utility
Flashable BIOS support
Monitors/Notification
SNMP
SMTP
enclosure management (UBM, SES-2 and SGPIO) ready
