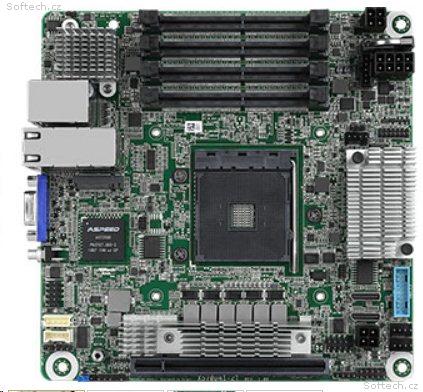

ASRock Rack X570D4I-2T AM4, 4x DDR4 ECC SODIMM, 8x SATA, 1x M.2(2280), 1x PCIe, 2x 10Gb LAN, IPMI, ITX

Specifications
MB Physical Status
Form Factor- mini-ITX
Dimensions- 6.7'' x 6.7'' (17.02 cm x17.02 cm)
Processor System
CPU- AMD Ryzen™ 3rd Generation Series Processors(Max 105W)
*We recommend using the CPU HS listed in the Cooler QVL section on our ASRock Rack website.
Socket- AM4 PGA 1331
Chipset- AMD Premium X570
System Memory
Capacity- 4 x DDR4 SO DIMM slots
Type- Dual Channel DDR4 memory technology, Support DDR4 ECC & non-ECC SO DIMM
"-Supports DDR4 ECC/UDIMM,up to 2933MHz
One DIMM:
1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s
Two DIMMs:
(2) 1R DIMM @2400 MT/s; (2) 2R/2DR DIMM@2400MT/s; Max. capactiry of system memory:64 GB "
Voltage- 1.2V
Expansion Slot
PCIe 4.0 x 16-PCIE7: Gen4x16 link (Matisse)*
*When use Picasso CPU, only PCIe3.0 x8
Storage
SATA Controller- AMD X570:8 x SATA3 by OCulink
M.2 slot-1 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s)*
*When use Picasso CPU, only PCIe3.0 x4
Ethernet
Interface- 10000/1000 /100 /10 Mbps
LAN Controller- 2 x RJ45 10GLAN by Intel® X550-AT2
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
Management
BMC Controller- ASPEED AST2500
IPMI Dedicated GLAN- 1 x Realtek RTL8211E for dedicated management GLAN
Features- Watch Dog
Graphics
Controller- ASPEED AST2500
VRAM- DDR4 16MB
Rear Panel I/O
VGA Port- 1 x D-Sub
USB 3.1 Gen2 Port- 2(Gen2)
Lan Port- RJ45:2+1(IPMI)
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
UID Button/UID LED- 1
Internal Connector
COM Header- 1
SATA DOM- 0
M.2- 1(M-key,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s)
*When use Picasso CPU, only PCIe3.0 x4
OCuLink-2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each)
*When use Picasso CPU, only PCIe3.0 x4
Auxiliary Panel Header- 1 (include Caseopen,sys_fault_LED, 2FLANLED) )
TPM Header- 1(13pin)
IPMB Header- 1
Buzzer- N/A
Fan Header- 3(4-pin Fan header)
USB 3.1 (Gen1) Header- 1 (support 2 USB 3.0)
USB 2.0 Header- N/A
Front Panel- 1 (RST, PWRBTN, HDDLED, PWRLED)
Speaker Header- 1(4pin)
SMBUS from BMC- 1
Power Connector- 8pin(DC-IN)+4pin(ATX)+4pin(HDD PWR)
ME/SPS Recovery- N/A
Clear CMOS- 1
PSU SMB Header- 1
Onboard LED
80 Debug Port LED- N/A
Fan Fail LED- 3
System BIOS
BIOS Type- 32MB AMI UEFI Legal BIOS
BIOS Features- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature- CPU/DDR temperature sensing
- MB/Card side temperature sensing
Fan- Fan Tachometer
- Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control
Voltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB
Environment
TemperatureOperation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
