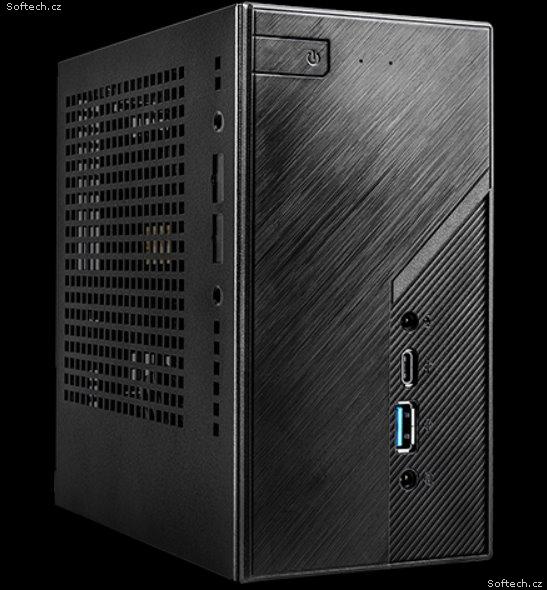

ASRock mini PC H470 1x LGA1200 (65W),2x SODIMM DDR4, M.2+2x 2,5 SATA, 1Gb LAN, HDMI, DP, DP via USB-C, VGA, 120W

DeskMini H470
CPU
- Supports 10th/11th Gen IntelCore™ Processors (LGA1200) (Max. TDP 65W)
Cooler
- Supports IntelCPU Cooler (Max. Height ? 46mm)
Memory
- Supports 2 x SO-DIMM DDR4-2933MHz, Max. 64GB (non-ECC)
Chipset
- IntelH470
Graphics
- HDMI (4K@30Hz)
- DisplayPort 1.4
- DisplayPort 1.4 (with USB Type-C Alt Mode)
- D-Sub
*
*
Supports up to 3 displays simultaneously
*
D-Sub is only supported with 10th Gen IntelCore™ Processors.
Audio
- 1 x Head Phone with MIC Jack, 1 x MIC-In (Realtek ALC233)
Front USB
- 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen2 Type-A
Rear USB
- 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A
*
Rear side supports USB Type-C Alt Mode
Storage
- 2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
- 1 x Ultra M.2 Socket (M2_1), support type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
*
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (Only supported with 11th Gen IntelCore™ Processors)
*
Supports IntelOptane Technology
Supports NVMe SSD as boot disks
LAN
- Gigabit LAN (IntelI219V)
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Chassis Intrusion Header (2-Pin)
- 1 x Audio Header (4-Pin)
Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
Dimension
- 155 x 155 x 80 mm (1.92L)
