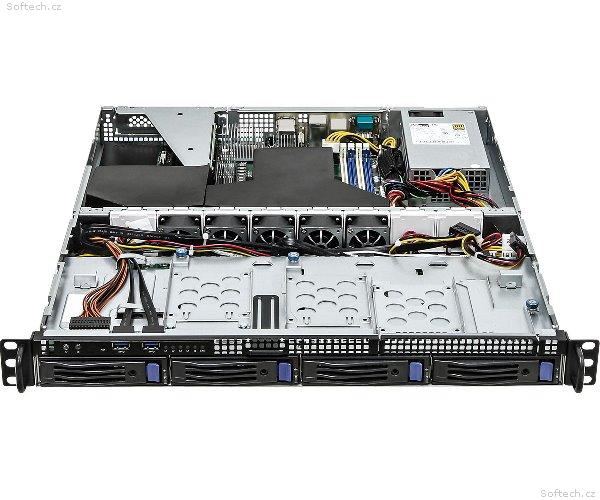

ASRock Rack 1U server 1x AM4, X570, 4xDDR4 ECC, 4x SATA 3,5"HS, 2x M.2, PCIe4 x16, 2x 10Gb + 2x 1Gb LAN, 400W, IPMI

Specifications
System
Form Factor
1U Rackmount
Dimensions
533.4 x 482.6 x 44.4 mm (21” x 19” x 1.75”)
Support MB
X570D4U-2L2T
Front Panel
Buttons
Power button w/ LED, UID w/LED, System reset
LEDs
LANs, HDD activity, System health
I/O Ports
2 Type-A (USB 3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay
4 Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays
1 Slim ODD (BTO)
Internal Side
3 fixed 2.5" HDD/SSD (SATA 6Gb/s) bays
1 M-key (PCIe4.0
*
x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0
*
x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [X570]
*
Supports PCIe3.0 when using AMD Ryzen 3000 Series Processors with Radeon Graphics
Power Supply
Type
Single PSU
Output Watts
400W
Efficiency
80-Plus Gold
AC Input
100-240V, 50-60Hz
System Fan
Fan
5 PWM Easy-swap 40x28 mm fans
Processor System
CPU
supports:
AMD Ryzen 5000 Series Desktop Processors
AMD Ryzen™ 4000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ PRO 4000 and 3000 Series Desktop Processors
3rd Gen AMD Ryzen™ Desktop Processors
AMD Ryzen 3000 Series Processors with Radeon Graphics
Socket
AM4 PGA 1331
Chipset
AMD X570
System Memory
Capacity
4 DIMM slots (2DPC)
Type
288-pin DDR4 ECC
*
and non-ECC UDIMM
*
For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
DIMM Size Per DIMM
up to 32GB per DIMM
DIMM Frequency
up to 3200 MHz
*
*
AMD Ryzen 3000 Series Processors with Radeon Graphics support up to 2666 MHz
Voltage
1.2V
Expansion Slot
PCIe x 16
Supports 1 FHHL PCIe4.0 x16
*
via RB1UX16_G4
*
Supports PCIe3.0 x8 when using AMD Ryzen 3000 Series Processors with Radeon Graphics
Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500:
1 DB15 (VGA)
AMD Ryzen Desktop Processors with Radeon Graphics:
1 HDMI
VRAM
DDR4 16MB
Rear Panel I/O
VGA Port
1 D-Sub
USB 3.2 Gen2 Port
2 Type-A
Lan Port
2 RJ45(10GbE) by IntelX710-AT2
2 RJ45(1GbE) by Inteli210
Dedicate LAN
1 dedicated IPMI
Serial Port
1
UID Button/UID LED
1
System BIOS
BIOS Type
32MB AMI UEFI Legal BIOS
BIOS Features
Plug and Play (PnP), ACPI 2.0 Compliance Wake Up Events, SMBIOS 2.8.0 Support, ASRock Rack Instant Flash
Environment
Temperature
Operation temperature: 10°C ~ 35°C
*
/ Non operation temperature: -40°C ~ 70°C
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
