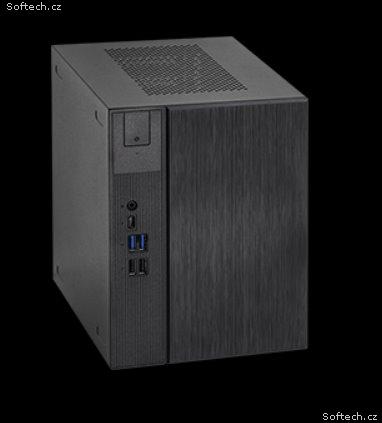

ASRock PC DeskMeet B660 LGA1700(65W), 4x DIMM DDR4, PCIe x16, 2x M.2 + M.2E, 3x SATA, 1Gb LAN, HDMI, DP, VGA, 500W

Supports 12th Gen IntelCore™ Processors (LGA1700)
Supports MAX Height ? 54mm CPU Cooler
Supports 4 x DDR4-3200MHz DIMMs, up to 128GB
1 x PCIe 4.0 x16
Graphics Output Options:DisplayPort, HDMI & D-Sub
3 x SATA3
1 x Hyper M.2 (PCIe Gen4 x4 & SATA3)
1 x Hyper M.2 (PCIe Gen4 x4)
1 x USB 3.2 Gen1 Type-C Port
4 x USB 3.2 Gen1 Type-A port (2 Front, 2 Rear)
4 x USB 2.0 Type-A port (2 Front, 2 Rear)
1 x M.2 Key-E for Wi-Fi
500W power supply (80+ Bronze)
8 Liter compact size
CPU
- Supports 12th Gen IntelCore™ Processors (LGA1700)
Cooler
- Supports IntelCPU Cooler (Max. Height ? 54mm)
Memory
- Supports Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM slots (Max. 128GB)
- Supports DDR4 3200/2933/2800/2666/2400/2133 non-ECC, un-buffered memory
*
*
Supports DDR4 3200 natively.
Chipset
- IntelB660
Graphics
- Supports a discrete Dual slot Graphics card up to 20CM
Audio
- Realtek ALC897 Audio Codec
Storage
- 3 x SATA3 6.0Gb/s ports
- 1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes
*
- 1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
*
*
Supports IntelOptane™ Technology
Supports NVMe SSD as boot disks
Supports IntelVolume Management Device (VMD)
LAN
- Giga PHY IntelI219V
Expansion Slots
- 1 x PCIe 4.0 x 16
- 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and IntelCNVi (Integrated Wi-Fi/BT)
Front I/O
- 1 x Headphone/Headset Jack
- 1 x USB 3.2 Gen1 Type-C
- 2 x USB 3.2 Gen1 Type-A
- 2 x USB 2.0 Type-A
Rear I/O
- 1 x DisplayPort 1.4
- 1 x HDMI
- 1 x D-Sub
- 2 x USB 2.0
- 2 x USB 3.2 Gen1 Type-A
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis/Water Pump Fan Connectors (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Header
- 1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
Volume (liters)
- 8L
Power Unit
- 500W power supply (80+ Bronze, peak 550W)
Accessory
- Quick Installation Guide
- 2 x SATA Data Cables
- 1 x Screws Package
Dimension
- 168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
- 168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)
OS
- MicrosoftWindows10 64-bit / 11 64-bit
