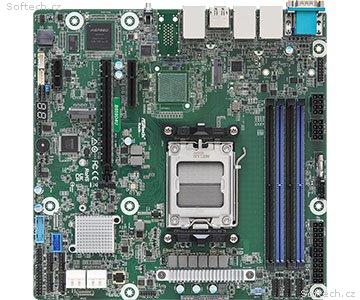

Popis produktu:
Micro-ATX (9.6"x 9.6")
Support AMD Ryzen 7000 series Processors
4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
2 RJ45 (1GbE) by Inteli210
4 SATA 6Gb/s
1 HDMI, 1 DisplayPort
Remote management (IPMI)
Specifications
Physical Status
Form Factor
Micro-ATX
Dimensions
9.6" x 9.6"
Processor System
CPU
Supports AMD Ryzen 7000 series Processors
Socket
Single Socket AM5 (LGA 1718)
Thermal Design Power
120W (Air)/170W (Liquid)
Chipset
AMD B650E
System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
5200 MHz (1DPC); 3600 MHz (2DPC)
Voltage
1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4
SLOT7: PCIe5.0 x4 [CPU]
PCIe x 1
SLOT4: PCIe4.0 x1 [FCH]
Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
1 M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]
SATA/SAS Storage
PCH Built-in Storage
AMD B650E (4 SATA 6Gb/s):
4 SATA 7-pin
Ethernet
Additional GbE Controller
Inteli210: 2 RJ45 (1GbE)
Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort
Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (1GbE)
1 dedicated IPMI
Internal Connector/Headers
Power Connector
1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header
1
Speaker Header
1
Buzzer
1
Fan Header
7 (6-pin)
TPM Header
1 (13-pin, SPI)
SMBus header
1
PMBus header
1
IPMB Header
1
Clear CMOS
1
Others
1 (3-pin, 80 debug port header)
LED Indicators
Standby PWR LED 5vsb
1 (5VSB)
80 Debug Port LED
1
Fan Fail LED
7
BMC heartbeat LED
1
System BIOS
BIOS Type
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
Hardware Monitor
Temperature
CPU, DDR, MB, Card Side, Chipset, M.2 slot
Fan
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
