Popis produktu:

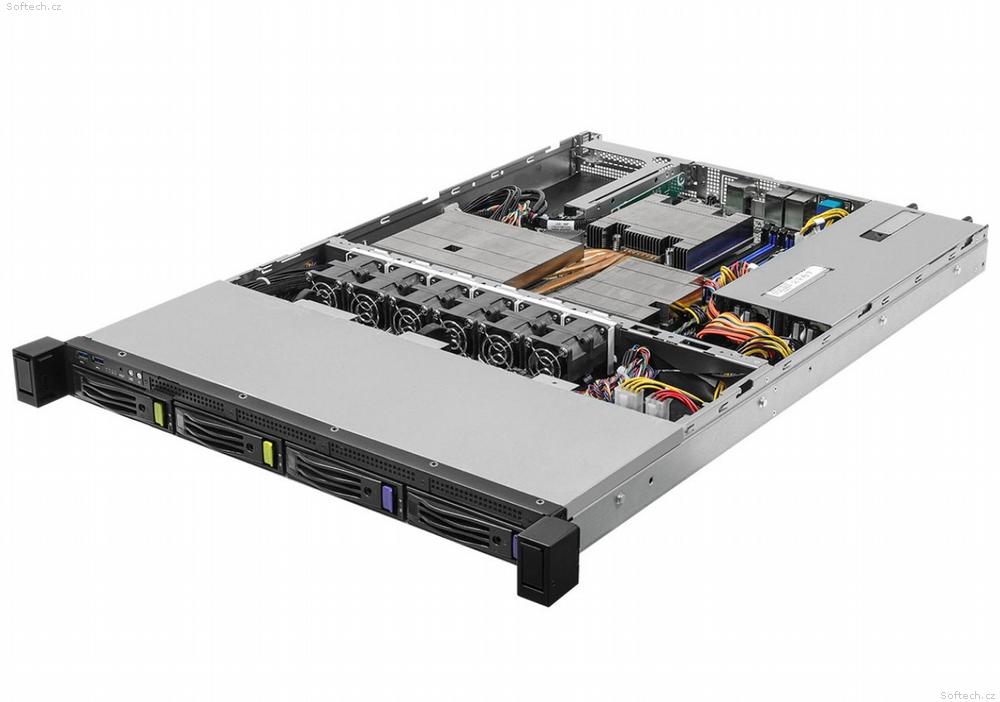

1U4L2E-B650 RPSU
1. 1U Rackmount with 1+1, 80-PLUS Platinum, 650W Slim PSU
2. Single Socket AM5 (LGA 1718), supports AMD Ryzen 7000 series processors
3. 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
(PCIe4.0 x4) or 3.5" SATA drive bays
5. 2 hot-swap 3.5" SATA drive bays
6. 1 FHHL PCIe4.0 x16
(PCIe4.0 x4)
i210
9. 1 HDMI, 1 DisplayPort
10. Remote Management (IPMI)
SPECIFICATIONS
System
Form Factor
1U Rackmount
Dimensions
676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'')
Support MB
B650D4U
Front Panel
Buttons
Power, System Reset
LEDs
Power, HDD Activity, LANs, System Event
I/O Ports
2 Type-A (USB3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay
(PCIe4.0 x4) or 3.5" SATA drive bays
2 hot-swap 3.5" SATA drive bays
If support 2 NVMe drive bays, only M2_2 can be used
Internal Side
M2_1 (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
(PCIe4.0 x4), supports 2280/2242 form factor [FCH]
Power Supply
Type
1+1 Slim PSU
Output Watts
650W
Efficiency
80-PLUS Platinum
AC Input
100-240Vrms, 50/60Hz
System Fan
Fan
6 PWM Hot-swap 40x56 mm fans
Processor System
CPU
Supports AMD Ryzen 7000 series Processors
Socket
Single Socket AM5 (LGA 1718)
Thermal Design Power
Up to 170W
Chipset
AMD B650
System Memory
Supported DIMM Quantity
4 DIMM slots (2DPC)
Supported Type
DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
5200 MHz (1DPC); 3600 MHz (2DPC)
Voltage
1.1V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
Rear: 1 FHHL PCIe4.0 x16
Ethernet
Additional GbE Controller
i210: 2 RJ45 (1GbE)
Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN
Graphics
Controller
ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort
Rear I/O
UID Button/LED
1 UID button w/ LED
VGA Port
1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port
1 DB9 (COM)
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (1GbE)
1 dedicated IPMI
System BIOS
BIOS Type
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
Hardware Monitor
Temperature
CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot
Fan
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity
Non operation humidity: 20% ~ 90% ( Non condensing)
