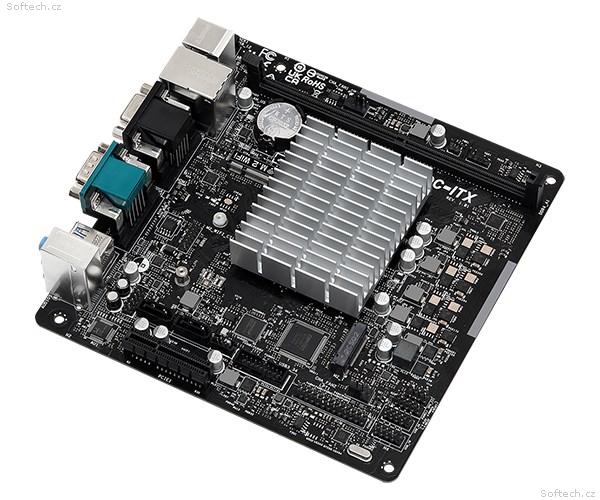

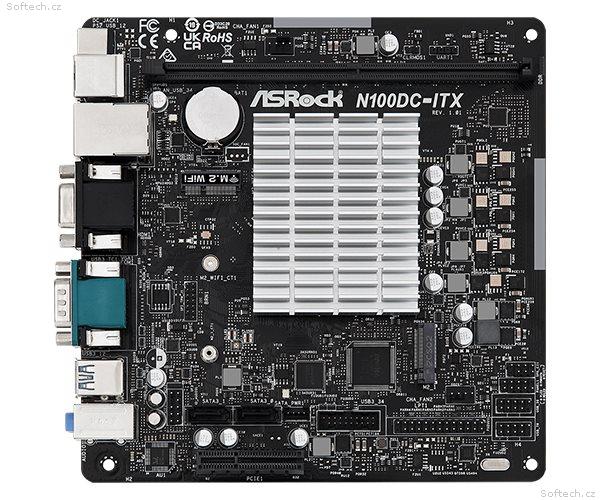

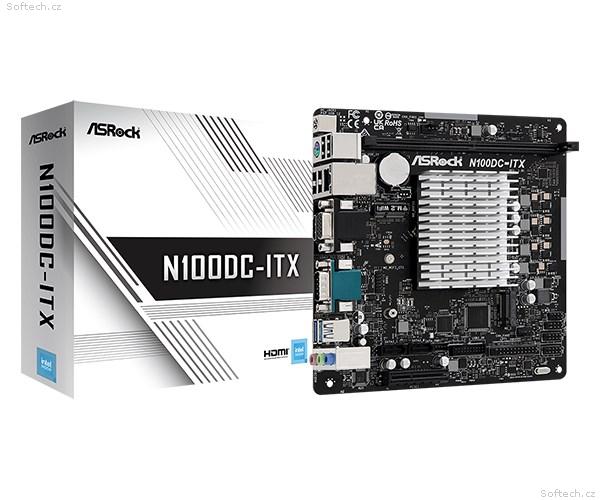

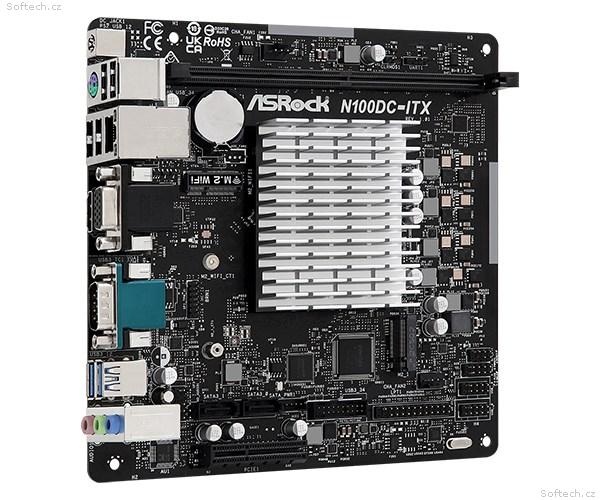

ASRock MB Alder Lake-N N100DC-ITX, Intel N100, 1xDDR4, 1xHDMI, 1xVGA, mITX

ASRock N100DC-ITX
CPU

- Intel Quad-Core Processor N100 (Up to 3.4 GHz)
- Supports Intel Turbo Boost Technology
Memory

- 1 x DDR4 DIMM Slot
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB
Graphics

- Integrated Intel UHD Graphics: 24 EUs inside (Up to 750MHz)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Slots

- 1 x PCIe 3.0 x4 Slot (PCIE1), supports x2 mode*
- 1 x M.2 Socket (Key E), supports type 2230 Intel CNVio (Integrated WiFi/BT)
Storage

- 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors
USB

- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Internal Connector

- 1 x Print Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Chassis Fan Connectors (4-pin)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

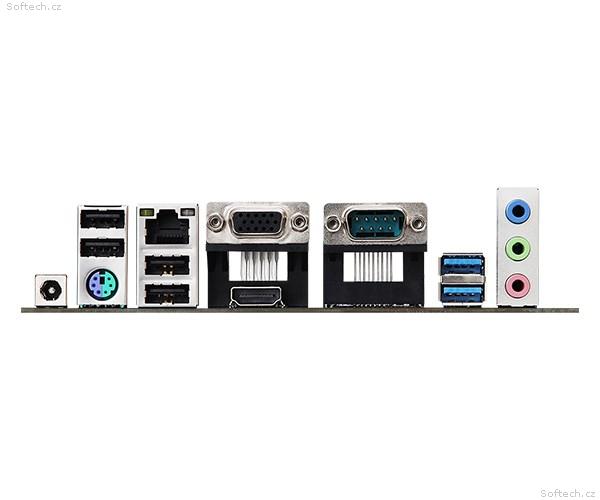

Rear Panel I/O

- 1 x DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x SATA Power Cable
- 2 x Screws for M.2 Sockets
Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- Solid Capacitor design
OS

- Microsoft Windows 10 64-bit / 11 64-bit
Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support
Unique Feature

Rock-Solid Durability
- 2+1+1 Power Phase EZ Update
- ASRock Auto Driver Installer
