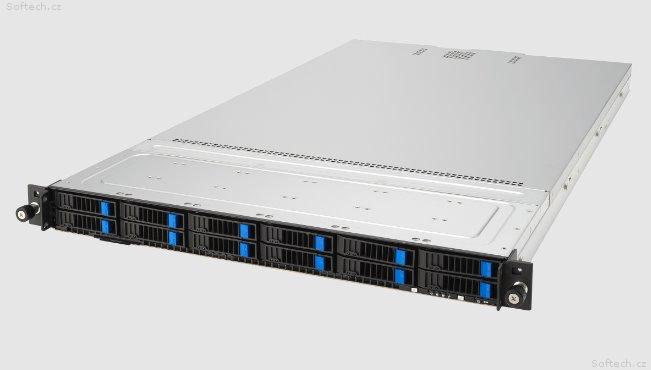

ASUS 1U server 2x SP5, 24x DDR5 4800 12x 2.5 NVMe, SATA, 2x 2600Wt, 4x 1Gb LAN, IPMI

CPU
Platform

CPU
Scoket

CPU #

U

Max
CPU TDP

Chipset

Memory
Type

Memory
#

Storage
#

Storage
Bay

Storage
Type

NVMe grade
(option)

Storage
Hotswap

SAS
Controller

M.2

Other
Storage

ODD

O/B NIC

GPU
Sport

PCIe
#

PCIe slots

OCP

PSU
#

Railkit

PSU
Type

Heatsink
Type

Depth
(mm)

EPYC
Genoa
LGA6096
2
1U
400W
SOC
DDR5 4800
24
12
2.5"
SATA/SAS/12xNVMe
-
Y
Option
2
0
0
Intel-i350 Based
1Gb x 4
-
2
1 x PCIe Gen4 x16, FHFL (CPU1)
1 x PCIe Gen4 x8 or x16, LP (if PCIe M.2 in use, it will operate at x8 link) (CPU2)
3.0X1
1+1
1000mm
Friction
2600W 80+ Titanium
1U EVAC HS
842.5 x 449 x 43.85
Processor / System Bus
2 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series
Max TDP : 400W
Generation
E12
Memory
Total Slots :
24 (12-channel per CPU, 1 DIMM per CPU)
Capacity :
Maximum up to 3072GB per socket
Memory Type :
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Memory Size :
128GB, 64GB, 32GB RDIMM
128GB, 64GB, 32GB 3DS RDIMM
* Refer to www.asus.com/support for more information
Expansion Slots
Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot
1 x PCIe Gen5 x16 (FHFL)
1 x PCIe Gen5 x16 or OCP3.0 (FHFL)
1 x PCIe Gen5 x16 (LP)
1 x PCIe Gen4 x8 (LP, internal)
*Installing GPU cards will occupied expansion slots.
*GPU SKU do not support OCP3.0.
Storage
SATA Controller :
8 x SATA 6Gb/s ports
2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
SAS Controller :
Braodcom HBA CARD 9500-16i (Optional)
Broadcom MegaRAID 9540-8i (Optional)
Broadcom MegaRAID 9560-16i (Optional)
Drive Bays
12 x 2.5" Hot-Swap drive bays
Support up to 12 x NVMe/SATA/SAS*
*RAID card is required to support SAS hard drives
System Fan
8
Networking
Option 1: 1 x Quad Port Intel I350-AM4 1G LAN Controller + 1 x Mgmt LAN
Option 2: 1 x Dual Port Intel X710-AT2 10G LAN Controller + 1 x Mgmt LAN
Option 3: None x + 1 x Mgmt LAN
Graphic
Aspeed AST2600 64MB
Multi-GPU Support
https://servers.asus.com/support/gpu
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
1 x OCP3.0 port (Optional)
*GPU SKU do not support OCP3.0.
Switch/LED
Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Reset Switch
1 x Location Switch (w/ LED)
1 x HDD Access LED
1 x Message LED
LAN 1-4 LED (on NIC module)
Rear Switch/LED:
1 x Port 80 LED (Q-Code)
1 x Power Switch w/ LED
1 x Location Switch w/LED
1 x Message LED
OS Support
https://servers.asus.com/support/os
Management Solution
On-Board ASMB11-iKVM for KVM-over-IP
ASUS Control Center Enterprise (Optional)
Regulatory Compliance
BSMI, CE, CB, C-Tick, FCC(Class A)
Dimensions
842.5mm x 449mm x 43.85mm (33.17" x 17.68" x 1.73")
Form Factor
1U
Weight
Net Weight : 14.94KG
Gross Weight : 19.94KG
Power Supply
1+1 Redundant 2000W/1600W 80 PLUS Platinum Power Supply
1+1 Redundant 2600W/1600W 80 PLUS Titanium Power Supply
Rating:
100-127/220-240Vac,12A/9.5A(x2),50/60Hz
100-127/240Vac,13.8A/16A(x2), 50/60Hz
220-240Vac, 10A(x2), 50/60Hz
Environment
Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 60?
Non operation humidity: 20% ~ 90% (Non condensing)
Note
*SAS support only from SAS HBA/RAID Card
CPU Heatsink/ Cooler
2
Fan
1 (For supporting GPU SKU, it will have external fan)
