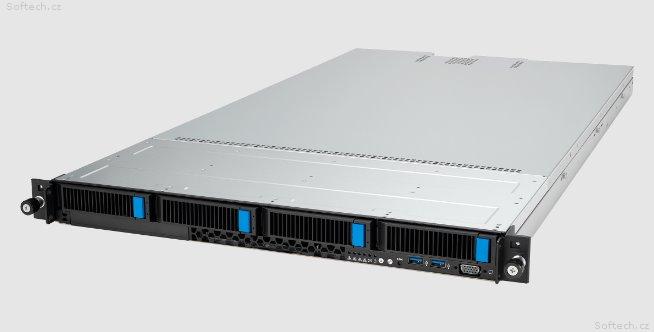

ASUS 1U server SP5 24x DDR5 4800 4x 3.5 NVMe, SATA, 3x PCIe5.0, 2x i350 1Gb, 2x800Wt

CPU
Platform

CPU
Scoket

CPU #

U

Max
CPU TDP

Chipset

Memory
Type

Memory
#

Storage
#

Storage
Bay

Storage
Type

NVMe grade
(option)

Storage
Hotswap

SAS
Controller

M.2

Other
Storage

ODD

O/B NIC

GPU
Sport

PCIe
#

PCIe slots

OCP

PSU
#

Railkit

PSU
Type

Heatsink
Type

Depth
(mm)

EPYC
Genoa
LGA6096
1
1U
240W
SOC
DDR5 4800
12
4
3.5"
SATA/SAS*/4xNVMe
-
Y
Option
2
0
0
Intel i350 1Gb x2
-
3
1 x PCIe x16 slot (Gen5 x16 link, FH, HL) 1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
3.0X1
1+1
1000mm
Friction
800W 80+ Titanium
1U EVAC HS
842.5 x 449 X 43.85
Processor / System Bus
1 x Socket SP5 (LGA 6096)
AMD EPYC™ 9004 Series Processors (up to 400W)
Memory
24x DIMM slots
DDR5 4800/4400 RDIMM/ 3DS RDIMM
Maximum 6144GB
*2DPC support depends on AMD schedule
* Refer to support page for more information
Expansion Slots
Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)
Storage
Storage Controller:
CPU Integrated
Optional kits Controller:
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Drive Bays
Front bays:
4 x 2.5” Hot-swap Storage Bays
4 x SATA/SAS/NVME
*SAS support only from optional SAS
HBA/RAID card
2 x M.2 connectors
Networking
1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port
Graphic
Up to 2 single-slot GPU cards
Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports
Switch/LED
Front:
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
1 x HDD LED
4 x LAN LED (1-2 for on-board LAN, 3-4 for OCP LAN)
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
OS Support
https://servers.asus.com/support/os
Management Solution
ASUS Control Center
ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
BSMI, CB, CE, RCM, FCC(Class A)
Dimensions
842.5mm x 449mm x 43.85mm (1U)
33.17" x 17.68" x 1.73"
Form Factor
1U
Weight
(approximate)
Net Weight: 13.15 kg
Gross Weight: 18.15 kg
Power Supply
1+1 Redundant 1600W 80 PLUS Titanium
Power Supply
1+1 Redundant 1200W/800W 80 PLUS Platinum
Power Supply
Environment
Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)
Note
Operating Temperature based on configurations
Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The information contained is general testing result for reference. Please consult local sales representative for more information on specific supported CPU list on each system.
* Optional means “built for order”.
