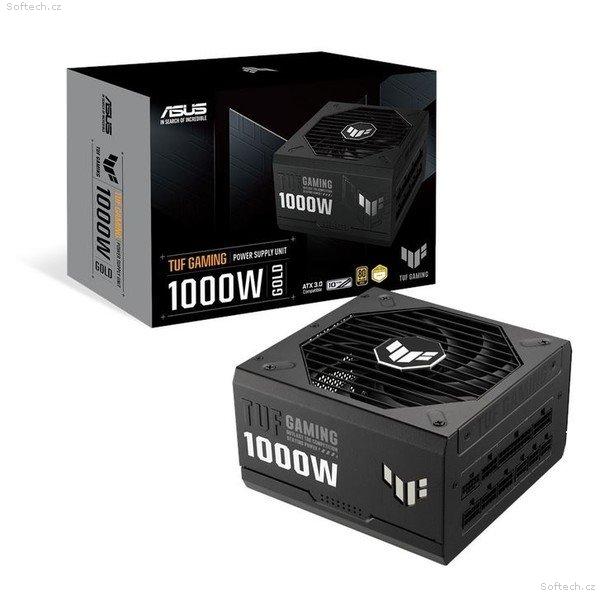

ASUS zdroj TUF Gaming 1000W Gold, 80+ Gold

TUF Gaming 1000W Gold

The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.
Capacitors and chokes pass demanding tests to achieve Military-grade Certification
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
A protective PCB coating protects against moisture, dust, and extreme temperatures
An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
Fully modular etched cables keep your rig neat and tidy
10-year warranty included.
Intel Form Factor

ATX12V
ATX 3.0

Yes
Dimensions

150 x 150 x 86 mm
Efficiency

80Plus Gold
Protection Features

OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials

ROHS
AC Input Range

100-240Vac
DC Output Voltage

+3.3V +5V +12V -12V +5Vsb
Maximum Load

25A 25A 83.3A 0.8A 3A
Combined Load

130W 130W 1000W 9.6W 15W
Total Output

1000W
Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
PCI-E 1-to-2 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable tie x 3
User Manual x 1
Weight

2.48kg (single PSU)
0dB Fan Button

No
