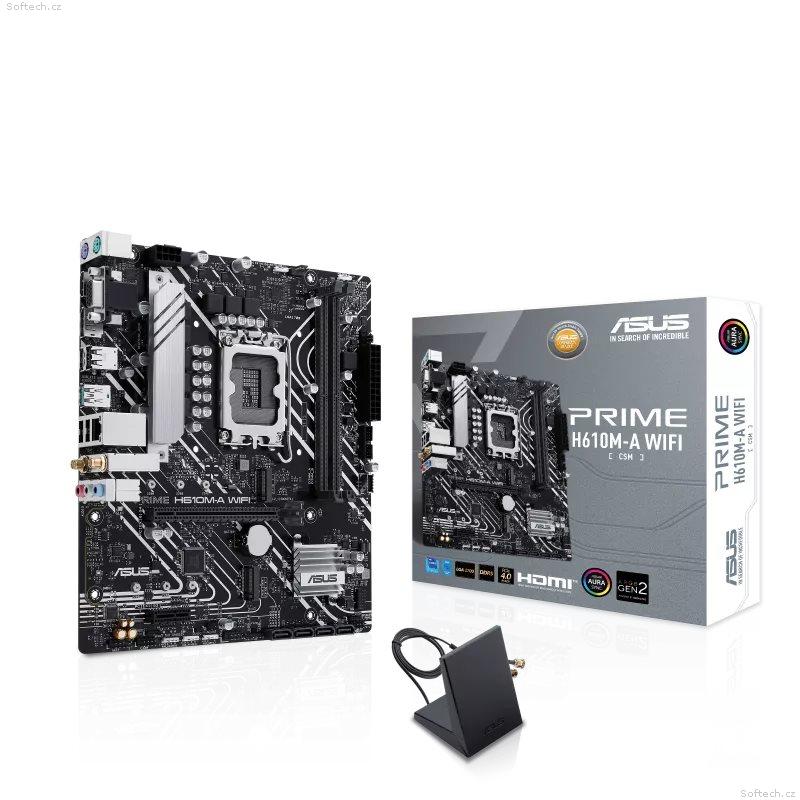

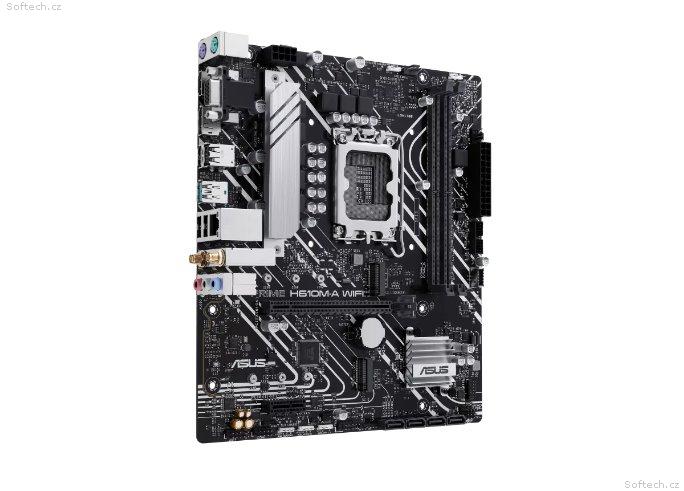

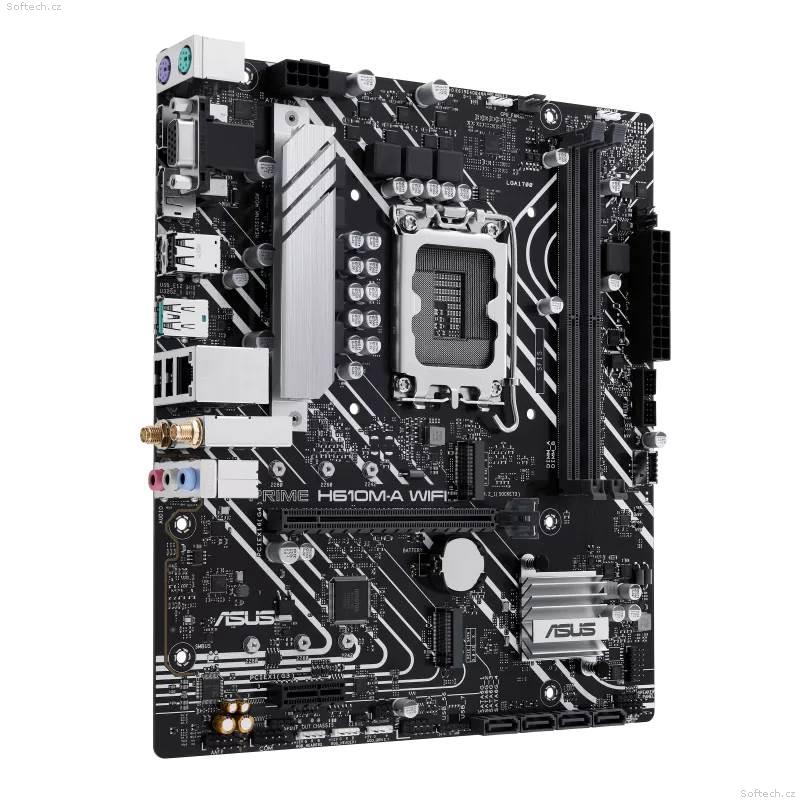

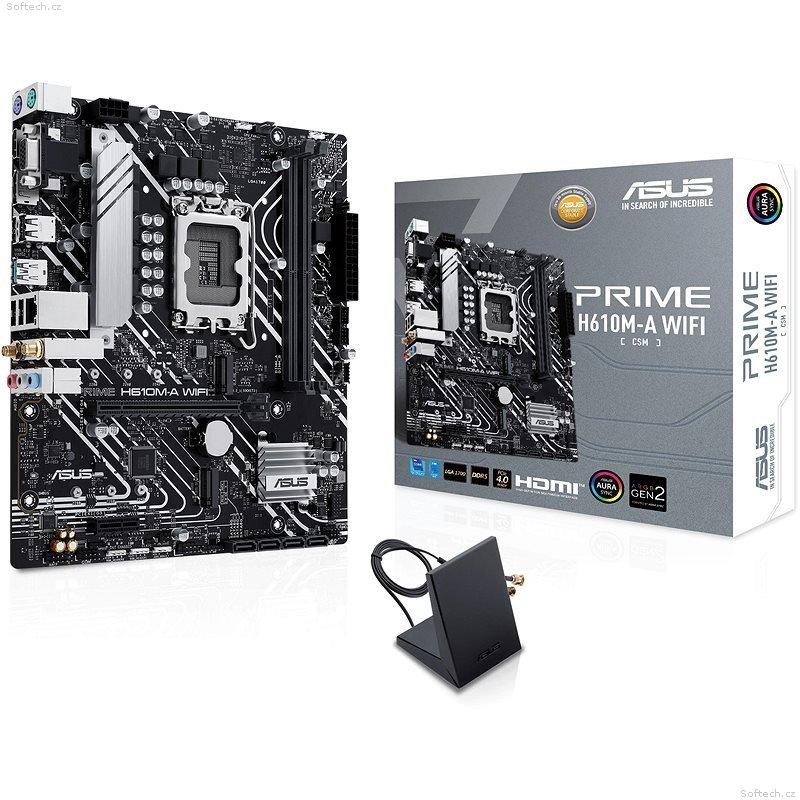

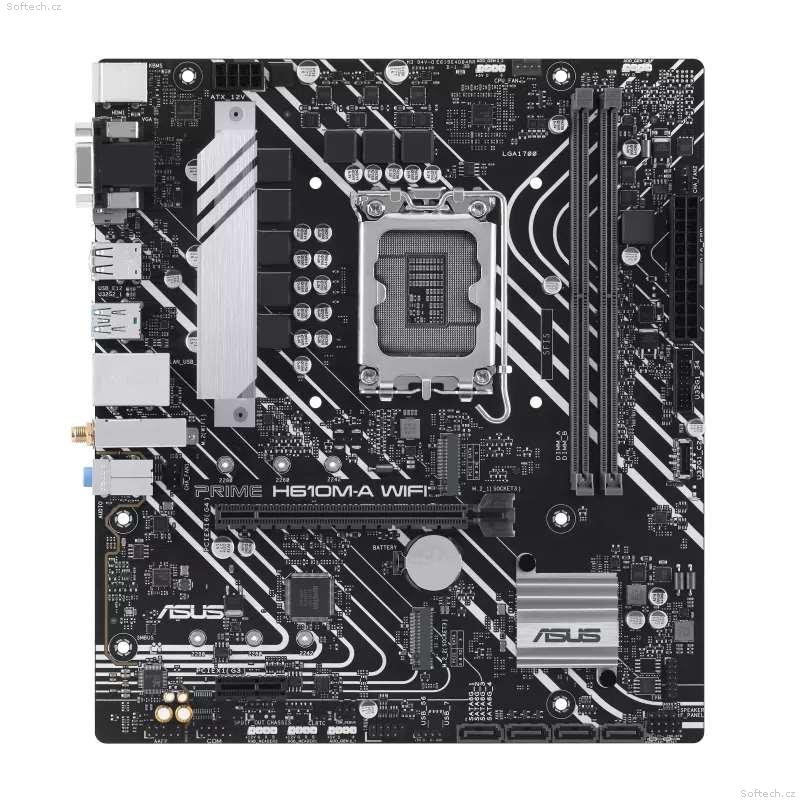

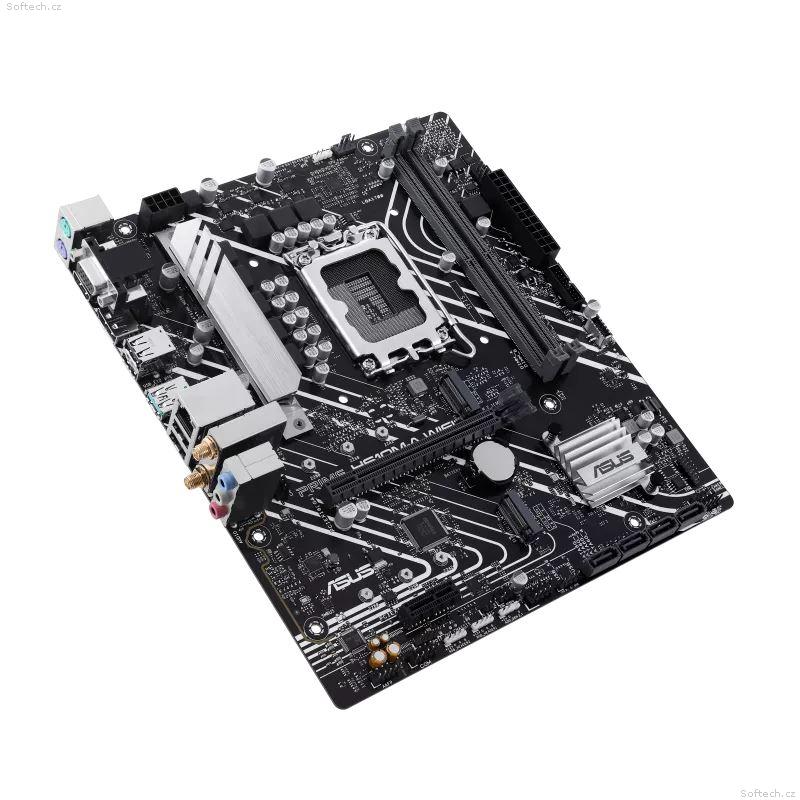

ASUS MB Sc LGA1700 PRIME H610M-A WiFi, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xVGA, mATX

ASUS PRIME H610M-A WIFI
CPU

Intel Socket LGA1700 for 13th Gen Intel Core™ & 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset

Intel H610 Chipset
Memory

2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics

1 x DisplayPort**
1 x VGA port
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots

Intel 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals
Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet

1 x Intel 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth

Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.0*
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer"s website for the latest specifications.
USB

Rear USB (Total 5 ports)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

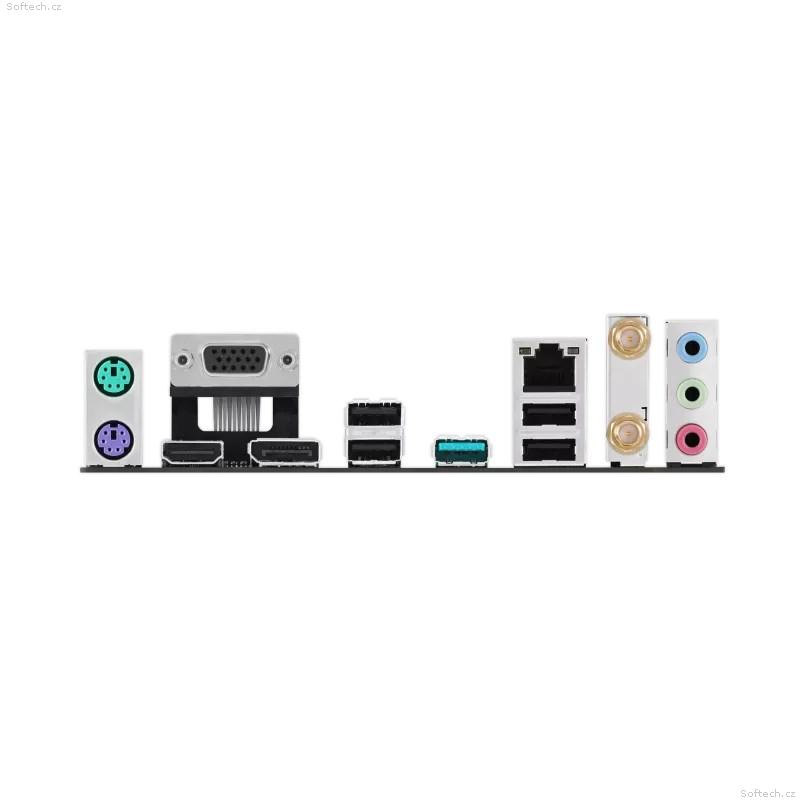

Back Panel I/O Ports

1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Wi-Fi Module
1 x Intel 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 1 USB 2.0 port
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS

128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x User guide
Operating System

Windows 11 64-bit, Windows 10 64-bit
Form Factor

mATX Form Factor
24.4 cm x 21.6 cm
