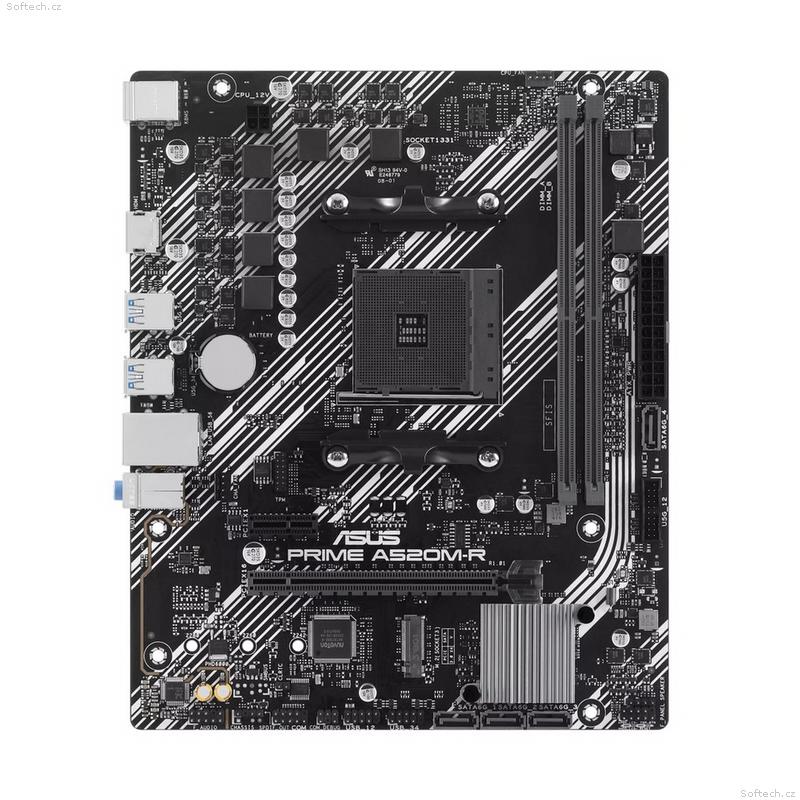

ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1xHDMI, mATX

ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1x
Tisk Tisk
Oblíbené Oblíbené
Doporučit Doporučit
Twitter Twitter
Kód:2471329
PartNo:90MB1H60-M0EAY0
Umístění:v externím skladu
Dostupnost:3 - 5 dní
Cena bez DPH: 1 406 Kč
Cena s DPH: 1 701 Kč
Včetně zákonných poplatků.
Ostatní foto:
  • ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1x
  • ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1x
  • ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1x
  • ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1x
  • ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1x
  • ASUS MB Sc AM4 PRIME A520M-R, AMD A520, 2xDDR4, 1x

Popis produktu:

ASUS PRIME A520M-R
CPU

AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors*
* Refer to www.asus.com for CPU support list.
Chipset

AMD A520 Chipset
Memory
2 x DIMM slots, max. 64GB, DDR4 5100(OC)/ 4866(OC)/ 4666(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133, Un-buffered Memory*
Dual channel memory architecture
* ECC memory (ECC mode) support varies by CPU.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics

1 x HDMI™ port**
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
1 x PCIe 3.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet

1 x Realtek 1Gb Ethernet
USB

Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports

4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Software Features

ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
- EZ update
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS

128 Mb Flash ROM, UEFI AMI BIOS
Manageability

WOL by PME, PXE
Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor
Documentation
1 x Quick start guide
Operating System

Windows 11, Windows 10 64-bit
Form Factor

micro-ATX Form Factor
23.6 cm x 19.3 cm

Parametry:

Formát základní desky: micro ATX
Chipset: AMD A520
Chipset: AMD
Socket (patice): Socket AM4
Pro procesory: AMD
Technologie paměti RAM: DDR4
Počet paměťových slotů: 2
M.2 slot: 1
SATA 3: 4
Podpora RAID: 0
Podpora RAID: 1
Podpora RAID: 10
PCI Express x16: 1
PCI Express x1: 1
PCI: 0
LAN: 1Gbit/s
Bezdrátové připojení: bez
DisplayPort: 0
HDMI: 1
VGA: 0
DVI: 0
USB 2: 6
USB 3: 6
USB C: 0
3.5mm Jack: Ano
TPM: Ano
COM port: Ano
Led Header: Ne
LPT port: Ne
Záruční podmínky: 36 Měsíc(ů)
