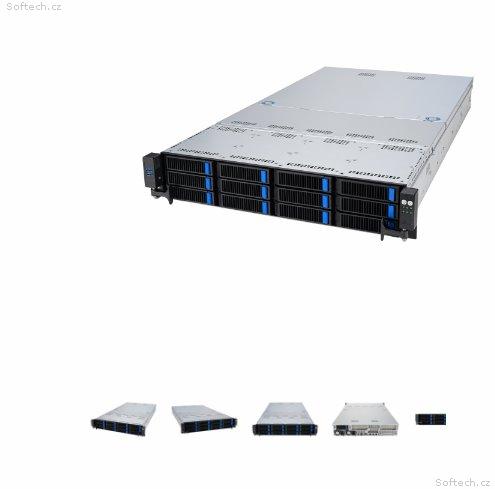

ASUS 2U RS521A-E12-RS12U 1 xSP5 (LGA 6096) 24xDDR5, 12NVMe, SAS, SATA, RH, OCP, GPU, 1GB LAN 1,6KW

Processor / System Bus
1 x Socket SP5 (LGA 6096)
5th Generation AMD EPYC Processors or4th Generation AMD EPYCProcessors
AMD EPYC™ 9005/9004 Series Processors (Air cool with STD HS up to 400W)
Memory
24 x DIMM slots
DDR5 5600 RDIMM/ 3DS RDIMM
Maximum 2,304GB
with AMD EPYC™ 9005 series processors
2DPC (1 of 2) up to 5200
2DPC (2 of 2, 1R+1R ) up to 4400,
2DPC (2 of 2, 2R+2R ) up to 4000
with AMD EPYC™ 9004 series processors
2DPC (1 of 2) up to 4800,
2DPC (2 of 2, 1R+1R ) up to 4000
2DPC (2 of 2, 2R+2R ) up to 3600
* Refer to support page for more information
Expansion Slots
Up to 5 PCIe Gen5 slots + 1 OCP3.0
2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16)
Storage
Storage Controller:
CPU Integrated
Optional kits Controller:
Broadcom Mega RAID 9560-16i
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Drive Bays
Front bays:
12 x 3.5” hot-swap drive bays
Support up to 12NVMe/SAS/SATA
Rear bays:
2 x 2.5” SATA hot-swap drive bays
*SAS support only from optional SAS HBA/RAID
card
2 x M.2 connectors
Networking
1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port
Graphic
Up to 4 single-slot or 2 double-slot GPU cards
Multi-GPU Support
https://servers.asus.com/support/GPU
Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports
Switch/LED
Front:
1 x Power Button/LED
1 x Reset Switch
1 x Location Button/LED
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
OS Support
https://servers.asus.com/support/os
Management Solution
ASUS Control Center
ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
CB, CE, RCM, FCC(Class A)
Dimensions
840mm x 449mm x 88.1mm (2U)
33.07” x 17.68” x 3.47
Form Factor
2U
Weight
(approximate)
Net Weight: 17.95 kg
Gross Weight: 25.14 kg
Power Supply
1+1 Redundant 2000W/1600W 80 PLUS Titanium
Power Supply
Environment
Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)
Note
Operating Temperature based on configurations
Optional Items
Rail Kit:
Tool-less Friction Rail Kit
1.5U Height Full Extension Ball bearing Type Rail Kit
*Please consult sales if cable arm needed.
2U Front Bezel
Note
Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
