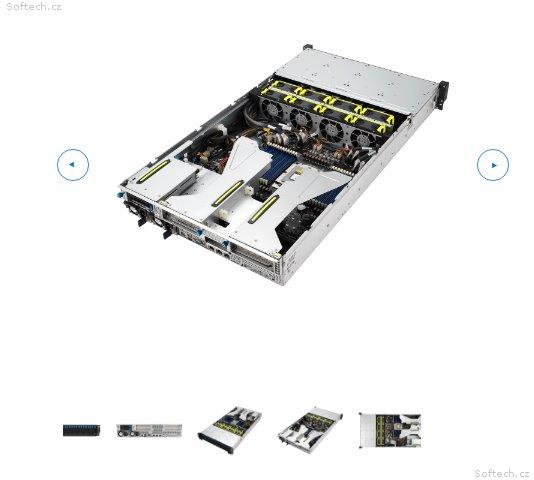

ASUS 2U RS521A-E12-RS24U 1 xSP5 (LGA 6096) 24xDDR5, 24NVMe, RH, OCP, GPU 1GB LAN 2KW

Processor / System Bus
1 x Socket SP5 (LGA 6096)
5th Generation AMD EPYC Processors or 4th Generation AMD EPYCProcessors
AMD EPYC™ 9005/9004 Series Processors (Air cool with STD HS up to 360W)
Memory
24 x DIMM slots
DDR5 5600 RDIMM/ 3DS RDIMM
Maximum 2,304GB
with AMD EPYC™ 9005 series processors
2DPC (1 of 2) up to 5200
2DPC (2 of 2, 1R+1R ) up to 4400,
2DPC (2 of 2, 2R+2R ) up to 4000
with AMD EPYC™ 9004 series processors
2DPC (1 of 2) up to 4800,
2DPC (2 of 2, 1R+1R ) up to 4000
2DPC (2 of 2, 2R+2R ) up to 3600
* Refer to support page for more information
Expansion Slots
16 NVMe configuration SKU:
Up to 5 PCIe Gen5 slots + 1 OCP3.0
2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16)
24 NVMe configuration SKU:
Up to 1 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe Gen5 x8, LP
1 x OCP 3.0 Slot ( (PCIe Gen5 x16)
Storage
Storage Controller:
CPU Integrated
Optional kits Controller:
Broadcom Mega RAID 9560-16i
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Drive Bays
Front bays:
16 NVMe configuration SKU:
24 x 2.5” hot-swap drive bays
Support 16x NVMe + 8 SAS/SATA
*RAID/PIKE cable is needed for 8 SAS/SATA
24 NVMe configuration SKU:
24 x 2.5” hot-swap drive bays
Support 24x NVMe
Rear bays:2 x 2.5” SATA hot-swap drive bays
2 x M.2connectors
Networking
1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port
Graphic
Up to 4 single-slot or 2 double-slot GPU cards
*24 NVMe can‘t support GPU
Multi-GPU Support
Please find the latest GPU support fromhttps://servers.asus.com/support/GPU
Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports
Switch/LED
Front:
1 x Power Button/LED
1 x Reset Switch
1 x Location Button/LED
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
OS Support
Please find the latest OS support fromhttps://servers.asus.com/support/os
Management Solution
ASUS Control Center
ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
CB, CE, RCM, FCC(Class A)
Dimensions
840mm x 449mm x 88.1mm (2U)
33.07” x 17.68” x 3.47
Form Factor
2U
Weight
(approximate)
Net Weight: 19.14 kg
Gross Weight: 26.63 kg
Power Supply
1+1 Redundant 2000W/1600W 80 PLUS Titanium
Power Supply
Environment
Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)
Note
Operating Temperature based on configurations
Optional Items
Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
