ASUS MB Sc LGA1851 PRO Q870I-C-CSM, Intel Q870, 4xDDR5, 2xDP, 1xHDMI, Mini-ITX

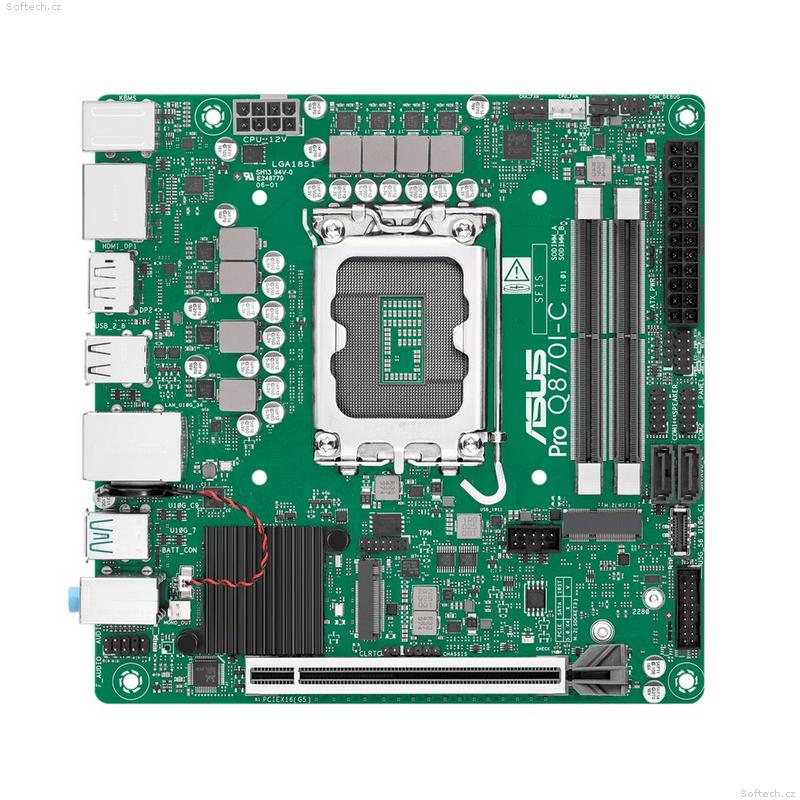

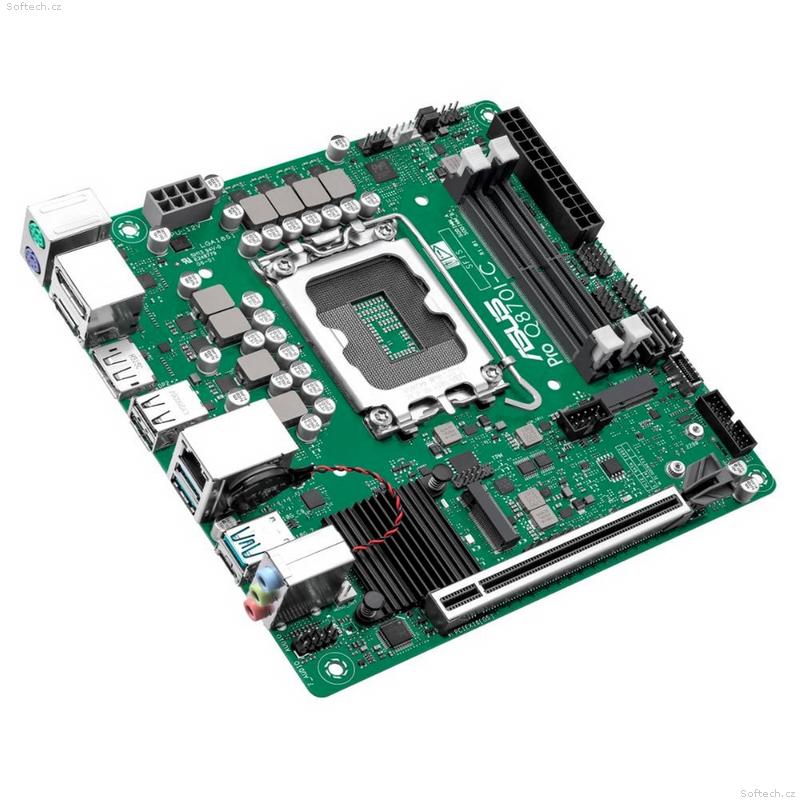

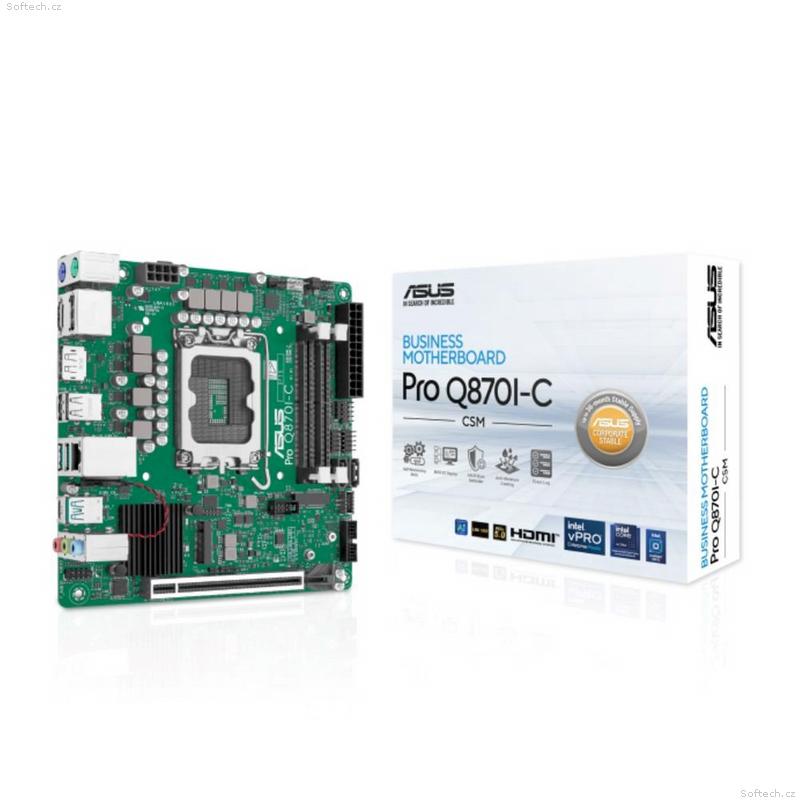

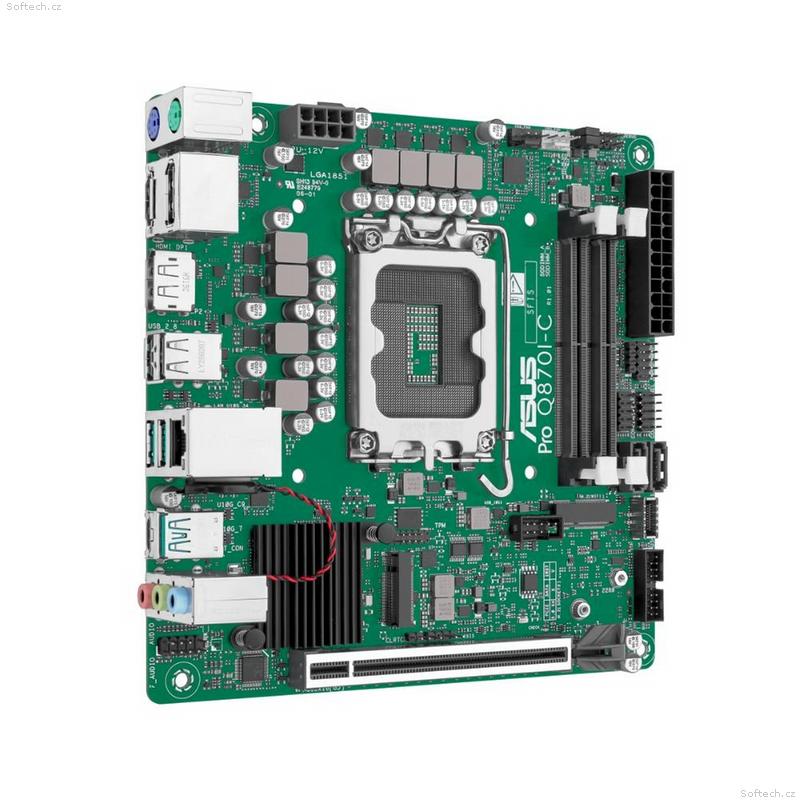

ASUS Pro Q870I-C-CSM

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

Intel LGA 1851 Socket: Ready for Intel Core™ Ultra Processors (Series 2)

ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards

ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration

Enhanced System Security: Boot defender with NIST SP800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs

Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments

Efficient Management and Customization: An event log and commercial BIOS kit to enable easy maintenance

Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes

Ultrafast Connectivity: PCIe 5.0, DDR5 SO-DIMM slots , rear and front USB 10Gbps Type-C

DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
CPU
Supports Intel Core™ Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0
Supports Intel Turbo Boost Max Technology 3.0
CPU supports up to 65W
Turbo Boost Max Technology 3.0 support depends on CPU type
Chipset
Intel Q870 Chipset
Memory
2 × SO-DIMM slots, max. 128GB
DDR5 up to 6400 MT/s
Non-ECC, Un-buffered, Clocked SO-DIMM
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
On-Die ECC supported (Non-ECC DDR5)
Graphics
2 × DisplayPort (up to 4K @ 60Hz)
1 × HDMI™ (up to 4K @ 60Hz)
Graphics output depends on CPU
Expansion Slots
1 × PCIe 5.0 x16 slot
Storage
1 × M.2 slot (Key M, 2280, PCIe 5.0 x4)
2 × SATA 6Gb/s ports
Ethernet
Intel I219LM 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
M.2 2230 slot (Key E, CNVi & PCIe)
Wi-Fi module sold separately
USB

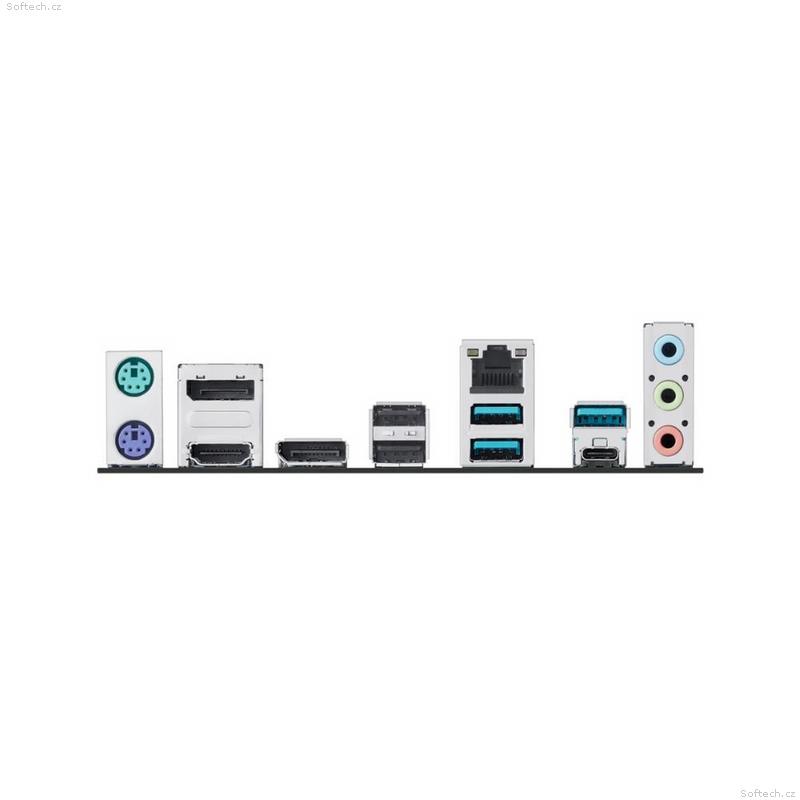

Rear USB
1 × USB 10Gbps Type-C
3 × USB 10Gbps Type-A
2 × USB 2.0 Type-A
Front USB
1 × USB 10Gbps Type-C connector
1 × USB 5Gbps header (supports 2 ports)
1 × USB 2.0 header (supports 2 ports)
Audio
Realtek 7.1 Surround Sound HD Audio CODEC
Up to 24-bit / 192 kHz playback
Form Factor
Mini-ITX (17 × 17 cm)
