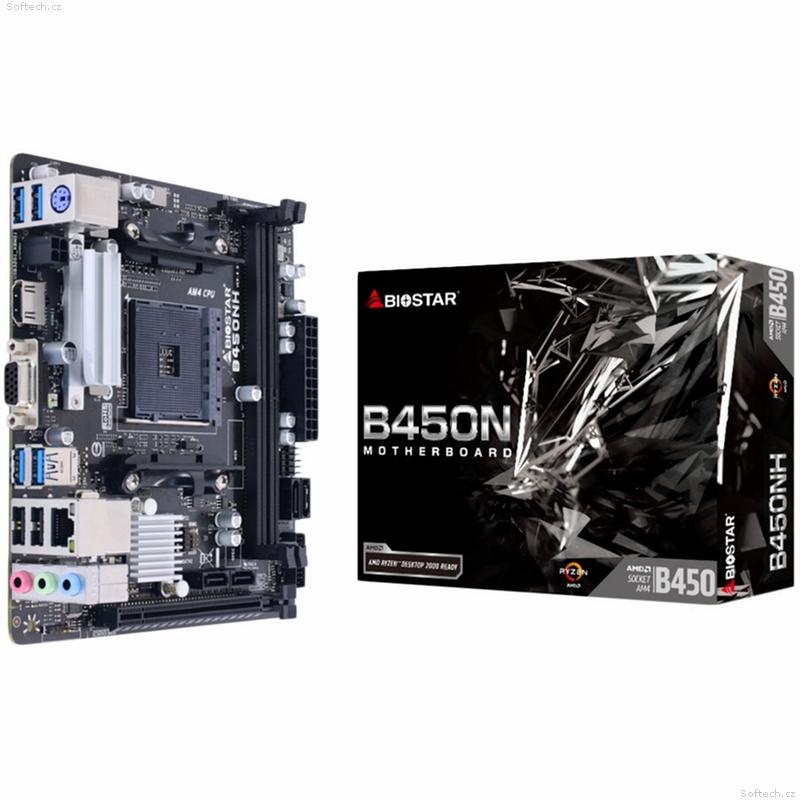

BIOSTAR Socket AM4, AMD B450, 2x DDR4, PCI-e 3.0 x 16, 1x M.2, 4x SATA III, Gbe LAN, Audio, USB, miniITX

Main Board Desktop - Processor
Chipset:
AMD B450
Supports Central Processor Unit:
AMD Athlon
AMD Ryzen Series 2nd Generation
AMD Ryzen Series 1st Generation
AMD Ryzen Series 3rd Generation
CPU Socket Standard:
Socket AM4
CPU Maximum Quantity Supports:
1
Main Board Desktop - Memory
Memory Type:
DDR4 SDRAM
Memory Form Factor:
DIMM 288-pin
Memory Speed:
1866MHz(PC4-14900)
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
Maximum Installable System Memory Storage Capacity:
64 GB
Memory Slot Total Quantity:
2
Provides Error Checking Method:
non-ECC
Memory Features:
Two DDR Channels
Controller
Integrated:
Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Storage Controller:
PCIe/SATA (1 x M.2 (Key M))
Main Board Desktop - Audio Output
Audio Integrated:
yes
Device Location:
Integrated
Audio Chipset:
Realtek ALC887
Audio Output Mode:
7.1 Channel Surround
Compliant Audio Standards:
High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated:
yes
LAN Chipset:
Realtek RTL8111H
Data Link Protocol Supports:
Gigabit Ethernet/Fast Ethernet/Ethernet
Slot Provided
PCI Express 3.0 x16:
1
Interface Provided
PS/2:
1
VGA:
1 (15-pin D-sub)
HDMI:
1 (HDMI (Type A))
USB 3.2 Gen 1:
4 (USB 3.2 (type A))
USB 2.0:
2 (USB 2.0 (type A))
LAN:
1 (RJ-45)
Audio Interface:
3 (3.5-mm minijack)
Main Board Desktop - Mainboard Features
Hardware Monitoring:
CPU Fan Tachometer
CPU Temperature
CPU Voltage
System Temperature
CPU Fan multi-speed control
Power Connectors Type:
24+4 pin
Main Board Desktop - Software
Supported Operating System:
Windows 7
Windows 10
Miscellaneous
Cable Included:
2 x SATA cables
Included Accessories:
I/O Shield
Quick Start Guide
Driver CD
Main Board Desktop - Dimensions&Weight
Form Factor:
Mini-ITX
Width (mm):
170 mm
Depth (mm):
170 mm
