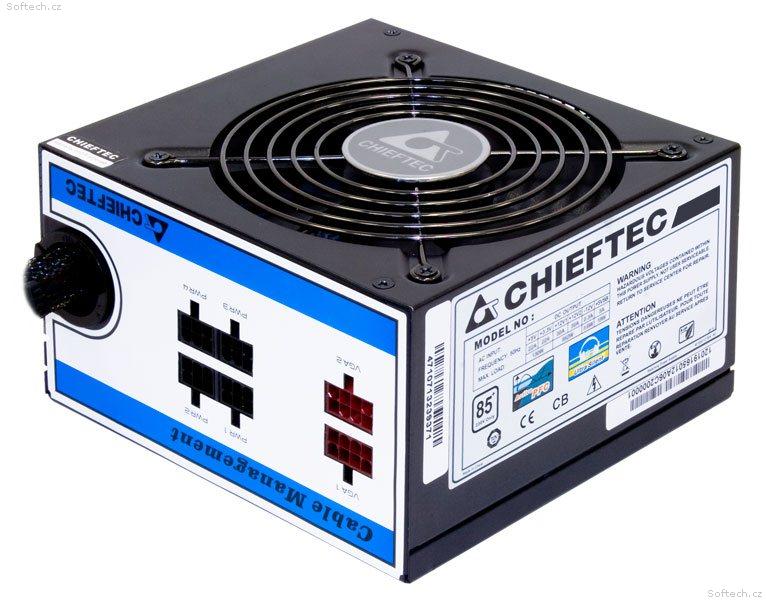

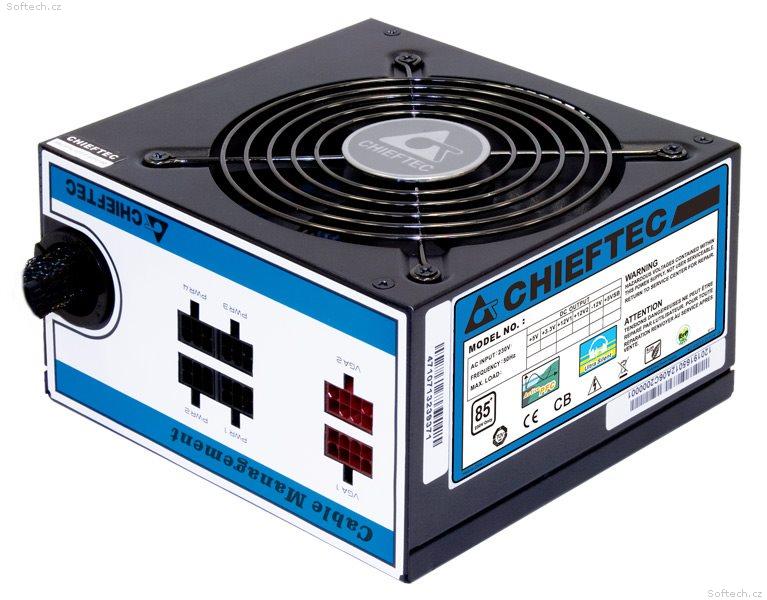

CHIEFTEC zdroj A80 Series, CTG-650C, 650W, 12cm fan, Active PFC, Modular, Retail, 85+

http://www.chieftec.eu/en/psus/a-80-series/ctg-650c.html

+5V:

22A

+3,3V:

22A

+5 V a +3,3 V spolu:

130W

+12V 1:

30A

+12V 2:

30A

+12V 1 a +12V 2 spolu:

552W

+12V 3:

NEUPLATŇUJE SA

+12V 4:

NEUPLATŇUJE SA

+12V 3 a +12V 4 spolu:

NEUPLATŇUJE SA

P.F.:

>0,9

-12V:

0,3A / 3,6W

+5VSB:

3,0 A / 15 W

Maximálne zaťaženie:

650W
Konektory
Natívny kábel:

20+4PIN:
===450mm===[24PIN]

8PIN EPS / 4PIN 12V:

===550mm===[8PIN EPS]===150mm===[4PIN 12V]
Modulárny kábel:

SATA:

===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]

SATA:

===450mm===[SATA]===150mm===[SATA]===150mm===[SATA]

Molex/Floppy:

===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]

Molex/Floppy:

===450mm===[Molex]===150mm===[Molex]===150mm===[Floppy]

8PIN PCIe (6+2):

===450mm===[PCIe]

8PIN PCIe (6+2):

===450mm===[PCIe]
.
