Popis produktu:

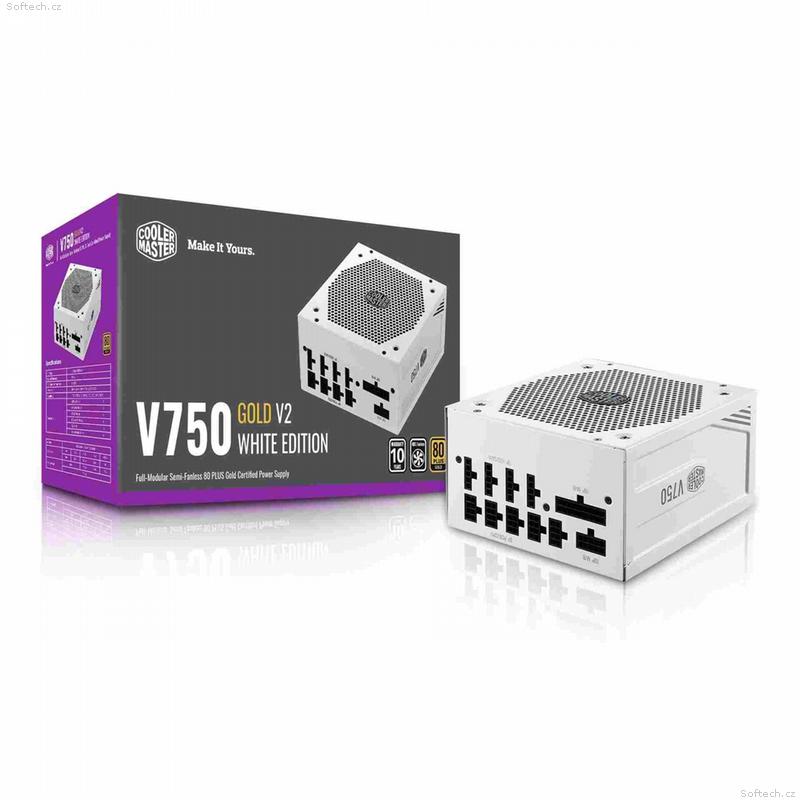

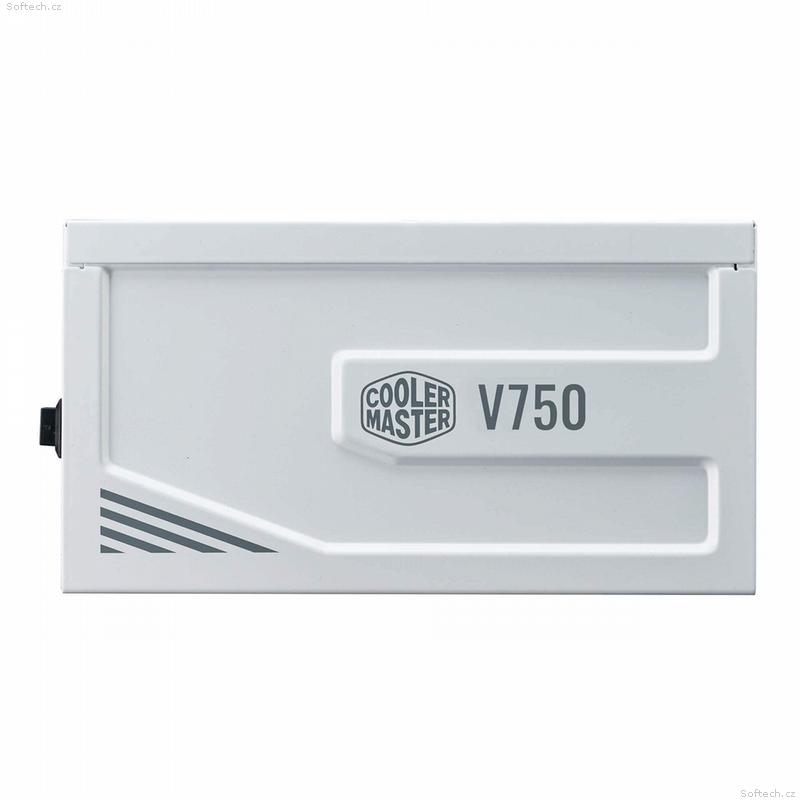

V750 GOLD - V2 WHITE EDITION

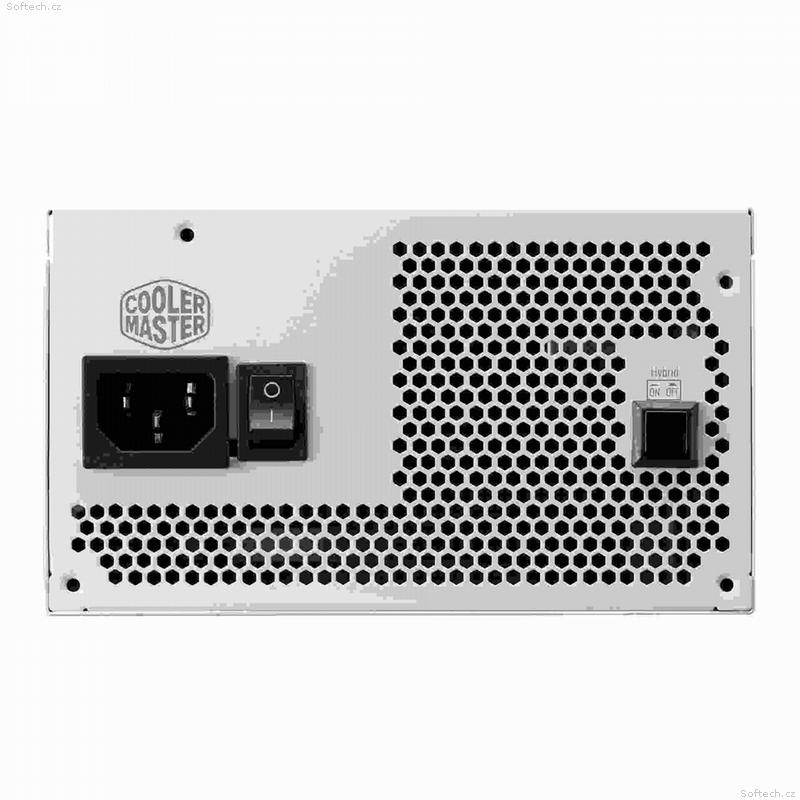

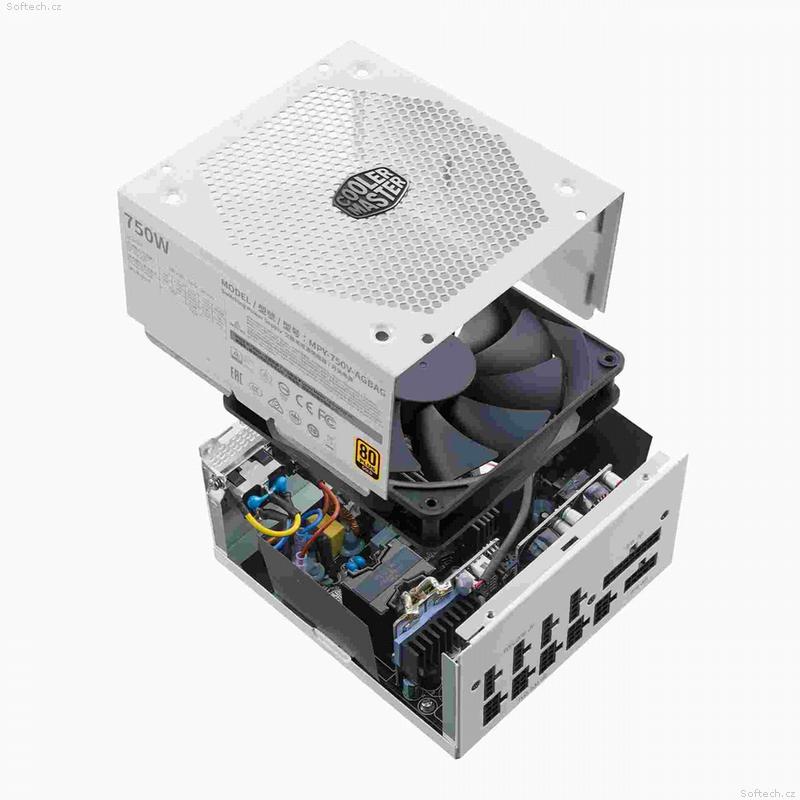

The V Gold - v2 series delivers a top-shelf power supply unit in 550, 650, 750, and 850 wattage levels. It offers an 80 PLUS Gold efficiency rating, full-modular cabling, optional semi-fanless operation with a hardware based hybrid switch, a 135mm FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. This series has brought together a number of innovations and improvements from past products to form a PSU that meets all your needs. The 100% Japanese capacitors, half-bridge LLC resonant converter, and DC-DC circuitry work together, resulting in a product that even the pros can respect.
TECHNICAL SPECIFICATIONS
Product name
V750 Gold - V2 White Edition
Product model
MPY-750V-AGBAG-EU
ATX version
ATX 12V V.2.52
PFC
Active PFC
Input voltage
100-240V
Input current
10-5A
Input frequency
50-60 Hz
Dimensions
160 x 150 x 86 mm

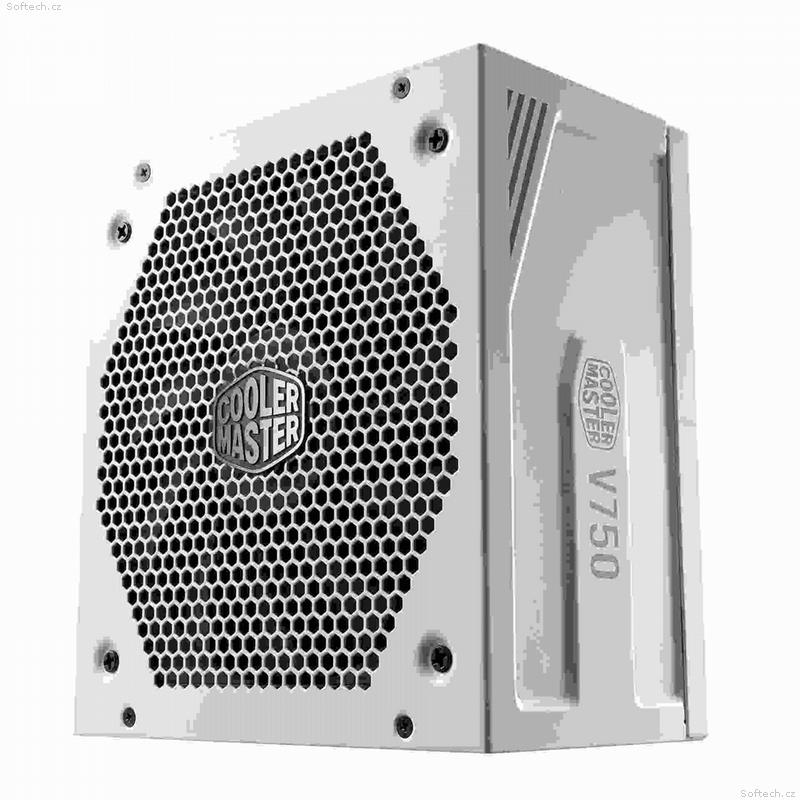

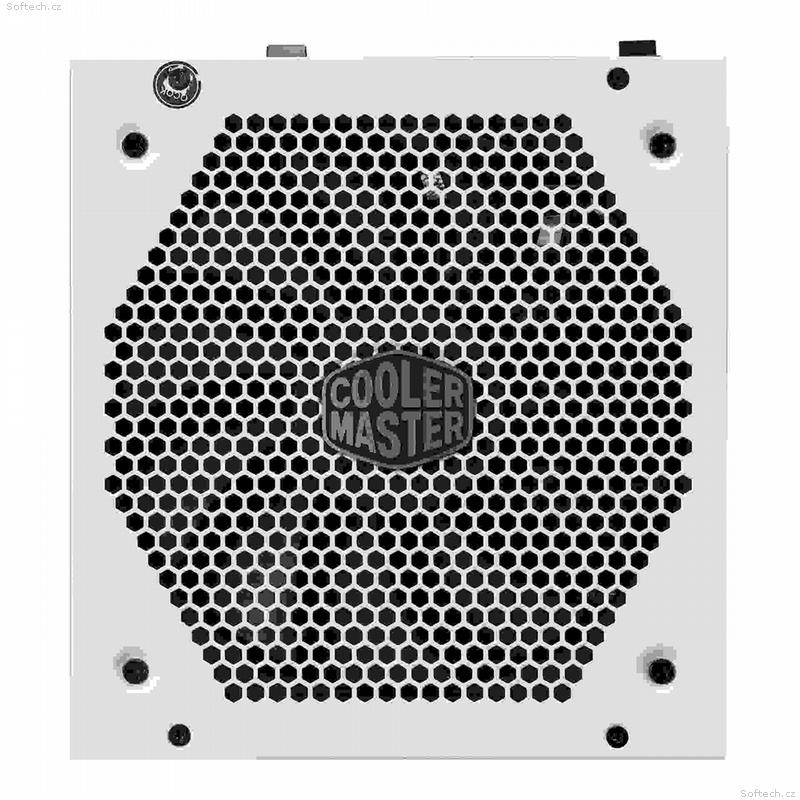

Fan size
135 mm
Fan bearing
FDB
Fan speed
1545 RPM
Noise level @20%
0 dBA
Noise level @50%
23.6 dBA
Noise level @100%
32.5 dBA
Efficiency
90% @ Typical Load
80 Plus rating
80 PLUS Gold
ERP 2014 Lot 3
Yes
Operating temperature
0-50°C
Powergood signal
100 - 500 ms
Hold up time
17ms
MTBF
>100,000 Hours
Protections
OVP, OPP, SCP, OCP, UVP, OTP
Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

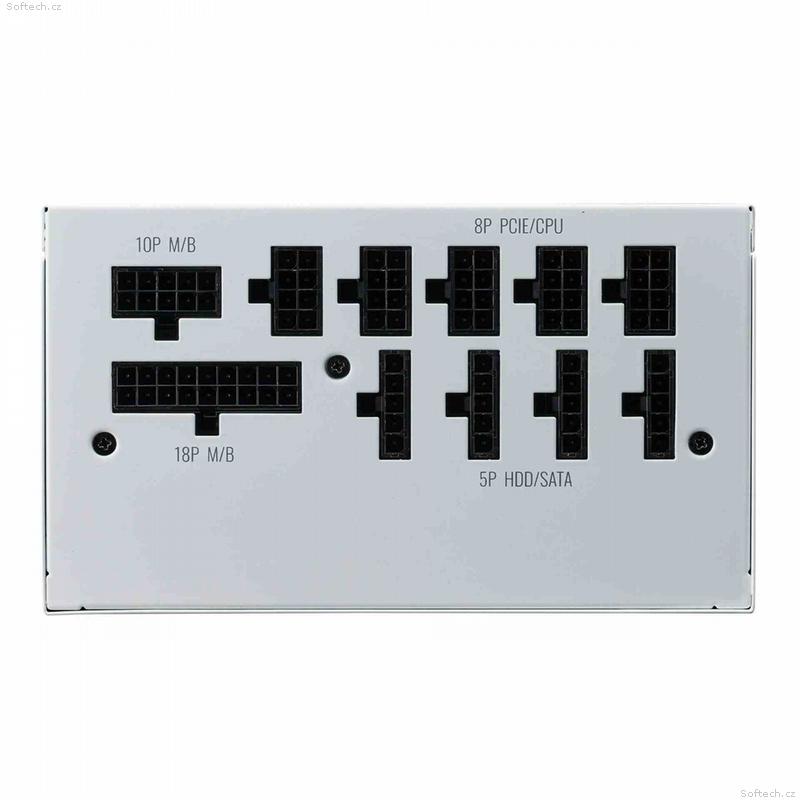

ATX 24-pin connectors
1
EPS 4+4 pin connectors
1
EPS 8 pin connectors
1
SATA connectors
12
Peripheral 4-pin connectors
4
PCI-E 6+2 pin connectors
4
Series
V Gold

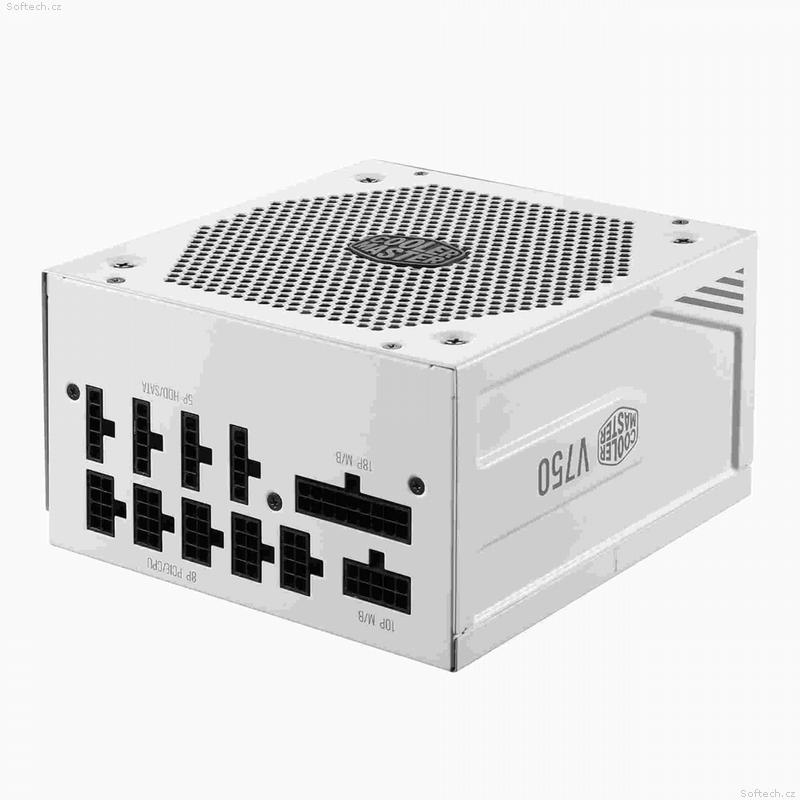

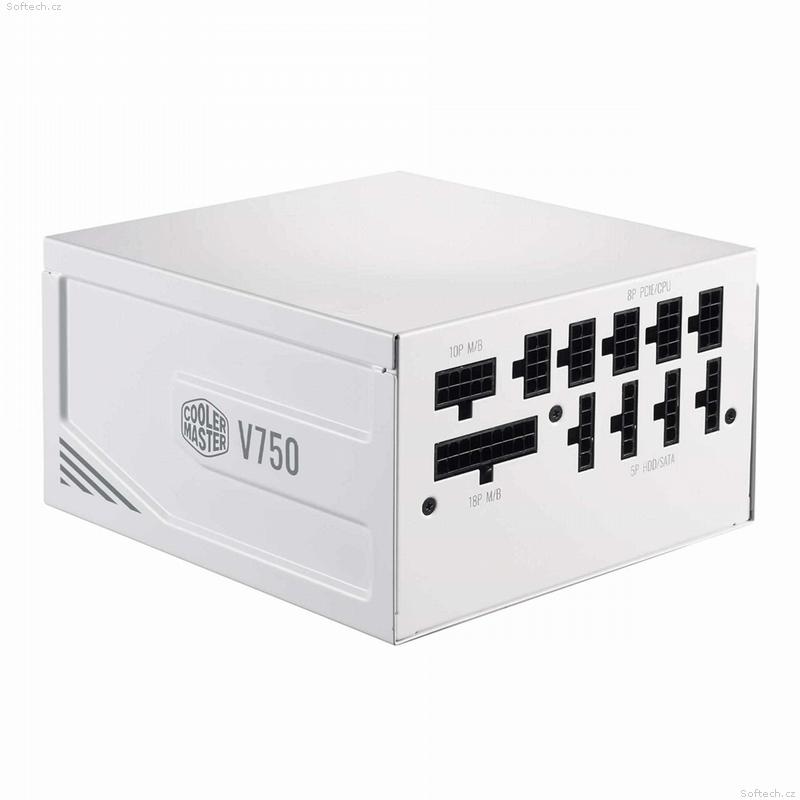

Modular
Full Modular
Wattage
700-750
