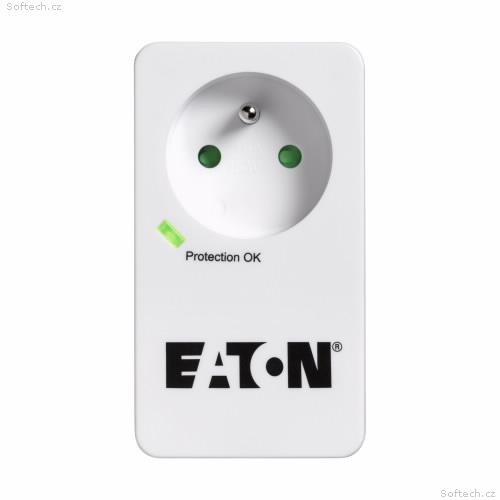

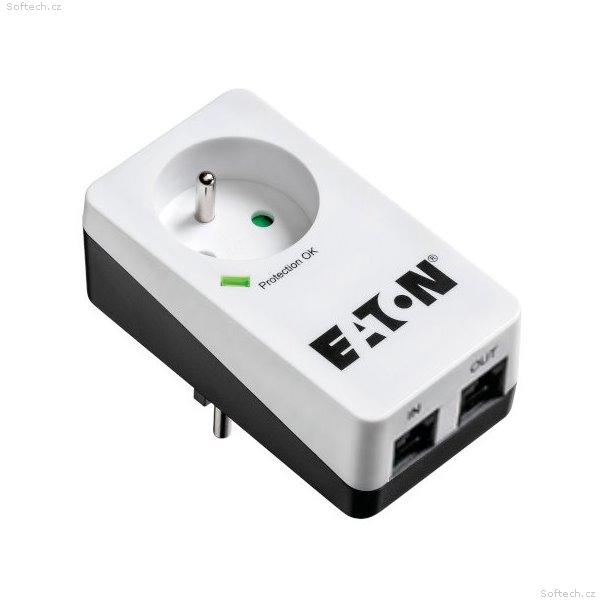

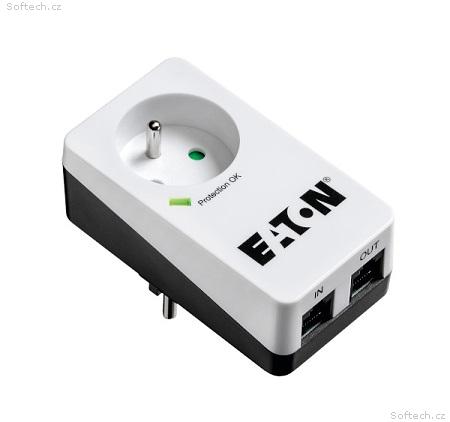

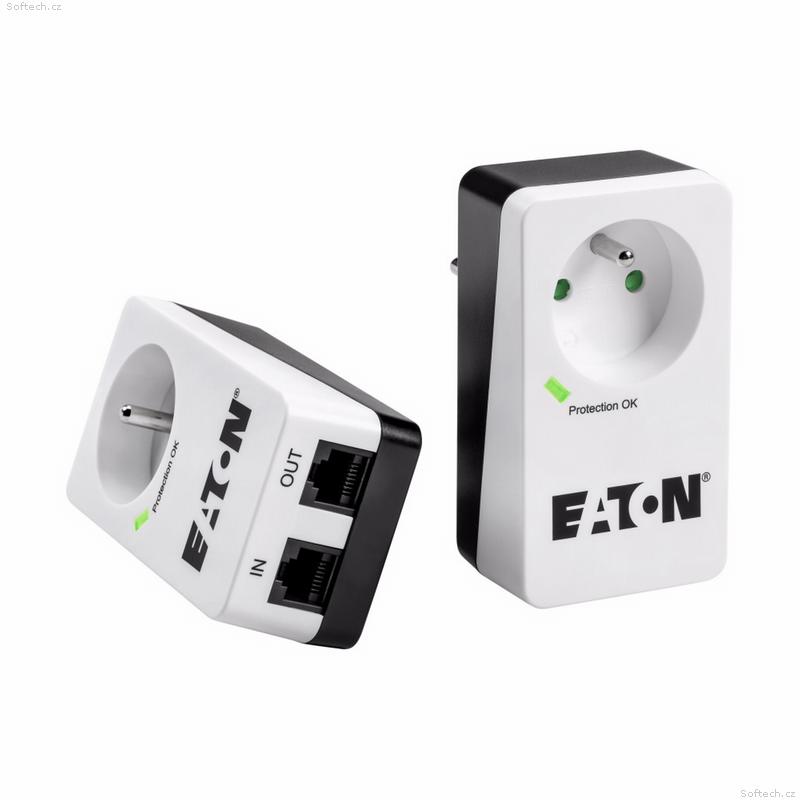

EATON Protection Box 1 Tel@ FR, přepěťová ochrana, 1 výstup 16A, tel.

Technical specifications


1


1 Tel@


6


6 USB


6 USB Tel@


8 USB Tel@

Rating (A/W)
16 A / 4000 W
16 A / 4000 W
10 A / 2 500 W
10 A / 2 500 W
10 A / 2 500 W
10 A / 2 500 W
Voltage/frequency
220 – 250 Vac 50/60 Hz
USB charging ports
/
/
/
2
2
2

Power line protection

Surge test conditions for IEC 61643-11 with 1.2/50µs; 8/20µs pulse
L+N to PE : Uoc = 6 kV; Up < 1.5 kV; In = 3 kA L to N : Uoc = 4 kV; Up < 1.5 kV; In = 2 kA

Protective devices

Total rating
18 000 A, 3 x MOV 6 000 A
Response time
<1ns

Telephone line protection

RJ11 telephone including broadband
/
10 000 A
/
/
10 000 A
10 000 A
Surge test conditions for IEC 61643-21 with 1.2/50µs; 8/20µs pulse C2
Pin 4 & 5 to PE : Uoc = 6 kV; Up < 1.5 kV; In = 3 kA Pin 4 to Pin 5 : Uoc = 4 kV; Up < 1.5 kV; In = 2 kA

Certifications & compliance

Certifications
CE / EAC / CM
Compliance
IEC 60884-1 / IEC 61643-11 / IEC/EN 61000-6-1 / IEC/EN 61000-6-3 / NF C61-314 / VDE 06020

Dimensions and weight

Dimensions H x W x D
72.5 x 55 x 98 mm
72.5 x 55 x 98 mm
47.5 x 110 x 245 mm
47.5 x 110 x 245 mm
47.5 x 110 x 245 mm
47.5 x 110 x 290 mm
Weight
0.115 kg
0.124 kg
0.586 kg
0.612 kg
0.646 kg
0.713 kg

Customer service & support

2 years warranty
Product standard exchange ; warranty for connected equipment up to 50 000 €

Part numbers


1


1 Tel@


6


6 USB


6 USB Tel@


8 USB Tel@

French sockets (FR)
PB1F
PB1TF
PB6F
PB6UF
PB6TUF
PB8TUF
