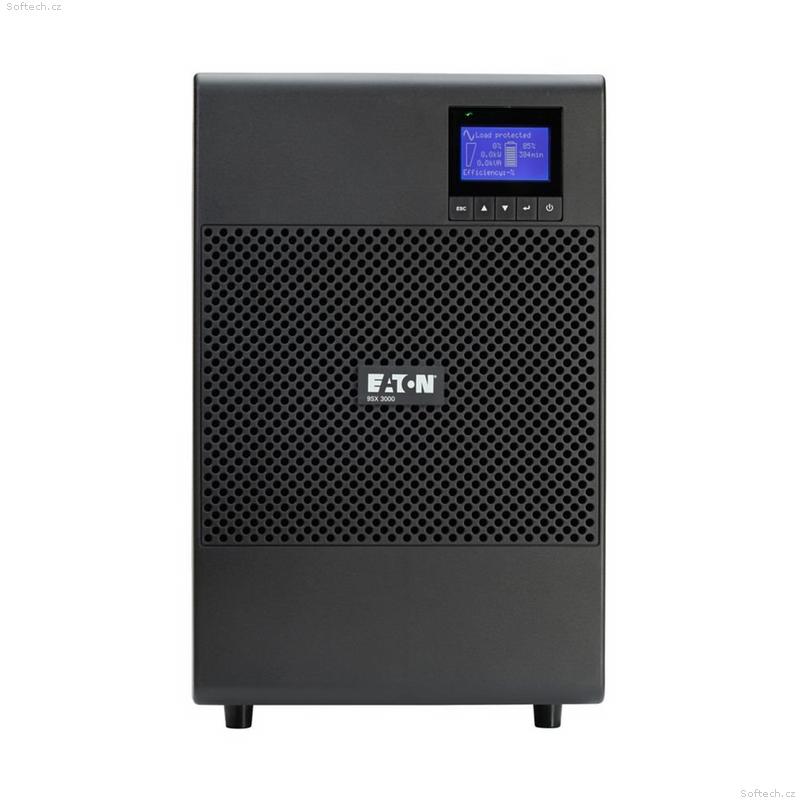

EATON UPS 9SX 3000VA, On-line, Tower, 3000VA, 2700W, 120V, výstup 8, 1x IEC C13, C19, USB, displej, sinus

Eaton 9SX online, extended runtime UPS, 3000 VA, 2700 W, 120V, L5-30P input, Outputs: (4) 5-20R, (1) L5-30R, 13.6"Hx8.4"Wx16.2"D, 77.2 lb., network card optional
General specifications
Product Name
Eaton 9SX UPS
Catalog Number
9SX3000
UPC
743172091260
Product Length/Depth
16.2 in
Product Height
13.6 in
Product Width
8.4 in
Product Weight
77.2 lb
Compliances
FCC Compliant
CE Marked
Certifications
cULus Listed
ICC-ES AC156 OSHPD Seismic certified
Global Catalog
9SX3000
Product Type
UPS
Battery
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Battery replacement
Hot-swappable internal batteries and extended battery modules (EBMs)
Extended battery capability
Yes
Electrical output
Receptacle
(4) 5-20R, (1) L5-30R
Topology
Online/Double-conversion
Wattage
2700 W
VA rating
3000 VA
Output waveform
True sine wave
Voltage
120V
Output power factor
0.9
Output nominal voltage
120V default (100/110/120/125V)
Output frequency
50/60 Hz
Feed type
1
Electrical input
Input connection
L5-30P
Input cord length
8 ft
Input nominal voltage
120 Default (100/110/120/125V)
Input frequency range
60 Hz: 50–70 Hz, 50 Hz: 40–60 Hz
Input power factor
>.99
Communications
Communication
(1) MiniSlot
(1) USB port
(1) Serial RS-232 port
(1) RPO/ROO/Signal input terminal
(1) mini-terminal block for output relay
Expansion slots
(1) Mini-Slot (MS) expansion port. Optional connectivity cards may be ordered separately.
- Gigabit Web/SNMP card part number: NETWORK-M3
- Modbus card part number: INDGW-M2
- Relay card part number: RELAY-MS
User interface
5-button graphical user interface
Potential free switch contact
Yes
Environmental
Altitude
3000 m
BTU Rating
Online : 1020 BTU/hr, Battery : 1340 BTU/hr, High efficiency : 350 BTU/hr
Noise level
<53 dB at 1 meter
Relative humidity
0-96% non-condensing
Temperature range
0° to 40°C (32° to 104°F)
Additional specifications
Form factor
Tower
Construction type
Free standing model
Efficiency at max. load
90.9
Package contents
9SX 3000 VA UPS
Quick start guide
RS-232 serial cable
USB cable
Internal bypass
Yes
Warranty and support
Standard factory warranty
3-YEAR FACTORY WARRANTY
- 3 years
- Parts, electronics and batteries coverage
- Standard ground shipping
- Technical support
Extended service plans
ADVANCED DEPOT EXCHANGE
- 5-year depot repair: 9SW5Y-3000UC
- Expedited parts coverage for 5 years
- Parts, electronics and UPS batteries coverage
- Next business day shipping
- Technical support
5-YEAR ON-SITE PLAN: WFLN75XX-6009UC
- On-site parts and labor coverage for years 5
- Parts, electronics and UPS batteries coverage
- 24x7 on-site labor coverage, next-day response
- Next-day shipping
- Technical support
