Popis produktu:
https://www.infomatic.cz/clanek/efektivita-skenovani-na-nove-urovni
https://www.fujitsu.com/us/products/computing/peripheral/scanners/business/fi8170/

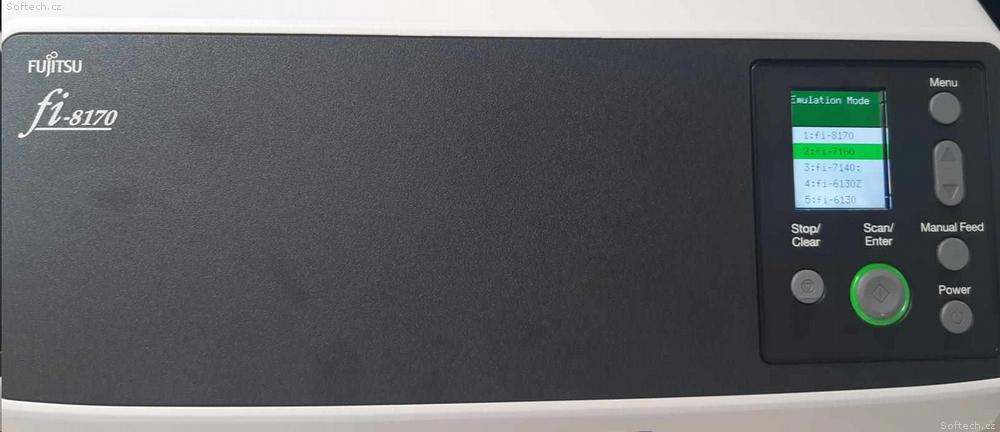

- EMULACE na starší modely, pro výměnu stroje bez nutnosti výměny driveru: zapnutí otevřený kryt / držet tlačítko ENTER a zapnout POWER dle obrázku: enapříklad mulací nadstavit 7160
- Servisní linka na FUJITSU SKENERY: 239 016 804
- záruka 12m výměna produktu za funkční do 1-2 dnů
Product Name
fi-8170
Scanner Type
ADF (Automatic Document Feeder) / Manual Feed, Duplex
(Color/Grayscale/Monochrome)
Simplex
70 ppm (200/300 dpi)
Duplex
140 ipm (200/300 dpi)
Image Sensor Type
CIS x 2 (front x 1, back x 1)
Light Source
RGB LED x 2 (front x 1, back x 1)
Optical Resolution
600 dpi
(Color / Grayscale / Monochrome)
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output Format
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors
White / Black (selectable)
Document Size
Maximum
215.9 x 355.6 mm (8.5 x 14 in.)
Minimum
48 x 50 mm (1.9 x 2 in.)
Long Page Scanning
6,096 mm (240 in.)
Paper Weight (Thickness)
Paper
20 to 465 g/m2 (5.3 to 124 lb)
Booklet
Less than 7 mm (0.276 in.)
Plastic Card
1.4 mm (0.055 in.) or less
ADF Capacity
100 sheets (A4 80 g/m2 or Letter 20 lb)
Expected Daily Volume
10,000 sheets
Multifeed Detection
Overlap detection (Ultrasonic sensor), Length detection
Paper Protection
Image monitoring, Sound detection (iSOP)
Interface
USB
USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Ethernet
10BASE-T, 100BASE-TX, 1000BASE-T
Power Requirements
AC 100V - 240V 50/60 Hz
Power Consumption
Operating Mode
28 W or less / 17 W (Eco mode)
Sleep Mode
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
Operating Environment
Temperature
5 to 35 °C (41 to 95 °F)
Relative Humidity
15 to 80% (Non-condensing)
Environmental Compliance
ENERGY STAR, RoHS
Dimensions (W x D x H)
300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)
Weight
4 kg (8.8 lb)
Supported Operating System
Windows 11, Windows 10, Windows 8.1, Windows 7, Windows Server 2022, Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, macOS, Linux (Ubuntu)
Included Software / Drivers
PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver, Image Scanner Driver for macOS (ICA), Image Scanner Driver for Linux (SANE), PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™, Scanner Central Admin
Image Processing Functions
Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold
Included Items
ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
