Popis produktu:
https://www.pfu-emea.ricoh.com/en-gb/hardware/scanners/fi-series/fi8040
https://youtu.be/94lvLgwriEc
Product Name

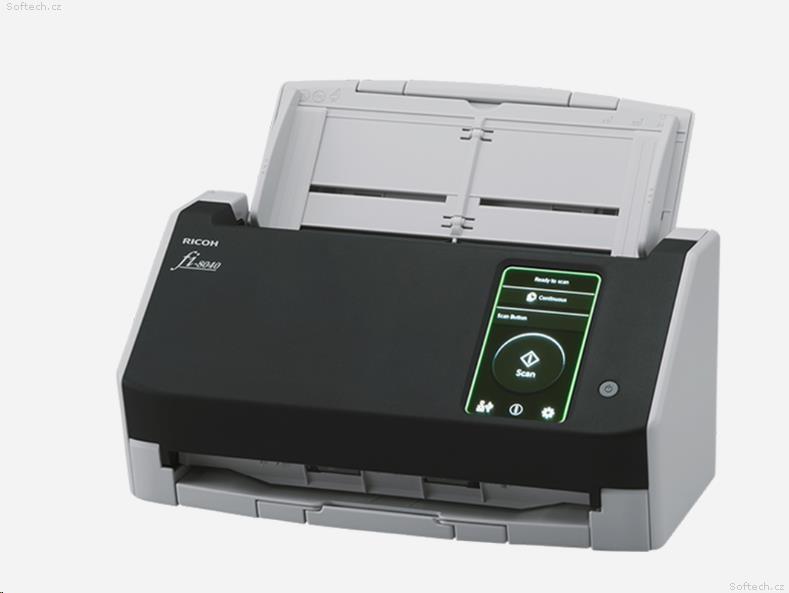

fi-8040
Scanner Type
Automatic Document Feeder (ADF) / Manual Feed (Separate/ Non separate), Duplex
WORKGROUP Scanner
ADF Capacity
50 x A4 80 g/m2
50 x Letter 20 lb
Scanning Colour Modes
Colour, Greyscale, Monochrome
Automatic (Colour / Greyscale / Monochrome detection)
Optical Resolution
600 dpi
Output Resolution
50 to 500 dpi (adjustable by 1 dpi increments), 1200 dpi (driver)
Using DirectScan: 150, 200, 240 or 300 dpi
Image Sensor Type
Contact Image Sensor (CIS) x 2 with Clear Image Capture Technology
Light Source
RGB LED (Front & Back)
Scanning Speed (A4 Portrait)
Simplex: 40 ppm
Duplex: 80 ipm
Media Support
Standard Sizes
A4, A5, A6, B5, B6, Business Card, Post Card, Letter, Legal and Custom Size.
Custom Sizes
Maximum: 210 x 297 mm
Manual Feed Paper Sizes
Folded A3, B4, Double Letter and all document sizes listed above.
Paper Sizes with optional Carrier Sheet
A3, B4, Double Letter, Photographs and all document sizes listed above.
Paper Weight
40 g/m2 - 209 g/m2
A8 size 128 g/m2 - 209 g/m2
Long Page Scanning
When using DirectScan: N/A
Card Scanning
Card with the size specified in ISO7810 (85.6 mm x 53.98 mm) with a thickness of 0.76 mm or less is applicable.
Multifeed Detection
Overlap detection (Ultrasonic)
Image Processing Functions
Advanced DTC, Automatic Colour Detection, Automatic Profile Selection, Automatic Rotation, Background Pattern Removal, Blank Page Detection, Character Extraction, Cropping, Custom Rotation, De-Screen, De-Skew, Dither, Dropout Colour (None / Red / Green / Blue / White / Saturation / Custom), Dynamic Threshold (iDTC), Edge Fill, Error Diffusion, Front Back Merging, Halftone, Image Emphasis, Index Tab Cropping, Multi Image Output, SDTC, Split Image, sRGB Output, Static Threshold, Vertical Streaks Reduction.
When using DirectScan: Barcode Recognition, Blank Page Detection, De-skew and Cropping (Automatic size), Dropout Colour (Red, Green, Blue, None), Rotation (0°, 90°, 180°), SDTC
Output Filetypes
PDF, Searchable PDF, PDF/A, TIFF, Multi-Page TIFF, Bitmap, JPEG, JPEG2000, PNG, Word, Excel, PowerPoint
When using DirectScan: JPEG, PDF, SinglePage PDF only
Paper Separation Method
Brake Roller
Expected Daily Volume
6,000 Sheets
Local Interface
USB Port
USB 3.2 Gen 1/ 3.0 / 2.0 / 1.1 (Type-B Connector)
Ethernet Interface
Ethernet Specification
10BASE-T/100BASE-TX/1000BASE-T
Ethernet Port Connector Type
RJ-45
Human Interface
LCD Touchscreen
Image Memory
1024 MB
Power Source
Mains AC
Power Requirements
100V - 240V AC ±10 % (50 / 60 Hz)
Power Consumption
Operating Mode
19 W or less
Sleep Mode
1.9 W or less
Standby Mode
0.15 W or less
Operating Environment
Operating Temperature Range
5°C - 35°C (41°F - 95°F)
Operating Humidity Range
20% - 80% (non-condensing)
Device Colour
Black / Light Grey
Device Dimensions (Height x Width x Depth)
143 mm x 292 mm x 157 mm
Device Weight (approx)
3.1 kg
Environmental & Regulatory Compliance
ENERGY STAR / RoHS
Recommended Windows Driver
PaperStream IP (TWAIN)
PaperStream IP (TWAIN x64) for 64-bit applications
PaperStream IP (ISIS)
Other Drivers Available
Image Scanner Driver for Linux (32 bit / 64 bit) [SANE]
Image Scanner Driver for macOS
Software
PaperStream Capture
PaperStream ClickScan
PaperStream ClickScan Searchable PDF Option
Software Operation Panel
Error Recovery Guide
Scanner Central Admin Agent
Network Setup Tool for fi Series
fi Series Online Update
ABBYY FineReader for ScanSnap (available as download)
1 Year Standard Warranty
Advance Exchange Next Business Day.
Valid for 1 year from date of scanner purchase.
Includes replacement of defective product and two-way shipping costs.
Included in the price of a new scanner product.
Package contents
Ricoh fi-8040
1 x Pick Roller (200K) [already fitted in new product]
1 x Brake Rollers (200K) [already fitted in new product]
Paper Chute (If detachable): YES
AC Adapter AC Adapter output: 16V & 2.5A
Power Cord(s): 1 x UK / 1 x EU
Setup DVD
USB Cable(s): 1x 2.0 Metre USB 2.0 cable (Type-A Male -> Type-B Male)
Getting Started Guide
Safety Precautions Sheet
Warranty Sheet
Approvals Sheet
