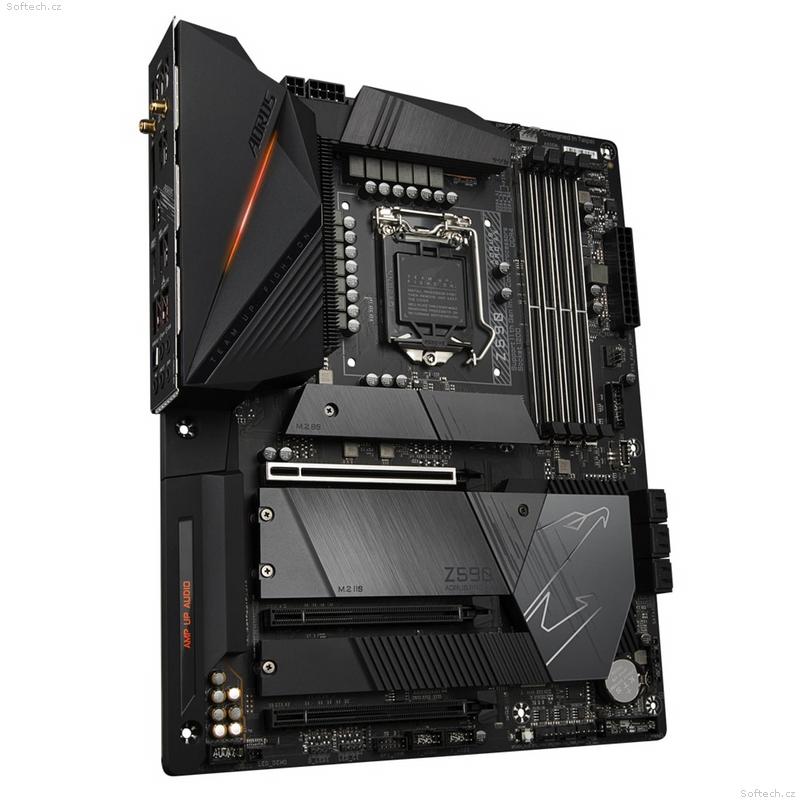

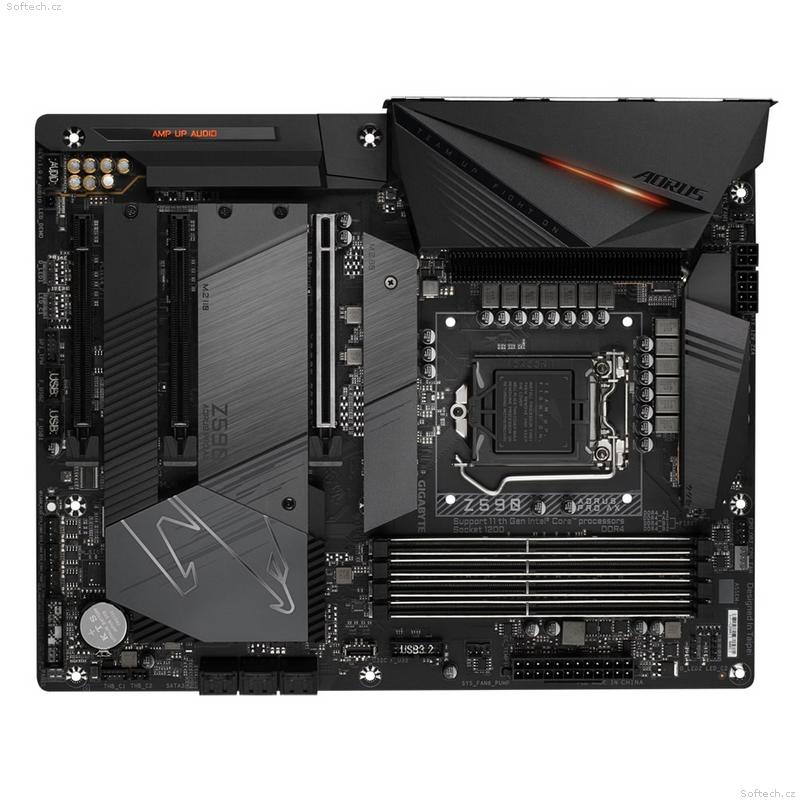

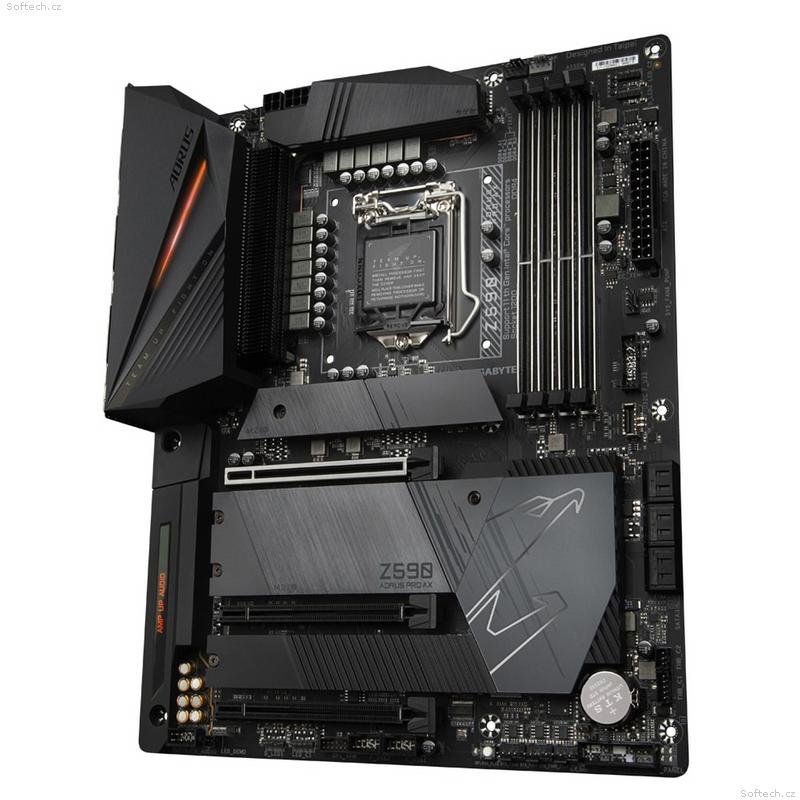

GIGABYTE Z590 AORUS PRO AX, LGA 1200, ATX

Chipset: Intel® Z590 Express Chipset

Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors + 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
Patice procesoru: LGA 1200

Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
*11th Generation Intel® Core™ i9/i7/i5 processors:
*Support for DDR4 5400 (O.C) / DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) /4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
*10th Generation Intel® Core™ i9/i7 processors
*Support for DDR4 2933/2666/2400/2133 MHz memory modules
*10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
*Support for DDR4 2666/2400/2133 MHz memory modules
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4
*Dvoukanálová architektura paměti
*Podpora paměťových modulů ECC Un-buffered DIMM 1Rx8/2Rx8 (pracuje jako non-ECC mode)
*Podpora paměťových modulů non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
*Podpora paměťových modulů s XMP profilem (Extreme Memory Profile)

Grafická karta: Integrovaná v závislosti na CPU

Multi-GPU:
*AMD Quad-GPU CrossFire™
*2-Way AMD CrossFire™

Zvuková karta:
*Realtek® ALC4080 codec

Síťová karta:
*Intel® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
*Intel® Wi-Fi 6E AX200
*Bluetooth 5.1

Rozšiřující sloty:
*1x PCI Express x16 slot, running at x16 (PCIEX16)
*2x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)

RAID řadič: 0, 1, 5, 10

SATA:
*6x konektor SATA 6 Gb/s

M.2:
*1x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
*2x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)(M2C_CPU)
*1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)

USB:
*zadní USB porty (celkem 13)
*1x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
*4x USB 3.2 Gen 2 Type-A ports (red)
*4x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports
*přední USB porty (celkem 7)
*1x USB Type-C® port with USB 3.2 Gen 2
*2x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports

Interní porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*1x 4-pin ATX 12V power connector
*1x CPU fan header
*1x water cooling CPU fan header
*4x system fan headers
*2x system fan/water cooling pump headers
*2x addressable LED strip headers
*2x RGB LED strip headers
*6x SATA 6Gb/s connectors
*4x M.2 Socket 3 connectors
*1x front panel header
*1x front panel audio header
*1x USB Type-C® header, with USB 3.2 Gen2 support
*1x USB 3.2 Gen1 header
*2x USB 2.0/1.1 headers
*2x Thunderbolt™ add-in card connectors
*1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1x Clear CMOS jumper
*2x temperature sensor headers
*1x Q-Flash Plus button

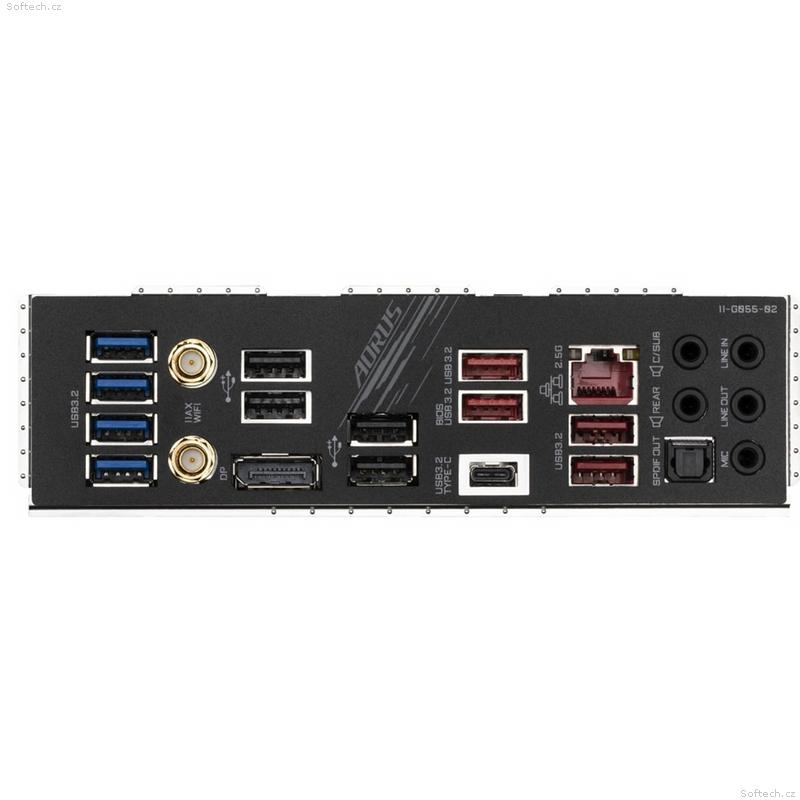

Externí porty:
*1x USB Type-C® port, with USB 3.2 Gen 2x2 support
*4x USB 3.2 Gen 2 Type-A ports (red)
*4x USB 3.2 Gen 1 ports
*4x USB 2.0/1.1 ports
*2x SMA antenna connectors (2T2R)
*1x DisplayPort
*1x RJ-45 port
*1x optical S/PDIF Out connector
*5x audio jacks

BIOS: 1x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Stránka výrobce: https://www.gigabyte.com/Motherboard/Z590-AORUS-PRO-AX-rev-10
