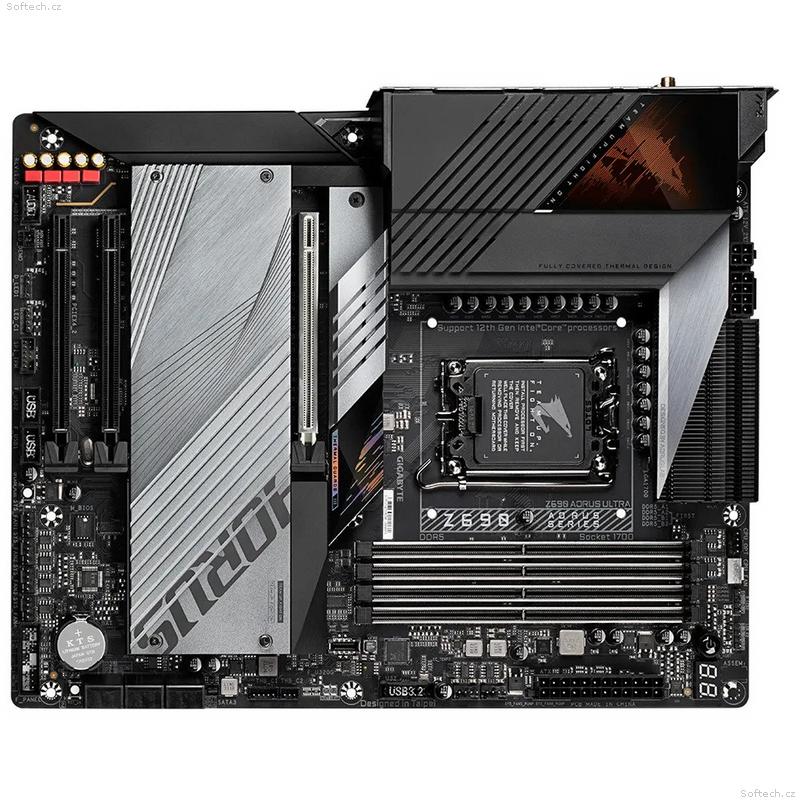

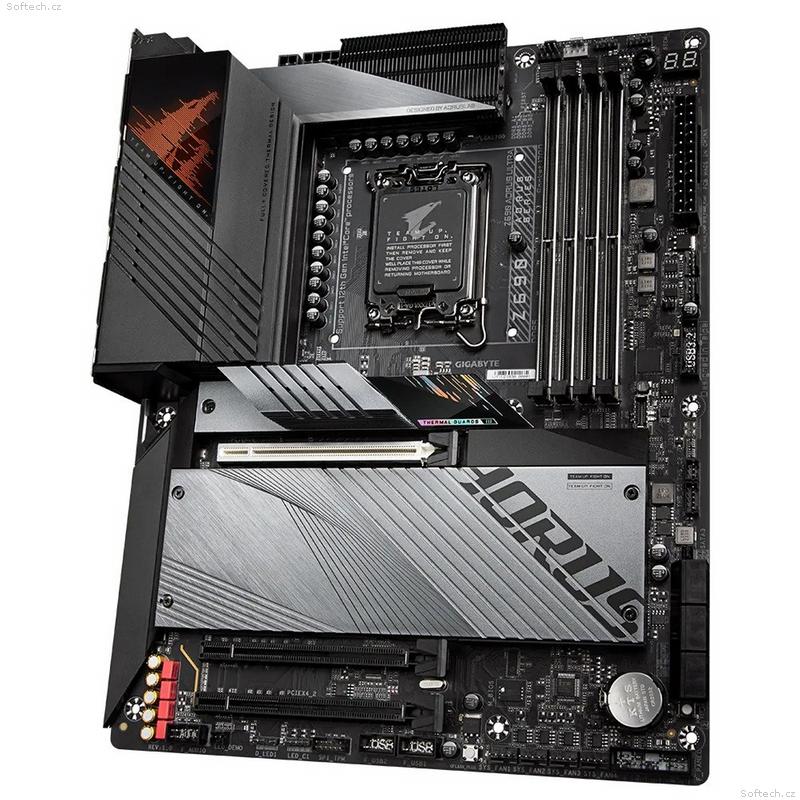

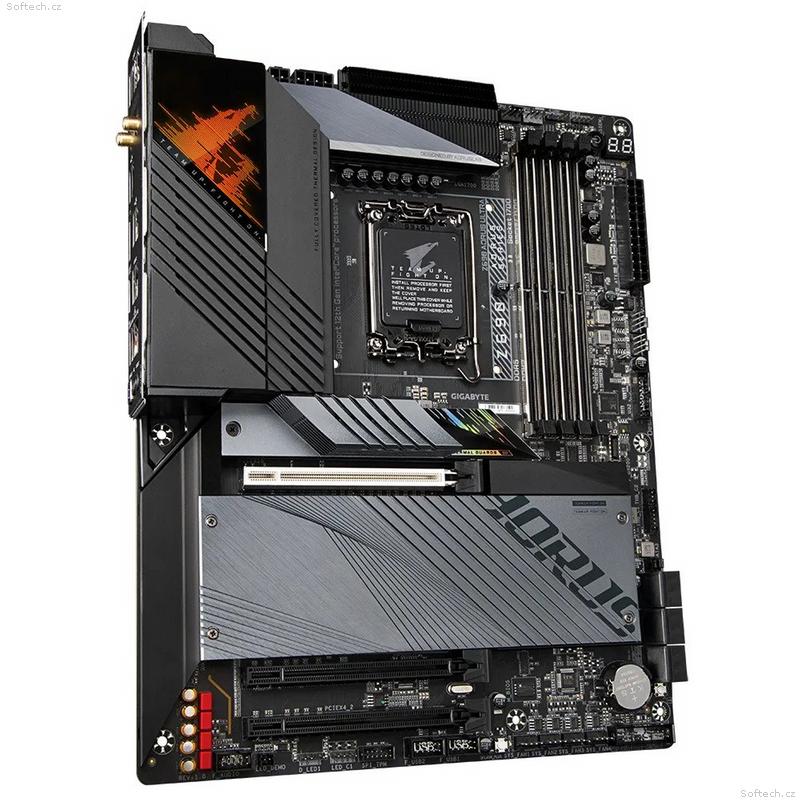

GIGABYTE Z690 AORUS ULTRA, LGA 1700, ATX

Chipset: Intel Z690 Express Chipset

Rozměrový formát: ATX Form Factor; (30.5cm x 24.4cm)
Podpora pro procesory: 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
Patice procesoru: LGA 1700

Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR5 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: ECC, XMP

Grafická karta: Intel HD Graphics
*1 x DisplayPort 1.2 - 4096x2304@60 Hz

Zvuková karta: Realtek ALC4080 CODEC
*2-channel analog output
*7.1-channel digital signals
*Podpora S/PDIF Out

Síťová karta:
*Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
*WI-FI a, b, g, n, ac, ax
*Bluetooth 5.2

Rozšiřující sloty:
*1 x PCI Express x16 slot, running at x16 (PCI Express 5.0 standard)
*2 x PCI Express x16 slots, running at x4 (PCI Express 3.0 standard)

RAID řadič: RAID 0, RAID 1, RAID 5, and RAID 10

SATA: 6 x SATA 6Gb/s connectors

M.2: 4 x M.2 Socket 3 connectors

USB:
*Interní:
*1 x USB Type-C header, with USB 3.2 Gen 2x2 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*Externí:
*1 x USB Type-C port, with USB 3.2 Gen 2x2 support
*4 x USB 3.2 Gen 2 Type-A ports (red)
*4 x USB 3.2 Gen 1 ports
*4 x USB 2.0/1.1 ports

Interní porty:
*1 x 24-pin ATX main power connector
*1 x 8-pin ATX 12V power connector
*1 x 4-pin ATX 12V power connector
*1 x CPU fan header
*1 x water cooling CPU fan header
*4 x system fan headers
*2 x system fan/water cooling pump headers
*2 x addressable LED strip headers
*2 x RGB LED strip headers
*4 x M.2 Socket 3 connectors
*6 x SATA 6Gb/s connectors
*1 x front panel header
*1 x front panel audio header
*1 x USB Type-C header, with USB 3.2 Gen 2x2 support
*1 x USB 3.2 Gen 1 header
*2 x USB 2.0/1.1 headers
*1 x noise detection header
*2 x Thunderbolt add-in card connectors
*1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
*1 x power button
*1 x Q-Flash Plus button
*1 x reset button
*1 x reset jumper
*1 x Clear CMOS jumper
*2 x temperature sensor headers

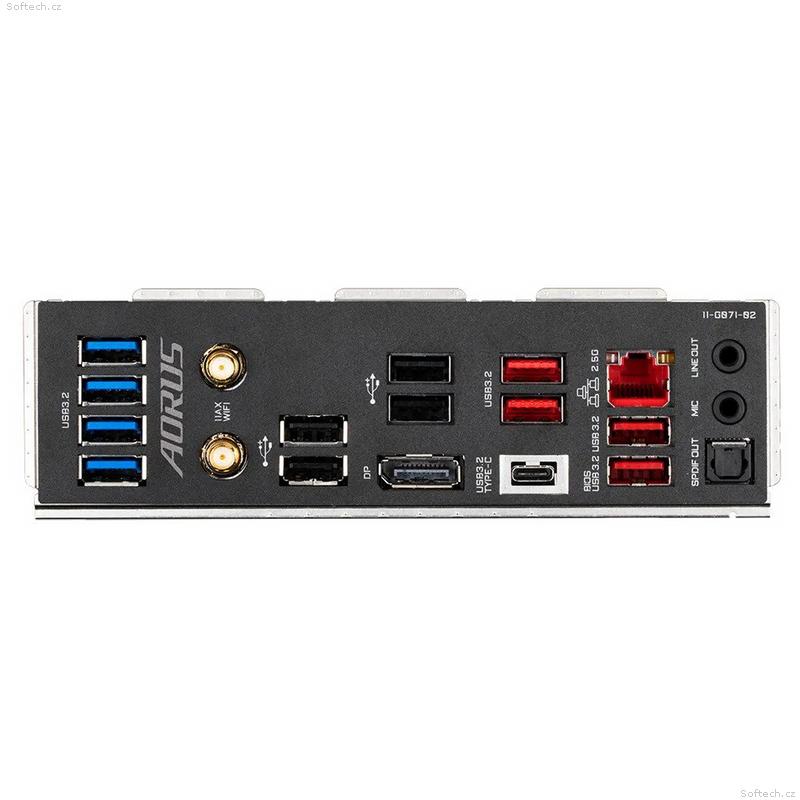

Externí porty:
*2 x SMA antenna connectors (2T2R)
*1 x USB Type-C port, with USB 3.2 Gen 2x2 support
*4 x USB 3.2 Gen 2 Type-A ports (red)
*4 x USB 3.2 Gen 1 ports
*4 x USB 2.0/1.1 ports
*1 x DisplayPort
*1 x RJ-45 port
*1 x optical S/PDIF Out connector
*2 x audio jacks

BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash

Stránka výrobce: http://www.gigabyte.com/Motherboard/Z690-AORUS-ULTRA-rev-1x#kf
