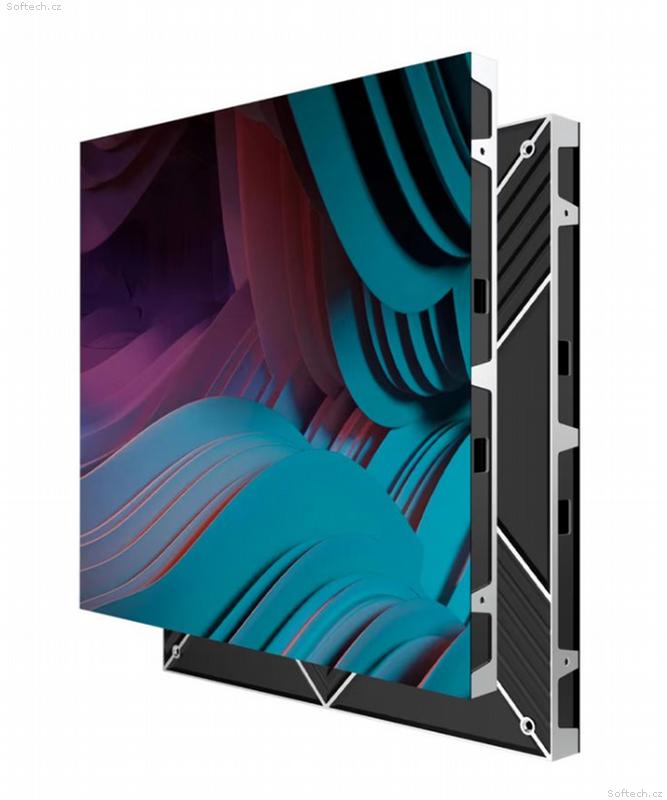

HiSense MODULE XIM020 HSN

Model: XIM020
Pixel Pitch: 2mm
LED Package: SMD Copper Wire SMD1515
Thickness: 50mm / 1.96 inch
Module Resolution: 160 x 80
Module Dimension (WxH): 320 x 160 mm / 12.59 x 6.29 inch
Cabinet Dimension (WxHxD):
640 x 480 x 48 mm / 25.19 x 18.89 x 1.88 inch (Die-cast aluminum)Customizable (Steel)
640 x 640 x 48mm / 25.19 x 25.19 x 1.88 inch (Die-cast aluminum)Customizable (Steel)
320 x 480 x 48mm / 12.59 x 18.89 x 1.88 inch (Die-cast aluminum)Customizable (Steel)
No. of Modules per Cabinet (WxH): 2 x 3 / 2 x 4 / 1 x 3
Cabinet Resolution: 320 x 240 (Die-cast aluminum)Customizable (Steel)
Cabinet Weight:
6.5 kg / 14.33 lbs (Die-cast aluminum) Customizable (Steel)
8.2 kg / 18.07 lbs (Die-cast aluminum) Customizable (Steel)
3.8 kg / 8.37 lbs (Die-cast aluminum) Customizable (Steel)
Cabinet materials: Die-cast Aluminium / Steel
Brightness (typ.): 600 nits
Contrast Ratio: 4,000 : 1@10lux (According to the current Hisense test environment)
Visual Viewing Angle (H x V): 160° x 160°
Bit Depth: 13 bit
Colour Temperature: 6500K + 6500K
Brightness Uniformity: 95%
Colour Uniformity: +0.012 Cx, Cy
Max / Avg Power Consumption per Cabinet: 185W (Max) / 56W (Avg)
Max / Avg Power Consumption per Unit Area: 600W/m2 (Max) / 180W/m2 (Avg)
Power Supply: 100~240 V AC
Refresh Rate: 3840 Hz
Operating Temp / Humidity: -10~40°C / 10~80% RH
Storage Temp / Humdity: -20~60°C / 10~90% RH
IP Rating: Front IP30
Lifetime: 100,000 Hrs
Maintenance:
Front Access (Die-cast Aluminium)
Front / Rear Access (Steel)
