Popis produktu:

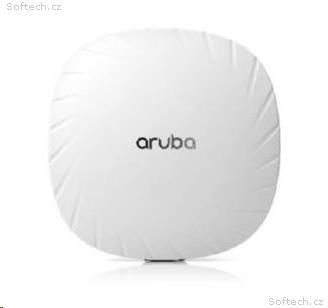

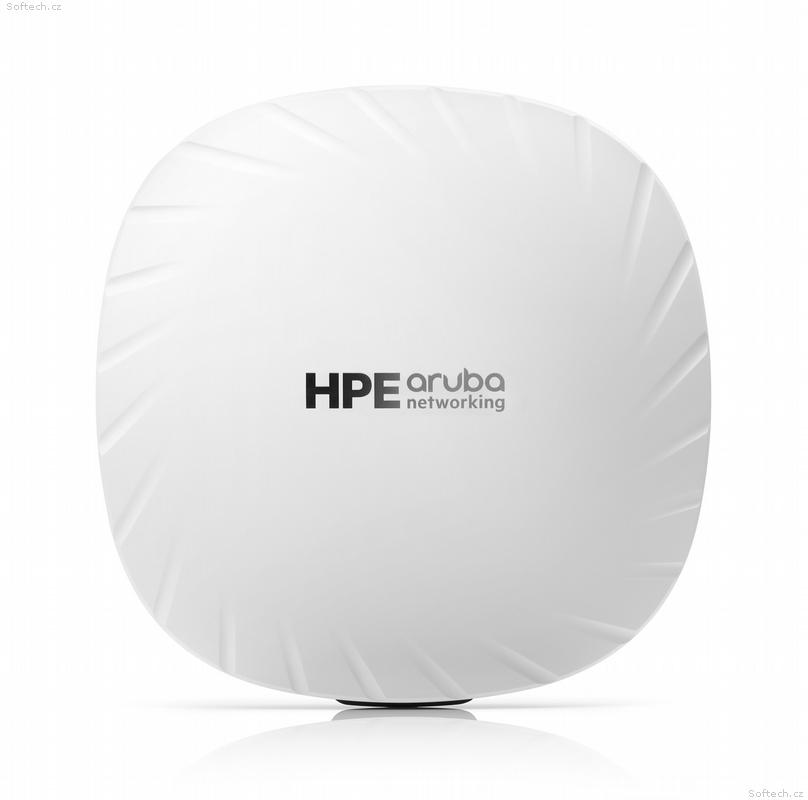

Aruba AP-535 (RW) Dual Radio 4x4:4 802.11ax Internal Antennas Unified Campus AP
HPE Aruba Networking AP-535 (RW) Wi-Fi 6 Unified Campus Access Point (JZ336A)
HPE Aruba Networking AP-535 (JZ336A) je výkonný podnikový Wi-Fi 6 (802.11ax) přístupový bod navržený pro prostředí s vysokou hustotou uživatelů, jako jsou kanceláře, univerzity, nemocnice, konferenční centra a podnikové kampusy. Díky architektuře 4x4 MIMO, podpoře OFDMA, MU-MIMO a agregované rychlosti až 2,97 Gb/s poskytuje vysoký výkon, nízkou latenci a maximální efektivitu bezdrátové komunikace.
Jde o AP s interními anténami, konfigurací 4×4 MU-MIMO, podporou OFDMA, dvěma 5GbE Smart Rate porty, Bluetooth 5, Zigbee a agregovanou bezdrátovou propustností až 2,97 Gb/s.
Model AP-535 využívá integrované všesměrové antény optimalizované pro montáž na strop a nabízí pokročilé bezpečnostní funkce včetně WPA3, Trusted Platform Module (TPM), Policy Enforcement Firewall (PEF) a Dynamic Segmentation.
Hlavní vlastnosti
Wi-Fi 6 (IEEE 802.11ax)
Dual-radio 4x4:4 MIMO
Agregovaná propustnost až 2,97 Gb/s
Až 2,4 Gb/s v pásmu 5 GHz
Až 1 147 Mb/s v pásmu 2,4 GHz
OFDMA a obousměrné MU-MIMO
Dva 5GbE Smart Rate porty
Bluetooth 5.0 a Zigbee
802.11mc Fine Timing Measurement (FTM)
Zero-Wait DFS
ClientMatch technologie
Target Wake Time (TWT)
Trusted Platform Module (TPM)
WPA3 a Enhanced Open
VPN podpora
Zero Touch Provisioning
Aruba Central management
Základní informace
Parametr
Hodnota
Výrobce
HPE Aruba Networking
Model
AP-535
Objednací kód
JZ336A
Varianta
RW (Rest of World)
Typ zařízení
Campus Access Point
Určení
Indoor
Wi-Fi generace
Wi-Fi 6 (802.11ax)
Antény
Integrované
Bezdrátové parametry
Parametr
Hodnota
Konfigurace rádií
Dual Radio 2,4 GHz + 5 GHz
MIMO
4x4:4
5 GHz rádio
4 streamy HE80 nebo 2 streamy HE160
2,4 GHz rádio
4 streamy HE40
Max. rychlost 5 GHz
2 402 Mb/s
Max. rychlost 2,4 GHz
1 147 Mb/s
Agregovaná rychlost
2,97 Gb/s
Počet klientů na rádio
1 024
Celkový počet klientů
2 048
BSSID
16 na rádio
Podporované standardy
Standard
Podpora
802.11a/b/g
Ano
802.11n
Ano
802.11ac Wave 2
Ano
802.11ax Wi-Fi 6
Ano
Podporované frekvence
Pásmo
Rozsah
2,4 GHz
2,400 – 2,4835 GHz
U-NII-1
5,150 – 5,250 GHz
U-NII-2A
5,250 – 5,350 GHz
U-NII-2C
5,470 – 5,725 GHz
U-NII-3
5,725 – 5,850 GHz
U-NII-4
5,850 – 5,895 GHz
Podporované šířky kanálů
Pásmo
Šířka kanálu
2,4 GHz
20 / 40 MHz
5 GHz
20 / 40 / 80 / 160 MHz
Pokročilé Wi-Fi technologie
OFDMA
Bidirectional MU-MIMO
ClientMatch
Target Wake Time (TWT)
Zero-Wait DFS
Transmit Beamforming (TxBF)
Maximum Ratio Combining (MRC)
Space-Time Block Coding (STBC)
Low Density Parity Check (LDPC)
802.11mc Fine Timing Measurement (FTM)
Advanced Cellular Coexistence (ACC)
Packet aggregation A-MPDU a A-MSDU
Integrované antény
Parametr
Hodnota
Typ
4× integrovaná dual-band downtilt omnidirectional
Zisk 2,4 GHz
3,5 dBi
Zisk 5 GHz
5,4 dBi
Průměrný kombinovaný zisk 2,4 GHz
1,9 dBi
Průměrný kombinovaný zisk 5 GHz
3,5 dBi
Optimalizace
Horizontální stropní montáž
Downtilt
cca 30°

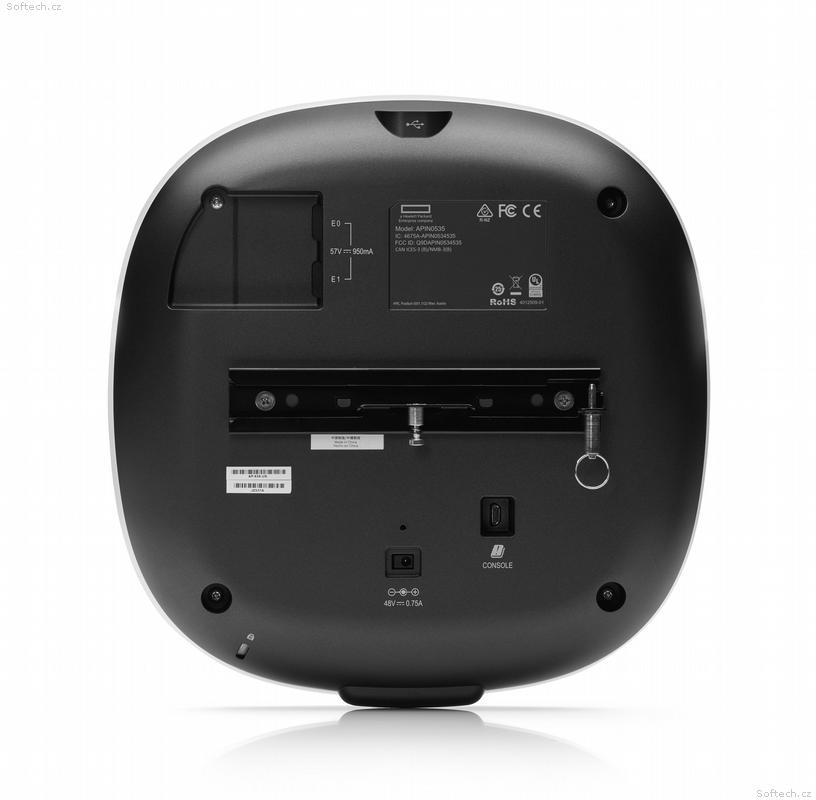

Síťová rozhraní
Rozhraní
Specifikace
E0
5GbE Smart Rate RJ-45
E1
5GbE Smart Rate RJ-45
Rychlosti
100 / 1000 / 2500 / 5000 Mb/s
PoE
802.3at / 802.3bt
USB
USB 2.0 Type-A
Konzole
Micro-USB
Zabezpečení
Kensington Lock
IoT konektivita
Technologie
Podpora
Bluetooth
Bluetooth 5.0
Zigbee
IEEE 802.15.4
LTE modem
USB LTE modem (volitelné)
Lokalizační služby
802.11mc FTM
Zabezpečení
Funkce
Podpora
WPA3
Ano
Enhanced Open (OWE)
Ano
WPA2-MPSK
Ano
Policy Enforcement Firewall (PEF)
Ano
Dynamic Segmentation
Ano
Trusted Platform Module (TPM)
Ano
SSL/IPSec VPN
Ano
Napájení
Parametr
Hodnota
PoE standard
802.3at / 802.3bt
Napětí
48 V DC
Intelligent Power Monitoring (IPM)
Ano
AI Dynamic Power Save
Ano
Fyzické parametry
Parametr
Hodnota
Rozměry
80 × 270 × 270 mm
Hmotnost
1,0 kg
Provedení
Indoor
Montáž
Stropní nebo nástěnná (držák není součástí)
Management
Funkce
Podpora
Aruba Central
Ano
On-Premise Management
Ano
Virtual Private Cloud (VPC)
Ano
Zero Touch Provisioning
Ano
Cloud Management
Ano
Certifikace
Wi-Fi CERTIFIED 6 (802.11ax)
Wi-Fi CERTIFIED a/b/g/n/ac
WPA/WPA2/WPA3 Enterprise
Enhanced Open (OWE)
Wi-Fi Agile Multiband
Wi-Fi CERTIFIED Location
Bluetooth SIG
FCC
CE
RED 2014/53/EU
UL/IEC/EN 62368-1
UL2043 Plenum Rated
Obsah balení
HPE Aruba Networking AP-535 (JZ336A)
Instalační dokumentace
HPE Aruba Networking AP-535 (JZ336A) je výkonný podnikový Wi-Fi 6 access point určený pro moderní kampusové sítě a prostředí s vysokou hustotou uživatelů. Díky architektuře 4x4 MIMO, podpoře OFDMA, MU-MIMO, dvěma 5GbE portům, pokročilému zabezpečení a integrované podpoře IoT představuje ideální řešení pro organizace vyžadující maximální výkon, bezpečnost a škálovatelnost.

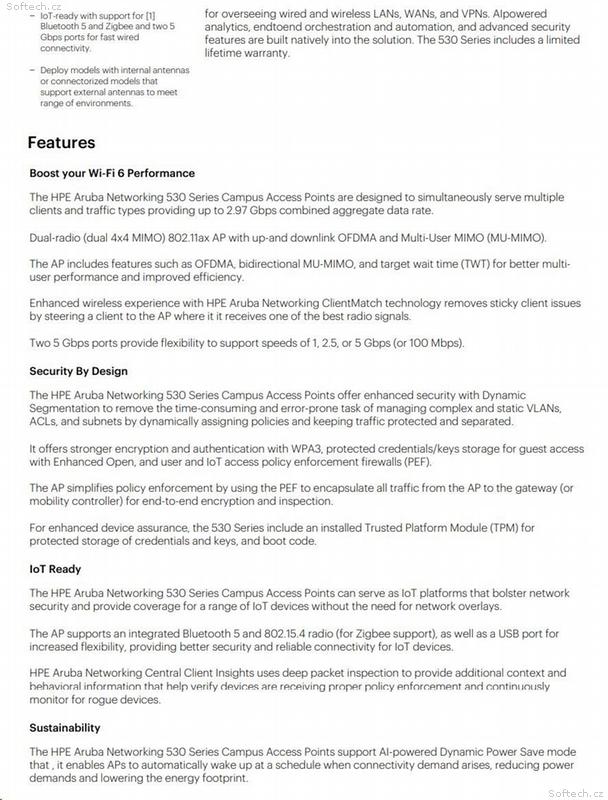

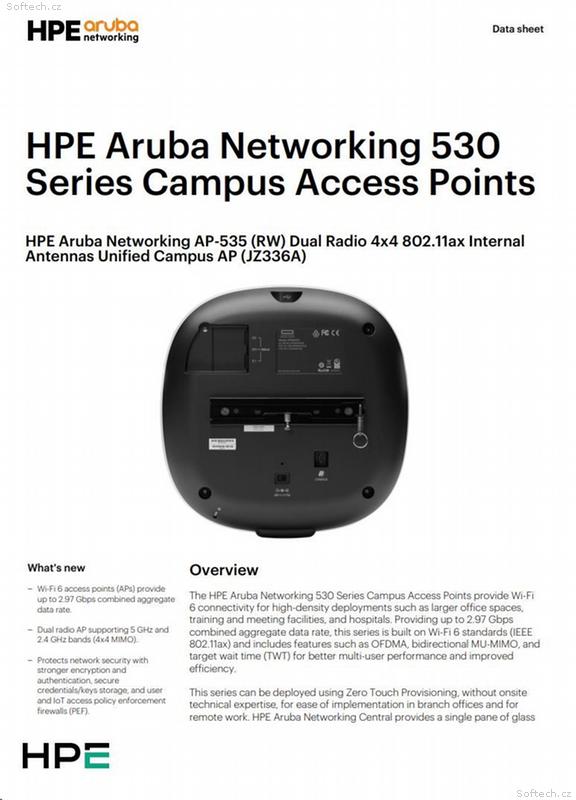

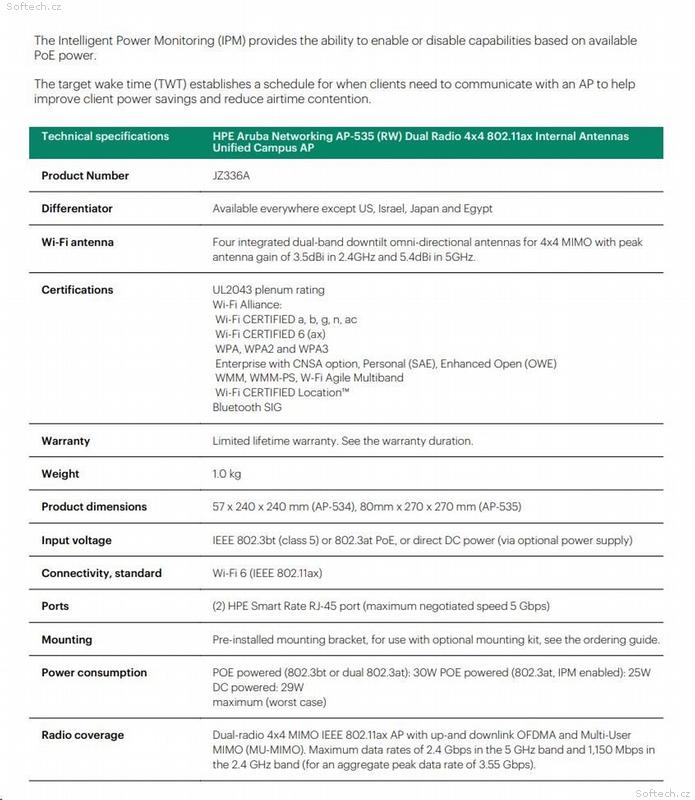

``` Zdrojové dokumenty HPE Aruba Networking 530 Series Campus Access Points QuickSpecs a Data Sheet.
Very High Wi-Fi 6 (802.11ax) Performance With Dual Radios And Green AP Energy Efficiency
530 Series deliver the speed and reliability needed for any enterprise.
Aruba 530 Series Campus Access Points
Very High Wi-Fi 6 (802.11ax) Performance With Dual Radios And Green AP Energy Efficiency
Aruba Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of IoT and mobility requirements. With a maximum aggregate data rate of 3.55 Gbps (HE80/HE40), the Aruba 530 Series deliver the speed and reliability needed for any enterprise.
Aruba 530 Series Campus Access Points
Key Features
3.55 Gbps of maximum throughput
WPA3 and Enhanced Open security
Built-in technology that resolves sticky client issues for Wi-Fi 6 and Wi-Fi 5 devices
OFDMA and MU-MIMO for enhanced multi-user efficiency
IoT-ready Bluetooth 5 and Zigbee support
Standard Features
IoT Platform Capabilities
Like all Aruba Wi-Fi 6 APs, the 530 Series includes an integrated Bluetooth 5 and 802.15.4 radio (for Zigbee support) to simplify deploying and managing IoT-based location services, asset tracking services, security solutions and IoT sensors. This allows organizations to leverage the Aruba 530 Series as an IoT platform, which eliminates the need for an overlay infrastructure and additional IT resources.
Target Wake Time (TWT)
Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This helps improve client power savings and reduces airtime contention with other clients.
Aruba Secure Infrastructure
The Aruba 530 Series includes components of Aruba"s 360 Secure Fabric to help protect user authentication and wireless traffic. Select capabilities include:
WPA3 And Enhanced Open
Support for stronger encryption and authentication is provided via the latest version of WPA for enterprise protected networks.
Enhanced Open offers seamless new protection for users connecting to open networks where each session is automatically encrypted to protect user passwords and data on guest networks.
WPA2-MPSK
MPSK enables simpler passkey management for WPA2 devices - should the Wi-Fi password on one device or device type change, no additional changes are needed for other devices. Requires ClearPass Policy Manager.
VPN Tunnels
In Remote AP (RAP) and IAP-VPN deployments, the Aruba 530 Series can be used to establish a secure SSL/IPSec VPN tunnel to a Mobility Controller that is acting as a VPN concentrator.
Trusted Platform Module (TPM)
For enhanced device assurance, all Aruba APs have an installed TPM for secure storage of credentials and keys, and boot code.
Simple And Secure Access
To simplify policy enforcement, the Aruba 530 Series uses Aruba"s policy enforcement firewall (PEF) feature to encapsulate all traffic from the AP to the Mobility Controller (or Gateway) for end-to-end encryption and inspection. Policies are applied based on user role, device type, applications, and location. This reduces the manual configuration of SSIDs, VLANs and ACLs. PEF also serves as the underlying technology for Aruba Dynamic Segmentation.
High-Density Connectivity
Like the higher-end 550 Series AP, each Aruba 530 Series AP provides connectivity for a maximum of 1024 associated clients per radio (2048 in total). In real-world scenarios, the maximum recommended client density is dependent on environmental conditions.
Flexible Operation And Management
A unique feature of Aruba APs is the ability to operate in either controllerless (Instant) or controller-based mode.
In controllerless mode, one AP serves as a virtual controller for the entire network.
For optimized network performance, roaming and security, APs tunnel all traffic to a mobility controller for centrally managed traffic forwarding and segmentation, data encryption, and policy enforcement. Learn more in the ArubaOS datasheet.
Available management solutions include Aruba Central (cloud-managed) or Aruba AirWave - a multi-vendor on-premises management solution.
For large installations across multiple sites, APs can be factory-shipped and can be activated with Zero Touch Provisioning through Aruba Central or AirWave. This reduces deployment time, centralizes configuration, and helps manage inventory.
Warranty
Aruba Limited lifetime warranty
