Popis produktu:

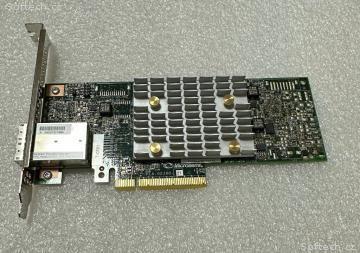

HPE MR416i-p Gen11 16 Internal Lanes/8GB Cache SPDM PCI Plug-in Storage Controller
HPE MR Gen11 Storage Controllers
A versatile, simplified, and flexible choice for data centers. HPE introduces an expansive and agile PCIe Gen 4.0 storage controller portfolio based on Broadcom MegaRAID technology delivering quality, performance, and security for mission-critical applications.
Key Features
Standard PCI HH/HL and OCP NIC 3.0 form-factors
Mixed Mode (RAID and/or JBOD) supporting RAID 0,1,10,5,50,6,60 (MR416i) or RAID 0,1,10 (MR216i)
Up to 13.7 GBs of bandwidth, 3M Random Read IOPs, and 240K RAID5 Random Write IOPs
8 PCIe 4.0 host lanes
72b DDR4-2666 4GB (MR408i) or 8GB (MR416i) Flash-Backed Write Cache (energy pack is optional)
8 (MR408i) or 16 (MR416i) tri-mode NVMe, SAS, SATA internal lanes
16Gbs NVMe, 12Gbs SAS SSD/HDD, 6Gbs SATA SSD/HDD
Up to 16 drives without expander
DMTF Security Protection Data Model (SPDM) supports certificate-based authentication with HPE iLO6.
Hardware Root of Trust (HWRoT) protects against malicious firmware
Self-Encrypting Drives (SED) for data at rest encryption
Windows, Linux, and VMWare
MRSA, StorCLI, UEFI, and Redfish Management
FASTPATH (SSD acceleration)
Online firmware updates for controllers, backplanes, and drives
Models
HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller
P47777-B21
HPE MR416i-o Gen11 x16 Lanes 8GB Cache OCP SPDM Storage Controller
P47781-B21
HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller
P47785-B21
HPE MR216i-o Gen11 x16 Lanes without Cache OCP SPDM Storage Controller
P47789-B21
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
P58335-B21
Notes: An HPE Smart Storage energy pack (available in both battery and hybrid capacitor options) is optional with the HPE MR416i-o Gen11 and HPE MR416i-p Gen11 storage controller. See below for energy pack options.
Standard Features
Description
HPE MR416i-p Gen11 SPDM Storage Cntlr
HPE MR416i-o Gen11 SPDM Storage Cntlr
HPE MR216i-p Gen11 SPDM Storage Cntlr
HPE MR216i-o Gen11 SPDM Storage Cntlr
HPE MR408i-o Gen11 SPDM Storage Cntlr
SKU
P47777-B21
P47781-B21
P47785-B21
P47789-B21
P58335-B21
Ports
2x8 SlimSAS
2x8 LP SlimSAS
2x8 SlimSAS
2x8 LP SlimSAS
1x8 LP SlimSAS
Storage Lanes
x16
x16
x16
x16
X8
ASIC
Broadcom Aero
Broadcom Aero
Broadcom Aero
Broadcom Aero
Broadcom Aero
Form Factor
PCI HH/HL
OCP NIC 3.0
PCI HH/HL
OCP NIC 3.0
OCP NIC 3.0
Host Interface
PCIe Gen 4.0 x8 host
PCIe Gen 4.0 x8 host
PCIe Gen 4.0 x8 host
PCIe Gen 4.0 x8 host
PCIe Gen 4.0 x8 host
Cache Size (FBWC)
8GB
8GB
N/A
N/A
4GB
Read Ahead Caching
Write-back Caching
-
-
Storage Protocol
16Gbs NVMe, 12Gbs SAS, 6Gbs SATA
16Gbs NVMe, 12Gbs SAS, 6Gbs SATA
16Gbs NVMe, 12Gbs SAS, 6Gbs SATA
16Gbs NVMe, 12Gbs SAS, 6Gbs SATA
16Gbs NVMe, 12Gbs SAS, 6Gbs SATA
Max Drives
16
16
16
16
8
Max Volumes
64
64
64
64
64
RAID:
0,1,5,6,10,50,60
0,1,5,6,10,50,60
0,1,10
0,1,10
0,1,5,6,10,50,60
Mixed Mode: (RAID & HBA)
Feature
Description
SSD Accelerator
FASTPATH
Array Features
Expand Array
Move Drives
Shrink Array
Spare Management
Volume Features
Expand Logical Drive
Instant Secure Erase
Migrate RAID/Stripe Size
Modifying Cache Write Policy
Move Logical Drive
Re-enable Failed Logical Drive
Load balancing
Configurable stripe size up to 1 MB
Fast initialization for quick array setup
Check consistency for background data integrity
Patrol read for media scanning and repairing
Rebuild
Other Features
Auto resume after loss of system power during array
SSD support with SSD Guard technology
DDF compliant Configuration on Disk
SSD Wear Gauge
SMART Predictive Drive Failure
Global and dedicated Hot Spare with Revertible Hot
Spare support:
Automatic rebuild
Enclosure affinity
Emergency SATA hot spare for SAS arrays
Enclosure management:
Universal Backplane Management (UBM)
Shield state drive diagnostic technology
SED Key Management (HKM, LKM, and RKM)
DRAM ECC detects and corrects data bit errors.
HPE OneView Support
Monitored Mode
Kit contents
Includes storage controller, information card, warranty statement, and backup power cable (MR408 & MR416)
Optional Accessories for HPE MR408i-o / MR416i-o / MR416i-p Gen11 SPDM Storage Controllers
Energy pack Options Sold Separately
HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable Kit
P01366-B21
HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit
P01367-B21
HPE Smart Storage Hybrid Capacitor with 145mm Cable Kit
P02377-B21
HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit
P02381-B21
Notes:
An HPE Smart Storage energy pack is optional
Moving volumes or SED locked drives between SR and MR controllers is not supported.
Warranty
The warranty for this device is 3 years parts only.
Warranty Upgrade Options
Response - Upgrade on-site response from next business day to same day 4 hours.
Coverage - Extend hours of coverage from 9 hours x 5 days to 24 hours x 7 days.
Duration - Select duration of coverage for a period of 1, 3, or 5 years.
Warranty upgrade options can come in the form of HPE Pointnext operational, which are sold at the HPE System level to which this product attaches.
Operating System Support
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
VMware ESXi
Canonical Ubuntu
CentOS
Notes: HPE MR Gen11 Storage Controllers supports the server operating systems. For more information on HPE"s server operating systems and virtualization software, please visit: http://www.hpe.com/info/ossupport
Storage Management Software Suite
HPE MR Storage Administrator (MRSA)
HPE StorCLI
UEFI System Utilities (storage configuration)
HPE iLO6 Redfish
Please refer to https://www.hpe.com/info/scmo for more detailed information.
HPE MR Storage Administrator
The MR Storage Administrator is a web-based application that enables you to configure, monitor and troubleshoot MegaRAID (MR) storage controllers. The MR Storage Administrator graphical user interface (GUI) helps you to view, create, and manage storage configurations.
Configuring: HPE MR Storage Administrator enables you to configure and view status of the controllers, volumes, and drives. The device status icons are displayed on their respective pages to notify you in case of drive failures and other events that require your immediate attention. Real-time email notifications on the status of the server are sent based on your alert settings. The system errors and events are recorded and displayed in an event log file. Additionally, you can also import or clear foreign configurations.
Monitor: HPE MR Storage Administrator (MRSA) allows you to selectively deliver alerts to the OS system log, event log, or email based upon severity level. Additionally, individual storage devices can be viewed within the GUI.
Troubleshooting: HPE MR Storage Administrator displays information related to drive failures, device failures, and so on. It also provides recommendations and displays contextual links, helping you to easily locate the drives that have issues and troubleshoot them. You can also download a support log containing the devices, properties, configurations, and logs and send it to the HPE support teams for further troubleshooting.
Please refer to https://www.hpe.com/support/MRSA for more detailed information.
StorCLI Management Tool
The Storage Command Line Interface (StorCLI) tool is the command line management software designed for the MegaRAID product line. The StorCLI tool is designed to be easy to use, and script.
Please refer to https://www.hpe.com/support/StorCLI for more detailed information.
