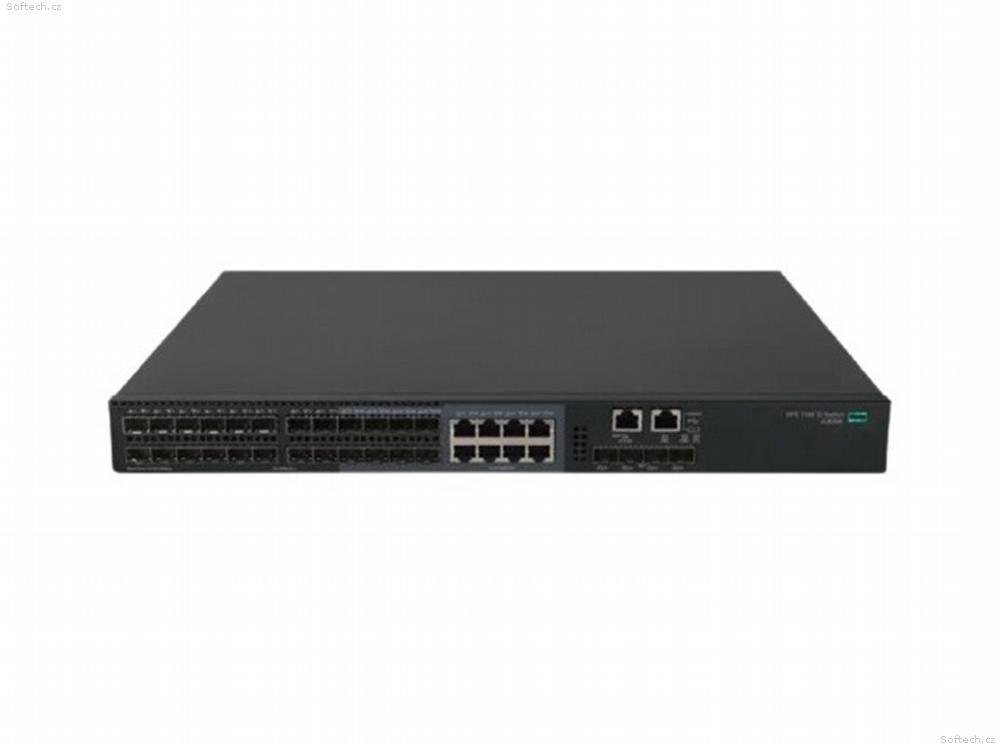

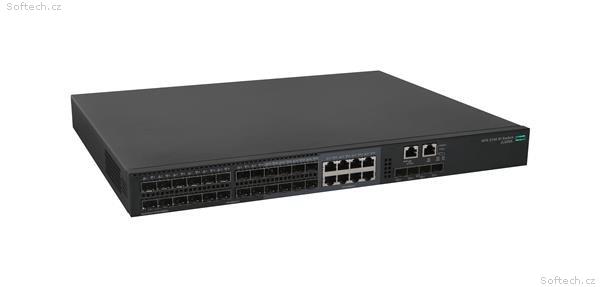

HPE Networking Comware Switch 24G SFP w, 8G Combo 4SFP+ EI 5140 JL826AR RENEW

HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140 JL826AR RENEW
HPE FlexNetwork 5140 24G SFP 4SFP+ EI Switch (JL826A)
I/O ports and slots
16 SFP 100/1000 Mbps ports
8 SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports
4 SFP+ fixed 1000/10000 SFP+ ports
Additional ports and slots
1 RJ-45 serial console port

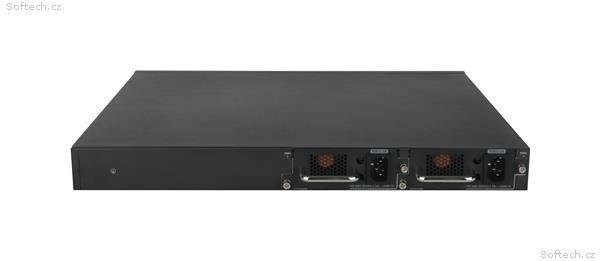

Power supplies
2 power supply slots
1 minimum power supply required (ordered separately)
Physical characteristics
Dimensions
17.32(w) x 14.17(d) x 1.72(h) in (44 x 36 x 4.36 cm) (1U height)
Weight
13.23 lb (6kg)
Memory and processor
512 MB SDRAM, 256 MB flash;
Mounting and enclosure
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)
Performance
IPv6 Ready Certified
1000 Mb Latency
< 5 µs
10 Gbps Latency
< 3 µs
Throughput
95 Mpps
Routing/Switching capacity
128 Gbps
Routing table size
1024 entries
MAC address table size
16384 entries
Environment
Operating temperature
23°F to 113°F (-5°C to 45°C)
Operating relative humidity
10% to 90%, noncondensing
Non-operating/Storage temperature
-40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity
5% to 95%, noncondensing
Acoustic
Low-speed fan: 41.4 dB, High-speed fan: 47.7 dB; ISO 7779
Electrical characteristics
Frequency
50/60 Hz
Maximum heat dissipation
102/204 BTU/hr (107.61/215.22 kJ/hr), for AC Powered units. For DC powered units heat dissipation is 130 BTU/hr min, 232 BTU/hr max.
Voltage
100 - 240 VAC
-48 to -60 VDC
Current
5 A
Maximum power rating
60 W
Idle power
30 W
Notes:
- Idle power is the actual power consumption of the device with no ports connected.
- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
- Power Ratings for AC Power Supply indicated above.
- For DC input power, Idle Power is 38W and Max is 68W.
- DC Max input current is 8A. Units are supplied without a power supply. Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply.
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Emissions
FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993
Immunity
Generic
EN 55024
ESD
EN300 386
Management
IMC - Intelligent Management Center; SmartMC;command-line interface; Web browser; SNMP Manager
Ports
(16) SFP 100/1000 Mbps ports (8) SFP dual-personality ports - 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports (4) SFP+ fixed 1000/10000 SFP+ ports
Throughput
up to 96 Mpps
Routing/switching capacity
128 Gbps
PoE capability
370W PoE+ Maximum, depending on model
Stacking capabilities
IRF 9 switches
Management features
SNMP manager
Input voltage
100 - 240 VAC, rated -48 to -60 VDC, rated (depending on power supply chosen)
Power consumption
57 W (maximum)
Product dimensions (imperial)
1.72 x 17.32 x 14.17 in
Weight
13.23 lbs
UNSPSC code
43222612
