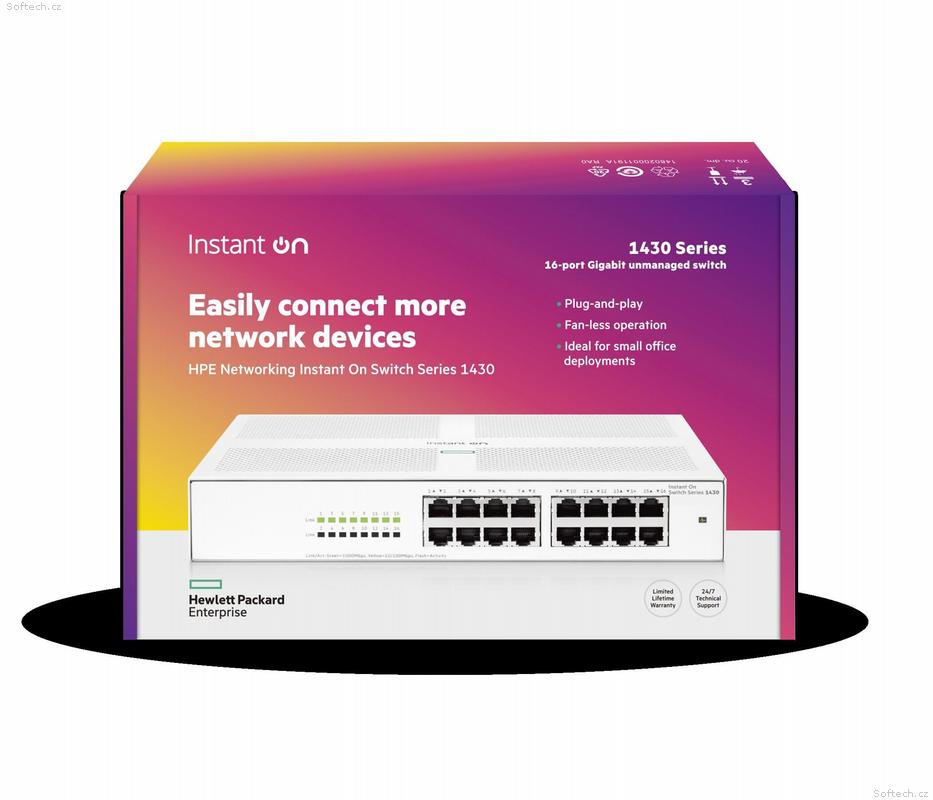

Aruba Instant On 1430 16G Switch

Aruba Instant On 1430 16G Switch
Aruba Instant On 1430 16G Switch (R8R47A)
I/O ports and slots
16 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Physical Characteristics
Dimensions
258(d) x 275(w) x 44(h) mm
Weight
3.80 lb (01.72 kg)
Processor and Memory
128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance
100 Mb latency
< 2.7 Î1Sec
1000 Mb latency
< 1.80 Î1Sec
Throughput (Mpps)
23.80 Mpps
Capacity
32 Gbps
MAC address table size
8192 entries
Reliability MTBF (years)
269.8
Environment
Operating temperature
32°F to 104°F (0°C to 40°C)
Operating relative humidity
15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity
15% to 90% @ 149°F (65°C) non-condensing
Altitude
up to 10,000 ft (3 km)
Acoustics
Fanless
Electrical Characteristics
Frequency
50Hz/60Hz
AC voltage
100-127VAC / 200- 240VAC
Current
0.2A/0.2A
Maximum power rating
7.9W
Idle power
2.3W
PoE power
-
Power Supply
Internal Power Supply
Safety
EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN/IEC 62368-1, 2nd. & 3rd. Ed.
UL 62368-1, 3rd. Ed.
CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
EN/IEC 60825- 1:2014 Class 1
Emissions
EN 55032:2015/ CISPR 32, Class A
FCC CFR 47 Part 15: 2018, Class A
ICES-003, Class A
VCCI-32, Class A
CNS 13438, Class A
KS C 9832, Class A
AS/NZS CISPR 32, Class A
Immunity
BS/EN 55035, CISPR 35, KS C 9835
Generic
EN 55035, CISPR 35
EN
EN/IEC 61000-4-2
ESD
EN/IEC 61000-4-3
Radiated
EN/IEC 61000-4-4
EFT/Burst
EN/IEC 61000-4-5
Surge
EN/IEC 61000-4-6
Conducted
EN/IEC 61000-4-8
Power frequency magnetic field
EN/IEC 61000-4-11
Voltage dips and interruptions
EN/IEC 61000-3-2
Harmonics
EN /IEC 61000-3-3
Device Management
Unmanaged
Mounting
Mounting positions and supported racking
Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
Supports table-top mounting
Supports rack-mounting using the brackets provided
Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
Supports under-table mounting using the brackets provided
Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
