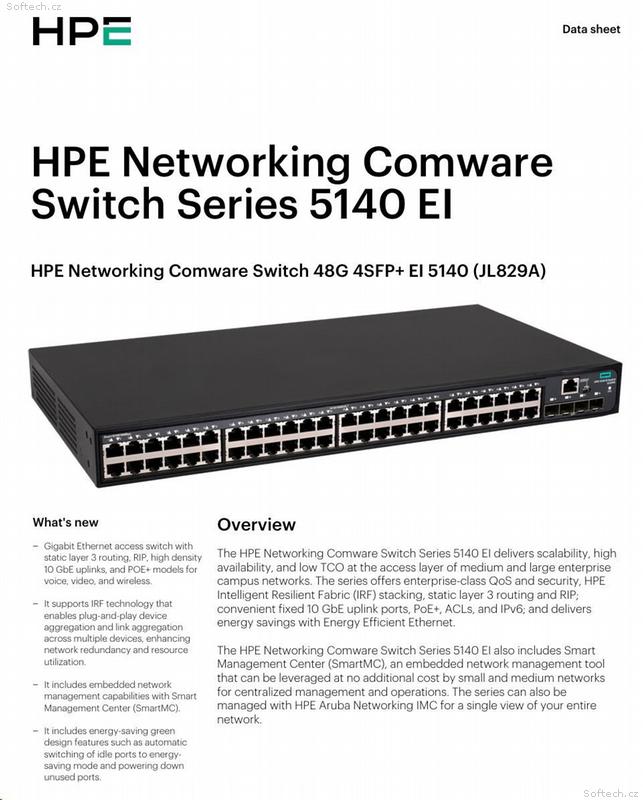

HPE Networking Comware Switch 48G 4SFP+ EI 5140
The HPE Networking Comware Switch Series 5140 EI comprises Gigabit Ethernet switches that support static, OSPF and RIP Layer 3 routing, convenient fixed 10GbE uplink ports, PoE+, ACLs, IPv6 and delivers energy savings with Energy Efficient Ethernet. Unique Intelligent Resilient Fabric (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in small data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

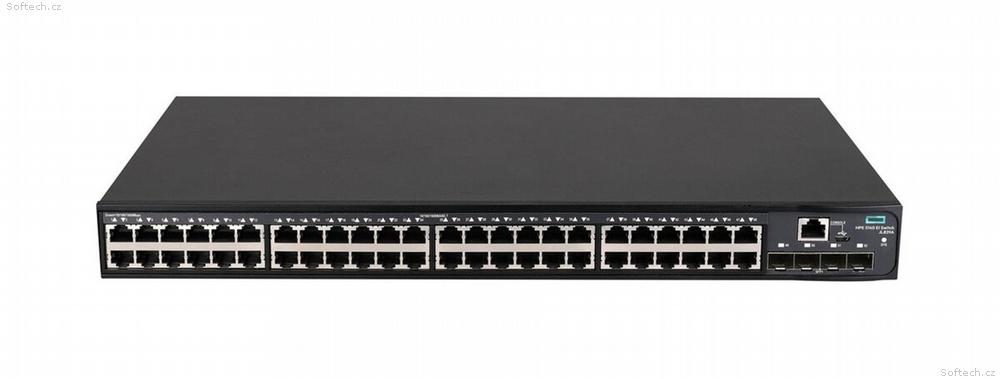

HPE FlexNetwork 5140 48G 4SFP+ EI Switch (JL829A)

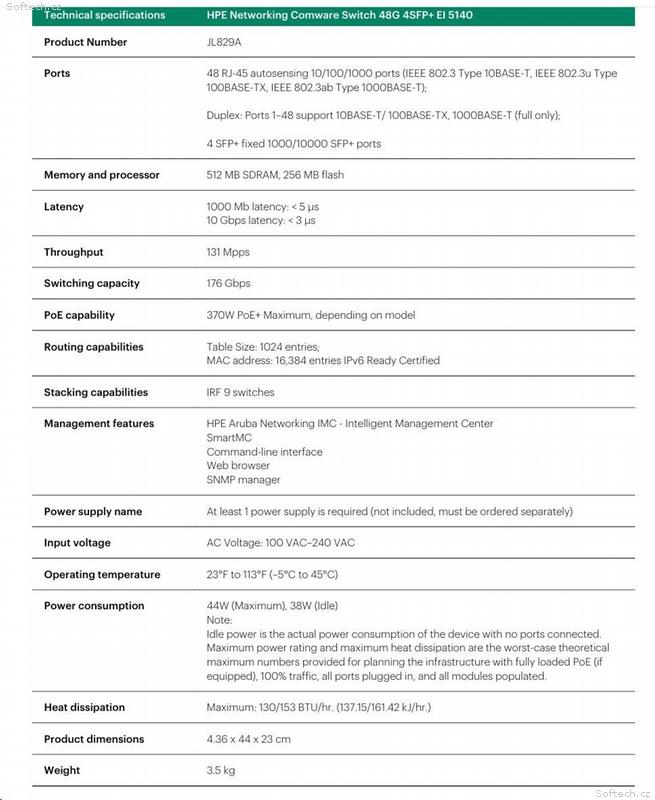

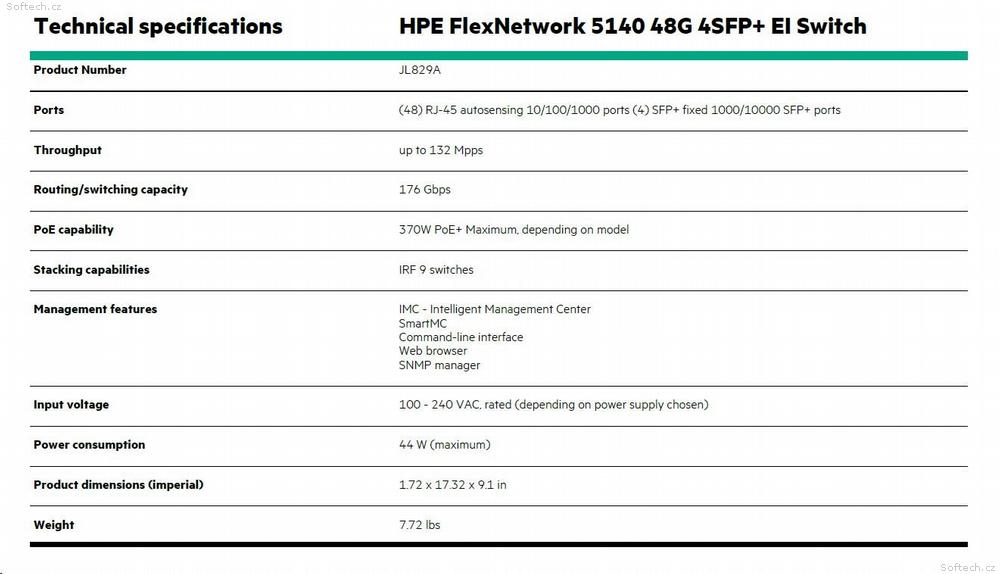

I/O ports and slots
48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ fixed 1000/10000 SFP+ ports
Additional ports and slots
1 RJ-45 serial console port
Physical characteristics
Dimensions
17.32(w) x 9.04(d) x 1.72(h) in (44 x 23 x 4.36 cm) (1U height)
Weight
7.72 lb (3.5 kg)
Memory and processor
512 MB SDRAM, 256 MB flash
Mounting and enclosure
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (Rack Mount Kit R8M91A sold separately)
Performance
IPv6 Ready Certified
1000 Mb Latency
< 5 µs
10 Gbps Latency
< 3 µs
Throughput
131 Mpps
Routing/Switching capacity
176 Gbps
Routing table size
1024 entries
MAC address table size
16384 entries
Environment
Operating temperature
23°F to 113°F (-5°C to 45°C)
Operating relative humidity
10% to 90%, noncondensing
Non-operating/Storage temperature
-40°F to 158°F (-40°C to 70°C)
Non-operating/Storage relative humidity
5% to 95%, noncondensing
Acoustic
Low-speed fan: 42.2 dB, High-speed fan: 49.3 dB; ISO 7779
Electrical characteristics
Frequency
50/60 Hz
Maximum heat dissipation
130/153 BTU/hr (137.15/161.42 kJ/hr), For AC powered units. For DC powered units heat dissipation is 130 BTU/hr min, 171 BTU/hr max
Voltage
100 - 240 VAC
-48 to -60 VDC
Current
10 A
Maximum power rating
44 W
Idle power
38 W
Notes:
- Idle power is the actual power consumption of the device with no ports connected.
- Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
- Power ratings for AC power indicated above. Current used is 5A Max when DC Power used. For DC input power, idle power is 38W, maximum DC power used is 50W.
Safety
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; IEC 62368-1; CAN/CSA-C22.2 No. 60950-1; EN 62368-1/A11; FDA 21 CFR Subchapter J; ROHS Compliance
Emissions
FCC Part 15 Subpart B CLASS A; ICES-003 CLASS A; VCCI-CISPR 32 CLASS A; EN 55032 CLASS; AS/NZS CISPR32 CLASS A; CISPR 24; EN 55024; EN 61000-3-2; EN 61000-3-3; ETSI EN 300 386; GB/T 9254; YD/T 993
Immunity
Generic
EN 55024
ESD
EN300 386
Management
IMC - Intelligent Management Center; SmartMC; command-line interface; Web browser; SNMP Manager
Services
Refer to the Hewlett Packard Enterprise website at http://www.hpe.com/networking/services for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local Hewlett Packard Enterprise sales office.
Models
HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140
JL823A
HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140
JL824A
HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140
JL825A
HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140
JL826A
HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140
JL827A
HPE Networking Comware Switch 24G 4SFP+ EI 5140
JL828A
HPE Networking Comware Switch 48G 4SFP+ EI 5140
JL829A
HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140
R8J41A
HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
R8J42A

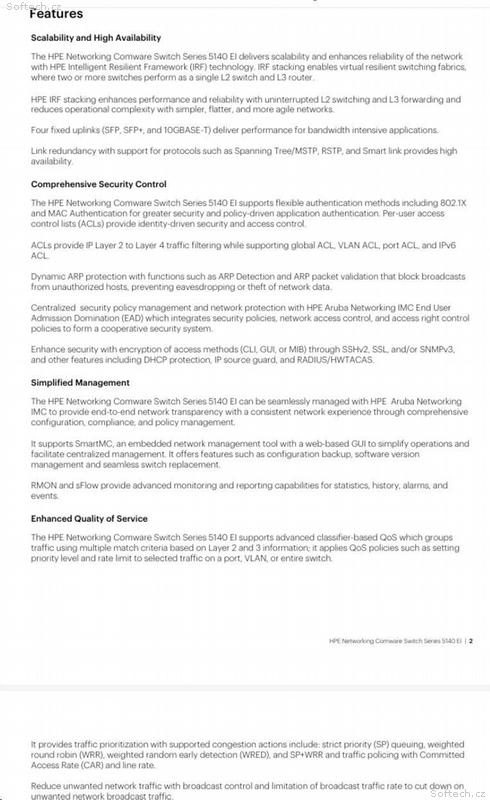

Key features
Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks and POE+ models for voice, video and wireless
IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices
Embedded network management capabilities at no additional cost with Smart Management Centre (SmartMC)
Energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports
Standard Features
Software-defined networking
OpenFlow Supports OpenFlow 1.3 specification to enable SDN by allowing separation of the data (packet forwarding) and control (routing decision) paths
Quality of Service (QoS)
Broadcast control Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
Advanced classifier-based QoS
Classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or whole switch
Powerful QoS feature Supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR
Traffic policing Supports Committed Access Rate (CAR) and line rate
Connectivity
Auto-MDIX Automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports
Flow control Provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
High-density connectivity Provides up to 48 fixed 10/100/1000BASE-T ports in a Layer 2/Layer 3 switch
IEEE 802.3at Power over Ethernet (PoE+) support
Simplifies deployment and dramatically reduces installation costs by helping to eliminate the time and cost involved in supplying local power at each access point location
Ethernet operations, administration and maintenance (OAM) Detects data link layer problems that occurred in the "last mile" using the IEEE 802.3ah OAM standard; monitors the status of the link between two devices
Resiliency and high availability
Separate data and control paths Separate control from services and keeps service processing isolated; increases security and performance
External redundant power supply Provides high reliability
Smart link Allows 100 ms failover between links
Spanning Tree/MSTP, RSTP, PVST+, RPVST+ Link redundancy with support for protocols such as Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree Protocol (RSTP), Per-VLAN Spanning Tree (PVST+), Rapid Per-VLAN Spanning Tree (RPVST+), and Smart Link provides high availability
Intelligent Resilient Fabric (IRF)
Creates virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; can eliminate the need for complex protocols like Spanning Tree Protocol, (), or VRRP, thereby simplifying network operation
Layer 3 routing
Static IP routing Provides manually configured routing for both IPv4 and IPv6 networks
Open Shortest Path First (OSPF)
An Interior Gateway Protocol (IGP) that uses a link state routing algorithm; supports OSPFv1/v2 and OSPFv3
Routing Information Protocol (RIP)
Uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and RIPv2 routing; includes loop protection
Management
Remote configuration and management Enables configuration and management through a secure Web browser or a CLI located on a remote device
Manager and operator privilege levels Provides read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces
Command authorization
Leverages HWTACACS to link a custom list of CLI commands to an individual network administrator"s login; also provides an audit trail
Secure Web GUI Provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
Multiple configuration files Stores easily to the flash image
Complete session logging Provides detailed information for problem identification and resolution
Remote monitoring (RMON)
Uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
sFlow (RFC 3176)
Provides scalable ASIC-based wirespeed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes
Management VLAN Segments traffic to and from management interfaces, includingCLI/telnet, a Web browser interface, and SNMP
Remote intelligent mirroring
Mirrors ingress ACL-selected traffic from a switch port or VLAN to a local or remote switch port anywhere on the network
Device Link Detection Protocol (DLDP)
Monitors a cable between two compatible switches and shuts down the ports on both ends if the cable is broken, which prevents network problems such as loops
IPv6 management
Provides future-proof networking because the switch is capable of being managed whether the attached network is running IPv4 or IPv6; supports pingv6, tracertv6, Telnetv6, TFTPv6, DNSv6, syslogv6, FTPv6, SNMPv6, DHCPv6, and RADIUS for IPv6
Troubleshooting
Ingress and egress port monitoring enables network problem-solving; virtual cable tests provide visibility into cable problems
Smart Management Center (SmartMC)
Embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It is made available at no additional cost and offers centralized configuration backup, software version management and seamless switch replacement.
HPE Intelligent Management Center (IMC)
Integrates fault management, element configuration, and network monitoring from a central vantage point; built-in support for third-party devices enables network administrators to centrally manage all network elements with a variety of automated tasks, including discovery, categorization, baseline configurations, and software images; the software also provides configuration comparison tools, version tracking, change alerts, and more
Network Management
SNMP v1/v2c/v3, MIB-II with Traps, and RADIUS Authentication Client MIB (RFC 2618); embedded HTML management tool with secure access
Security
Access control lists (ACLs) Provides IP Layer 2 to Layer 4 traffic filtering; supports global ACL, VLAN ACL, port ACL, and IPv6 ACL
IEEE 802.1X
Industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server
MAC-based authentication Client is authenticated with the RADIUS server based on the client"s MAC address
Identity-driven security and access control
- Per-user ACLs
Permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or providing unauthorized access to sensitive data
- Automatic VLAN assignment Automatically assigns users to the appropriate VLAN based on their identities
Secure management access Delivers secure encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, HTTPS and/or SNMPv3
Secure FTP/ SCP
Allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file
Guest VLAN Provides a browser-based environment to authenticated clients that is similar to IEEE 802.1X
Port security Allows access only to specified MAC addresses, which can be learned or specified by the administrator
Port isolation Secures and adds privacy, and prevents malicious attackers from obtaining user information
STP BPDU port protection Blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
STP root guard Protects the root bridge from malicious attacks or configuration mistakes
DHCP protection Blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
IP source guard Helps prevent IP spoofing attacks
Dynamic ARP protection Blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
RADIUS/HWTACACS Eases switch management security administration by using a password authentication server
Performance
Nonblocking architecture Up to 176 Gb/s nonblocking switching fabric provides wirespeed switching with up to 130.9 Mpps throughput
Hardware-based wirespeed access control lists (ACLs)
Help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation
Device support
Prestandard PoE Support Detects and provides power to prestandard PoE devices such as wireless LAN access points and IP phones
Convergence
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Facilitates easy mapping using network management applications with LLDP automated device discovery protocol
LLDP-MED Is a standard extension that automatically configures network devices, including LLDP-capable IP phones
LLDP-CDP compatibility Receives and recognizes CDP packets from Cisco"s IP phones for seamless interoperation
IEEE 802.3at Power over Ethernet (PoE+)
Provides up to 30 W per port that allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments
PoE allocations
Supports multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user-specified) to allocate PoE power for more efficient energy savings
Voice VLAN Automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance
IP multicast snooping (data-driven IGMP) Prevents flooding of IP multicast traffic
Additional information
Green IT and power
Improves energy efficiency through the use of the latest advances in silicon development; shuts off unused ports and utilizes variable-speed fans, reducing energy costs
Green initiative support Provides support for RoHS and WEEE regulations
Unified Hewlett Packard Enterprise Comware operating system with modular architecture
Provides an easy-to-enhance-and-extend feature set, which doesn"t require whole-scale changes; all switching, routing, and security platforms leverage the Comware OS, a common unified modular operating system
Energy Efficient Ethernet (EEE) Support Reduces power consumption in accordance with IEEE 802.3az
Layer 2 switching
16K MAC address table Provides access to many Layer 2 devices
VLAN support and tagging Supports IEEE 802.1Q with 4,094 simultaneous VLAN IDs
IEEE 802.1ad QinQ and selective QinQ
Increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network
10GbE port aggregation Allows grouping of ports to increase overall data throughput to a remote device
Device Link Detection Protocol (DLDP)
Monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks
Jumbo Frame Support Improves the performance of large data transfers; supports frame size of up to 9K-bytes
Layer 3 services
Address Resolution Protocol (ARP)
Determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network
Dynamic Host Configuration Protocol (DHCP)
Simplifies the management of large IP networks; supports client; DHCP Relay enables DHCP operation across subnets
Loopback interface address Defines an address that can always be reachable, improving diagnostic capability
User Datagram Protocol (UDP) helper function
Allows UDP broadcasts to be directed across router interfaces to specific IP unicast or subnet broadcast addresses and prevents server spoofing for UDP services such as DHCP
Route maps Provide more control during route redistribution; allow filtering and altering of route metrics
DHCP server Centralizes and reduces the cost of IPv4 address management
Warranty and support
Limited Lifetime Warranty
See http://www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Software releases
To find software for your product, refer to http://www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to http://www.hpe.com/networking/warrantysummary
Standards and Protocols (Applies to all products in series)
Device Management
RFC 1157 SNMPv1/v2c
RFC 1305 NTPv3
RFC 2573 (SNMPv3 Applications)
RFC 2819 (RMON groups Alarm, Event, History and Statistics only)
RFC 3416 (SNMP Protocol Operations v2)
HTML and telnet management
Multiple Configuration Files
SNMP v3 and RMON RFC support
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+
Web UI
QoS/CoS
RFC 2474 DS Field in the IPv4 and IPv6 Headers
RFC 3260 New Terminology and Clarifications for DiffServ
General Protocols
IEEE 802.1ad Q-in-Q
IEEE 802.1ak Multiple Registration Protocol (MRP) and Multiple VLAN Registration Protocol (MVRP)
IEEE 802.1AX-2008 Link Aggregation
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.1X PAE
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ac (VLAN Tagging Extension)
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow Control
IEEE 802.3z 1000BASE-X
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 855 Telnet Option Specification
RFC 894 IP over Ethernet
RFC 950 Internet Standard Subnetting Procedure
RFC 951 BOOTP
RFC 1027 Proxy ARP
RFC 1042 IP Datagrams
RFC 1071 Computing the Internet Checksum
RFC 1123 Requirements for Internet Hosts
RFC 1166 - IP Addresses
RFC 1213 Management Information Base for Network Management of TCP/IP-based internets
RFC 1256 ICMP Router Discovery Protocol (IRDP)
RFC 1305 NTPv3
RFC 1350 TFTP Protocol (revision 2)
RFC 1519 CIDR
RFC 1533 DHCP Options and BOOTP Vendor Extensions
RFC 1591 DNS (client only)
RFC 1643 - Definitions of Managed Objects for the Ethernet-like Interface Types
RFC 1812 IPv4 Routing
RFC 1866 Hypertext Markup Language - 2.0
RFC 1901 - Introduction to Community-based SNMPv2
RFC 1902-1907 - SNMPv2
RFC 2131 DHCP
RFC 2236 IGMP Snooping
RFC 2462 IPv6 Stateless Address Autoconfiguration
RFC 2474 Definition of the Differentiated Services Field (DS Field) in the IPv4 and IPv6 Headers
RFC 2475 Architecture for Differentiated Services
RFC 2597 Assured Forwarding PHB Group
RFC 2616 HTTP Compatibility v1.1
RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types
RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs)
RFC 2865 Remote Authentication Dial In User Service (RADIUS)
RFC 2866 RADIUS Accounting
RFC 3046 - DHCP Relay Agent Information Option
RFC 3246 Expedited Forwarding PHB
RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)
RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)
RFC 3416 Protocol Operations for SNMP
RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)
RFC 3576 Ext to RADIUS (CoA only)
RFC 3580 - IEEE 802.1X Remote Authentication Dial In User Service (RADIUS) Usage Guidelines
RFC 3587 IPv6 Global Unicast Address Format
RFC 3810 Multicast Listener Discovery Version 2 (MLDv2) for IPv6
RFC 4030 Authentication Suboption for DHCP Relay Agent
RFC 4213 Basic IPv6 Transition Mechanisms
RFC 4291 IP Version 6 Addressing Architecture
RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches
RFC 4575 A Session Initiation Protocol (SIP) Event Package for Conference State
RFC 4675 RADIUS VLAN & Priority
RFC 5095 Deprecation of Type 0 Routing Headers in IPv6
802.1r - GARP Proprietary Attribute Registration Protocol (GPRP)
IPv6
RFC 1981 IPv6 Path MTU Discovery
RFC 2460 IPv6 Specification
RFC 2461 IPv6 Neighbor Discovery
RFC 2463 ICMPv6
RFC 2464 Transmission of IPv6 over Ethernet Networks
RFC 3162 RADIUS and IPv6
RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses
RFC 3315 DHCPv6 (client and relay)
RFC 3484 Default Address Selection for IPv6
RFC 3736 Stateless Dynamic Host Configuration Protocol (DHCP) Service for IPv6
RFC 4291 IP Version 6 Addressing Architecture
RFC 4293 MIB for IP
RFC 4443 ICMPv6
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 6724 Default Address Selection for Internet Protocol Version 6 (IPv6)
MIBs
RFC 1212 Concise MIB Definitions
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1757 Remote Network Monitoring MIB
RFC 2096 IP Forwarding Table MIB
RFC 2233 Interface MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2573 SNMP-Notification MIB
RFC 2573 SNMP-Target MIB
RFC 2574 SNMP USM MIB
RFC 2618 RADIUS Authentication Client MIB
RFC 2620 RADIUS Accounting Client MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON MIB
RFC 2863 The Interfaces Group MIB
RFC 2925 Ping MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3418 MIB for SNMPv3
RFC 3621 Power Ethernet MIB
IP Multicast
RFC 1112 IGMPv1
RFC 3376 IGMPv3
Network Management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 2579 Textual Conventions for SMIv2
RFC 2580 Conformance Statements for SMIv2
RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
SNMPv1/v2c/v3
Security
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Accounting
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
RFC 3260 New Terminology and Clarifications for DiffServ
Secure Sockets Layer (SSL)
SSHv2 Secure Shell
Configuration Information
BTO Models
Switch Chassis
Rule #
Description
SKU
2, 3, 4
HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140
JL823A
24 POE RJ-45 autosensing 10/100/1000 ports
2 SFP Ports, 2 XGT Ports
min=0 \ max=2 SFP Transceivers
Power supply included
1U - Height
HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140
JL823A
C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140
JL823A
C15 PDU Jumper Cord (ROW)
HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140
JL823A
NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE Networking Comware Switch 24G POE+2SFP+2XGT EI 5140
JL823A
No Localized Power Cord Selected
2, 3, 4
HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140
JL824A
48 RJ-45 autosensing 10/100/1000BASE-T ports
4 SFP+ ports
min=0 \ max=4 SFP+ Transceivers
Power supply included
1U - Height
HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140
JL824A
C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140
JL824A
C15 PDU Jumper Cord (ROW)
HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140
JL824A
NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE Networking Comware Switch 48G PoE+ 4SFP+ EI 5140
JL824A
No Localized Power Cord Selected
2, 3, 4
HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140
JL825A
48 POE RJ-45 autosensing 10/100/1000 ports
2 SFP+ Ports, 2 XGT Ports
min=0 \ max=2 SFP+ Transceivers
Power supply included
1U - Height
HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140
JL825A
C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140
JL825A
C15 PDU Jumper Cord (ROW)
HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140
JL825A
NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE Networking Comware Switch 48G POE+ 2SFP+ 2XGT EI 5140
JL825A
No Localized Power Cord Selected
1, 2
HPE Networking Comware Switch 24G SFP w/8G Combo 4SFP+ EI 5140
JL826A
24 SFP ports (Of the 24, 8 are dual-personality ports - autosensing 10/100/1000BASE-T or SFP) min=0 \ max=24 SFP Transceivers
4 SFP+ ports min=0 \ max=4 SFP+ Transceivers
Must select min 1 power supply 1U - Height
2, 3, 4
HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140
JL827A
24 RJ-45 autosensing 10/100/1000 ports
4 SFP+ ports min=0 \ max=4 SFP+ Transceivers
Power supply included 1U - Height
HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140
JL827A
C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140
JL827A
C15 PDU Jumper Cord (ROW)
HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140
JL827A
NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE Networking Comware Switch 24G PoE+ 4SFP+ El 5140
JL827A
No Localized Power Cord Selected
2, 3, 4
HPE Networking Comware Switch 24G 4SFP+ EI 5140
JL828A
24 RJ-45 autosensing 10/100/1000 ports
4 SFP+ ports min=0 \ max=4 SFP+ Transceivers
Power supply included 1U - Height
HPE Networking Comware Switch 24G 4SFP+ EI 5140
JL828A
C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE Networking Comware Switch 24G 4SFP+ EI 5140
JL828A
C15 PDU Jumper Cord (ROW)
HPE Networking Comware Switch 24G 4SFP+ EI 5140
JL828A
NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE Networking Comware Switch 24G 4SFP+ EI 5140
JL828A
No Localized Power Cord Selected
2, 3, 4
HPE Networking Comware Switch 48G 4SFP+ EI 5140
JL829A
48 RJ-45 autosensing 10/100/1000 ports
4 SFP+ ports min=0 \ max=4 SFP+ Transceivers
Power supply included 1U - Height
HPE Networking Comware Switch 48G 4SFP+ EI 5140
JL829A
C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE Networking Comware Switch 48G 4SFP+ EI 5140
JL829A
C15 PDU Jumper Cord (ROW)
HPE Networking Comware Switch 48G 4SFP+ EI 5140
JL829A
NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE Networking Comware Switch 48G 4SFP+ EI 5140
JL829A
No Localized Power Cord Selected
2, 3, 4
HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140
R8J41A
24 RJ-45 autosensing 10/100/1000 ports
2 SFP+ Ports, 2 XGT Ports
min=0 \ max=2 SFP+ Transceivers
Power supply included
1U - Height
HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140
R8J41A
C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140
R8J41A
C15 PDU Jumper Cord (ROW)
HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140
R8J41A
NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE Networking Comware Switch 24G 2SFP+ 2XGT EI 5140
R8J41A
No Localized Power Cord Selected
1, 3, 4
HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
R8J42A
8 RJ-45 autosensing 10/100/1000 ports
2 SFP Ports, 2 GT Ports (4 port combo unit, can use 1 pair of 2 ports at a time)
min=0 \ max=2 SFP Transceivers
Power supply included
1U - Height
HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
R8J42A
C15 PDU Jumper Cord (NA/MEX/TW/JP)
HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
R8J42A
C15 PDU Jumper Cord (ROW)
HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
R8J42A
NEMA L6-20P Cord (NA/MEX/JP/TW)
HPE Networking Comware Switch 8G 2SFP 2GT Combo EI 5140
R8J42A
No Localized Power Cord Selected
Configuration Rules
Rule #
Description
1
The following Transceivers install into this Switch: (SFP Ports)
HPE Networking X115 100M SFP LC FX Transceiver
JD102B
HPE Networking X110 100M SFP LC LX Transceiver
JD120B
HPE Networking X115 100M SFP LC BX 10-U Transceiver
JD100A
HPE Networking X115 100M SFP LC BX 10-D Transceiver
JD101A
HPE Networking X120 1G SFP LC SX Transceiver
JD118B
HPE Networking X120 1G SFP LC LX Transceiver
JD119B
HPE Networking X120 1G SFP RJ45 T Transceiver
JD089B
HPE Networking X120 1G SFP LC BX 10-U Transceiver
JD098B
HPE Networking X120 1G SFP LC BX 10-D Transceiver
JD099B
HPE Networking X120 1G SFP LC LH100 Transceiver
JD103A
2
The following Transceivers install into this Switch: (SFP+ Ports)
HPE Networking X120 1G SFP LC SX Transceiver
JD118B
HPE Networking X120 1G SFP LC LX Transceiver
JD119B
HPE Networking X120 1G SFP RJ45 T Transceiver
JD089B
HPE Networking X120 1G SFP LC BX 10-U Transceiver
JD098B
HPE Networking X120 1G SFP LC BX 10-D Transceiver
JD099B
HPE Networking X120 1G SFP LC LH100 Transceiver
JD103A
HPE Networking X130 10G SFP+ LC SR Transceiver
JD092B
HPE Networking X130 10G SFP+ LC LR Transceiver
JD094B
HPE X130 10G SFP+ LC BiDi 10km-Uplink Transceiver
JL737A
HPE X130 10G SFP+ LC BiDi 10km-Downlink Transceiver
JL738A
HPE X130 10G SFP+ LC BiDi 40km-Uplink Transceiver
JL739A
HPE X130 10G SFP+ LC BiDi 40km-Downlink Transceiver
JL740A
HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable
JD095C
HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable
JD096C
HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable
JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
JG081C
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable
JL290A
HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable
JL291A
HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable
JL292A
3
Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord), #B2E or #AC3. (See HPN Localization Menu)
4
#B2E is Offered only in NA, Mexico, Taiwan and Japan.
Notes:
- Drop down under power supply should offer the following options and results:
o Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (Watson Default B2B or B2C for Rack Level CTO)
o Switch/Router/Power Supply to Wall Power Cord - Localized Option (Watson Default for BTO and Box Level CTO)
o High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan)
o No Localized Power Cord Selected - #AC3 Option
- OCA Only Model Selection Form - HPE Offering > HPE Aruba Networking > Switches - FlexNetwork: 5140 EI Switch Series
Transceivers
SFP Transceivers
Notes:
Enter the following menu selections as integrated to the CTO Model X above if order is factory built.
Rule #
Description
SKU
HPE Networking X115 100M SFP LC FX Transceiver
JD102B
HPE Networking X110 100M SFP LC LX Transceiver
JD120B
HPE Networking X115 100M SFP LC BX 10-U Transceiver
JD100A
HPE Networking X115 100M SFP LC BX 10-D Transceiver
JD101A
HPE Networking X120 1G SFP LC SX Transceiver
JD118B
HPE Networking X120 1G SFP LC LX Transceiver
JD119B
HPE Networking X120 1G SFP RJ45 T Transceiver
JD089B
HPE Networking X120 1G SFP LC BX 10-U Transceiver
JD098B
HPE Networking X120 1G SFP LC BX 10-D Transceiver
JD099B
HPE Networking X120 1G SFP LC LH100 Transceiver
JD103A
SFP+ Transceivers
Rule #
Description
SKU
HPE Networking X130 10G SFP+ LC SR Transceiver
JD092B
HPE Networking X130 10G SFP+ LC LR Transceiver
JD094B
HPE X130 10G SFP+ LC BiDi 10km-Uplink Transceiver
JL737A
HPE X130 10G SFP+ LC BiDi 10km-Downlink Transceiver
JL738A
HPE X130 10G SFP+ LC BiDi 40km-Uplink Transceiver
JL739A
HPE X130 10G SFP+ LC BiDi 40km-Downlink Transceiver
JL740A
HPE Networking X240 10G SFP+ SFP+ 0.65m DAC Cable
JD095C
HPE Networking X240 10G SFP+ SFP+ 1.2m DAC Cable
JD096C
HPE Networking X240 10G SFP+ SFP+ 3m DAC Cable
JD097C
HPE FlexNetwork X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable
JG081C
HPE X2A0 10G SFP+ to SFP+ 7m Active Optical Cable
JL290A
HPE X2A0 10G SFP+ to SFP+ 10m Active Optical Cable
JL291A
HPE X2A0 10G SFP+ to SFP+ 20m Active Optical Cable
JL292A
Cables
Multi-Mode Cables
Rule #
Description
SKU
HPE LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable
AJ833A
HPE LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable
AJ834A
HPE LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable
AJ835A
HPE LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable
AJ836A
HPE LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable
AJ837A
HPE LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable
AJ838A
HPE LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable
AJ839A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 1m Cable
QK732A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 2m Cable
QK733A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 5m Cable
QK734A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 15m Cable
QK735A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 30m Cable
QK736A
HPE Premier Flex LC/LC Multi-mode OM4 2 Fiber 50m Cable
QK737A
Internal Power Supplies
HPE X361 150W DC Power Supply
Rule #
Description
SKU
1, 2
HPE X361 150W 100-240VAC to 12VDC Power Supply
JD362B
Notes:
Includes 1 x c13, 150w
HPE X361 150W 100-240VAC to 12VDC Power Supply
JD362B
Notes:
C13 PDU Jumper Cord (NA/MEX/TW/JP)
HPE X361 150W 100-240VAC to 12VDC Power Supply
JD362B
Notes:
C13 PDU Jumper Cord (ROW)
HPE X361 150W 100-240VAC to 12VDC Power Supply
JD362B
Notes:
HPE 2.3m C13 to NEMA 6-15P Pwr Cord(J9936A)
HPE X361 150W 100-240VAC to 12VDC Power Supply
JD362B
Notes:
No Localized Power Cord Selected
Configuration Rules
Rule #
Description
1
If #B2E is selected Then replace Localized option with #B2E for power supply and with #B2E for switch .
(Offered only in North America, Mexico, Taiwan, and Japan)
2
Localization (Wall Power Cord) required on orders without #B2B, #B2C (PDU Power Cord) . (See Localization Menu)REMARK: When Switches/Routers are Factory Racked, Then #B2B, or #B2C should be the Defaulted Power Cable option on the Switches/Routers.
Notes:
- Drop down under power supply should offer the following options and results:
o Switch/Router/Power Supply to PDU Power Cord - #B2B in North America, Mexico, Taiwan, and Japan or #B2C ROW. (OCA Default B2B or B2C for Rack Level CTO)
o Switch/Router/Power Supply to Wall Power Cord - Localized Option (OCA Default for BTO)
o High Volt Switch/Router/Power Supply to Wall Power Cord - #B2E Option. (Offered only in North America, Mexico, Taiwan, and Japan)
o No Localized Power Cord Selected - #AC3 Option
Switch Enclosure Options
Rack Mount Kits
Rule #
Description
SKU
HPE 5140 Rack Mount Kit
R8M91A
External/Redundant Power Supplies
Rule #
Description
SKU
2, 3, 5, 6
HPE Networking RPS 800 Redundant Power Supply
JD183A
Notes:
Height = 1U includes 1 x c13, 800w
2, 3, 5
HPE RPS1600 Redundant Power System
JG136A
Notes:
Height = 1U includes 1 x c13, 1600w and Power Supply port
1, 5
HPE RPS1600 1600W AC Power Supply
JG137A
Notes:
Installs into JG136A only
Configuration Rules
Rule #
Description
1
If this power supply is selected, The JG136A - HP A-RPS1600 Redundant Power System must be on order or onsite.
2
Localization required. (See Localization Menu for list.)
3
Only 1 JD183A or JG136A can be connected per switch.
5
Supported on JL827A and JL824A
6
Supported on JL826A only when connected to DC Power Supply JD366B with cable JD186A.
External/Redundant Power Cables
Rule #
Description
SKU
1
HPE X290 500 V 1m RPS Cable
JD186A
2
HPE X290 1000 A JD5 2m RPS Cable
JD187A
3
HPE X290 1000 A JD5 NonPoE 2m RPS Cable
JD188A
Configuration Rules
Rule #
Description
1
Supported on JL826A with JD366B to connect to JD183A.
2
Supported on JL829A, JL827A, JL823A, JL825A to connect to JG136A.
3
Supported on JG829A and JL826A to connect to JG136A.
