HPE Aruba Networking CX 6200F 12G Class4 PoE 2G, 2SFP+ 139W Switch

HPE Aruba Networking CX 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch
HPE Aruba Networking 6200F 24G 4SFP Switch
Includes Non-Pluggable, Internal PSU behind sheetmetal Chassis Frame
Includes Non-Pluggable, Internal Fans behind sheetmetal Chassis Frame
Min=0 \ Max = 4 SFP 1G Transceiver
1U - Height

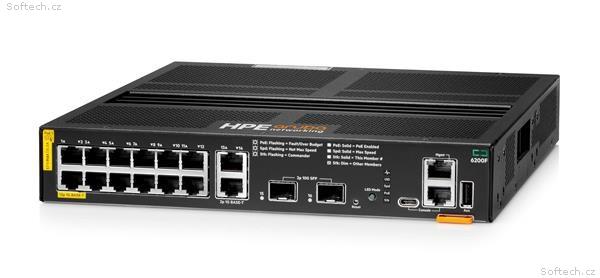

HPE Aruba Networking 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch (R8Q72A)
Description
12x ports
10/100/1000BASE-T Class 4
PoE Ports, supporting up to
30W per port
2x 100M/1G ports
2x 1G/10G SFP ports; PHYless
Supports PoE Standards
IEEE 802.3af, 802.3at
1x RJ-45 Console Port
1x USB-C Console Port
1x OOBM
1x USB Type-A Host port
Power supplies
Fixed power supply - Up to 139W of Class 4 PoE power
Fans
Fanless
Physical characteristics
Dimensions
(H) 4.39 cm x
(W) 25.4 cm x
(D) 30.5 cm
(1.73"" x 10.0"" x 12.0"")
Weight
3.24 kg (7.14 lbs)
CPU
Quad Core ARM Cortex A72 @ 1.2 GHz
Memory and Flash
8 GB DDR4
16 GB eMMC
Packet buffer
6 MB packet buffer memory
Performance
Model switching capacity
68 Gbps
Model throughput capacity
Up to 45.1 Mpps
Average latency (LIFO-64-bytes packets)
1 Gbps: 5.9 µSec
10 Gbps: 4.2 µSec
Stack size
8 members (with other
12p 6200F switches only;
No stacking support with
24/48p 6200F or 6200M
switches)
Max. stacking distance
Up to 10 kms with long range transceivers
Stacking Bandwidth
Up to 20Gbps
Switched virtual interfaces (dual stack)
128
IPv4 host table (ARP)
8,192
IPv6 host table (ND)
8,192
IPv4 unicast routes
2,048
IPv6 unicast routes
1,024
MAC table capacity
32,768
IGMP groups
768
MLD groups
768
IPv4/IPv6/MAC ACL entries (ingress)
5,120/1280/5,120
IPv4/IPv6/MAC ACL entries (egress)
2,048/512/2,048
Environment
Operating temperature
32°F to 113°F (0°C to 45°C)
up to 5,000 ft; derate 1°C
for every 1,000 ft from
5,000 ft to 10,000 ft.
Operating relative humidity
5% to 95% @ 104°F (40°C) non-condensing
Non-operating temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Non-operating relative humidity
5% to 95% @ 149°F (65°C) non-condensing
Max operating altitude
10,000 feet (3.048 km) Max
Max non-operating altitude
15,000 feet (4.6 km) Max
Acoustics
Sound Power, LWAd = 5.0 Sound Pressure, LpAm (Bystander) = 32.8
Primary airflow
-
Electrical characteristics
Frequency
50Hz/60Hz
AC voltage
90 - 264 VAC, rated
Current
2.6A/1.3A
80plus.org
Certification
-
Maximum heat
dissipation BTU/hr
and kJ/hr
96 BTU/hr
101 kj/hr
Power consumption (230 VAC)
Idle: 23W
100% Traffic Rate: 28W
Lasers
EN 60825-1:2014 / IEC
60825-1:2014 Class 1
Class 1 Laser Products /Laser Klasse 1
(Applicable for accessories -Optical Transceivers only)
Immunity
Generic
CISPR 35: 2016
EN
EN 55035:2017 / A11:2020
ESD
EN 61000-4-2
Radiated
EN 61000-4-3
EFT/Burst
EN 61000-4-4
Surge
EN 61000-4-5
Conducted
EN 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
EN 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
RoHS
EN 63000:2018 / IEC 63000:2018
Mounting and Enclosure
Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. (rackmounting kit included);
horizontal surface mounting; wall mounting Kensington Security Slot
