Výprodej Aruba 6000 48G 4SFP Switch

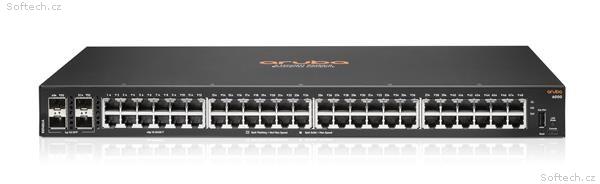

Aruba 6000 48G 4SFP Switch
(R8N86A)

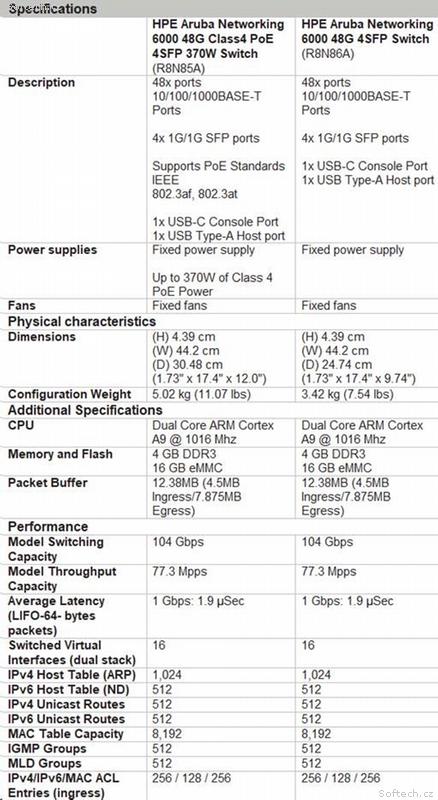

Description
48x ports 10/100/1000BASE-T Ports
4x 1G/1G SFP ports
1x USB-C Console Port
1x USB Type-A Host port
Power supplies
Fixed power supply
Fans
Fixed fans
Dimensions
(H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74")
Configuration Weight
3.42 kg (7.54 lbs)
CPU
Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash
4 GB DDR3 16 GB eMMC
Packet Buffer
12.38MB (4.5MB Ingress/7.875MB Egress)
Model Switching Capacity
104 Gbps
Model Throughput Capacity
77.3 Mpps
Average Latency (LIFO-64- bytes packets)
1 Gbps: 1.9 µSec
Switched Virtual Interfaces (dual stack)
16
IPv4 Host Table (ARP)
1,024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8,192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL Entries (ingress)
256 / 128 / 256

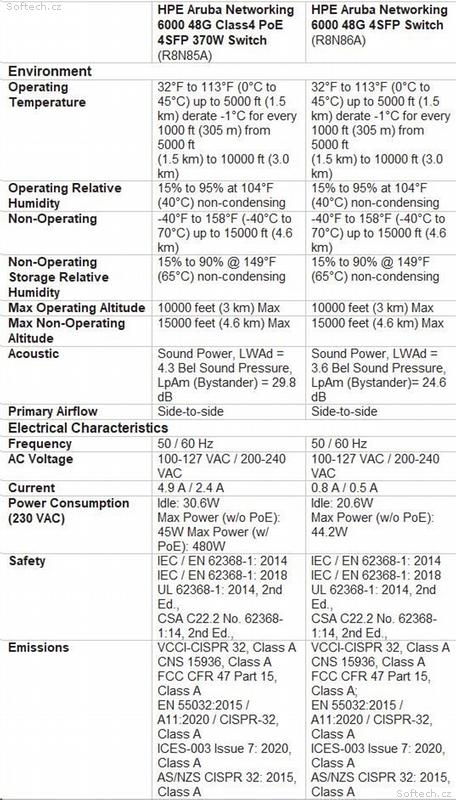

Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity
15% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity
15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude
10000 feet (3 km) Max
Max Non-Operating Altitude
15000 feet (4.6 km) Max
Acoustic
Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB
Primary Airflow
Side-to-side
Electrical Characteristics
Frequency
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
Current
0.8 A / 0.5 A
Power Consumption (230 VAC)
Idle: 20.6W Max Power (w/o PoE): 44.2W

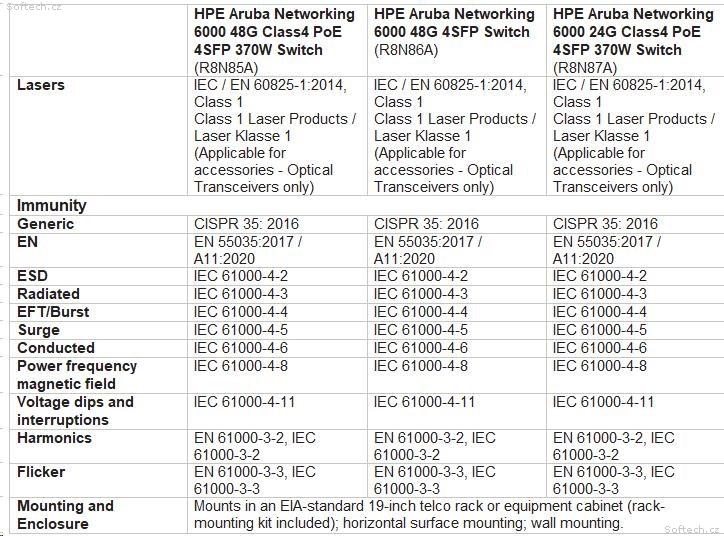

Safety
UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-1:2014
Emissions
VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 /
CISPR-32, Class A
