Popis produktu:

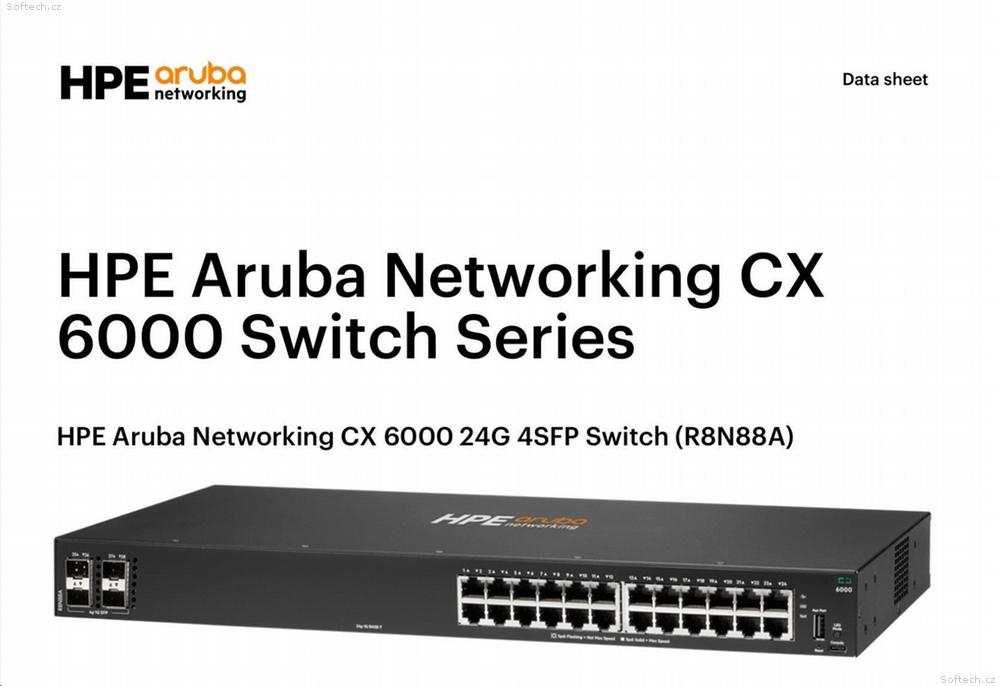

HPE Aruba Networking 6000 Switch Specifications

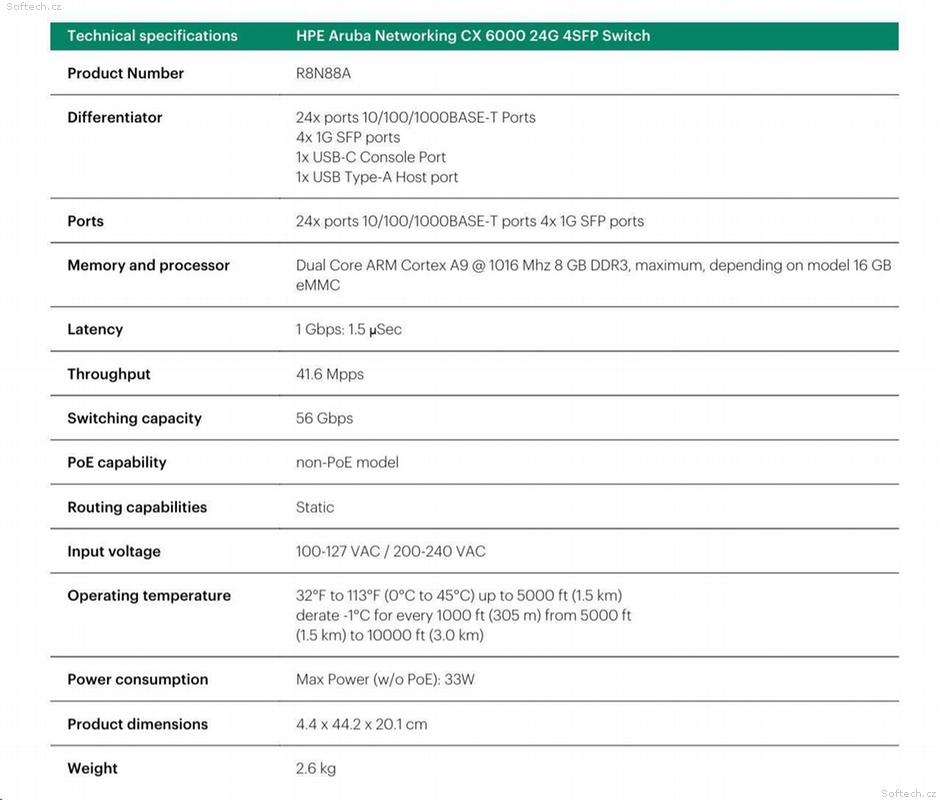

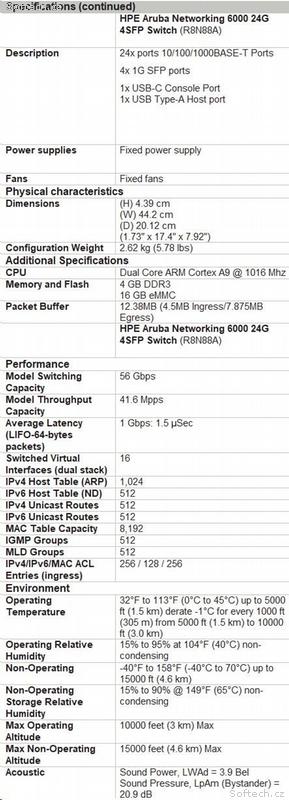

Specification

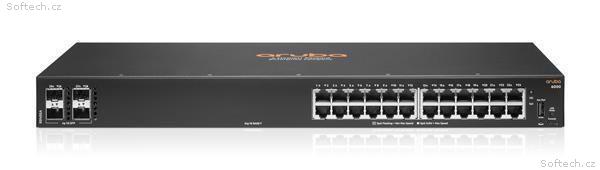

6000 24G 4SFP Switch (R8N88A)
Description
24x ports 10/100/1000BASE-T
4x 1G SFP ports
1x USB-C Console Port
1x USB Type-A Host port
Power supplies
Fixed power supply
Fans
Fixed fans
Physical dimensions (H x W x D)
4.39 cm x 44.2 cm x 20.12 cm
(1.73" x 17.4" x 7.92")
Weight
2.62 kg (5.78 lbs)
CPU
Dual Core ARM Cortex A9 @ 1016 MHz
Memory and Flash
4 GB DDR3, 16 GB eMMC
Packet Buffer
12.38MB (4.5MB Ingress / 7.875MB Egress)
Switching Capacity
56 Gbps
Throughput Capacity
41.6 Mpps
Average Latency (LIFO-64-bytes packets)
1 Gbps: 1.5 µSec
Switched Virtual Interfaces (dual stack)
16
IPv4 Host Table (ARP)
1,024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8,192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL Entries (ingress)
256 / 128 / 256
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km)
Derate -1°C for every 1000 ft (305 m) from 5000 ft to 10000 ft
Operating Relative Humidity
15% to 95% at 104°F (40°C), non-condensing
Non-Operating Temperature
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity
15% to 90% at 149°F (65°C), non-condensing
Max Operating Altitude
10,000 feet (3 km)
Max Non-Operating Altitude
15,000 feet (4.6 km)

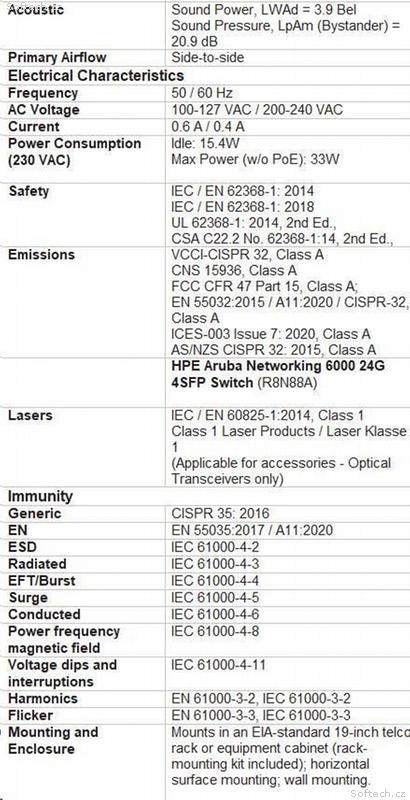

Acoustic
Sound Power, LWAd = 3.9 Bel
Sound Pressure, LpAm (Bystander) = 20.9 dB
Primary Airflow
Side-to-side
Frequency
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
Current
0.6 A / 0.4 A
Power Consumption (230 VAC)
Idle: 15.4W
Max Power (w/o PoE): 33W
Safety
IEC / EN 62368-1: 2014
UL 62368-1: 2014, 2nd Ed.,
CSA C22.2 No. 62368-1:14, 2nd Ed.
Emissions
VCCI-CISPR 32, Class A
CNS 15936, Class A
FCC CFR 47 Part 15, Class A;
EN 55032:2015 / A11:2020 / CISPR-32, Class A
ICES-003 Issue 7: 2020, Class A
AS/NZS CISPR 32: 2015, Class A
Lasers
IEC / EN 60825-1:2014, Class 1
(For accessories - Optical Transceivers only)
Immunity
CISPR 35: 2016
EN 55035:2017 / A11:2020
IEC 61000-4-2 (ESD)
IEC 61000-4-3 (Radiated)
IEC 61000-4-4 (EFT/Burst)
IEC 61000-4-5 (Surge)
IEC 61000-

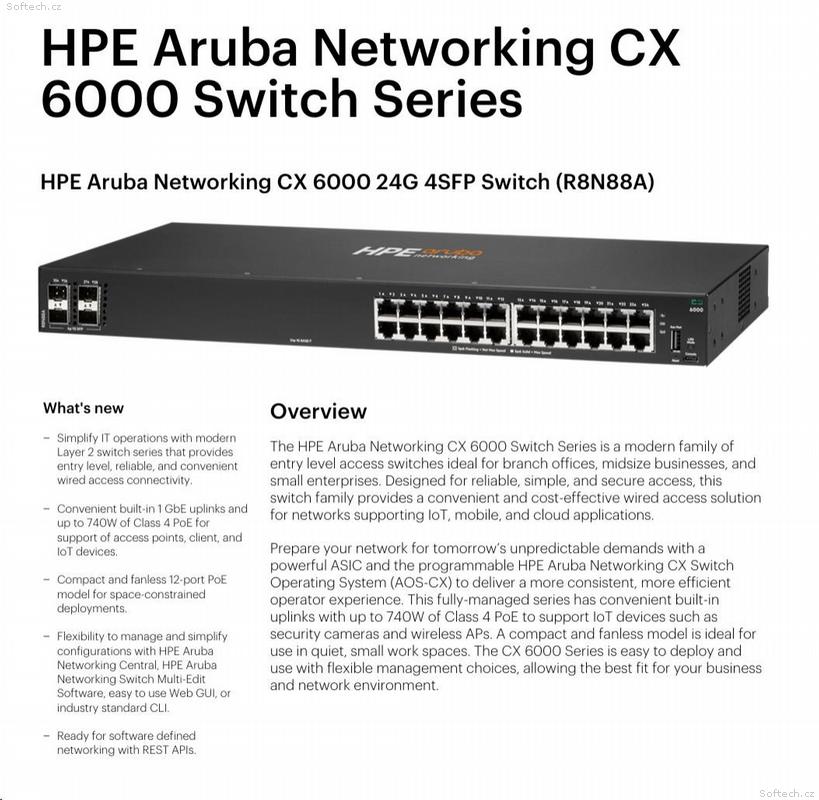

HPE Aruba Networking CX 6000 Switch Series
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry-level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple, and secure access, the CX 6000 Switch series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
The CX 6000 Switch series is based on the HPE Aruba Networking ASIC architecture with the programmable AOS-CX operating system used across the entire HPE Aruba Networking CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 740W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces.
The HPE Aruba Networking CX 6000 Switch Series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloud-based and on-premises HPE Aruba Networking Central management, so you can choose the best fit for your business and network environment.
Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with switch software embedded with no subscription required to enable and a Limited Lifetime Warranty.

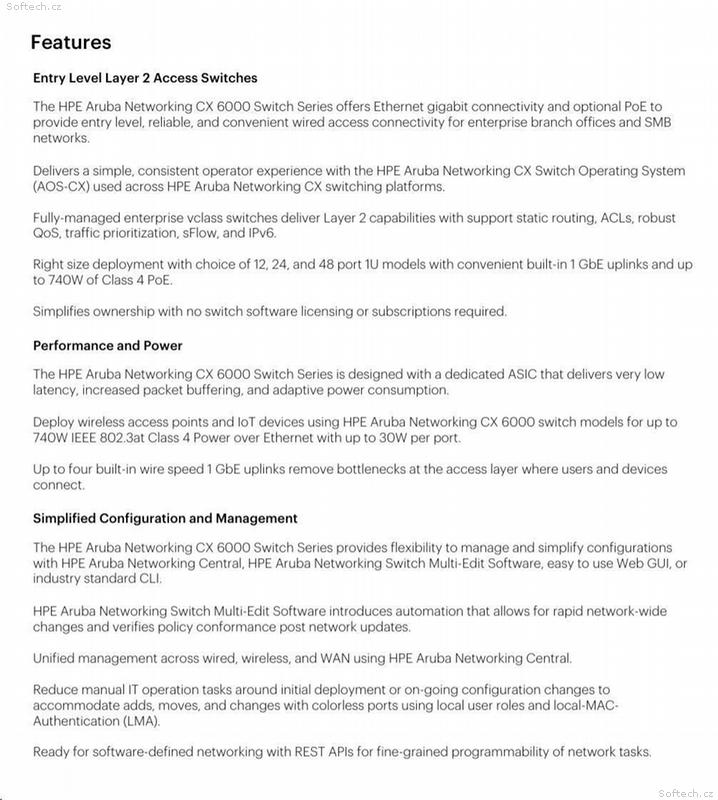

Key Features
Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS, and static routing
Convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of IoT devices
Compact and fanless 12 port model for quiet deployment
Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking NetEdit
Simple deployment with Zero Touch Provisioning
Software defined ready with REST APIs
Simplify adds, moves, and changes with colorless ports
Standard Features
Product Differentiators
AOS-CX - A modern software system
The HPE Aruba Networking CX 6000 Switch Series is based on AOS-CX, a modern, database-driven operating system built on a modular Linux architecture. Benefits include:
Easy access to all network configuration state information
REST APIs for fine-grained programmability of network tasks
A micro-services architecture enabling full integration with other workflow systems and services
All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency
HPE Aruba Networking ASICs - Programmable innovation
Based on over 30 years of continuous investment, HPE Aruba Networking"s ASICs provide innovative software feature advancements, unparalleled performance, and deep visibility. The CX 6000 Switch Series uses this ASIC architecture for optimized performance and capacity.
Access Layer Performance
Up to 104 Gbps non-blocking bandwidth and up to 77.3 Mpps forwarding
Selectable queue configurations for optimized performance
Management flexibility with cloud-based and on-premises options, CLI, and Web GUI
Simplify Adds, Moves and Changes
Reduce manual IT tasks with colorless ports using local user roles and local-MAC-Authentication (LMA). Colorless ports automatically apply required roles/policies instead of static VLAN mapping.
Cost-effective enterprise-class access
Five fixed 1U models supporting 24 or 48 IEEE 802.3 1GbE access ports, with built-in uplink SFP ports
PoE models supporting up to 370W (24 port) and 740W (48 port) IEEE 802.3at Class 4 PoE
Compact fanless 12 port model with four uplinks and 139W PoE support
Supports Energy Efficient Ethernet IEEE 802.3az, Auto-MDIX, Jumbo frames, and packet storm protection
Resiliency and Availability
Uni-directional Link Detection (UDLD) to prevent STP loops
IEEE 802.3ad LACP with up to 8 LAGs, each with up to 8 links
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) and legacy STP support
SmartLink link redundancy
Quality of Service (QoS) features
Strict priority queuing
Traffic prioritization (IEEE 802.1p)
Class of Service (CoS) based on IP address, ToS, protocol, TCP/UDP port, source port, DiffServ
Rate limiting with per-port ingress and queue minimums
Large buffers for congestion management
Simplified Configuration and Management
Multiple management interfaces supported including Web GUI, CLI, cloud-based HPE Aruba Networking Central, REST API, and NetEdit automation tool.
Layer 2 and Layer 3 Features
The switch supports extensive Layer 2 VLAN, spanning tree protocols, port mirroring, multicast, and Layer 3 static routing, dual IPv4/IPv6 stack, and multicast protocols.
Security Features
Integrated TPM for platform integrity
IPv4 and IPv6 ACLs
RADIUS, TACACS+ authentication
IEEE 802.1X, MAC-based authentication, and multiple authentication schemes per port
Secure management access with SSHv2, SSL, SNMPv3
Control Plane Policing, DHCP snooping, ARP protection, port security, MAC pinning, and more
Convergence and PoE
LLDP-MED for automatic device configuration
Multiple PoE allocation methods for efficient power management
Auto VLAN configuration for voice VLANs
Additional Information
Supports green initiatives such as RoHS and WEEE.
Support and Warranty
Limited Lifetime Warranty. For warranty and support details, visit HPE Aruba Networking Support Services. Software releases and documentation are available at HPE Networking Support.
Standards and Protocols
(Applies to all products in series)
RFC 1591 DNS (client)
SSHv1/SSHv2 Secure Shell
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1w Rapid Reconfiguration of Spanning Tree
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3at Power over Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 1350 TFTP Protocol (revision 2)
RFC 2131 DHCP client
RFC 4330 Simple Network Time Protocol (SNTP) v4
RFC 951 BOOTP (VLAN 1 Only)
RFC 1542 BOOTP Extensions (VLAN 1 only)
IGMPv2/IGMPv3
IGMP/MLD Snooping
RFC 1981 IPv6 Path MTU Discovery for IPv6
RFC 2460 IPv6 Specification
RFC 2925 Remote Operations MIB (Ping only)
RFC 3315 DHCPv6 (client only)
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 3176 sFlow
RFC 4022 MIB for TCP
RFC 4113 MIB for UDP (Partially)
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4254 SSHv6 Connection
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration
RFC 1213 MIB
RFC 1493 Bridge MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
(Partial support. MIB objects supported: ieee8021BridgeBasePort, ieee8021BridgeBasePort, ieee8021BridgePortMrpJoinTime, ieee8021BridgePortMrpLeaveTime, ieee8021BridgePortMrpLeaveAllTime)
RFC 2737 Entity MIB
RFC 2863 The Interfaces Group MIB
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 1098 A Simple Network Management Protocol (SNMP)
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDPMED)
SNMPv1/v2c/v3
RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)
RFC 2474 DiffServ precedence, with 2/4/8 queues per port
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2138 RADIUS Authentication
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)
