HPE PL DL360g10 Plus 4309Y (2.8G, 8C) 2x32G (P06033) 2x480G (P40497) 2x800W MR416i-a, 4G 8SFFBCU3 opc4x1G Smart Choice

HPE PL DL360g10 Plus 4309Y (2.8G/8C) 2x32G (P06033) 2x480G (P40497) 2x800W MR416i-a/4G 8SFFBCU3 opc4x1G Smart Choice

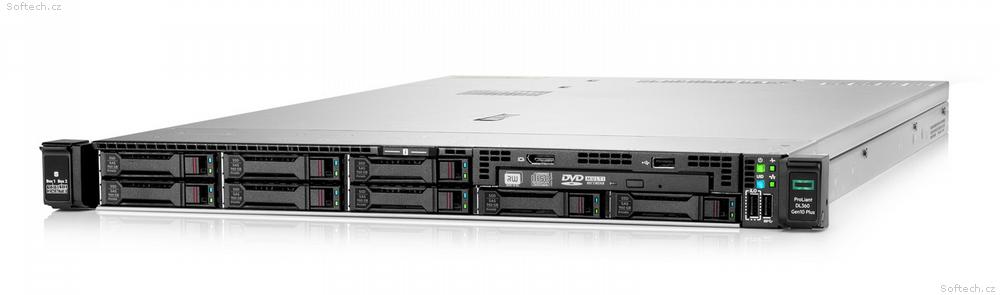

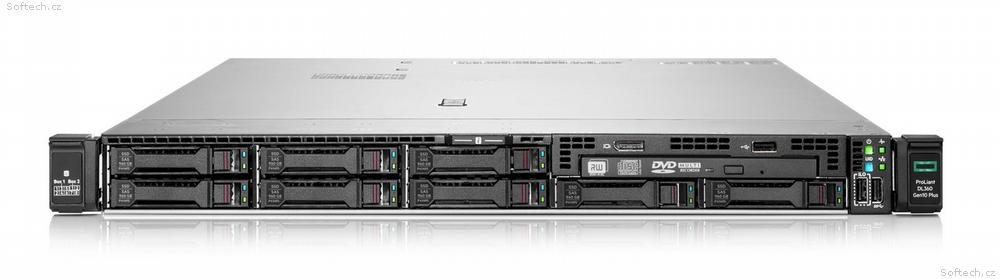

HPE ProLiant DL360 Gen10 Plus - Smart Choice Models
SKU Number
P77128-425
P77171-425
P78116-DM5
Model Name
HPE ProLiant DL360 Gen10 Plus 4309Y 8c 1P 2x32GB-R 8SFF SR416i-a 2x480GB SSD 2x800W PS EU Server
HPE ProLiant DL360 Gen10 Plus 4309Y 8c 1P 2x32GB-R 8SFF SR416i-a 2x2.4TB HDD 2x800W PS EU Server
HPE ProLiant DL360 Gen10 Plus 4310 12c 1P 2x32GB-R 8SFF SR416i-a 2x960GB SSD 2x800W PS LA Server
Chassis
HPE ProLiant DL360 Gen10 Plus 8SFF NC Configure-to-order Server
Processor
4309Y (8 core, 2.8 GHz, 105W) Notes: 8/8/8 cores would result in 2.8/2.6/2.3 GHz operating points at 105W/95W/85W TDPs.
4309Y (8 core, 2.8 GHz, 105W) Notes: 8/8/8 cores would result in 2.8/2.6/2.3 GHz operating points at 105W/95W/85W TDPs.
4310 (12 core, 2.1 GHz, 120W)
Number of Processors
One with standard heatsink
Memory
64 GB (2x32 GB, 3200 MT/s) Notes: Runs at 2667 MT/s due to processor limitation.
Accelerators
Optional
Network Controller
Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE Notes: No embedded networking.
Storage Controller
HPE SR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 24G Controller
Included Drives
2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
2x HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e HDD
2x HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD
Optical Drive
Not included (Optical Drive options available)
Expansion Slots
2 PCIe: 1 x16 FH, 1 x16 LP
Power Supply
2x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
2x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
2x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
Fans
5x Standard fans
Management
HPE iLO 5
Rail Kit
HPE ProLiant DL300 Gen10 Plus 1U SFF Easy Install Rail Kit Notes: Server does not support shelf mounted rail kits ("L" brackets).
Security
TPM (Trusted Platform Module)
Form Factor
1U Rack
Warranty
Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
