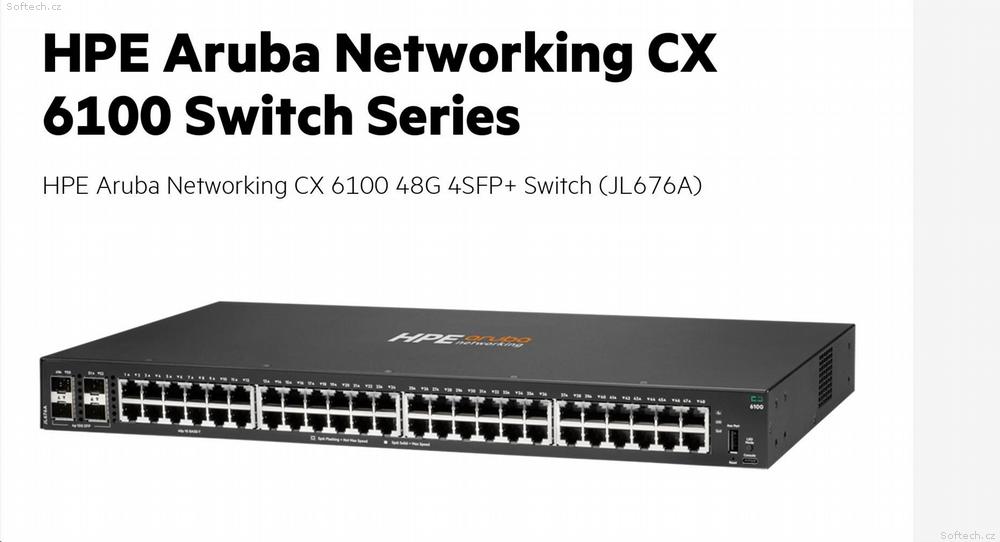

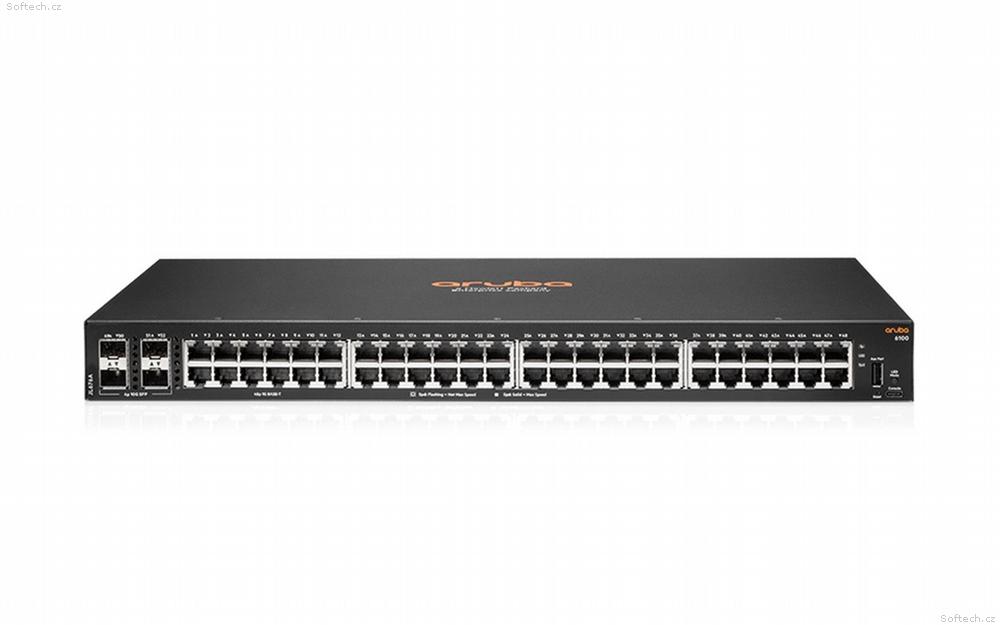

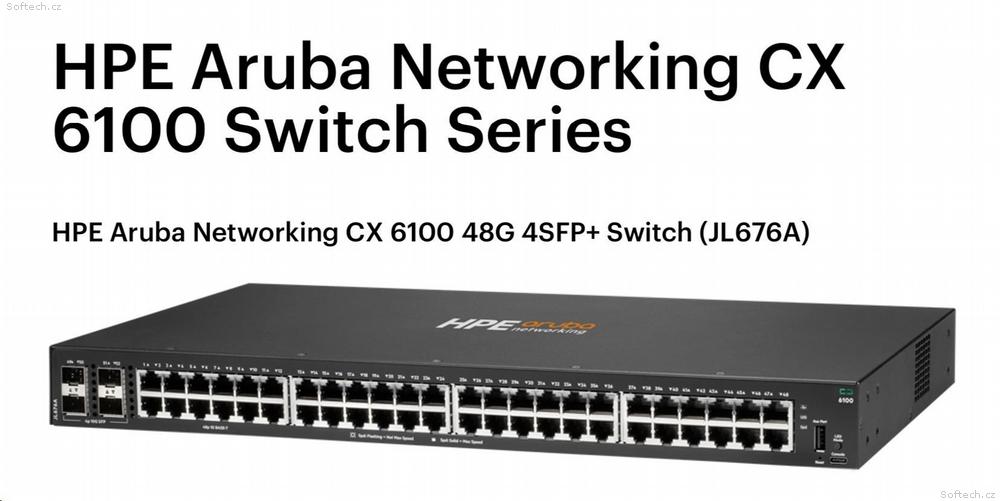

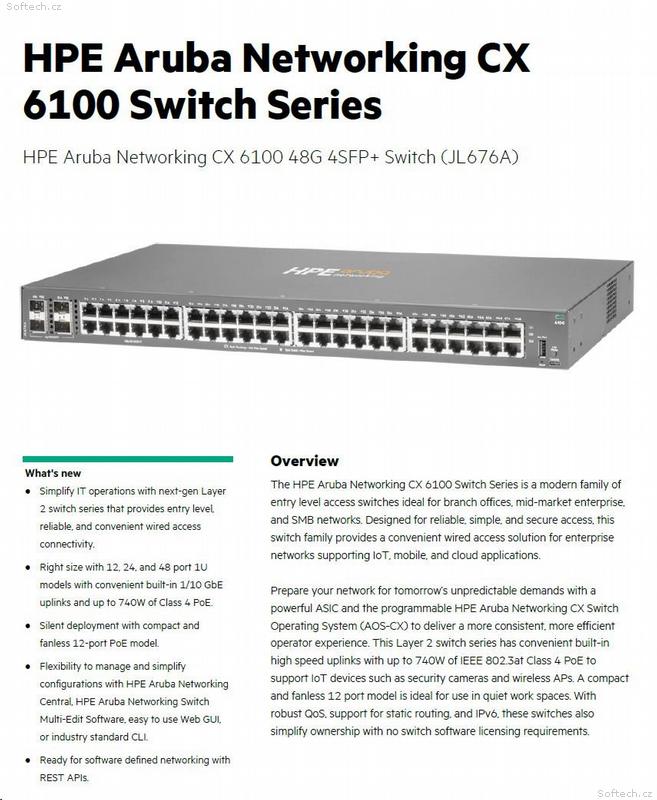

HPE Aruba Networking CX 6100 48G 4SFP+ Switch RENEW JL676AR#ABB

HPE Aruba Networking CX 6100 48G 4SFP+ Switch - Technical Specifications

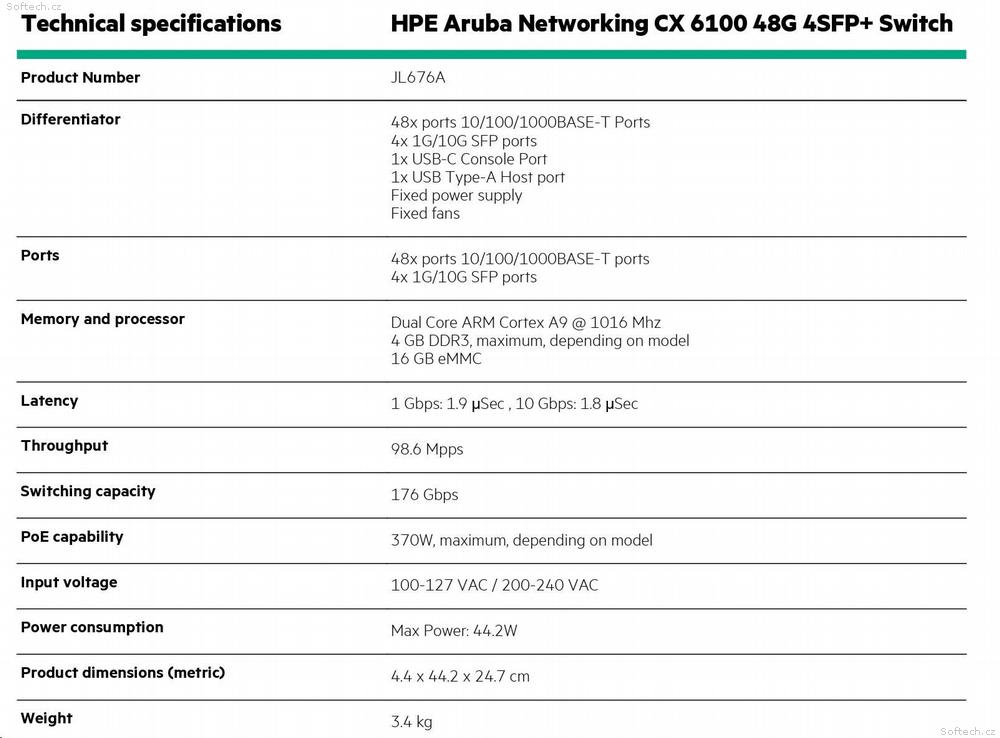

Technical Specifications: HPE Aruba Networking CX 6100 48G 4SFP+ Switch
Product Number
JL676A
Differentiator
48x ports 10/100/1000BASE-T Ports
4x 1G/10G SFP ports
1x USB-C Console Port
1x USB Type-A Host port
Fixed power supply
Fixed fans
Ports
48x ports 10/100/1000BASE-T ports
4x 1G/10G SFP ports
Memory and Processor
Dual Core ARM Cortex A9 @ 1016 MHz
4 GB DDR3 (maximum, depending on model)
16 GB eMMC
Latency
1 Gbps: 1.9 µSec
10 Gbps: 1.8 µSec
Throughput
98.6 Mpps
Switching Capacity
176 Gbps
PoE Capability
370W, maximum, depending on model
Input Voltage
100–127 VAC / 200–240 VAC
Power Consumption
Max Power: 44.2W
Product Dimensions (Metric)
4.4 x 44.2 x 24.7 cm
Weight
3.4 kg

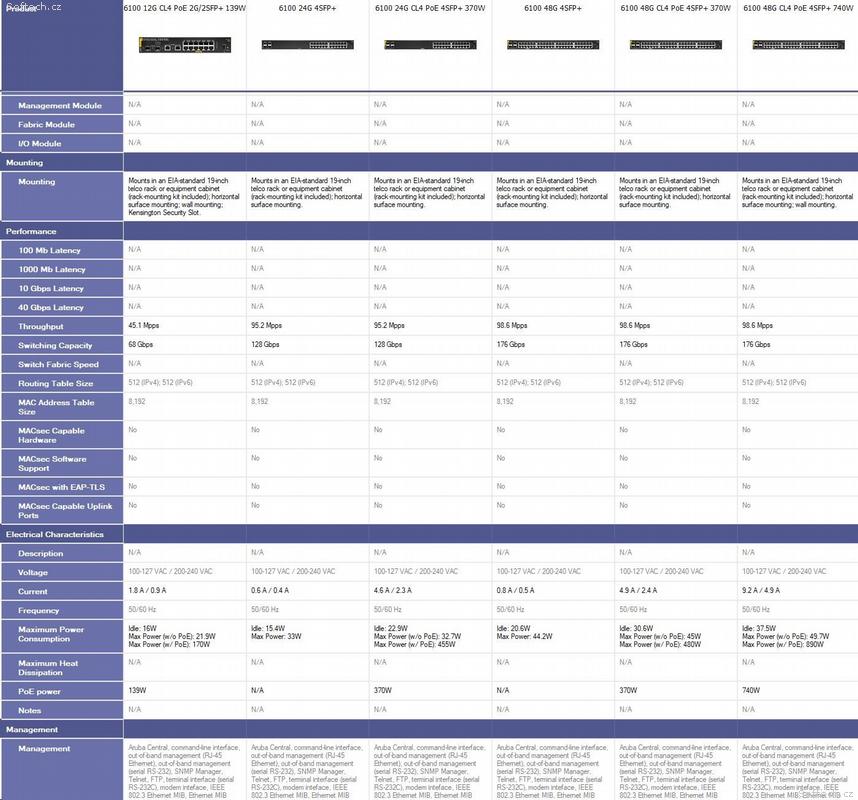

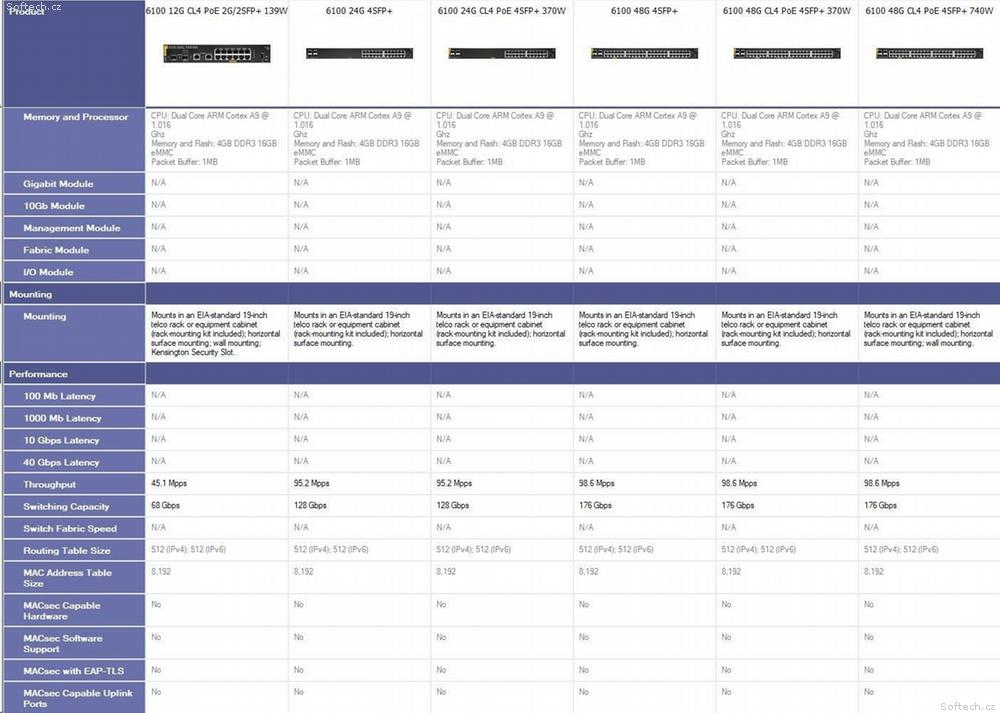

HPE Aruba Networking CX 6100 Switch Comparison

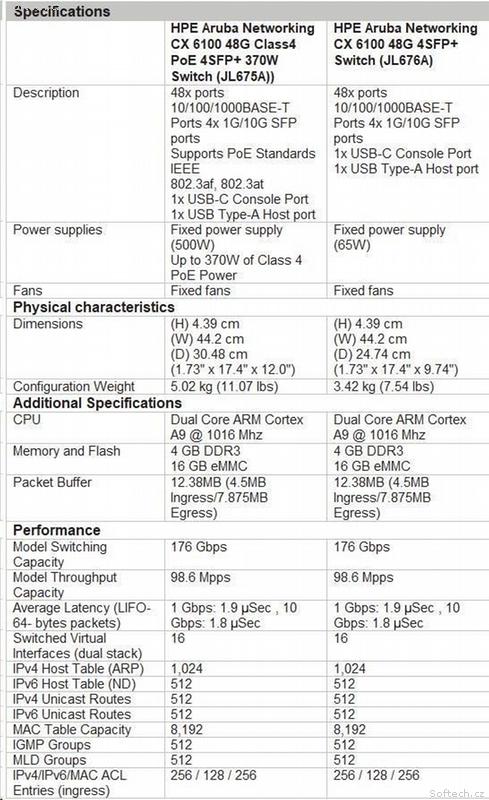

HPE Aruba CX 6100 Switches Specification Comparison
Feature
JL676A (48G Non-PoE)
Description
48x 1G Ports, 4x 1G/10G SFP+, USB-C Console, USB-A Host
PoE Power
Not Supported
Power Supply
Fixed 65W
Fans
Fixed
Dimensions (HxWxD)
4.39 x 44.2 x 24.74 cm
Weight
3.42 kg
CPU
Dual Core ARM Cortex A9 @ 1016 MHz
Memory / Flash
4 GB DDR3 / 16 GB eMMC
Packet Buffer
12.38 MB (4.5MB Ingress / 7.875MB Egress)
Switching Capacity
176 Gbps
Throughput
98.6 Mpps
Latency (64-byte)
1G: 1.9 µs, 10G: 1.8 µs
IPv4/IPv6 Hosts
IPv4: 1024, IPv6: 512
Unicast Routes (IPv4 / IPv6)
512 / 512
MAC Table
8,192 Entries
ACL Entries (IPv4 / IPv6 / MAC)
256 / 128 / 256

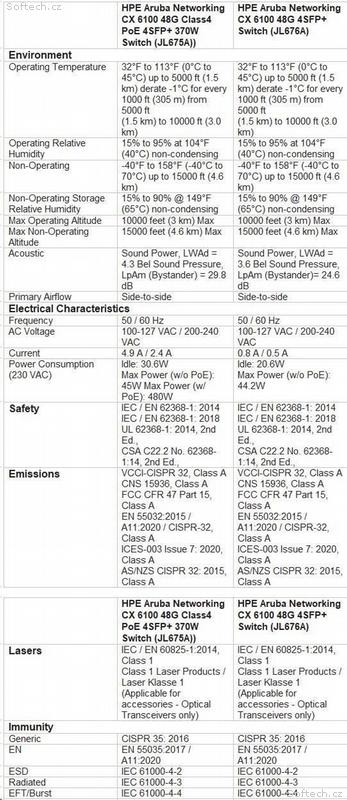

Operating Temp
0°C to 45°C (Derated above 1.5 km)
Power Consumption (230V)
Idle: 20.6W
Max: 44.2W
Acoustic
3.6 Bel / 24.6 dB
Mounting
Rack, Wall, or Flat Surface Mount (kit included)
Certifications & Compliance
IEC/EN/UL/CSA 62368-1, FCC, VCCI, CISPR, EN 55032, etc.
