Popis produktu:
Feature
JL678A (24G 4SFP+)
Ports
24x 10/100/1000BASE-T, 4x 1G/10G SFP
PoE Support
No
Console Ports
1x USB-C Console, 1x USB Type-A Host
Power Supply
Fixed 65W
Fans
Fixed fans (side-to-side airflow)
Dimensions (H x W x D)
4.39 x 44.2 x 20.12 cm
Weight
2.62 kg (5.78 lbs)
CPU
Dual Core ARM Cortex A9 @ 1016 MHz
Memory & Flash
4 GB DDR3, 16 GB eMMC
Packet Buffer
12.38MB total (4.5MB ingress, 7.875MB egress)
Switching Capacity
128 Gbps
Throughput Capacity
95.2 Mpps
Average Latency
1 Gbps: 1.5 µs, 10 Gbps: 1.8 µs
SVIs (Switched Virtual Interfaces)
16
IPv4 Host Table (ARP)
1,024
IPv6 Host Table (ND)
512
IPv4/IPv6 Unicast Routes
512 each
MAC Table Capacity
8,192
IGMP/MLD Groups
512 each
Ingress ACL Entries (IPv4/IPv6/MAC)
256 / 128 / 256
Operating Temp
0 to 45°C (derate above 1.5 km)
Operating Humidity
15% to 95% non-condensing
Acoustic Noise
20.9 dB
Power Consumption (230 VAC)
Idle: 15.4W, Max (no PoE): 33W
Current
0.6A / 0.4A
Mounting
19-inch rack,

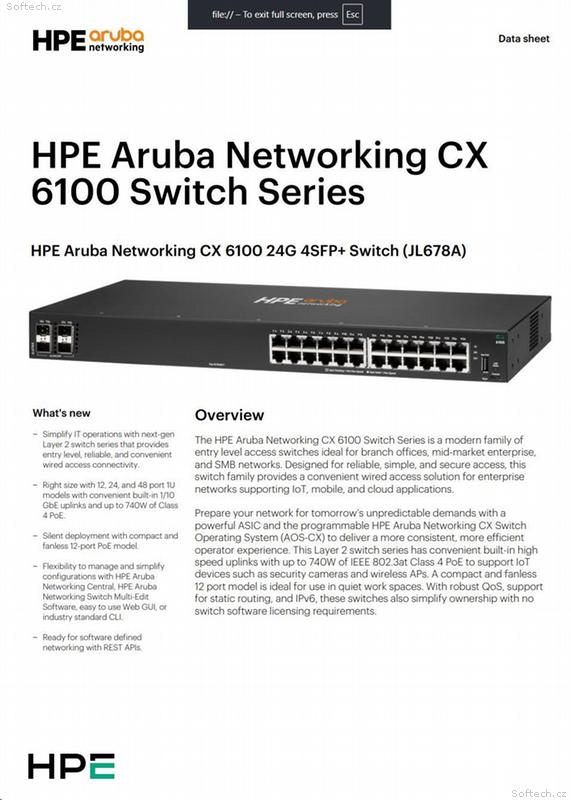

HPE Aruba CX 6100 Series — Key Highlights
Target Use Case:
small-to-medium business (SMB) networks.
Purpose & Benefits:
Reliable, simple, and secure wired access.
cloud applications with wired connectivity.
Architecture & OS:
HPE Aruba ASIC architecture for high performance.
programmable AOS-CX OS, consistent across Aruba CX portfolio for easy, efficient management.
Features:
Layer 2 switching.
up to 370W PoE support (across the series) to power devices like security cameras and wireless APs.
compact, fanless models — great for quiet office environments.
Management Flexibility:
Multiple management options:
Web GUI
Command Line Interface (CLI)
HPE Aruba Central
Enables flexible deployment choices with no need for hardware replacement when management needs evolve.
Security & Performance:
access security.
Traffic prioritization (QoS).
IPv6 support.
Ownership Advantages:
embedded with no subscription required — lowers ongoing costs.
Limited Lifetime Warranty for peace of mind.

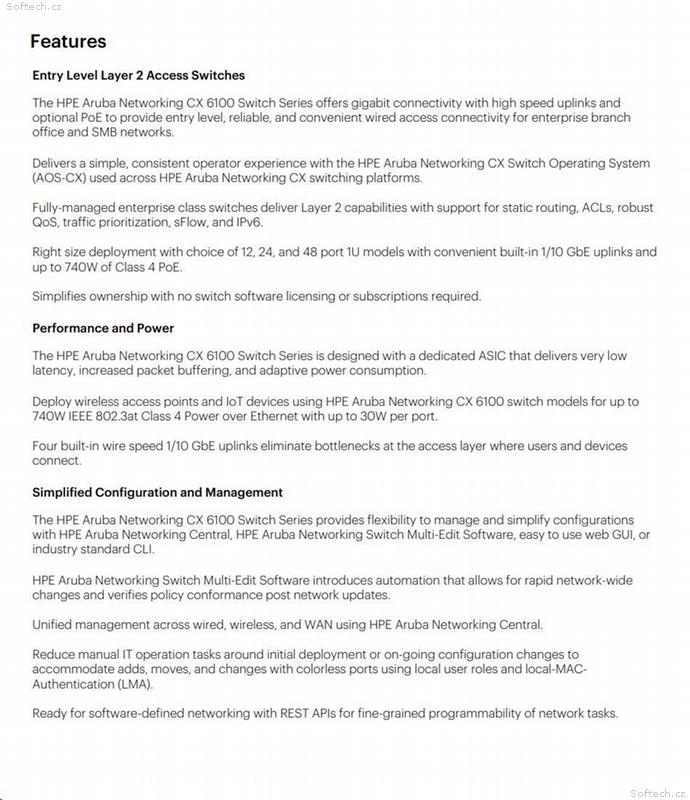

Standard Features & Product Differentiators
AOS-CX Operating System (Modern Software System)
Modular Linux-based OS, database-driven architecture
Easy access to all network state information
REST APIs for programmable network tasks
Microservices architecture for integration and resiliency
Near real-time state synchronization for software processes
HPE Aruba Networking ASICs (Programmable Innovation)
Over 30 years of ASIC innovation
Tight hardware-software integration for optimized performance and capacity
Low latency, increased buffering, adaptive power consumption
Management & Automation Tools
HPE Aruba Networking Central: Unified cloud/on-prem management for wired, WLAN, SD-WAN, public cloud
HPE Aruba Networking NetEdit: Automates switch configurations across network; centralized, validated, and audited management (license required)
Mobility and IoT Performance
Non-blocking bandwidth up to 176 Gbps; forwarding rates up to 98.6 Mpps
Selectable queue configurations for application-specific performance tuning
Supports Power over Ethernet (PoE) up to 370W (24-port) or 740W (48-port) models
Fanless, compact models available for quiet environments
Simplified Operations
Colorless ports with local user roles & local MAC authentication (LMA) for dynamic VLAN assignment
Auto-MDIX for cable type auto-detection
Support for Energy Efficient Ethernet (802.3az)
Support for pre-standard PoE devices
Enterprise-Class Connectivity
Fixed 1U models: 24 or 48 ports of 1GbE with 4 built-in 1GbE/10GbE uplinks
Jumbo frames support (up to 9198 bytes)
Packet storm protection (broadcast, multicast, unknown unicast)
Unsupported Transceiver Mode (UTM) support (no warranty on unsupported transceivers)
Resiliency & Availability
Uni-directional Link Detection (UDLD) to avoid loops
IEEE 802.3ad LACP support (8 LAGs, 8 links per LAG)
Multiple Spanning Tree Protocol (MSTP), Rapid Spanning Tree (RSTP), and legacy STP support
SmartLink for active/standby link redundancy
Quality of Service (QoS)
Strict Priority queuing
Traffic prioritization (IEEE 802.1p)
Class of Service (CoS) based on IP, TCP/UDP ports, DiffServ, etc.
Rate limiting on ingress and queue minimums
Large buffers for congestion management
Management Interfaces & Security
Web GUI, CLI, REST API, SNMP v1/v2c/v3 support
sFlow for wire-speed network monitoring
Secure management via SSHv2, SSL, SNMPv3
Multiple user privilege levels and access restrictions
Support for TFTP/SFTP configuration updates
Debugging utilities (ping, traceroute)
NTP support for consistent time sync
LLDP for network device discovery
Dual flash images and multiple config file support
UDLD for link health monitoring
Layer 2 Switching Features
VLAN support: 4094 VLAN IDs, 512 active VLANs
Jumbo packet support (up to 9220 bytes)
RPVST+, MSTP, RSTP, STP support
MVRP for VLAN learning and assignment
BPDU tunneling for transparent STP over WANs
Port mirroring (4 groups)
IGMP for multicast control
Layer 3 Features
Static IP routing for IPv4 and IPv6 (dual-stack support)
ARP with static ARPs
DNS client and server support
DHCP client and relay support (DHCPv4)
Loopback detection for network reliability
Multicast Support
IGMP snooping and MLD snooping for IPv6 multicast traffic management
Supports IGMP versions 1, 2, and 3
IPv6 Capabilities
IPv6 host management and dual-stack transition support
IPv6 ACL and QoS support
IPv6 static routing
Security features: RA guard, dynamic IPv6 lockdown, ND snooping
Security Features
Trusted Platform Module (TPM) integrated for boot integrity
Access Control Lists (ACLs) for IPv4/IPv6 with granular filtering
RADIUS and TACACS+ for authentication & authorization
Control Plane Policing (rate limiting for control protocols)
IEEE 802.1X client authentication, MAC authentication, web auth support
Secure CLI and GUI access (SSH, SSL, SNMPv3)
CPU protection against DoS attacks
ICMP throttling to mitigate DoS attacks
Identity-driven ACLs for user-based policies
STP BPDU port protection and root guard
Dynamic IP lockdown and ARP protection
DHCP snooping and relay protection
Port security, MAC address lockout, source-port filtering
Security banners and MAC pinning
Convergence and Power Management
LLDP-MED support for automatic QoS and VLAN config for IP phones
PoE power allocation via usage or class, with LLDP and LLDP-MED support
Auto VLAN for voice via RADIUS and LLDP-MED
Network Protocols and Services
DNS: RFC 1591 (client), RFC 3596 (DNS Extension for IPv6)
SSH: SSHv1/SSHv2, RFC 4251, 4252, 4253, 4254, 4419 (Key Exchange for SSH)
SNTP: RFC 4330 Simple Network Time Protocol v4
TFTP: RFC 783, RFC 1350 (revision 2)
BOOTP: RFC 951 (VLAN 1 only), RFC 1542 (BOOTP Extensions, VLAN 1 only)
DHCP: RFC 2131 DHCP client, RFC 3315 DHCPv6 (client only), DHCP relay support
ICMP: RFC 792, RFC 4443 (ICMPv6)
TCP/UDP: RFC 793 (TCP), RFC 768 (UDP), RFC 4113 (UDP MIB partially)
ARP: RFC 826 (Address Resolution Protocol)
IPv6: RFC 2460, RFC 3513 (Addressing Architecture), RFC 4861 (Neighbor Discovery), RFC 4862 (Stateless Auto-configuration), IPv6 static routing support
Path MTU Discovery: RFC 8201
Remote Operations (Ping): RFC 2925
Multicast: IGMPv2, IGMPv3, IGMP/MLD Snooping, Multicast Listener Discovery (MLD)
IEEE Network Standards
Layer 2 & VLAN:
IEEE 802.1D (MAC Bridges)
IEEE 802.1p (Priority)
IEEE 802.1Q (VLAN tagging, up to 4094 VLAN IDs)
IEEE 802.1s (Multiple Spanning Trees)
IEEE 802.1w (Rapid Spanning Tree)
IEEE 802.1AB (Link Layer Discovery Protocol - LLDP)
ANSI/TIA-1057 (LLDP-MED)
Ethernet and Physical Layer:
IEEE 802.3 (10BASE-T)
IEEE 802.3ab (1000BASE-T)
IEEE 802.3ad (Link Aggregation Control Protocol - LACP)
IEEE 802.3at (Power over Ethernet)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.3x (Flow Control)
Security & Access Control:
IEEE 802.1X (Port Based Network Access Control)
Management and Monitoring
SNMP:
RFC 1098 (Simple Network Management Protocol)
SNMPv1/v2c/v3 supported
RMON groups 1, 2, 3, and 9 (statistics, history, alarm, events) (RFC 2819)
MIB Support: RFC 1213, 1493, 2674 (partial), 2737, 2863, 4022 (TCP), 4293 (IP)
sFlow: RFC 3176
RADIUS and TACACS+:
RFC 2138 (RADIUS Authentication)
RFC 2866 (RADIUS Accounting)
RFC 1492 (TACACS+)
Quality of Service
DiffServ:
RFC 2474 (DiffServ precedence)
RFC 2475 (DiffServ architecture)
RFC 2597 (Assured Forwarding)
RFC 2598 (Expedited Forwarding)
Security and Encryption
SSL: Secure Sockets Layer for encrypted web access
SSH: Secure shell access with encryption
TACACS+ and RADIUS for secure authentication and authorization

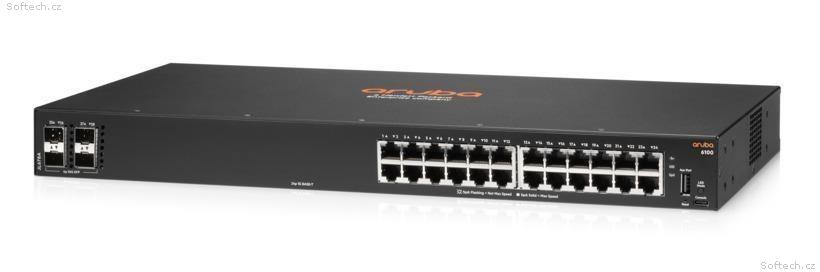

HPE Aruba Networking CX 6100 24G 4SFP+ Switch
Product Number: JL678A
Key Differentiators
24 × 10/100/1000BASE-T Ports
4 × 1G/10G SFP Ports
1 × USB-C Console Port
1 × USB Type-A Host Port
Fixed Power Supply
Fixed Fans

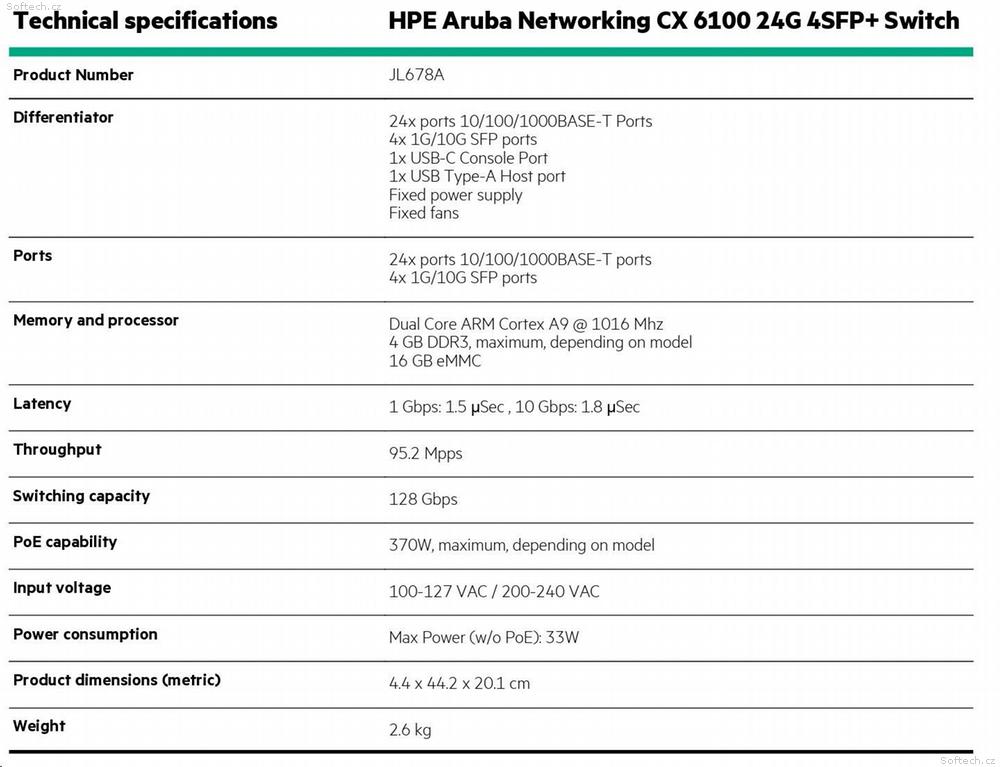

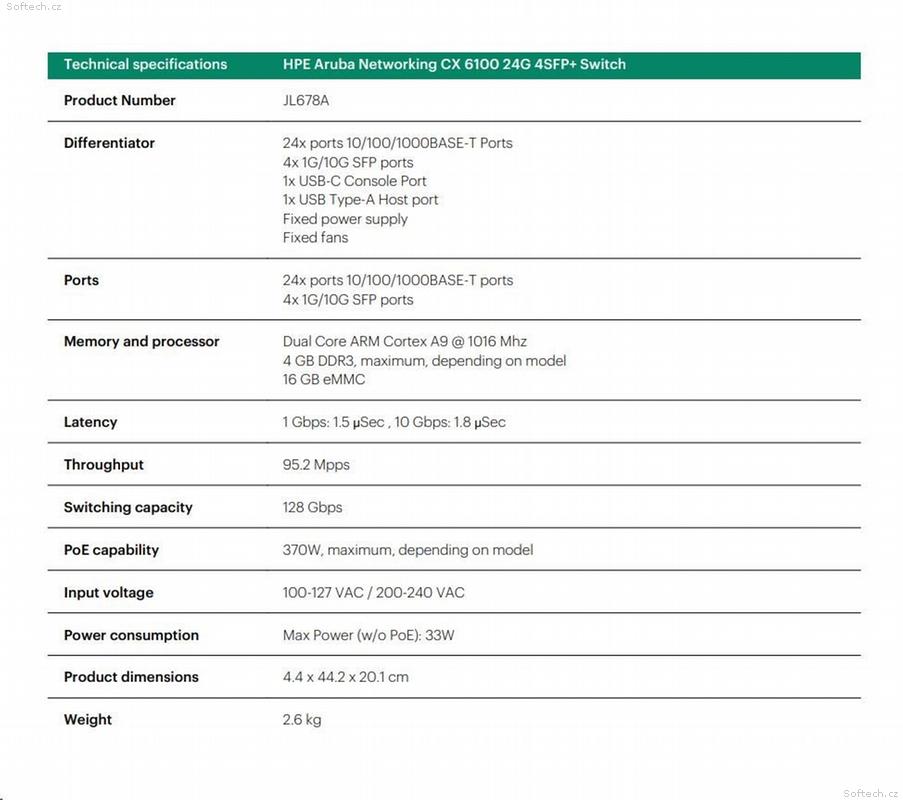

Hardware Specifications
Processor
Dual Core ARM Cortex A9 @ 1016 MHz
Memory
4 GB DDR3 (maximum, depending on model)
Flash Storage
16 GB eMMC
Latency
1 Gbps: 1.5 µs, 10 Gbps: 1.8 µs
Throughput
95.2 Mpps
Switching Capacity
128 Gbps
PoE Capability
Up to 370W (depending on model)
Input Voltage
100-127 VAC / 200-240 VAC
Power Consumption
Max Power (without PoE): 33W
Dimensions (H × W × D)
4.4 × 44.2 × 20.1 cm
Weight
2.6 kg
