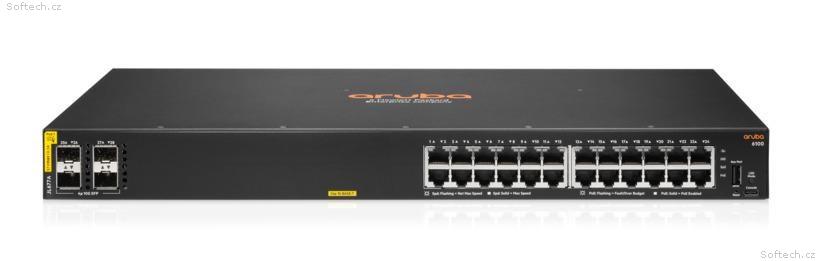

HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch

Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch JL677AR RENEW
Řada přepínačů Aruba CX 6100 je moderní rodina přístupových přepínačů základní úrovně ideální pro pobočky, střední podniky a sítě SMB. Přepínače Aruba CX 6100, navržené pro spolehlivý, jednoduchý a bezpečný přístup, poskytují pohodlné řešení kabelového přístupu pro podnikové sítě podporující IoT, mobilní a cloudové aplikace.

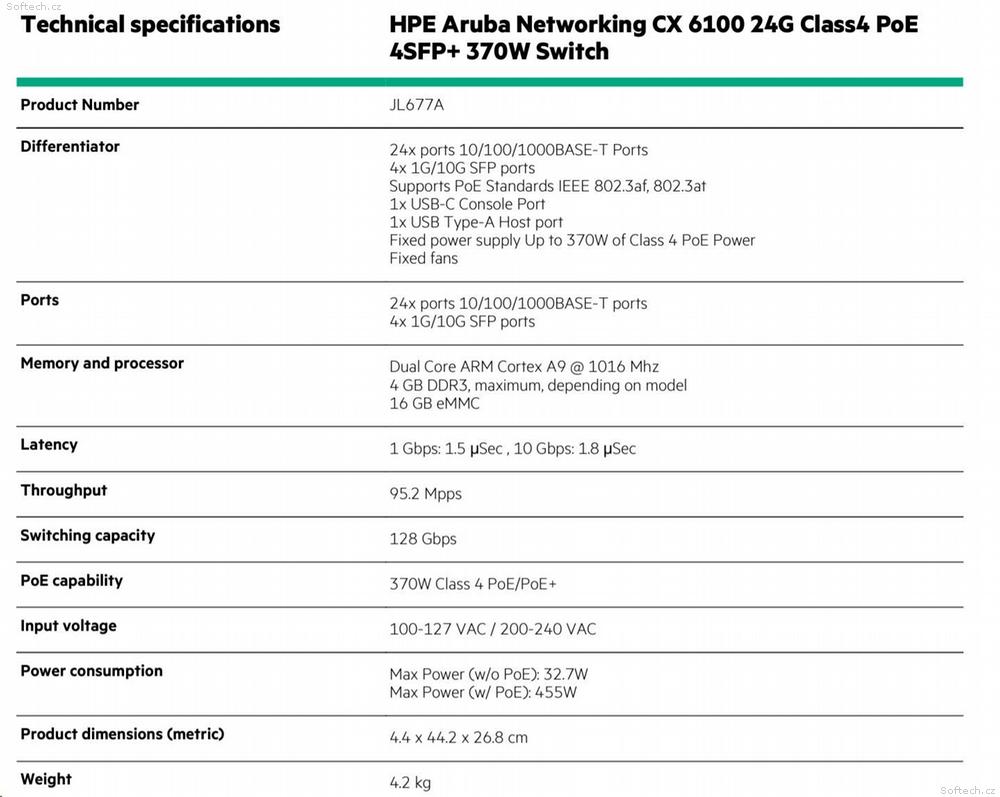

Technické parametry
24x 10/100/1000Base-T porty
4x 1/10G SFP porty
1x USB-C Console Port, 1x USB Type-A Host port
Interní (pevný) napájecí zdroj (500 W), pevné ventilátory
Maximální výkon: 32,7 W bez PoE, 455 W s PoE
Vstupní napětí: 100-127 VAC / 200-240 VAC
Přepínací kapacita: 128 Gb/s
Propustnost: 95,2 Mpps
Procesor: Dual Core ARM Cortex A9 @ 1016 Mhz
Paměť a Flash: 4 GB DDR3, 16 GB eMMC
Možnost PoE: Až 370W Class 4 PoE
Rozměry: 4,39 x 44,2 x 26,82 cm
Hmotnost: 4,2 kg
HPE Aruba Networking CX 6100 Switch Specifications

HPE Aruba Networking CX 6100 24G Class4 PoE4SFP+ 370W Switch
Product Number
JL677A
Differentiator
24x 10/100/1000BASE-T Ports
4x 1G/10G SFP+ Ports
Supports IEEE 802.3af, 802.3at PoE Standards
1x USB-C Console Port
1x USB Type-A Host Port
Fixed Power Supply (370W Class 4 PoE)
Fixed Fans
Ports
24x 10/100/1000BASE-T Ports
4x 1G/10G SFP+ Ports
Memory and Processor
Dual Core ARM Cortex A9 @ 1016 MHz
4 GB DDR3 RAM
16 GB eMMC Storage
Latency
1 Gbps: 1.5 µs
10 Gbps: 1.8 µs
Throughput
95.2 Mpps
Switching Capacity
128 Gbps
PoE Capability
370W Class 4 PoE / PoE+
Input Voltage
100–127 VAC / 200–240 VAC
Power Consumption
Max Power (without PoE): 32.7W
Max Power (with PoE): 455W
Product Dimensions
4.4 x 44.2 x 26.8 cm
Weight
4.2 kg
Specifications
Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)
Description
24x ports 10/100/1000BASE-T Ports 4x 1G/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port
Power supplies
Fixed power supply (500W) Up to 370W of Class 4 PoE Power
Fans
Fixed fans
Physical characteristics
Dimensions
(H) 4.39 cm (W) 44.2 cm (D) 26.82 cm (1.73" x 17.4" x 10.56")
Configuration Weight
4.19kg (9.24 lbs)
Additional Specifications
CPU
Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash
4 GB DDR3 16 GB eMMC
Packet Buffer
12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity
128 Gbps
Model Throughput Capacity
95.2 Mpps
Average Latency (LIFO-64- bytes packets)
1 Gbps: 1.5 µSec , 10 Gbps: 1.8 µSec
Switched Virtual Interfaces (dual stack)
16
IPv4 Host Table (ARP)
1,024
IPv6 Host Table (ND)
512
IPv4 Unicast Routes
512
IPv6 Unicast Routes
512
MAC Table Capacity
8,192
IGMP Groups
512
MLD Groups
512
IPv4/IPv6/MAC ACL Entries (ingress)
256 / 128 / 256
Environment
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity
15% to 95% at 104°F (40°C) non-condensing
Non-Operating
-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity
15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude
10000 feet (3 km) Max
Max Non-Operating Altitude
15000 feet (4.6 km) Max
Acoustic
Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander)= 24.3 dB
Primary Airflow
Side-to-side
Electrical Characteristics
Frequency
50 / 60 Hz
AC Voltage
100-127 VAC / 200-240 VAC
Current
4.6 A / 2.3 A
Power Consumption (230 VAC)
Idle: 22.9W Max Power (w/o PoE): 32.7W Max Power (w/ PoE): 455W
Safety
UL 60950-1; IEC 60950-1;
EN 60950-1; CAN/
CSA-C22.2 No. 60950-1;
EN 60825-1
UL 62368-1 Ed. 2; IEC
62368-1 Ed. 2; EN 62368-1:2014
Emissions
VCCI-CISPR 32, Class A; CNS
13438; ICES-003 Issue 6
Class A; FCC CFR 47
Part 15, Class A;
EN 55032: 2015 +AC:2016 /
CISPR-32, Class A
Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)
Lasers
EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only)
Immunity
Generic
CISPR 24 / CISPR 35
EN
EN 55024:2010 /
EN 55035:2017
ESD
IEC 61000-4-2
Radiated
IEC 61000-4-3
EFT/Burst
IEC 61000-4-4
Surge
IEC 61000-4-5
Conducted
IEC 61000-4-6
Power frequency magnetic field
IEC 61000-4-8
Voltage dips and interruptions
IEC 61000-4-11
Harmonics
EN 61000-3-2, IEC 61000-3-2
Flicker
EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting

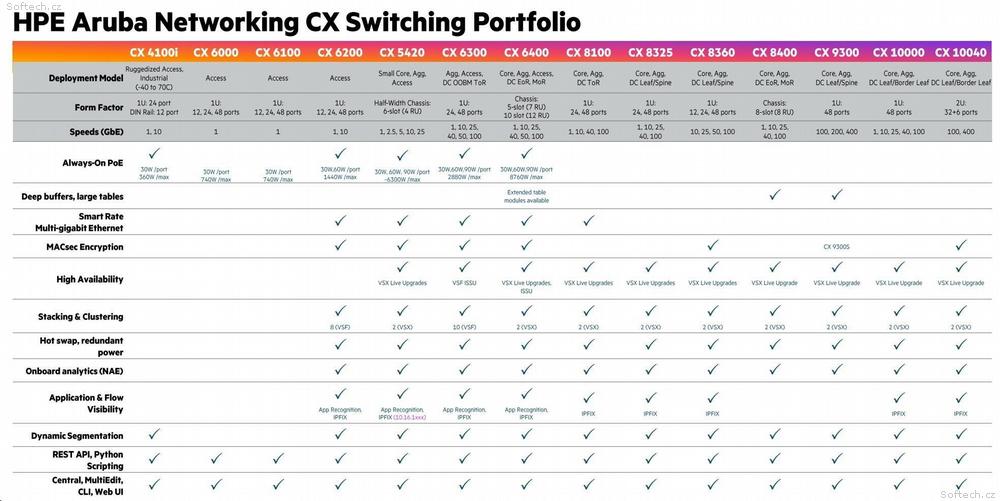

HPE Aruba Networking CX 6100 Switch Series
The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple, and secure access, the HPE Aruba Networking CX 6100 Switch series switches provide a convenient wired access solution for networks supporting IoT, mobile and cloud applications. CX 6100 Switch series is based on the HPE Aruba Networking ASIC architecture with the programmable AOS-CX operating system used across the entire HPE Aruba Networking CX portfolio for a more consistent, more efficient operator experience. This fully managed Layer 2 switch series has convenient built-in high-speed uplinks with up to 370W of PoE to support IoT devices, such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet workspaces. CX 6100 Switch series supports management choices that include Web GUI, CLI, cloud-based and on-premises HPE Aruba Networking Central, so you can choose the best fit for your needs today with flexibility to change without replacing hardware. With enhanced access security, traffic prioritization, and IPv6 support, the HPE Aruba Networking CX 6100 Switch series also simplifies ownership and brings peace of mind with switch software embedded with no subscription required to enable and a Limited Lifetime Warranty.
Key Features
Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
Convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE for support of IoT devices
Compact and fanless 12 port model for quiet deployment
Manage via single pane of glass with HPE Aruba Networking Central across wired, wireless, and WAN
Automated configuration and verification with HPE Aruba Networking NetEdit
Software defined ready with REST APIs
Simplify adds, moves and changes with colorless ports
Standard Features
Product Differentiators
AOS-CX - A modern software system
The HPE Aruba Networking CX 6100 Switch Series is based on AOS-CX, a modern, database-driven operating system that is built on a modular Linux architecture. This operating system provides the following unique capabilities:
Easy access to all network configuration state information
REST APIs for fine-grained programmability of network tasks
A micro-services architecture that enables full integration with other workflow systems and services
All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency
HPE Aruba Networking ASICs - Programmable innovation
Based on over 30 years of continuous investment, HPE Aruba Networking"s ASICs create the basis for innovative and agile software feature advancements, unparalleled performance, and deep visibility. These programmable ASICs are purpose-built to allow for a tighter integration of switch hardware and software within campus and data center architectures to optimize performance and capacity. The HPE Aruba Networking CX 6100 Switch Series is based on the HPE Aruba Networking ASIC architecture.
HPE Aruba Networking Central - Unified single pane of glass management
Flexible cloud-based or on-premises management for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Designed to simplify day zero through day two operations with streamlined workflows. Switch management capabilities include configuration, onboarding, monitoring, troubleshooting, and reporting.
HPE Aruba Networking NetEdit - Automated switch configuration and management
The entire HPE Aruba Networking CX portfolio empowers IT teams to orchestrate multiple switch configuration changes for smooth end-to-end service rollouts. HPE Aruba Networking NetEdit introduces automation that allows for rapid network-wide changes and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment and audit features. Capabilities include:
Centralized configuration with validation for consistency and compliance
Time savings via simultaneous viewing and editing of multiple configurations
Customized validation tests for corporate compliance and network design
Automated large-scale configuration deployment without programming
Notes: A separate software license is required to use HPE Aruba Networking NetEdit.
Mobility and IoT performance
The HPE Aruba Networking CX 6100 Switch Series uses internally developed HPE Aruba Networking ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following:
Up to 176 Gbps in non-blocking bandwidth and up to 98.6 Mpps for forwarding
Selectable queue configurations that allow for increased performance by defining a number of queues and associated memory buffering to best meet the requirements of network applications
Simplify adds, moves and changes
Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves and changes with colorless ports using local user roles and local-MAC-Authentication (LMA). Instead of statically pre-configuring access ports to VLANs and maintaining the switch port to VLAN mapping, colorless ports can automatically apply the role/policy required.
Enterprise-class access connectivity
To address branch office and small enterprise environments, the HPE Aruba Networking CX 6100 Switch series family includes five fixed 1U models. Each switch includes built-in high speed uplinks that automatically detect the use of 1G or 10G transceivers to deliver non-blocking performance. Additional highlights:
1U models support 24 and 48 access ports of IEEE 802.3 1GbE with four built-in 1GbE/10GbE uplink SFP+ ports. The 24 port PoE models support up to 370W and the and 48 pot PoE models support up to 740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port
Compact and fanless model supports 12 ports of IEEE 802.3 1GbE with four uplinks (two built-in 1GbE/10GbE uplink SFP/SFP+ ports, two built-in 1GbE ports), and 139W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port
Support for Energy Efficient Ethernet IEEE 802.3az reduces power consumption during periods of low network traffic
Support for pre-standard PoE detects and provides power to pre-standard PoE devices
Auto-MDIX provides automatic adjustments for straight through or crossover cables on all 10/100/1000 ports
Unsupported Transceiver Mode (UTM) allows to insert and enable all unsupported 1G and 10G transceivers and cables. Note that there is no warranty nor support for the transceiver/cable when this feature is used
Jumbo frames allow for high-performance backups and disaster-recovery systems; provides a maximum frame size of 9198 bytes
Packet storm protection against broadcast, multicast and unknown unicast storms with user-defined thresholds
Resiliency and availability

To support a highly-available Layer 2 access deployment, the HPE Aruba Networking CX 6100 Switch series supports the following features:
Uni-directional Link Detection (UDLD) to monitor link connectivity and shut down ports at both ends if unidirectional traffic is detected, preventing loops in STPbased networks
IEEE 802.3ad LACP supports up to 8 LAGs, each with up to 8 links per LAG; and provides support for static or dynamic groups and a user-selectable hashing algorithm
IEEE 802.1s Multiple Spanning Tree provides high link availability in VLAN environments where multiple spanning trees are required; and legacy support for IEEE 802.1d and IEEE 802.1w
SmartLink provides easy-to-configure link redundancy of active and standby links
Quality of Service (QoS) features

To support congestion actions and traffic prioritization, the HPE Aruba Networking CX 6100 Switch series includes the following:
Strict priority (SP) queuing
Traffic prioritization (IEEE 802.1p) for real-time classification
Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
Rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums
Large buffers for graceful congestion management
Simplified configuration and management

The HPE Aruba Networking CX 6100 Switch series supports a choice of management interfaces including, easy to use Web GUI, industry standard. CLI, HPE Aruba Networking NetEdit, and HPE Aruba Networking Central for unified network operations of wired, WLAN, SD-WAN, and public cloud infrastructure. Features include:
Built-in programmable and easy-to-use REST API interface
Industry-standard CLI with a hierarchical structure for reduced training time and expense. Delivers increased productivity in multivendor environments
sFlow (RFC 3176) is ASIC-based wire speed network monitoring and accounting with no impact on network performance; network operators can gather a variety of network statistics and information for capacity planning and real-time network monitoring purposes
Management security restricts access to critical configuration commands, provides multiple privilege levels with password protection and local and remote syslog capabilities allow logging of all access
SNMPv1/v2c/v3 support provides Read capability of industry standard Management Information Base (MIB), and private extensions
SNMP support includes: Write Set Speed and Duplex, Write Port Security, Write POE Priority, Write Config Mgmt, SNMP-Read single OID for average CPU and memory, SNMP MIB View
SNMP Trap include: Transceiver Traps (insertion/removal), SNMP Trap, SNMP MIB-SNMB Authentication, SNMPv2 MIB, Port Sec MIB-Port Sec, Config MIB-Running Config Change, Config MIB, AAA Server MIB, AAA Server State
Remote monitoring (RMON) with standard SNMP to monitor essential network functions. Supports events, alarms, history, and statistics groups as well as a private alarm extension group
TFTP and SFTP support offers different mechanisms for configuration updates; trivial FTP (TFTP) allows bidirectional transfers over a TCP/ IP network; Secure File Transfer Protocol (SFTP) runs over an SSH tunnel to provide additional security
Debug and sampler utility supports ping and traceroute for IPv4 and IPv6
Network Time Protocol (NTP) synchronizes timekeeping among distributed time servers and clients; keeps timekeeping consistent among all clock-dependent devices within the network so the devices can provide diverse applications based on the consistent time
IEEE 802.1AB Link Layer Discovery Protocol (LLDP) advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
Dual flash images provide independent primary and secondary operating system files for backup while upgrading
Multiple configuration files can be stored to a flash image
Unidirectional link detection (UDLD) monitors the link between two switches and blocks the ports on both ends of the link if the link goes down at any point between the two devices
Layer 2 Switching
The following Layer 2 services are supported:
VLAN support and tagging support for IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously
Jumbo packet support improves the performance of large data transfers; supports frame size of up to 9,220 bytes
Rapid Per-VLAN Spanning Tree (RPVST+) allows each VLAN to build a separate spanning tree to improve link bandwidth usage; is compatible with PVST+
STP supports standard IEEE 802.1D STP, IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
MVRP allows automatic learning and dynamic assignment of VLANs
Bridge Protocol Data Unit (BPDU) tunneling transmits STP BPDUs transparently, allowing correct tree calculations across service providers, WANs, or MANs
Port mirroring duplicates port traffic (ingress and egress) to a monitoring port; supports 4 mirroring groups
Internet Group Management Protocol (IGMP) Controls and manages the flooding of multicast packets in a Layer 2 networks
Layer 3 Services

The following Layer 3 services are supported:
Address Resolution Protocol (ARP) determines the MAC address of another IP host in the same subnet; supports static ARPs
Domain Name System (DNS) provides a distributed database that translates domain names and IP addresses, which simplifies network design; supports client and server
Supports internal loopback testing for maintenance purposes and increased availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per
VLAN basis for added flexibility
Dynamic Host Configuration Protocol (DHCP) simplifies the management of large IP networks and supports client; DHCPv4 Relay support enables DHCP operation across subnets
Layer 3 Routing
The following Layer 3 routing services are supported:
Static IP routing provides manually configured routes.
Dual stack static IPv4 and IPv6 routing provides simple manually configured IPv4 and IPv6 routing
Dual IP stack maintains separate stacks for IPv4 and IPv6 to ease the transition from an IPv4-only network to an IPv6-only network design
Multicast
IGMP Snooping allows multiple VLANs to receive the same IPv4 multicast traffic, lessening network bandwidth demand by reducing multiple streams to each VLAN
Multicast Listener Discovery (MLD) enables discovery of IPv6 multicast listeners; support MLD v1 and v2
Internet Group Management Protocol (IGMP) utilizes Any-Source Multicast (ASM) to manage IPv4 multicast networks; supports IGMPv1, v2, and v3
IP multicast snooping (data-driven IGMP) prevents flooding of IP multicast traffic
IPv6 capabilities
IPv6 host enables switches to be managed in an IPv6 network
Dual stack (IPv4 and IPv6) transitions from IPv4 to IPv6, supporting connectivity for both protocols
MLD snooping forwards IPv6 multicast traffic to the appropriate interface
IPv6 ACL/QoS supports ACL and QoS for IPv6 network traffic
IPV6 static routing
Security provides RA guard, dynamic IPv6 lockdown, and ND snooping
