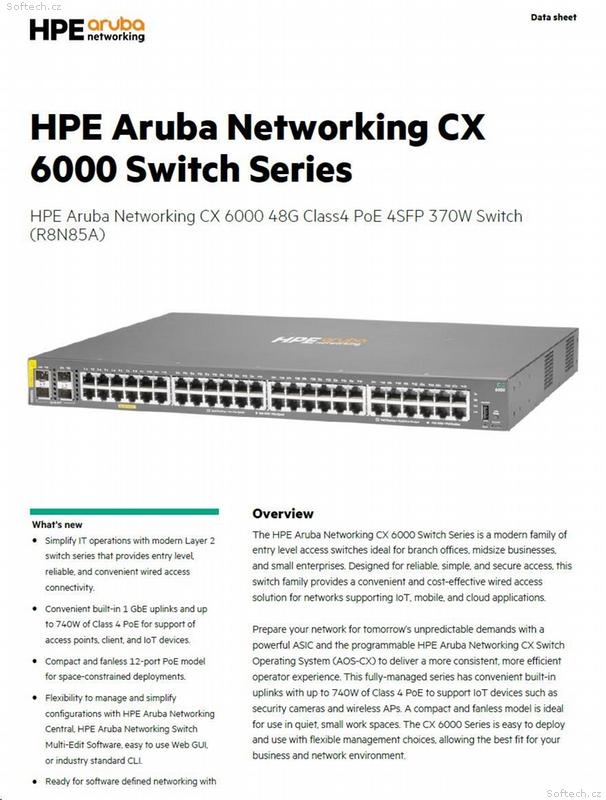

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch
HPE Aruba CX 6000 48G PoE Switch - Specifications

Technical Specifications
HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch
Product Number
R8N85A
Differentiator
48x 10/100/1000BASE-T ports
4x 1G/1G SFP ports
Supports PoE standards IEEE 802.3af, 802.3at
1x USB-C Console Port
1x USB Type-A Host Port
Ports
48x 10/100/1000BASE-T ports, 4x 1G SFP ports
Memory and Processor
Dual Core ARM Cortex A9 @ 1016 MHz
8 GB DDR3 (max)
16 GB eMMC
Latency
1 Gbps: 1.9 µSec
Throughput
77.3 Mpps
Switching Capacity
104 Gbps
PoE Capability
370W Class 4 PoE/PoE+
Routing Capabilities
Static
Input Voltage
100–127 VAC / 200–240 VAC
Operating Temperature
32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km)
Derate -1°C per 1000 ft (305 m) from 5000 ft to 10000 ft (3.0 km)
Power Consumption
Max (w/o PoE): 45W
Max (with PoE): 480W
Dimensions (metric)
4.4 x 44.2 x 30.5 cm
Weight
5.0 kg

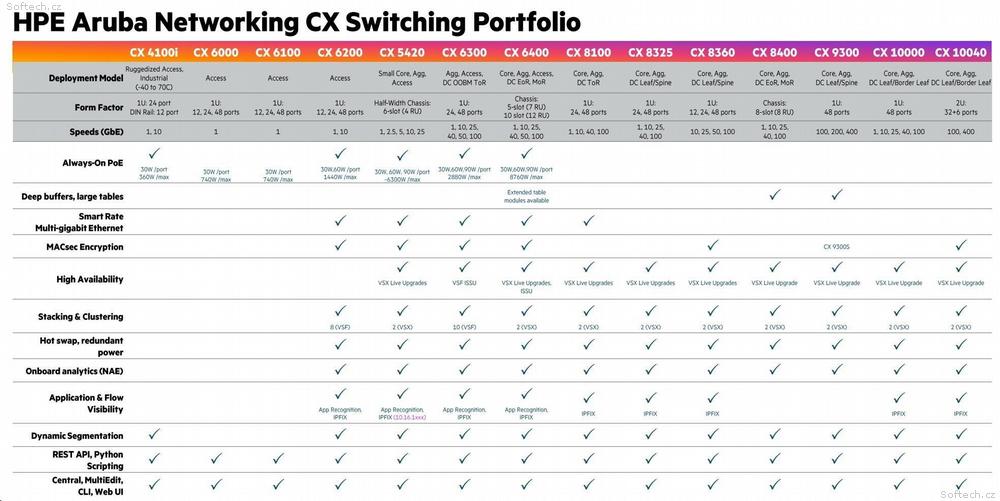

HPE Aruba CX 6000 Series Switch Comparison

CX 6000 Series Switch Comparison
Model Overview
Model
R8N85A
48G PoE
R8N86A
48G
R8N87A
24G PoE
Ports
48x 10/100/1000BASE-T, 4x 1G SFP
48x 10/100/1000BASE-T, 4x 1G SFP
24x 10/100/1000BASE-T, 4x 1G SFP
USB Ports
1x USB-C Console, 1x USB Type-A Host
PoE
370W (Class 4)
None
370W (Class 4)
Power Supply
Fixed
Fans
Fixed
Dimensions (cm)
4.39 x 44.2 x 30.48
4.39 x 44.2 x 24.74
4.39 x 44.2 x 26.82
Weight (kg)
5.02
3.42
4.19
Performance & System
CPU
Dual Core ARM Cortex A9 @ 1016 MHz
Memory
4 GB DDR3, 16 GB eMMC
Packet Buffer
12.38MB (4.5MB Ingress / 7.875MB Egress)
Switching Capacity
104 Gbps
104 Gbps
56 Gbps
Throughput
77.3 Mpps
77.3 Mpps
41.6 Mpps
Latency
1.9 µs
1.9 µs
1.5 µs
IPv4/IPv6 Hosts
IPv4: 1,024
IPv6: 512
MAC Table
8,192
ACL Entries
IPv4: 256, IPv6: 128, MAC: 256
Environmental & Electrical
Operating Temp
0°C to 45°C (up to 1.5 km); Derate -1°C per 1000 ft up to 3 km
Humidity (Op/Storage)
15% to 95% @ 40°C (Op), 15% to 90% @ 65°C (Storage)
Altitude (Op/Non-Op)
Max Operating: 10,000 ft; Max Non-Operating: 15,000 ft
Frequency
50 / 60 Hz
Voltage
100–127 VAC / 200–240 VAC
Current
4.9 A / 2.4 A
0.8 A / 0.5 A
4.6 A / 2.3 A
Power (230 VAC)
Idle: 30.6W
Max: 45W / 480W (PoE)
Idle: 20.6W
Max: 44.2W
Idle: 22.9W
Max: 32.7W / 455W (PoE)
Certifications
Safety
IEC / EN / UL / CSA 62368-1 (2014/2018)
Emissions
VCCI, CNS, FCC, EN 55032, ICES, AS/NZS CISPR 32 (Class A)
Laser
IEC / EN 60825-1:2014 Class 1 (Transceivers)
Immunity
CISPR 35, IEC 61000-4-x Series, EN 55035
Mounting & Enclosure: Mounts in standard 19" rack, horizontal surface, or wall (kit included).
