Popis produktu:

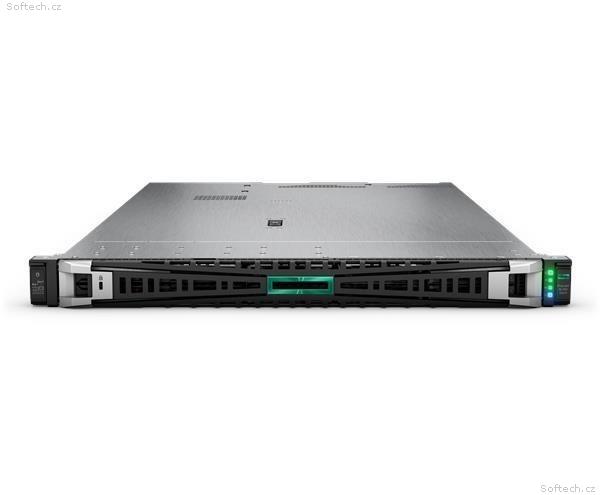

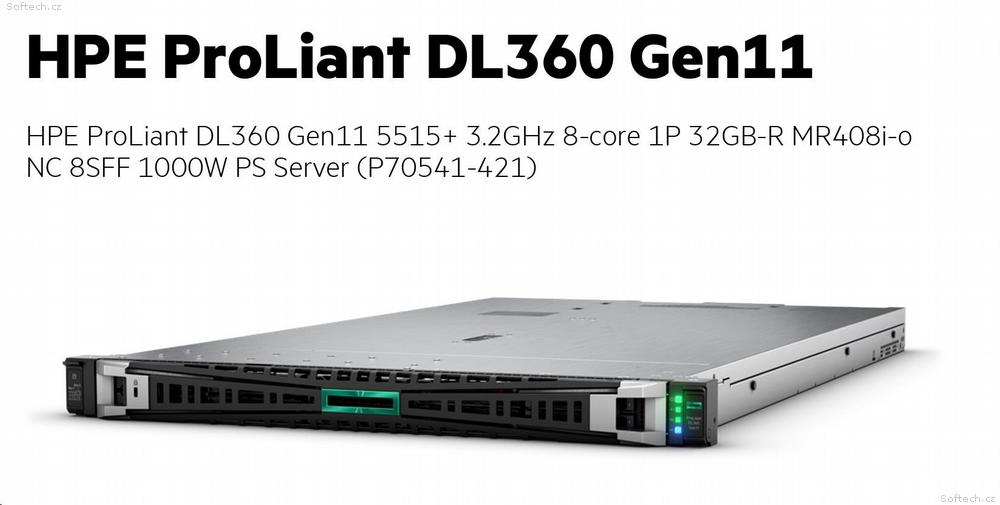

HPE PL DL360g11 5515+ (3.2/8C/165W) 1x32G (p64706) MR408i-o/4G 8-10SFF 1x1000W 2x10G-T NBD333 1U P70541-421 RENEW
SKU Number P70541-421
Model Name HPE PL DL360g11 5515+ (3.2/8C/165W) 1x32G MR408i-o/4G 8-10SFF 1x1000W 2x10G-T NBD333 1U
Chassis HPE ProLiant DL360 Gen11 8SFF NC CTO Server (P52499-B21)
CPU 5515+ (8 core, 3.2 GHz, 165W)
Number of Processors One with standard heatsink
Memory 32 GB (1x32 GB , 5600 MT/s) Notes: Runs at 4800 MT/s due to processor limitation
Network Controller Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE Notes: No embedded networking
Storage Controller HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
Hard Drive None Included
Internal Storage 8 SFF NC CTO Server (upgradeable to 8+2 SFF front)
PCIe Slots 2-slots (x16 FH, x16 HH). Upgradeable to 3rd slot in HH (or remove Slot 2 bracket to be FH at Slot 3) in 2nd CPU configuration.
Power Supply 1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Fans 5 - Standard
Management HPE iLO 6
Security Trusted Platform Module (TPM) Notes: Enabling TPM 2.0 no longer requires TPM module option kit for Gen11. It is an embedded feature and can be disabled in the BIOS setting.
Rail Kit HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit Notes: Server does not support shelf mounted rail kits ("L" brackets).
Energy Star Energy Star 3.0
Form Factor 1U Rack
Warranty 3-year parts, 3-year labor, 3-year onsite support with next business day response.
SKU Number
P70541-421
Model Name
HPE ProLiant DL360 Gen11 5515+ 3.2GHz 8-core 1P 32GB-R MR408i-o NC 8SFF 1000W PS Server
Chassis
HPE ProLiant DL360 Gen11 8SFF NC Configure-to-order Server
Processor
5515+ (8 core, 3.2 GHz, 165W)
Number of Processors
One with standard heatsink
Memory
32 GB (1x32 GB , 5600 MT/s) Notes: Runs at 4800 MT/s due to processor limitation.
Network Controller
Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE Notes: No embedded networking
Storage Controller
HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
Included Hard Drives
None ship standard, 8 SFF supported
Internal Storage
8 SFF NC CTO Server (upgradeable to 8+2 SFF front)
Optical Drive
Optional - HPE 9.5mm SATA DVD-RW Optical Drive, HPE Mobile USB DVD-RW Drive.
Power Supply
1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Fans
5x Standard Fans
Management
HPE iLO 6
Rail Kit
HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit Notes: Server does not support shelf mounted rail kits ("L" brackets).
Security
TPM (Trusted Platform Module)
Form Factor
1U Rack
Warranty
Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.

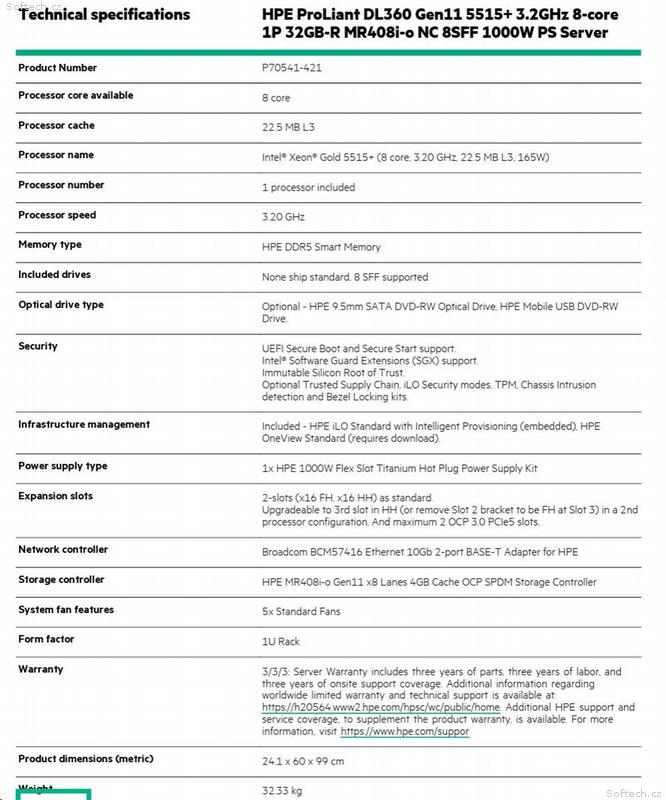

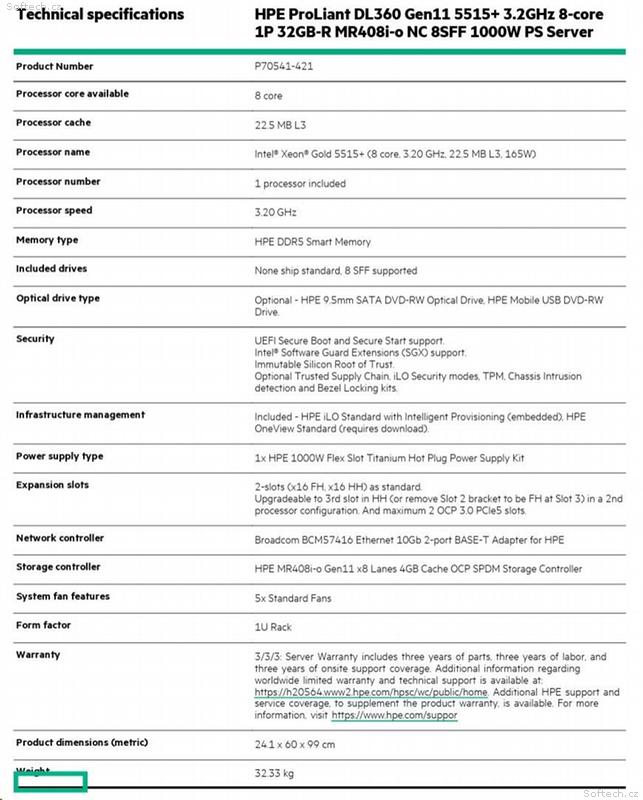

HPE ProLiant DL360 Gen11 Specifications
Technical Specifications: HPE ProLiant DL360 Gen11
Product Number
P70541-421
Processor
Intel Xeon Gold 5515+ (8 core, 3.20 GHz, 22.5 MB L3, 165W)
Processor Cores
8 cores
Processor Cache
22.5 MB L3
Processor Included
1
Memory Type
HPE DDR5 Smart Memory
Installed Memory
32 GB
Drive Bays
8 SFF supported (no drives included by default)
Optical Drive
Optional - HPE 9.5mm SATA DVD-RW or USB DVD-RW Drive
Security
UEFI Secure Boot, Secure Start, Intel SGX,
Immutable Silicon Root of Trust,
TPM, Chassis Intrusion Detection, Bezel Locking Kits
Infrastructure Management
HPE iLO Standard with Intelligent Provisioning (embedded),
HPE OneView Standard (download required)
Power Supply
1x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Expansion Slots
2x PCIe Gen5 (x16 FH, x16 HH),
Optional 3rd slot in 2-CPU config,
Up to 2 OCP 3.0 PCIe5 slots
Network Controller
Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T
Storage Controller
HPE MR408i-o Gen11, x8 Lanes, 4GB Cache, OCP SPDM
System Fans
5x Standard Fans
Form Factor
1U Rack
Warranty
3 Years Parts / 3 Years Labor / 3 Years Onsite Support
Warranty Info
HPE Support
Dimensions (Metric)
24.1 x 60 x 99 cm
Weight
32.33 kg
