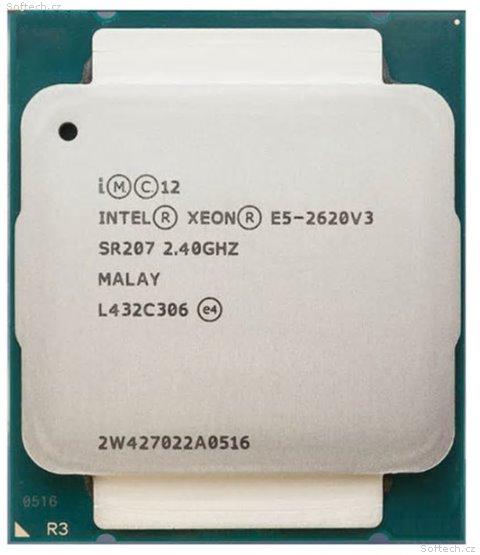

Supermicro INTEL Xeon (6-core) E5-2620V3 (15M Cache, 2.40 GHz) LGA2011-3, Tray

Essentials
Product Collection
Intel® Xeon® Processor E5 v4 Family
Code Name Products formerly Broadwell
Vertical Segment Server
Processor Number E5-2620V4
Status Launched
Launch Date Q1"16
Lithography 14 nm
Use Conditions Server/Enterprise
CPU Specifications
# of Cores 8
# of Threads 16
Processor Base Frequency 2.10 GHz
Max Turbo Frequency 3.00 GHz
Cache 20 MB Intel® Smart Cache
Bus Speed 8 GT/s
# of QPI Links 2
Intel® Turbo Boost Technology 2.0 Frequency‡ 3.00 GHz
TDP 85 W
VID Voltage Range 0
Supplemental Information
Embedded Options Available Yes
Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 1.5 TB
Memory Types DDR4 1600/1866/2133
Max # of Memory Channels 4
Max Memory Bandwidth 68.3 GB/s
Physical Address Extensions 46-bit
ECC Memory Supported ‡ Yes
Expansion Options
Scalability 2S
PCI Express Revision 3.0
PCI Express Configurations ‡ x4, x8, x16
Max # of PCI Express Lanes 40
Package Specifications
Sockets Supported FCLGA2011-3
Max CPU Configuration 2
TCASE 74°C
Package Size 45mm x 52.5mm
Advanced Technologies
Intel® Turbo Boost Technology ‡ 2.0
Intel vPro® Platform Eligibility ‡ Yes
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® Transactional Synchronization Extensions Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Intel® Demand Based Switching Yes
Thermal Monitoring Technologies Yes
Intel® Flex Memory Access No
Intel® Identity Protection Technology ‡ No
Security & Reliability
Intel® AES New Instructions Yes
Secure Key Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
