Mikrotik RB912UAG-5HPnD 600MHz, 64MB RAM, ROS L4

RB912UAG-5HPnD

OVERVIEW

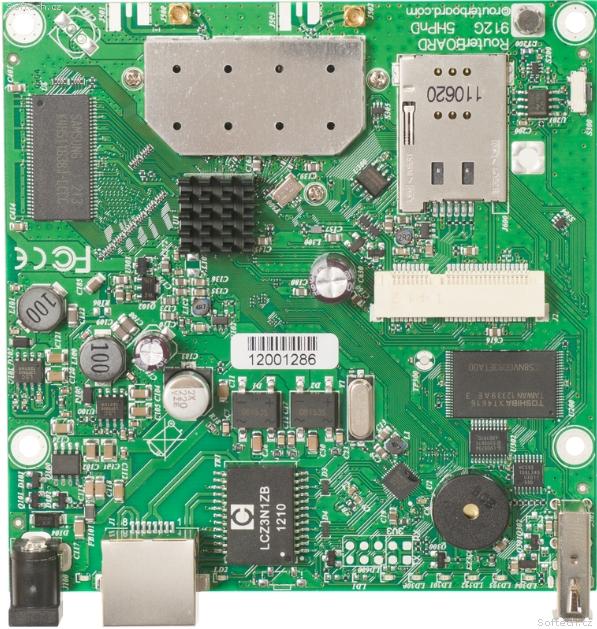

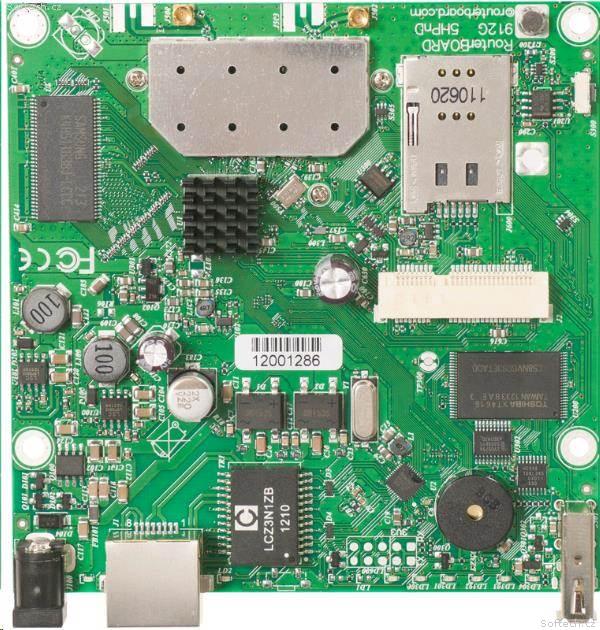

The RB912UAG-5HPnD is very versatile device. It"s small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports.

SPECIFICATIONS
Product code
• RB912UAG-5HPnD

CPU speed
• 600MHz

CPU cores
• 1

RAM
• 64

LAN ports
• 1

Gigabit
• Yes

MiniPCI
• 0

miniPCI-e
• 1

Integrated Wireless
• Yes

Wireless standards
• 802.11an

USB
• 1

Memory Cards
• No

Power Jack
• Yes

802.3af support
• No

PoE
• 8-30V DC

Voltage Monitor
• Yes

CPU temperature monitor
• No

PCB temperature monitor
• Yes

Dimensions
• 105x105mm

Operating System
• RouterOS

RouterOS License
• L4

Current Monitor
• No

TX power
• 30dBm

Max Power consumption
• 14W at 24v
