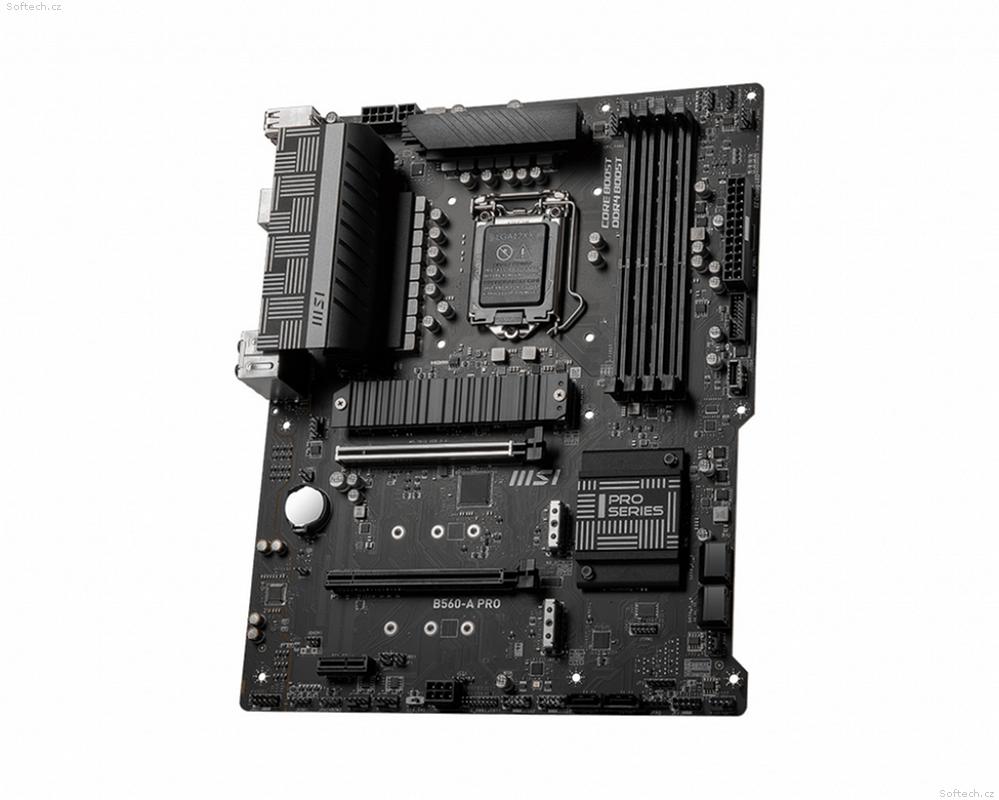

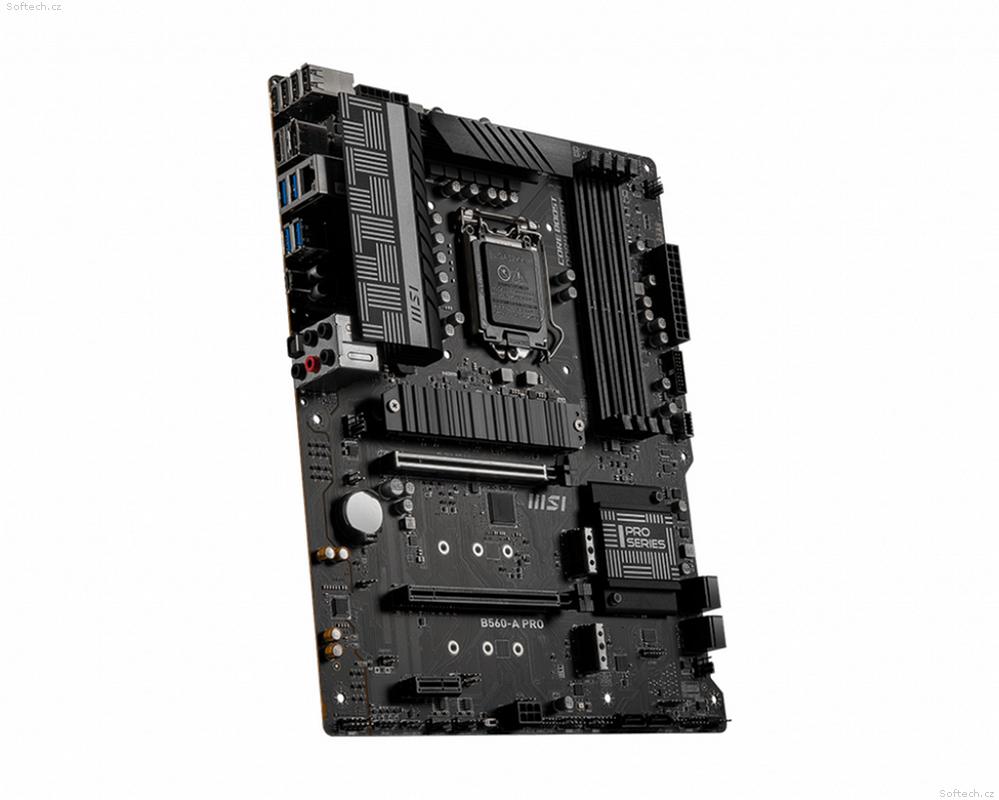

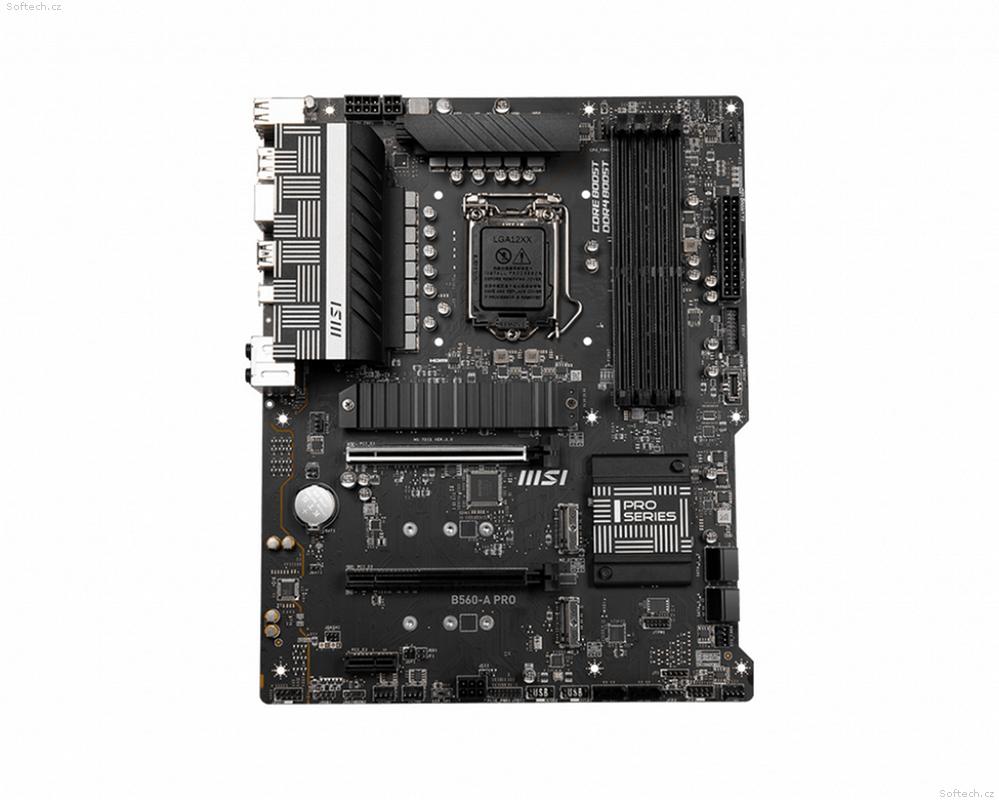

MSI B560-A PRO, LGA 1200, ATX

Chipset: Intel B560 Chipset

Rozměrový formát: ATX Form Factor (30.5 cm x 24.4 cm)
Podpora pro procesory: 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Patice procesoru: LGA1200

Pozice na paměti: 4x DDR4 memory slots, Dual-Channel mode
Podpora pro paměti:
*Podpora 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU
*Podpora 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: XMP, non-ECC

Grafická karta: (na základě procesoru)
*1x HDMI 2.0b with HDR port, maximální rozlišení 4K 60Hz
*1x DisplayPort 1.4 port, maximální rozlišení 4K 60Hz

Zvuková karta: Realtek ALC897 Codec
*7.1-Channel High Definition Audio

Síťová karta: 1x Realtek RTL8125B 2.5Gbps LAN controller

Rozšiřující sloty:
*2x PCIe x16 slots
*1x PCIe 3.0 x1 slot

SATA: 6x SATA 6Gb/s connectors

M.2: 3x M.2 slots (M-Key)

USB:
*Interní:
*1x USB 3.2 Gen 2 10Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*Externí:
*4x USB 2.0
*1x USB 3.2 Gen 2x2 20Gbps Type-C
*4x USB 3.2 Gen 1 5Gbps Type-A

Interní porty:
*1x 24-pin ATX main power connector
*1x 8-pin ATX 12V power connector
*1x 4-pin ATX 12V power connector
*1x 6-pin PCIE power connector
*6x SATA 6Gb/s connectors
*3x M.2 slots (M-Key)
*1x USB 3.2 Gen 2 10Gbps Type-C port
*1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
*2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
*1x 4-pin CPU fan connector
*1x 4-pin water-pump fan connector
*5x 4-pin system fan connectors
*1x Front panel audio connector
*2x System panel connectors
*1x Chassis Intrusion connector
*1x Clear CMOS jumper
*1x TPM module connector
*1x TBT connector (Supports RTD3)
*1x Tuning controller connector

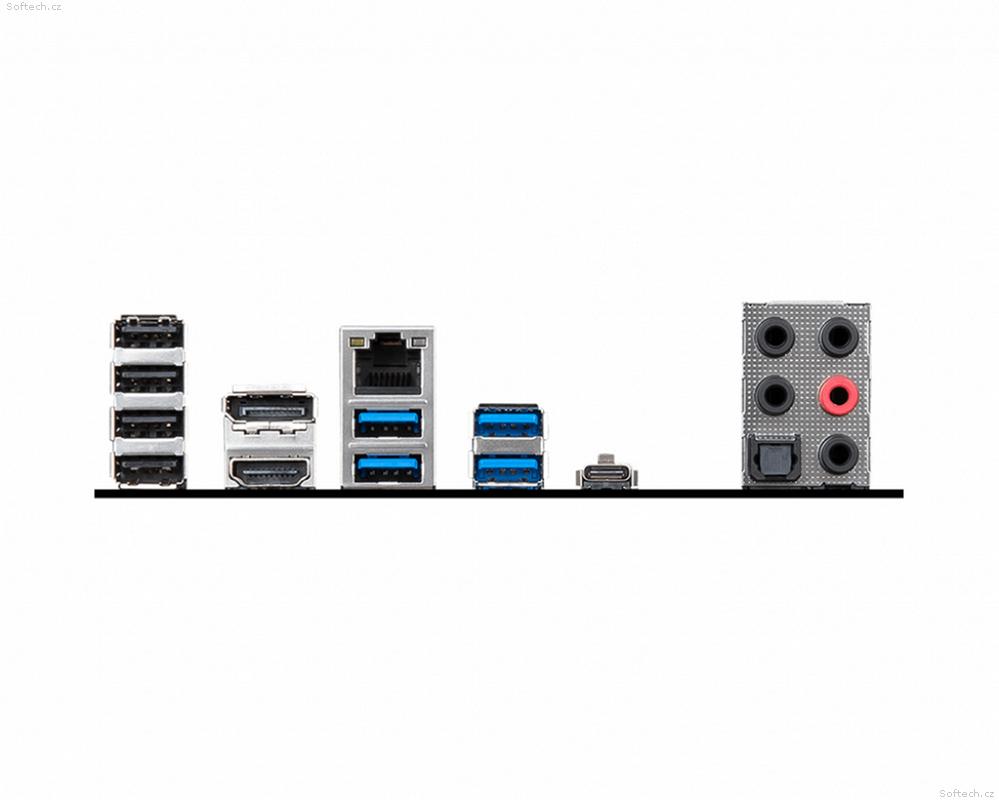

Externí porty:
*4x USB 2.0
*1x USB 3.2 Gen 2x2 20Gbps Type-C
*4x USB 3.2 Gen 1 5Gbps Type-A
*1x HDMI
*1x DisplayPort
*1x LAN port
*1x Optical S/PDIF OUT
*Audio connector

BIOS: AMI BIOS, 7D15vH2

Stránka výrobce: http://www.msi.com/Motherboard/B560-A-PRO/Overview
