MSI MB Sc LGA1700 PRO B760-P DDR4 II, Intel B760, 4xDDR4, 1xDP, 1xHDMI

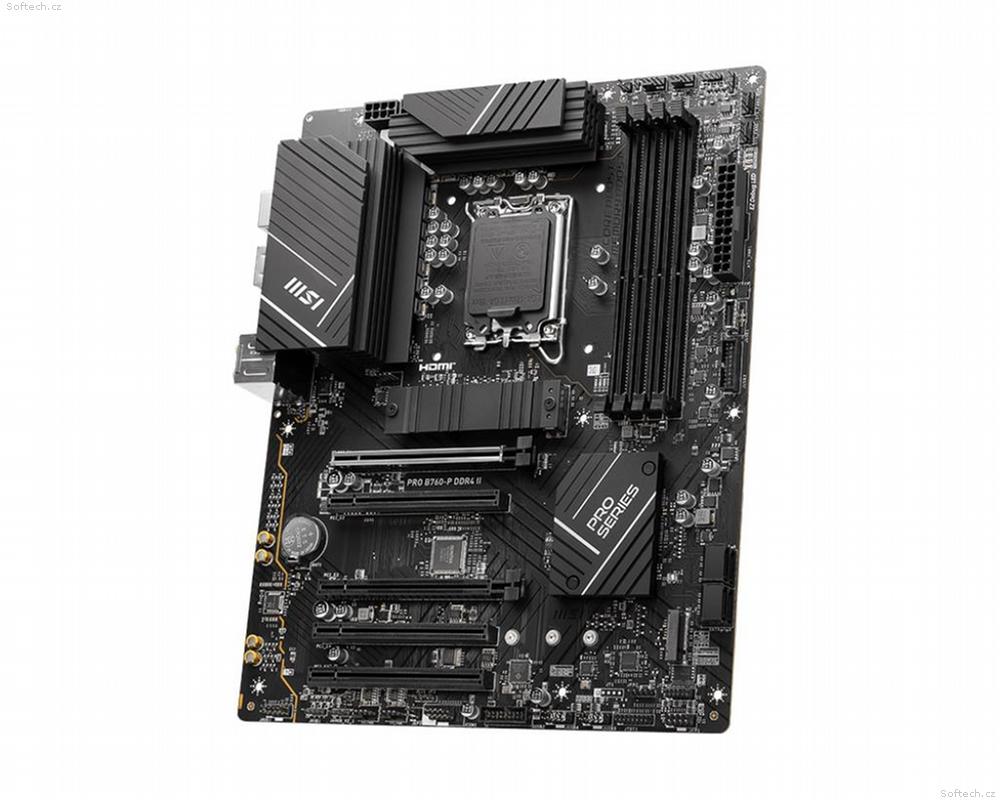

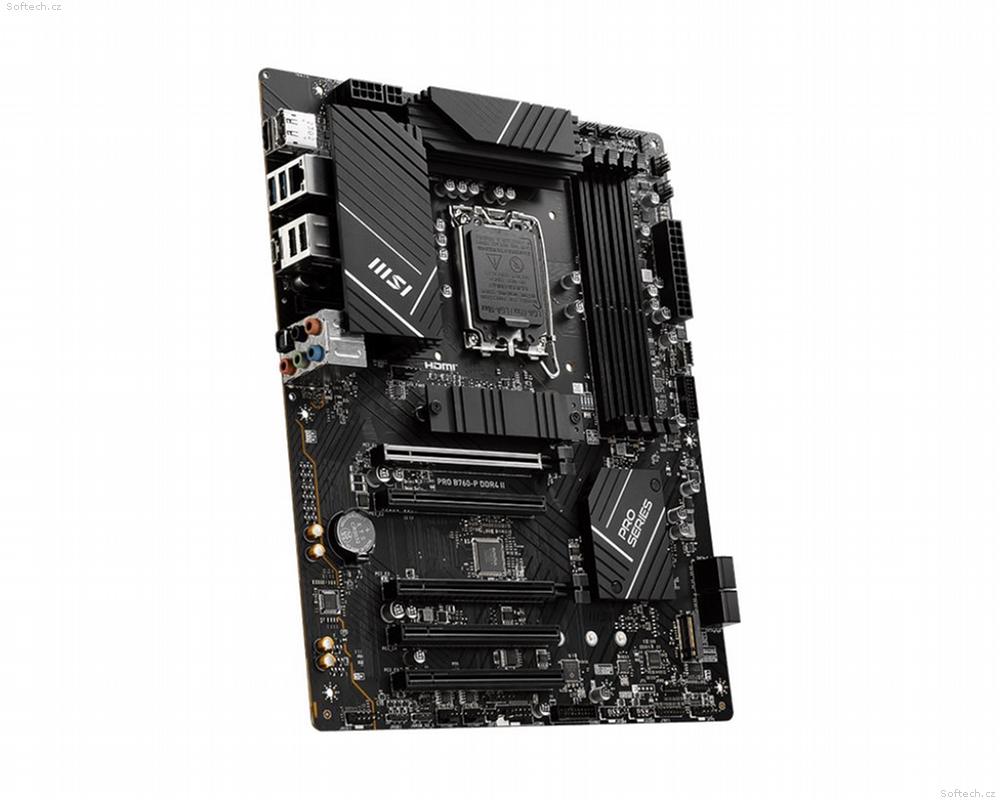

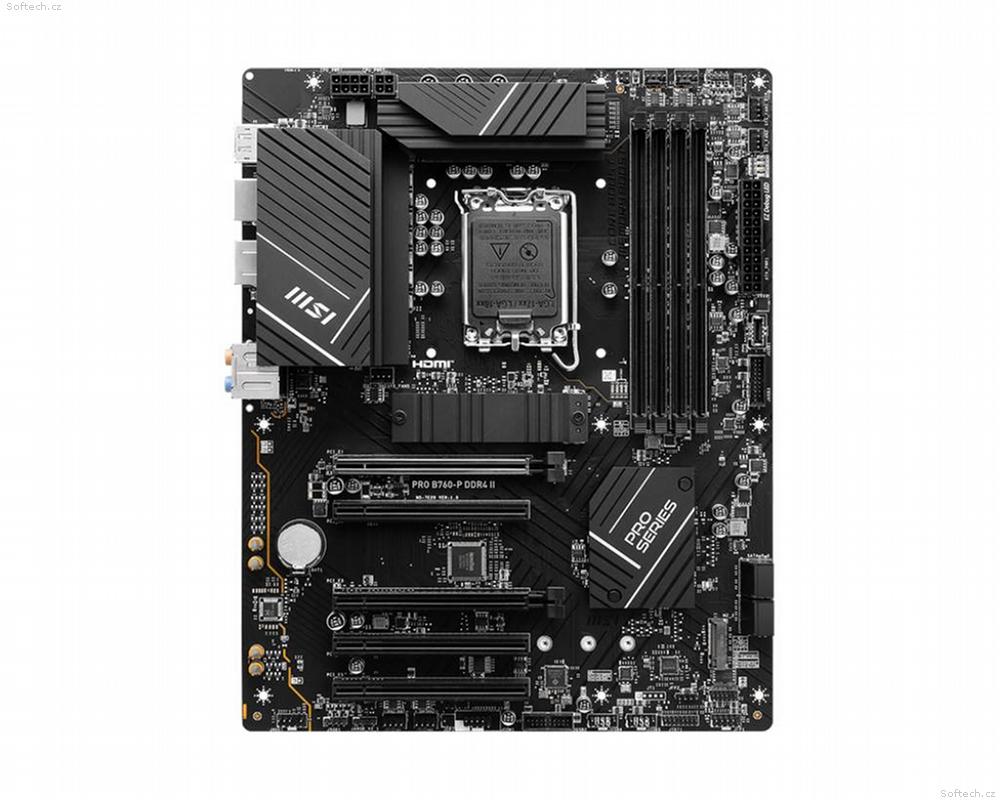

MSI PRO B760-P DDR4 II
CHIPSET

INTEL B760
MEMORY

4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
ONBOARD GRAPHICS

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT

5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
4x SATA 6G

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
1x USB 3.2 Gen2 Type C (Rear)
LAN

Realtek RTL8125BG 2.5G LAN
AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
LED FEATURE

4x EZ Debug LED

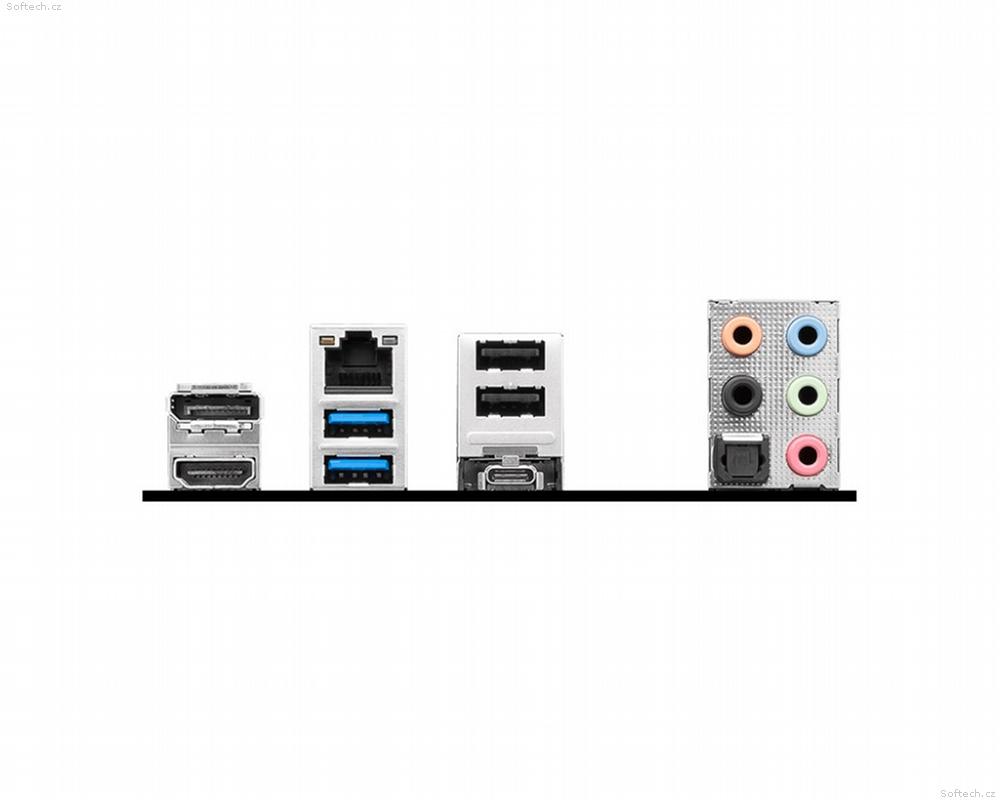

BACK PANEL PORTS

1x DisplayPort
1x 2.5G LAN
2x USB 2.0
5x Audio Connectors
1x HDMI™
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x USB 3.2 Gen 2 10Gbps (Type-C)
1x S/PDIF-OUT
OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit
FORM FACTOR

ATX
243.84 x 304.8 mm

Co je v krabici
1x Quick Installation Guide

1x M.2 Screw

1x EZ M.2 Clip

1x SATA Cable

1x I/O Shield
