MSI MB Sc AM4 PRO A520M-S, AMD A520, 2xDDR4, 1xHDMI, mATX

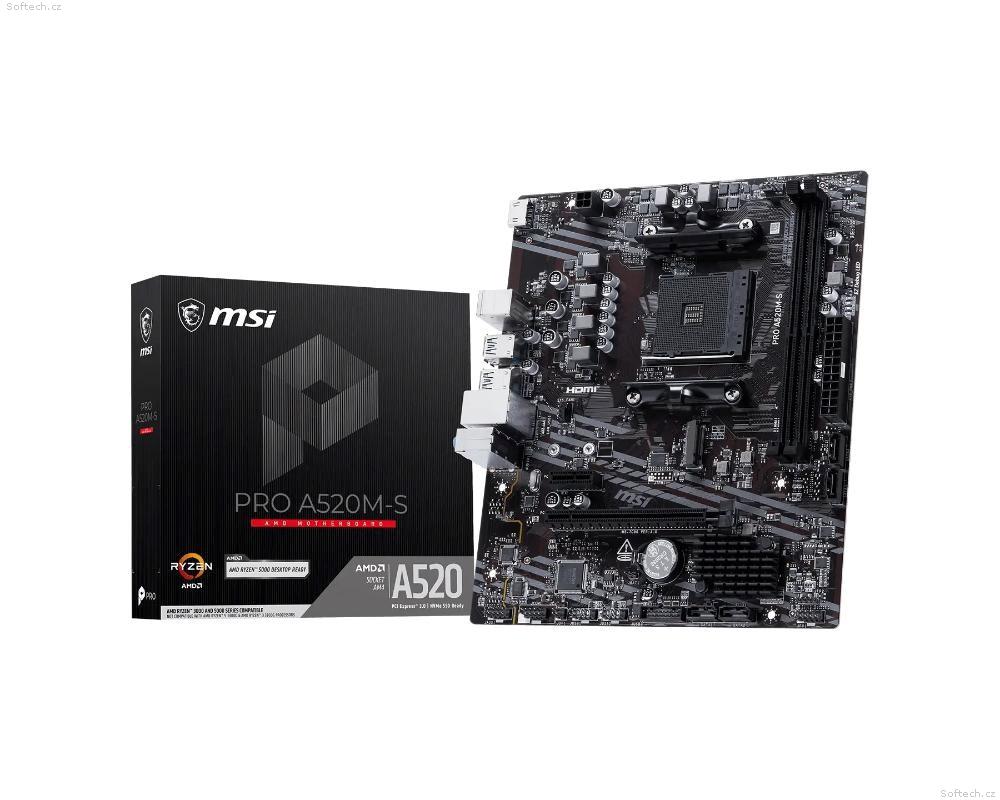

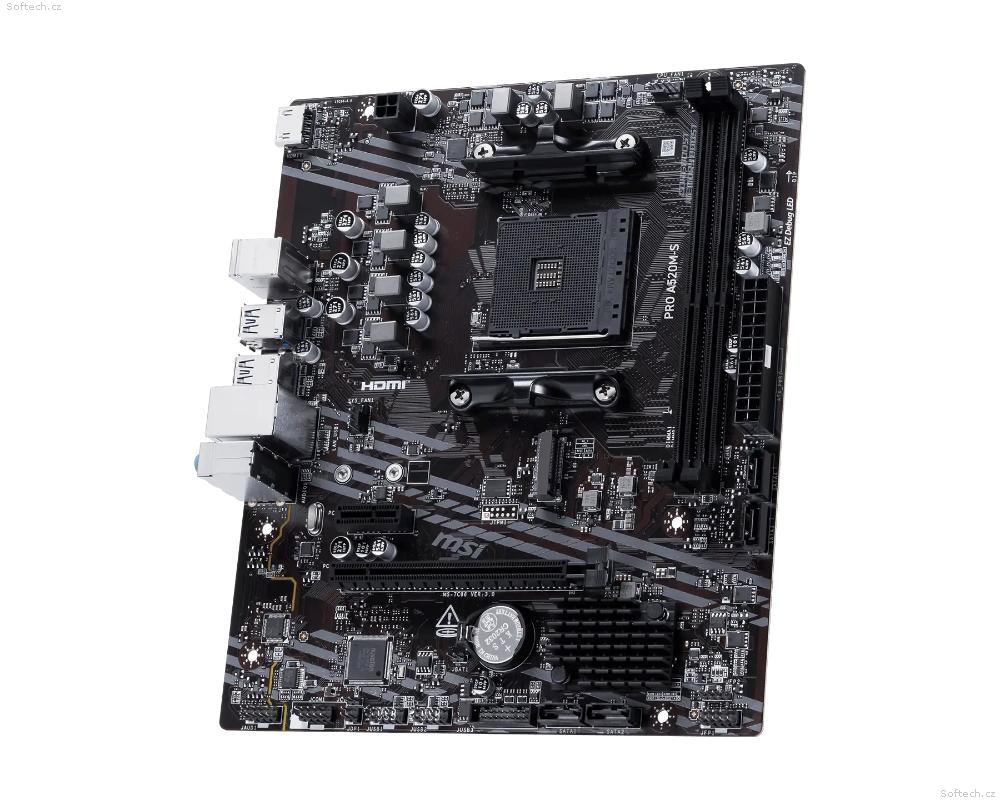

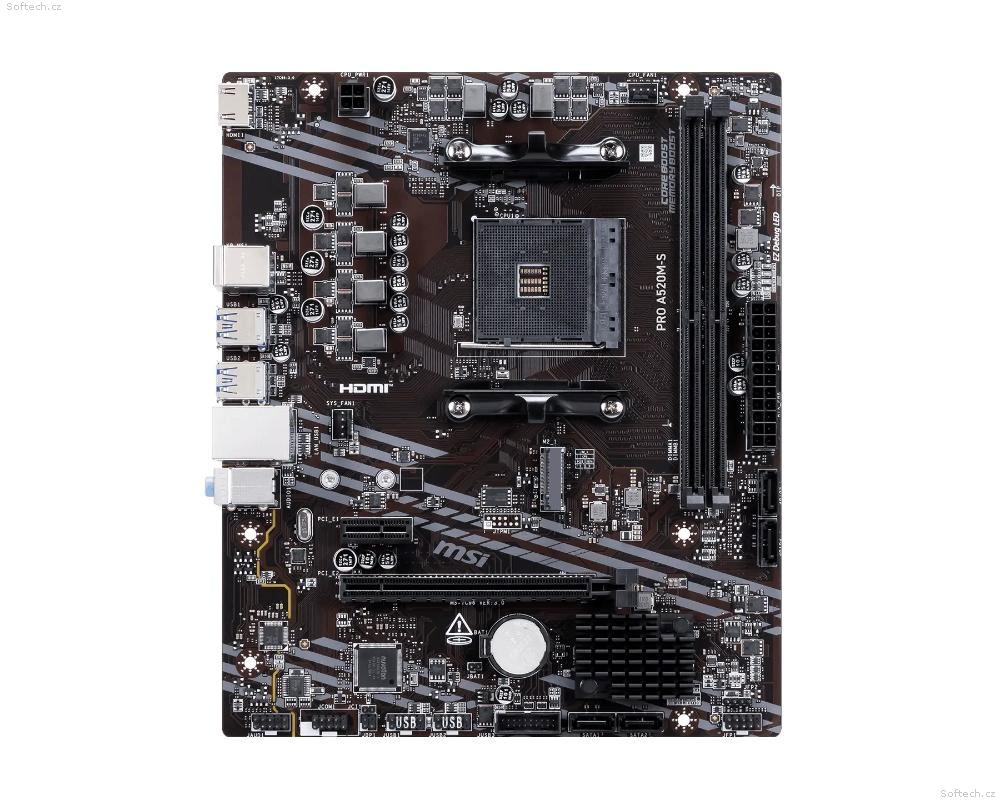

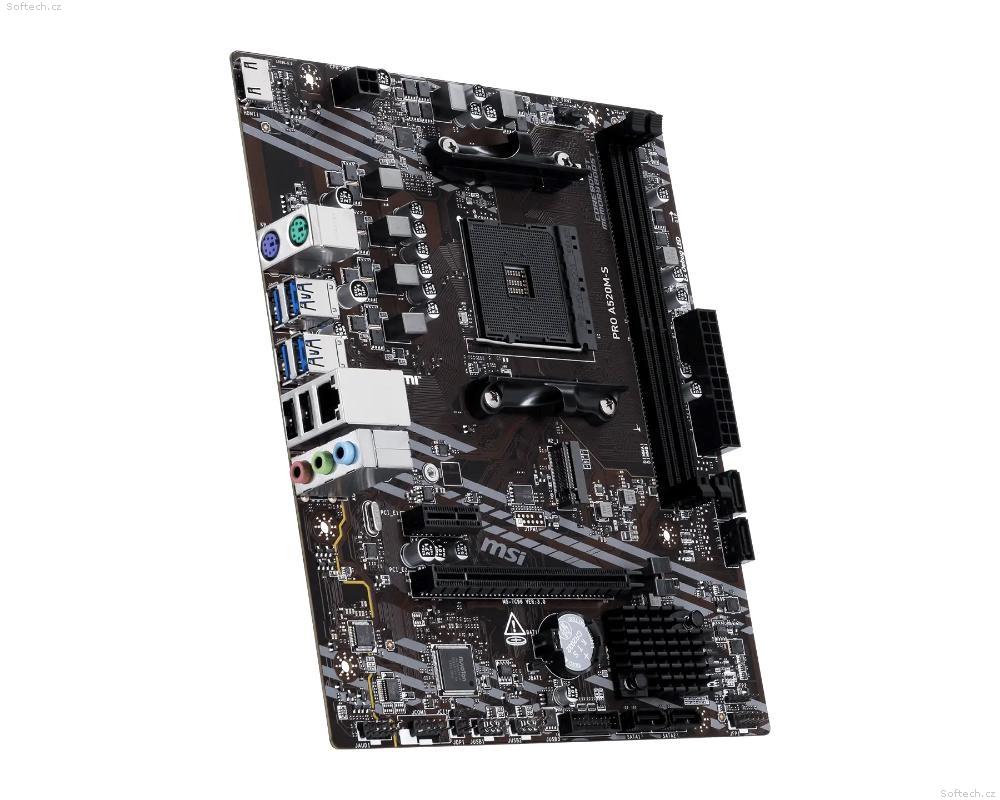

MSI PRO A520M-S
PRO A520M-S is engineered with PCIe 3.0 M.2, USB 5Gbps, and HDMI™ 1.4, ready for the AMD Ryzen™ 5000 series processors. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Chipset

AMD A520

CPU

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Socket AM4

Memory

2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Ryzen™ 5000 Series Processors max. overclocking:
• 1DPC 1R Max speed up to 4600+ MT/s
• 1DPC 2R Max speed up to 3866+ MT/s
Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

Graphics

1x HDMI™
Support HDMITM 1.4, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Expansion Slots

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU)
*The supported specification depends on installed processor.

Audio

Realtek ALC897 Codec
7.1-Channel High Definition Audio

Storage

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

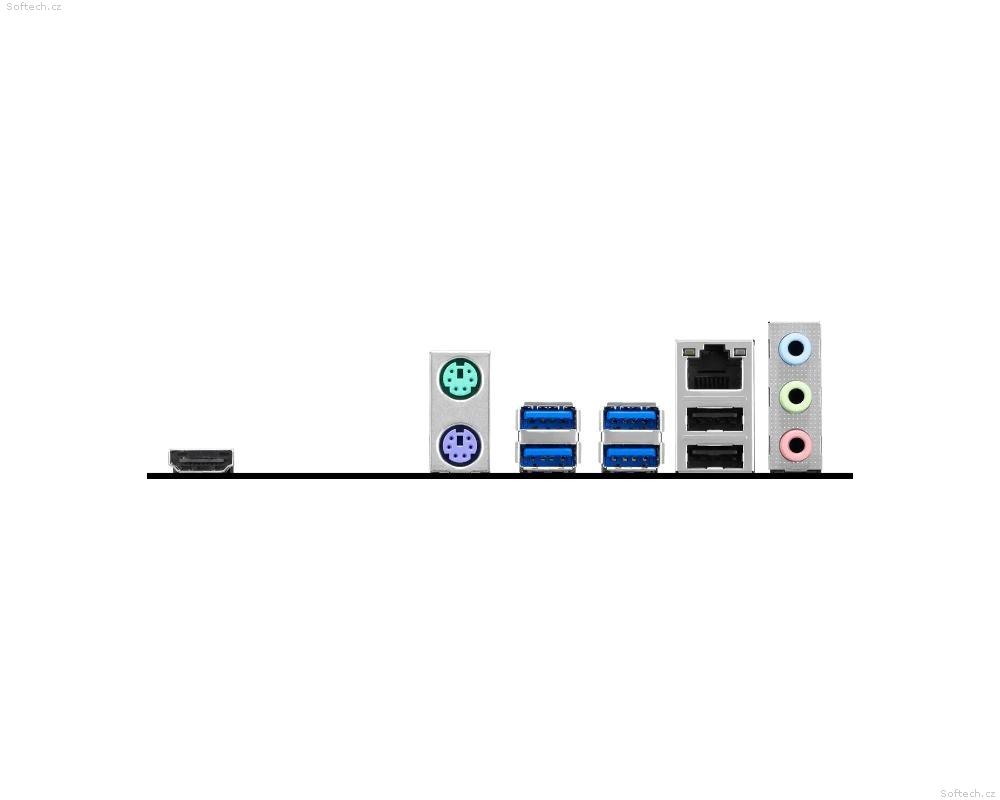

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

LAN

Realtek RTL8111H 1Gbps LAN

Internal I/O Connectors

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
4x USB 2.0 ports
2x USB 5Gbps Type A ports

LED FEATURE

4x EZ Debug LED

Operating System

Support for Windows 11 64-bit

Form Factor

mATX
200mmx236mm
