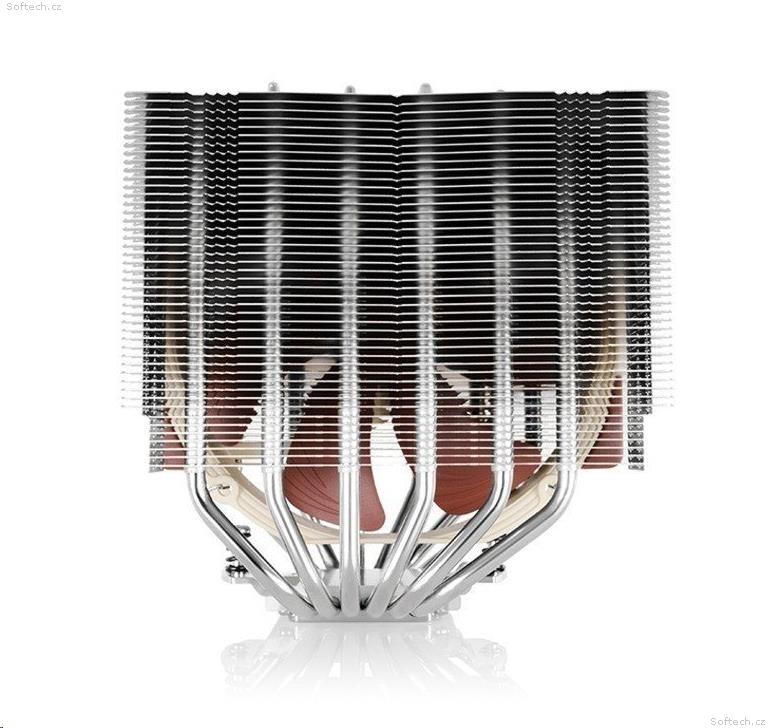

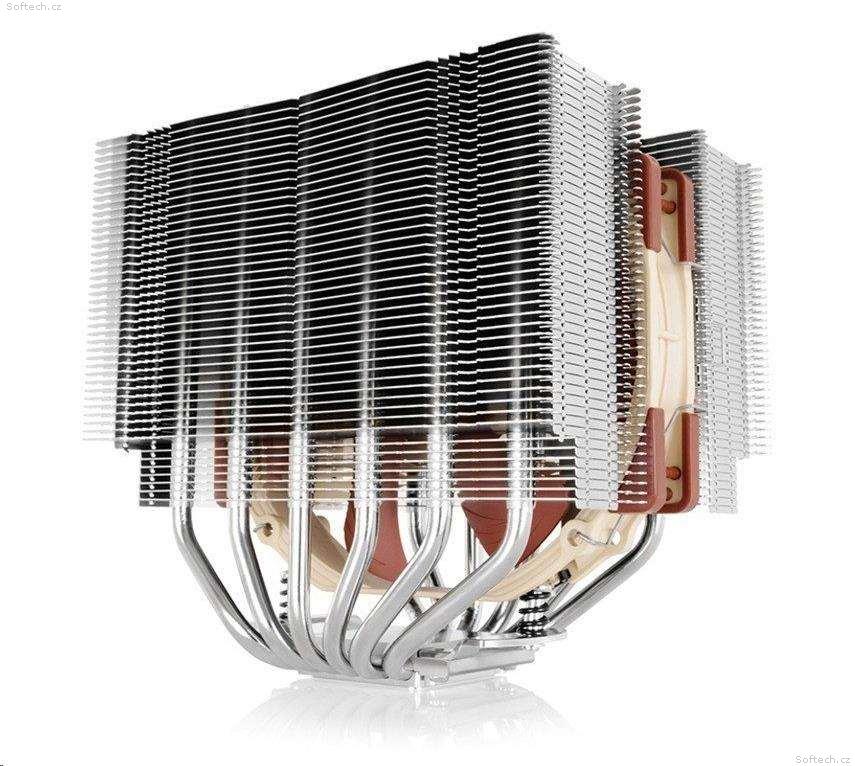

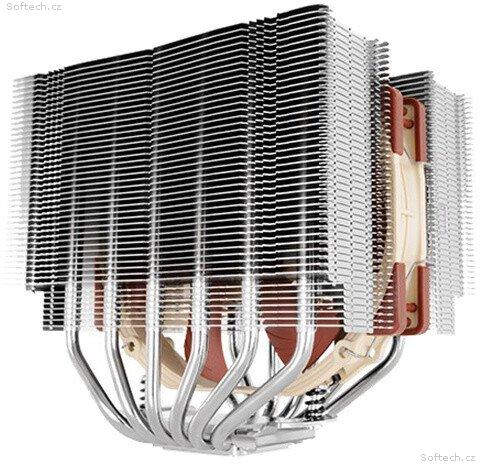

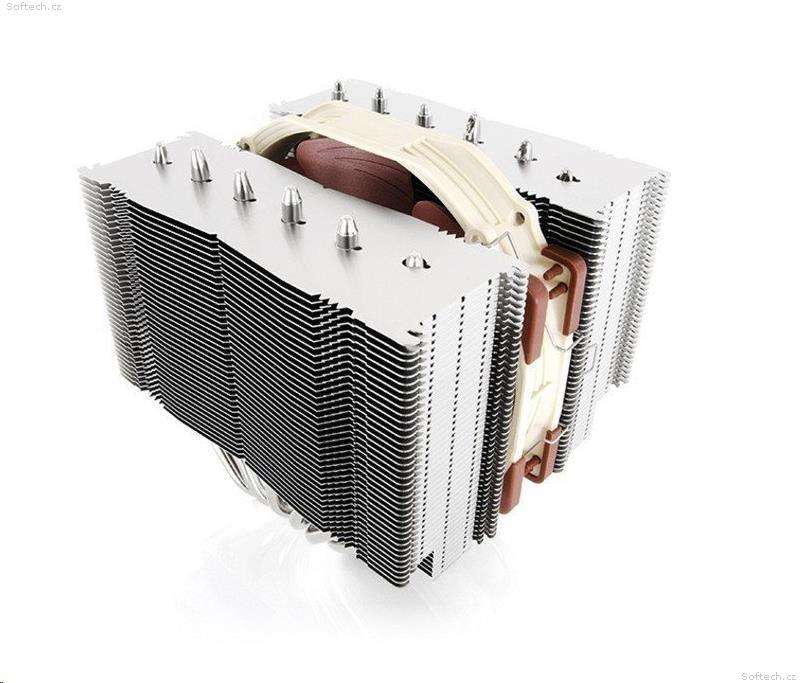

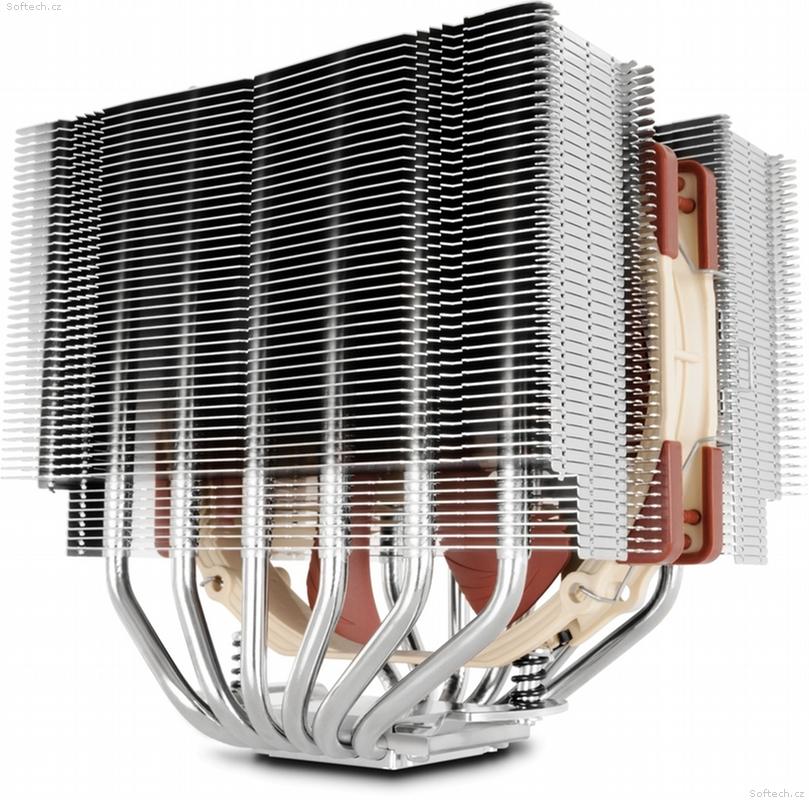

JEDNOVENTILÁTOROVÝ 140MM DVOJVĚŽOVÝ CHLADIČ
Noctua
NH-D15S
Asymetrická jednoventilátorová verze NH-D15 pro špičkovou kompatibilitu s pamětí RAM a kartami PCIe. Jediný ventilátor NF-A15 PWM i zapuštěná spodní žebra poskytují velký prostor pro komponenty.
140mm NF-A15 PWM
výška 160 mm
6 heatpipe
6 let záruka
NSPR 167
160 mmvýška s ventilátorem
6× 6 mmpočet heatpipe
140 mmventilátor NF-A15 PWM
24,6 dB(A)max. hlučnost ventilátoru
KLÍČOVÉ VLASTNOSTI
Vlajkový chladič s vyšší kompatibilitou
NH-D15S je asymetrická jednoventilátorová verze NH-D15. Uvolňuje horní PCIe slot na většině µATX a ATX desek a díky zapuštěným spodním žebrům podporuje paměťové moduly do výšky 65 mm.
01 · 6 HEATPIPE
Dvouvěžový výkon
Šest heatpipe a dvě věže poskytují vysoký výkon vzduchového chlazení.
02 · ASYMETRICKÝ DESIGN
Volný horní PCIe slot
Posunuté žebrování zlepšuje kompatibilitu s kartami PCIe na většině desek.
03 · RAM KOMPATIBILITA
Pro moduly do 65 mm
Zapuštěná spodní žebra vytvářejí prostor pro vysoké paměťové moduly.
04 · NF-A15 PWM
140mm ventilátor
Ventilátor s PWM regulací a přiloženým Low-Noise Adaptorem.
Ověřit kompatibilitu
TECHNICKÉ ÚDAJE
Kompletní specifikace
Klíčové specifikace
Kompatibilita socketů
AM5, AM4, LGA1700, LGA1851, LGA1954, LGA1156, LGA1155, LGA1150, LGA1151, LGA1200
Podporované patice dle výrobce Noctua.
Celková výška
160 mm
Celková výška chladiče v dodávané konfiguraci.
Konfigurace ventilátoru
1× 140 × 150 × 25 mm (kulatý)
Dodávaná sestava s jedním ventilátorem NF-A15 PWM.
NSPR
167
Noctua Standardised Performance Rating.
Barva
hnědá
Barevné provedení výrobce.
Záruka
6 let
Záruka výrobce Noctua.
Ventilátor NF-A15 HS-PWM
Rozměry
140 × 150 × 25 mm (kulatý)
Rozměr ventilátoru.
Rozsah otáček
0 - 2000 ot./min
Rozsah otáček s PWM regulací.
Max. průtok vzduchu
140,2 m?/h (82,52 CFM)
Maximální průtok vzduchu dle výrobce.
Max. hlučnost
24,6 dB(A)
Maximální udávaná hladina hluku ventilátoru.
Max. statický tlak
2,08 mm H?O
Maximální statický tlak ventilátoru.
Jmenovité napětí
12 V
Jmenovité napětí ventilátoru.
Příkon (typický)
1,19 W
Typický příkon ventilátoru dle výrobce.
Konektor
4-pin
Konektor ventilátoru pro PWM řízení.
Barva
hnědá
Barevné provedení ventilátoru.
Záruka
6 let
Záruka výrobce na ventilátor.
Mechanické údaje
Výška s ventilátorem
160 mm
Výška kompletního chladiče.
Výška bez ventilátoru
160 mm
Výška pasivu bez ventilátoru.
Šířka s ventilátorem
150 mm
Šířka kompletního chladiče.
Šířka bez ventilátoru
150 mm
Šířka pasivu bez ventilátoru.
Hloubka s ventilátorem
135 mm
Hloubka kompletního chladiče.
Hloubka bez ventilátoru
135 mm
Hloubka pasivu bez ventilátoru.
Hmotnost s ventilátorem
1150 g
Hmotnost kompletního chladiče.
Hmotnost bez ventilátoru
964 g
Hmotnost pasivu bez ventilátoru.
Materiál základny
měď, poniklovaná
Materiál základny chladiče.
Materiál žeber
hliník, poniklovaný
Materiál chladicích žeber.
Materiál heatpipe
měď, poniklovaná
Materiál tepelných trubic.
Spojení heatpipe a žeber
pájené
Způsob spojení heatpipe s chladicími žebry.
Barva
hnědá
Barevné provedení chladiče.
Počet heatpipe
5
Počet tepelných trubic.
Průměr heatpipe
6 mm
Průměr tepelných trubic.
Počet žeber
45
Počet chladicích žeber.
Rozteč montážních otvorů
83 mm
Rozteč montážních otvorů dle výrobce.
Rack kompatibilita
5U
Kompatibilita s rackovými jednotkami.
Velikost základny
38 × 40 mm
Rozměr kontaktní základny.
Výkon
NSPR
167
Noctua Standardised Performance Rating.
Logistické údaje
Rozměry balení
166 × 237 × 189 mm
Rozměry prodejního balení.
Hmotnost balení
2000 g
Hmotnost balení včetně produktu.
EAN
4716123315681
Evropský čárový kód produktu.
UPC
842431012616
Univerzální produktový kód.

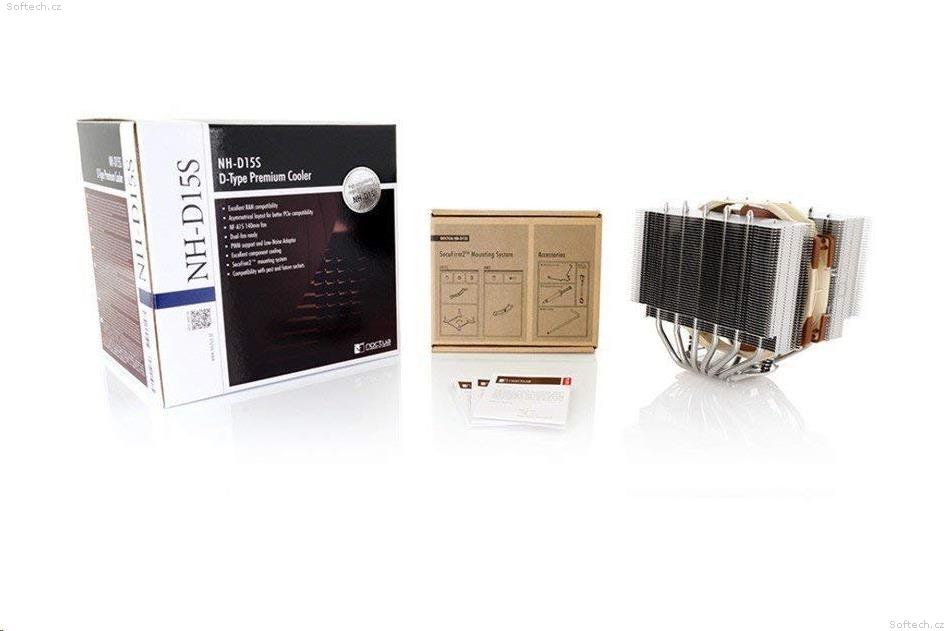

Obsah balení
Příslušenství
NF-A15 PWM, NA-RC7 L.N.A., spony pro druhý ventilátor, NT-H1, SecuFirm2™, kovový badge Noctua
NF-A15 PWM premium fan; NA-RC7 Low-Noise Adaptor (L.N.A.); fan-clips for second fan; NT-H1 high-grade thermal compound; SecuFirm2™ mounting kit; Noctua metal case-badge.
Produktové informace: Noctua NH-D15S
