Popis produktu:

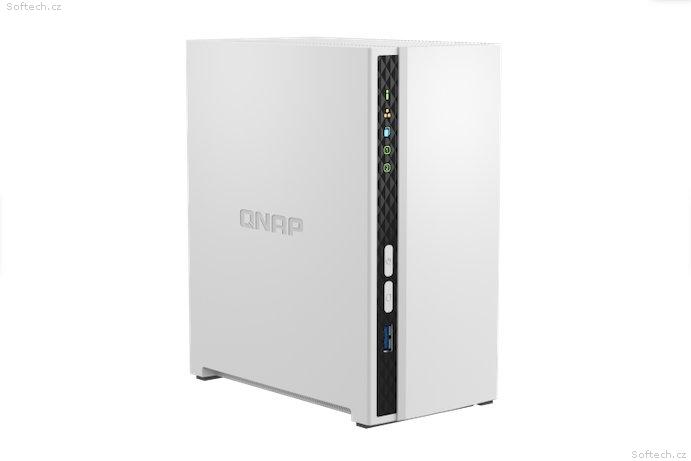

QNAP TS-233
Šetří čas a peníze. Nejlepší úložiště NAS základní úrovně.
Provozujte své vlastní privátní cloudové úložiště a využívejte snadný přístup k souborům, sdílení a synchronizaci pomocí zařízení TS-233. Zařízení TS-233 je určeno pro začátečníky a domácí uživatele NAS a nejenže zjednodušuje ukládání dat a spolupráci, ale také nabízí bohaté multimediální aplikace jako kompletní portál pro domácí zábavu.
Stránky produktu: https://www.qnap.com/cs-cz/product/ts-233
Seznam kompatibility HDD/SSD: https://www.qnap.com/cs-cz/compatibility/?model=616&category=1
Seznam kompatibility rozšiřujících jednotek: https://www.qnap.com/cs-cz/compatibility-expansion?model=ts-233
Specifikace hardware
CPU Čtyřjádrový procesor ARM Cortex-A55 2,0GHz
Architektura CPU ARM 64 bitů
Grafické procesory Mali-G52
Jednotka s pohyblivou řádovou čárkou ✓
Šifrovací modul ✓
Hardwarově akcelerované překódování ✓
Neural Processing Unit (NPU) ✓
Systémová paměť 2 GB na desce (bez možnosti rozšíření)
Poznámka: Vyhrazuje část RAM jako sdílenou grafickou paměť.
Maximální paměť 2 GB na desce (bez možnosti rozšíření)
Paměť Flash 4 GB (dvojitá ochrana OS při spouštění)
Pozice pro diskové jednotky 2 x 3,5" SATA 6 Gb/s, 3 Gb/s
Kompatibilita diskových jednotek 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Vyměnitelné za provozu ✓
Gigabitový Ethernet port (RJ45) 1
Probuzení po síti LAN (WOL) ✓
Rámec Jumbo ✓
Port USB 2.0 2
Port USB 3.2 Gen 1 1
Tvarový činitel Stolní
Indikátory LED Stav systému, LAN, USB, HDD1-2
Tlačítka Napájení, reset, kopírování na USB
Rozměry (V x Š x H) 186 × 91,7 × 157,6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Hmotnost (čistá) 1.69 kg
Hmotnost (celková) 1.89 kg
Provozní teplota 0 – 40 °C (32 – 104 °F)
Skladovací teplota -20 – 70 °C (-4 – 158 °F)
Relativní vlhkost Relativní vlhkost 5 až -95 %, bez kondenzace, teplota vlhkého teploměru: 27 °C (80,6 °F)
Napájecí jednotka Minimum 48W adapter (12VDC), 100-240VAC
Spotřeba energie: Režim spánku HDD 3,43 W
Spotřeba energie: Provozní režim, typický 10,81 W
Testováno s plně osazenými disky.
Ventilátor 1 x 80mm, 12 V DC
Systémové varování Bzučák
Standardní záruka 2
Max. počet souběžných připojení (CIFS) – s max. pamětí 200
Specifikace software
Operating System QTS 5.1.3
Supported Client Operating Systems 1. Apple Mac OS 10.10 or later
2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
3. IBM AIX 7, Solaris 10 or later UNIX
4. Microsoft Windows 7, 8, 10 and 11
5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers 1. Apple Safari (latest version)
2. Google Chrome (latest version)
3. Microsoft Edge (latest version)
4. Mozilla Firefox (latest version)
Supported Languages Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Storage Pool ✓
SED Storage Pool ✓
Maximum Pool size 308 TB
Maximum number of storage pool 128
Volume Type Thick, Thin, Static
Maximum volume size 250 TB
Note: At least 4 GB RAM is required.
Maximum number of volume 128
Maximum shared folder size 250 TB
Maximum number of shared folder 512
JBOD Expansion ✓
VJBOD / VJBOD Cloud ✓
iSCSI Service ✓
Fibre Channel Service ✓
LUN Type Thick, Thin
File-based iSCSI LUN ✓
Block-based iSCSI LUN ✓
Maximum LUN size 250 TB
Note: At least 4 GB RAM is required.
Maximum number of targets LUN 128
LUN feature 1. LUN Mapping (LUN can be moved between iSCSI and FC)
2. LUN Masking
3. WWPN Aliases Import/Export
4. FC Port Group
5. FC Port Binding
6. Multipath IO (MPIO)
7. Online LUN capacity expansion
8. LUN snapshot
9. LUN snapshot replication and clone
Auto Tiering Requires minimum 2GB memory.
RAID Type 1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
4. 2-bay: JBOD, Single, RAID 0, 1
RAID Group To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.
RAID Level Migration ✓
RAID Expansion (by adding Disk) ✓
RAID Expansion (by replacing bigger Disks) ✓
Storage Pool Expansion (by adding RAID Group) ✓
RAID Hot Spare Global, Local
RAID Sync/Rebuild/Scrubbing ✓
Internal drive EXT4
External drive EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.
Disk, Enclosure Locate ✓
Disk S.M.A.R.T. Scan ✓
Disk S.M.A.R.T. Data Migration ✓
Ironwolf Health Management ✓
Secure Erase ✓
SSD Trim ✓
SSD Life Estimation ✓
Disk Roaming ✓
Disk Standby ✓
Volume Snapshot ✓
LUN Snapshot ✓
Maximum Snapshot (Per System) Check maximum number of snapshots of your NAS
Maximum Snapshot (Per Volume / LUN) Check maximum number of snapshots of your NAS
Minimum Snapshot Interval 5 minutes
Snapshot Retention Policy ✓
Self-serve Snapshot Recovery ✓
Application Consisted Snapshot ✓
Snapshot Full Clone ✓
Snapshot Replica / Vault ✓
SSD profiling tool ✓
External Device Management ✓
Mount Smart Phone (MTP) ✓
External RAID Device (QNAP so on) Management (External Device Mode) ✓
External RAID Device (QNAP so on) Management (NAS Mode) ✓
File Server 1. File sharing across Windows, Mac, and Linux/UNIX
2. Microsoft networking (CIFS/SMB)
3. Apple networking (AFP)
4. NFS version 3/4 services
FTP Server 1. QuFTP
2. FTP, SFTP and TFTP protocols
3. FTP over SSL/TLS (explicit FTPS)
4. FXP support
Maximum FTP connection 1024
File Station (Web) ✓
Object Storage ✓
Local user account 4,096
Local group account 512
Domain user/group account 200
Domain Security ✓
Domain Controller ✓
Shared folder permission ✓
Advanced folder permission ✓, (AFP, CIFS/SMB, FTP, and File Station)
Windows ACL ✓, (CIFS/SMB)
User quota ✓
Group quota ✓
Folder quota ✓, (Snapshot shared folder)
Home folder ✓
Resource Monitor ✓
SNMP V2, V3
Network recycle bin 1. Recover files deleted using AFP, CIFS/SMB, and File Station
2. Automatic cleanup and file type filter
System Log & Notification Center Log recording: 3,000 event per second
Smart Fan ✓
Schedule on/off ✓
Internet protocol IPv4, IPv6
Virtual Switch ✓
Port trunking ✓, (7 modes)
VLAN ✓
DHCP Server ✓
DDNS (Dynamic Domain Name Service) ✓
Network access protection with auto-blocking SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP
Security Counselor ✓
Malware Remover ✓
AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP ✓
2-step verification ✓
Allow/Deny List ✓
Access Protection ✓
Service binding ✓
Firewall ✓
vSphere Web Client Plug-in ✓
VMware vSphere VAAI for iSCSI ✓
VMware vSphere VAAI for NAS ✓
Windows ODX ✓
Windows/VMware Snapshot Agent ✓
HTTP/HTTPS Connections TLS 1.0/1.1/1.2/1.3
Supports WebDAV Connection ✓
Supports Virtual Hosts 32
Qsync Note: At least 1 GB RAM is required.
[Qsync] Management Mode User customization, Central
[Qsync] Qsync client supported platforms Windows, macOS, Ubuntu, Android, and iOS
[Qsync] Maximum number of version control 64
HybridMount Note: At least 1 GB RAM is required.
[HybridMount] File Cloud Gateway Concurrent Connections = 20 Upload & 20 Download
[HybridMount] Network Drive Mount ✓
[HybridMount] Free cloud gateway sessions 2
HBS (Hybrid Backup Sync) Note: At least 1 GB RAM is required.
[HBS (Hybrid Backup Sync)] NAS to NAS backup ✓
[HBS (Hybrid Backup Sync)] Cloud Backup ✓
[HBS (Hybrid Backup Sync)] Cloud Sync ✓
[HBS (Hybrid Backup Sync)] 2-way and Active Sync ✓
[HBS (Hybrid Backup Sync)] Apple Time Machine Backup ✓
[HBS (Hybrid Backup Sync)] External drive backup ✓
[HBS (Hybrid Backup Sync)] Maximum number of backup job 400
Qsirch Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory
[Qsirch] Previews Photos, music, videos, PDFs, Gmail, and others
[Qsirch] Integrate Mac Finder ✓
[Qsirch] Advanced picture search ✓
[Qsirch] Search filters ✓
QuMagie Note: At least 1 GB RAM is required.
[QuMagie] Browse photos ✓
[QuMagie] Virtual and smart albums ✓
[QuMagie] AI-assisted photo management People, things, places, and others
Antivirus (free) ✓
QVPN Service Note: At least 1 GB RAM is required.
[QVPN Service] Remote Access PPTP, L2TP/IPSec, OpenVPN, QBelt (QNAP proprietary)
[QVPN Service] Supportedd utility and mobile app Windows, macOS, iOS, and Android
[QVPN Service] Supported maximum clients 100
LDAP Server ✓
RADIUS ✓
SQL server ✓
License Center ✓
Multimedia Console ✓
Photo Station ✓
Music Station ✓
Video Station ✓
Download Station ✓
Notes Station ✓
Qfiling ✓
Media Streaming add-on ✓
QmailAgent ✓
QuWAN ✓
DA Driver Analyzer ✓
Q"center Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).
Q"center Server ✓
Q"center Agent ✓
Connect to Q"center ✓
Container Station Note: At least 1 GB RAM is required.
[Container Station] Supported type LXC/LXD and Docker
Note: LXD has been supported after Container Station 2.4
[Container Station] Docker Hub Registry ✓
[Container Station] Container importing and exporting ✓
[Container Station] Console mode ✓
QVR Elite Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
[QVR Elite] Recording Technique Standard MP4 file based
[QVR Elite] License Type Subscription-based
[QVR Elite] User-defined trigger events ✓
[QVR Elite] QVR Pro Client (Desktop) Windows, macOS, and QNAP HybridDesk Station
[QVR Elite] QVR Pro Client (Mobile) Android and iOS
[QVR Elite] Recording camera streams H.264
[QVR Elite] Free built-in camera channels 2
QVR Pro Client ✓
[QVR Pro Client] Dynamic View Layout ✓
[QVR Pro Client] Windows ✓
[QVR Pro Client] Mac ✓
[QVR Pro Client] HybridDesktop ✓
[QVR Pro Client] iOS ✓
[QVR Pro Client] Android ✓
QVR Human ✓
QVR Face The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/
QVR DoorAccess ✓
