SEASONIC zdroj 750W FOCUS SPX-750 (2021), 80+ GOLD

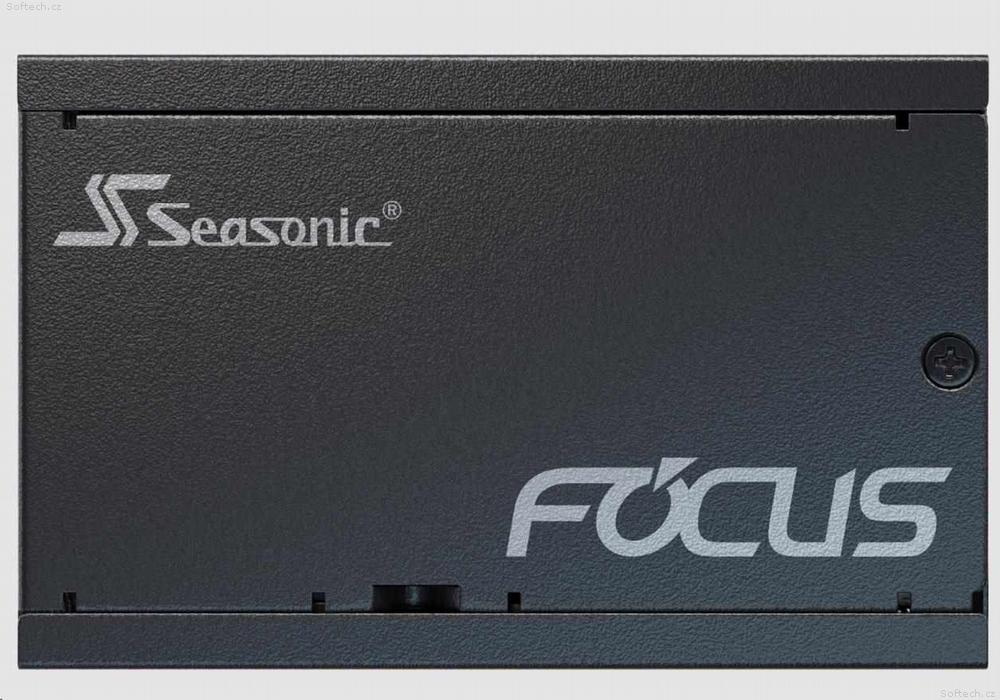

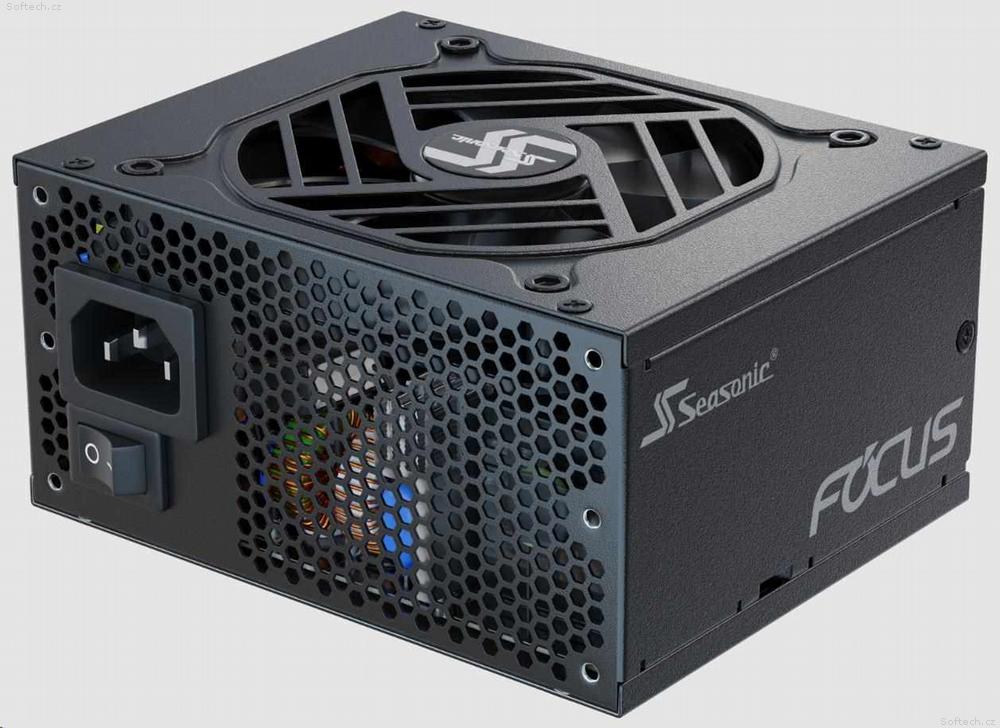

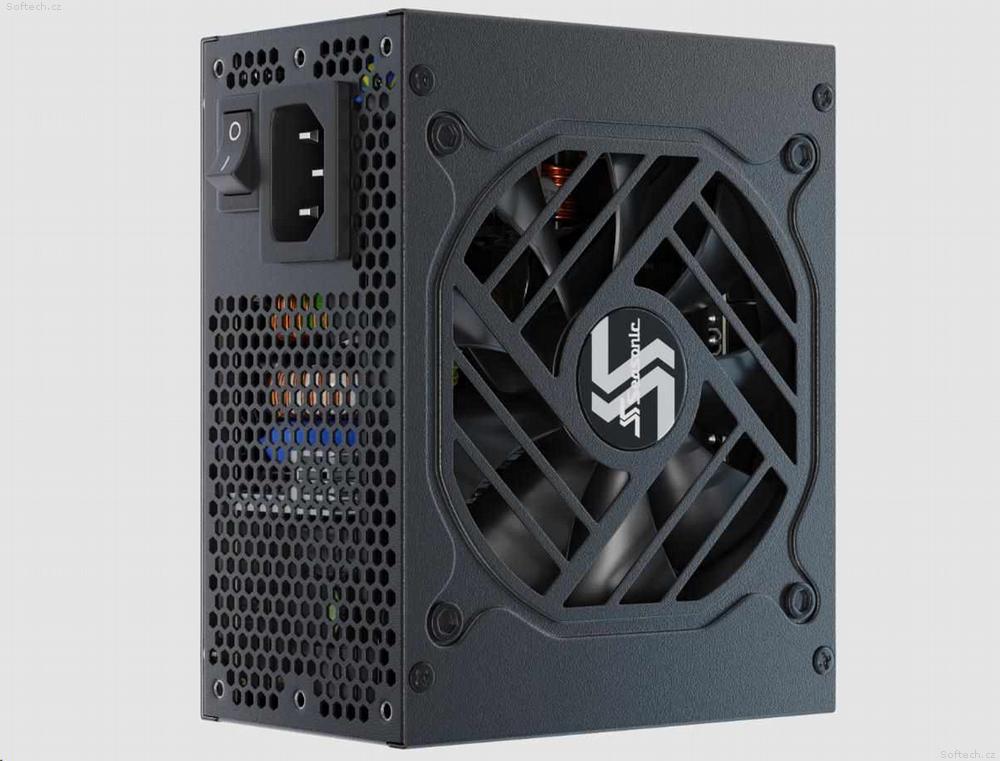

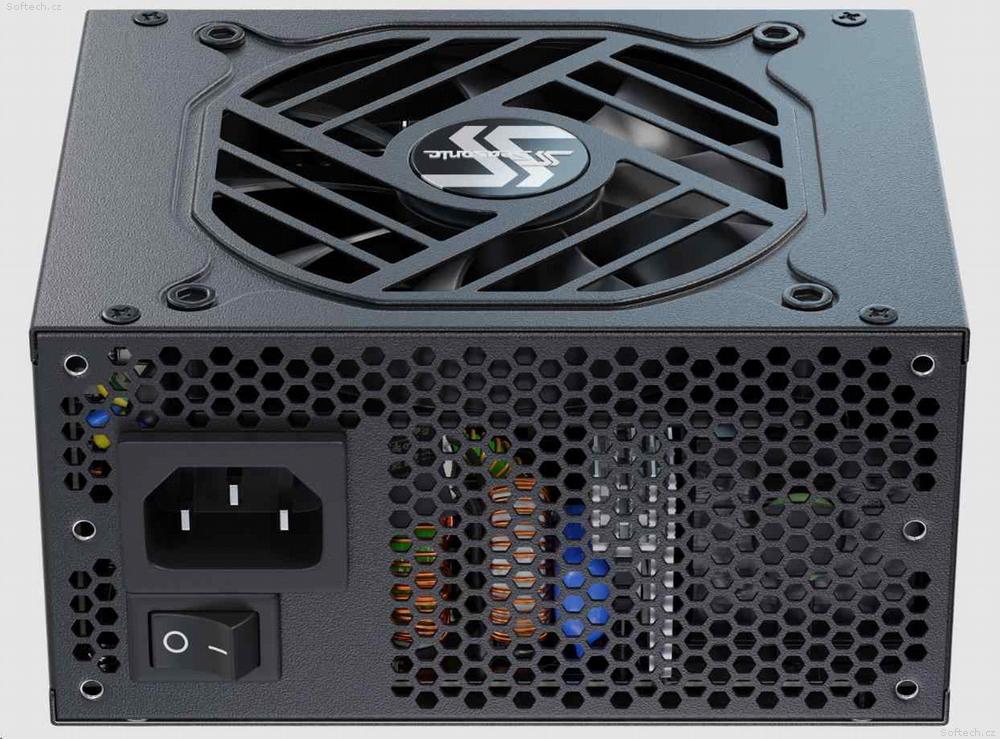

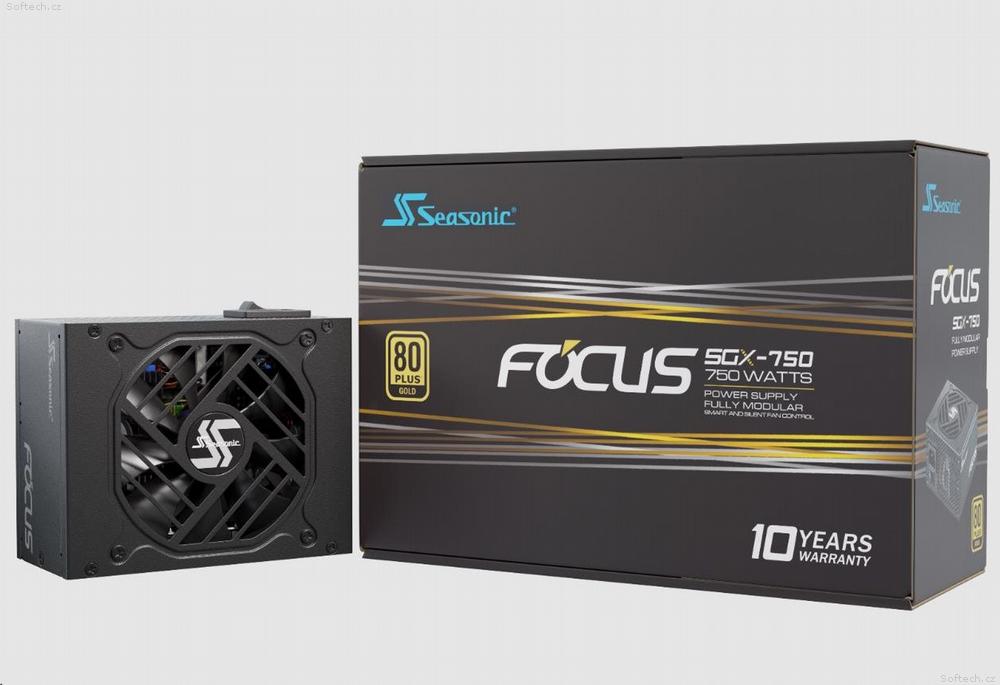

FOCUS SPX-750 (2021)

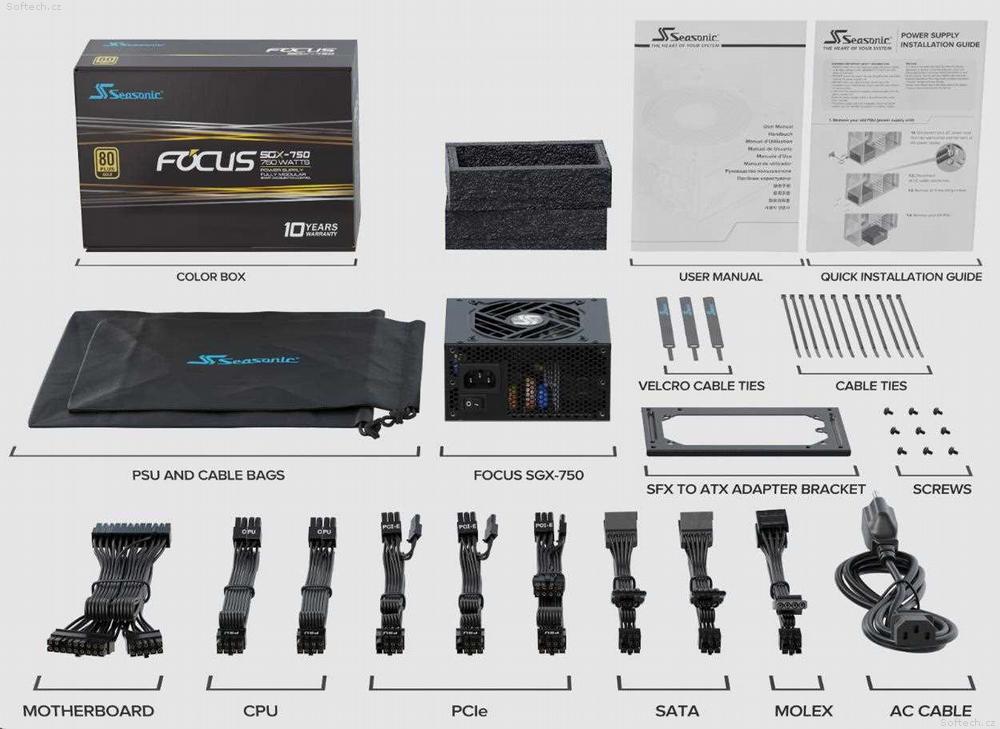

The new line of Seasonic"s FOCUS SGX is versatile in its application and powerful with a small footprint. It is a standard SFX unit, measuring at 125 mm (L) x 100 mm (W) x 63.5 mm (H). The FOCUS SGX (2021) is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.
SFX 12 V / ATX 12 V
Fully Modular
80 PLUS Gold Certified
10 Years Warranty
TECHNICAL SPECIFICATIONS
80PLUS
Gold
Cybenetics Efficiency Level
TBA
Cybenetics Noise Level
TBA
Form Factor
Intel SFX 12 V / ATX 12 V
Dimensions (L x W x H)
100 x 125 x 63.5 mm

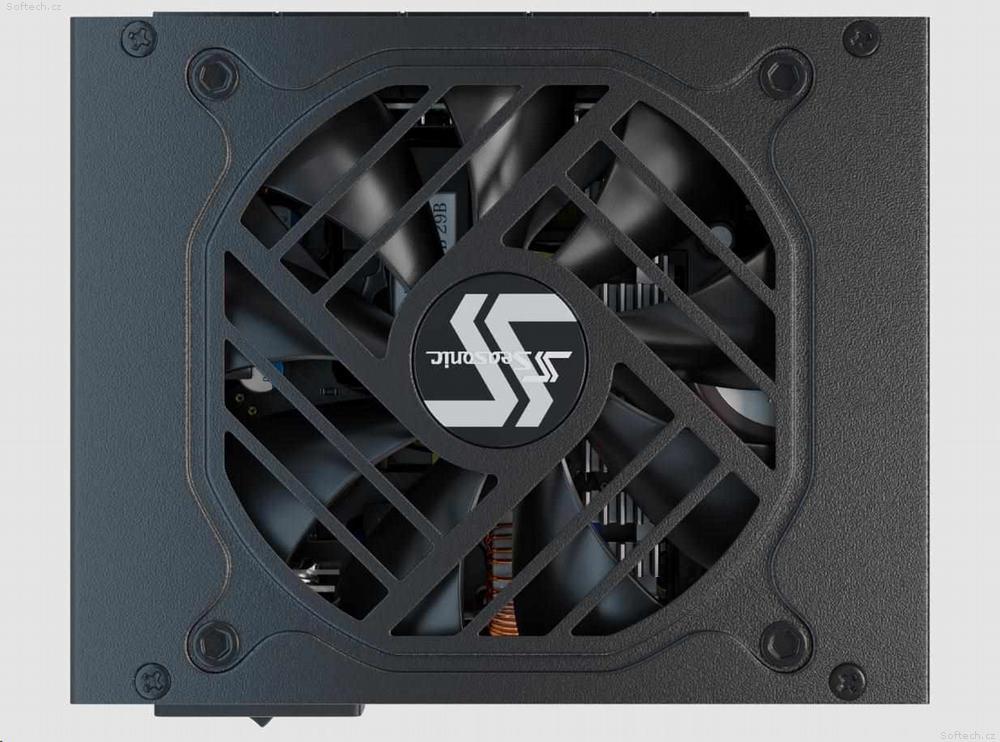

Fan Size
92 mm
Fan Control
Premium Hybrid Fan Control
Fan Bearing
Fluid Dynamic Bearing
Life Expectancy
50,000 hours at 40 °C, 15 % - 65 % RH
Modularity
Fully Modular
Cable type
Flat black cables
Operating Temperature
0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF @ 25 °C, excl. fan
100,000 hours
AC Input
Full Range
Protection
OPP, OVP, UVP, OCP, OTP, SCP
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty
10 Years
AC Input
Voltage: 100 V - 240 V
Current: 10 - 5 A
Frequency: 50 Hz - 60 Hz
