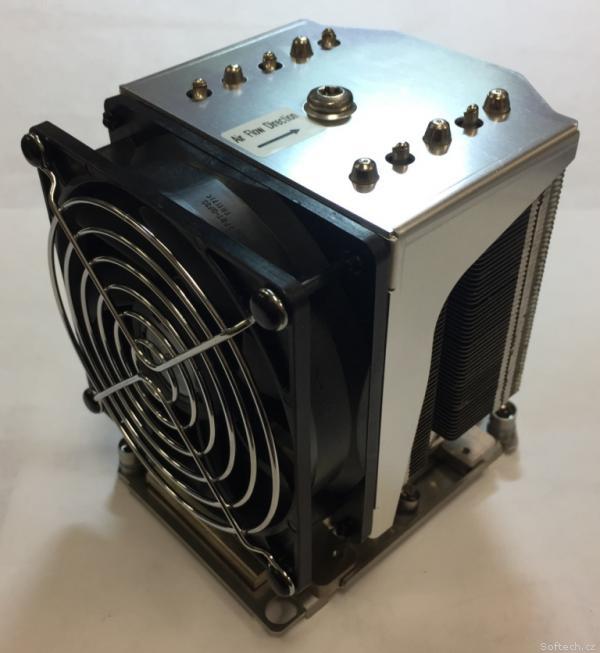

Supermicro SNK-P0070APS4 4U Heatsink s.3647-0 X11 Purley Platform 4U Series Servers and Workstations

This CPU heat sink is designed for Supermicro X11 generation general 4U servers and workstations equipped with Intel® Xeon® scalable processors. The heat sink has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Manufacturer
Supermicro
Server Form Factor
4U
Cooling Type
Active
CPU Configuration
Uni Processor, Dual Processor
Supported CPU SKU
Intel® Xeon® Scalable Processors
Supported CPU Socket
FCLGA3647-0 (Narrow Mounting Mechanism)
Supported CPU TDP
Up to 205 Watts
Attached Cooling Fan
Speed Control: 4-pin PWM
Rated Voltage: 12.0 VDC
Rated Speed: 3,800 RPM
Acoustic Noise: 38.0 dB(A) at Rated Speed
Fan Dimensions: 92L x 92H x 25W (mm)
Position: Front Side
MTBF/MTTF: 108,798 Hours
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
