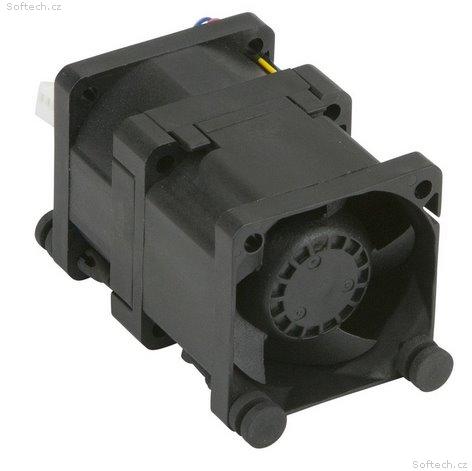

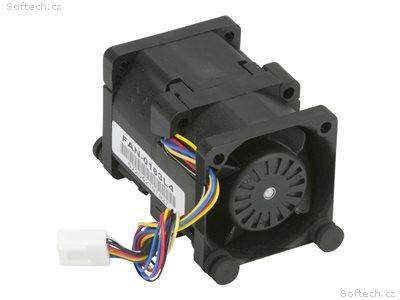

Supermicro 40mm Counter-Rotating Fan for GPU series

Sunon (PF40561BX-Q40U-S9H) FAN-0163L4 is a standard fan for 1U 4-GPU series chassis. This fan has been fully tested and validated by Supermicro to ensure the best quality and cooling performance.
Manufacturer
Sunon
Fan Size
40mm
Rated Fan Speed
23300 RPM [Inlet] / 20300 RPM [Outlet]
Acoustic Noise Level
69.4 dBA
Maximum Airflow Rate
34.8 CFM
Rate Current (A)
1.9A
Connector
4 Pin
Dimensions
40L x 40H x 56W (mm)
Search Terms
B8-04056CSU-001T001, A8-04056CSU-001T001, D04112620G-01
Warranty
1 year warranty
Product Environmental Compliance
RoHS and REACH compliant, details available upon request
